1. Introduktion
This instruction manual provides essential information for the proper installation, maintenance, and troubleshooting of your Brandt Dishwasher Door Seal, model AS0010960. This seal is a critical component for maintaining the efficiency and preventing leaks in your dishwasher. Please read this manual thoroughly before proceeding with installation or any maintenance.
2. Produktet er slutview
The Brandt Dishwasher Door Seal AS0010960 is a replacement rubber gasket designed to create a watertight seal around the dishwasher door. A properly functioning door seal is crucial for preventing water leaks during operation and ensuring optimal washing performance.

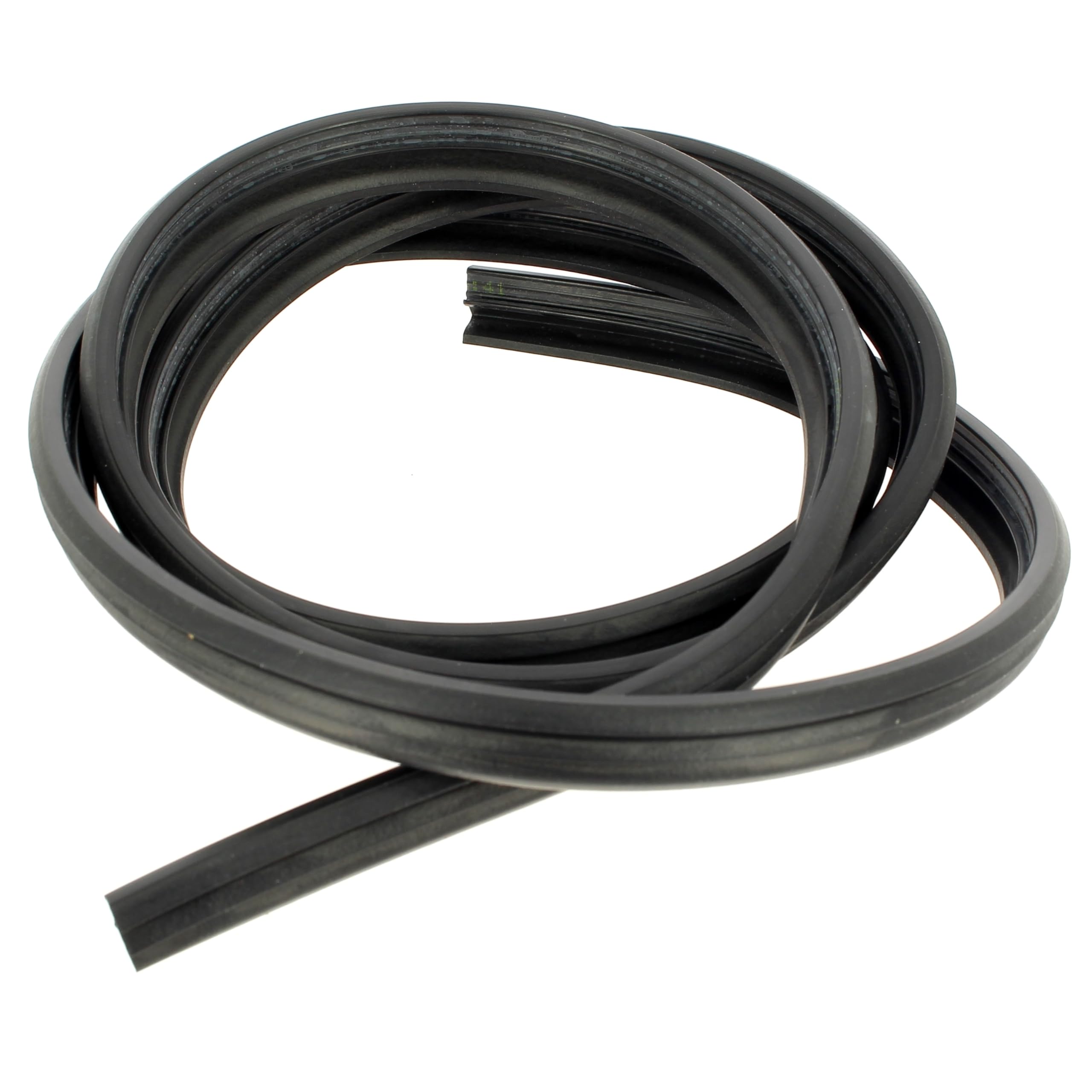

Figure 1: The Brandt Dishwasher Door Seal AS0010960, shown coiled. This black rubber gasket is designed to fit around the perimeter of your dishwasher door, ensuring a tight seal to prevent water leakage during wash cycles.
3. Sikkerhedsoplysninger
- Afbryd strømmen: Always ensure the dishwasher is disconnected from the main power supply before attempting any installation or maintenance. Failure to do so can result in electric shock.
- Brug beskyttelsesudstyr: It is recommended to wear gloves to protect your hands during installation.
- Håndteres med forsigtighed: The seal should be handled carefully to avoid damage or kinks that could compromise its sealing ability.
- Professionel assistance: Hvis du er usikker på et trin i installationsprocessen, skal du kontakte en kvalificeret tekniker.
4. Installationsvejledning
Follow these steps to replace your dishwasher door seal:
- Forberedelse:
- Disconnect the dishwasher from the electrical outlet or turn off the circuit breaker.
- Open the dishwasher door completely.
- Gather necessary tools: a flat-head screwdriver (optional, for prying), a clean cloth, and a mild cleaning solution.
- Fjern gammel forsegling:
- Carefully pull the old door seal out of the groove around the dishwasher tub. It may be held in place by friction or small clips. Start from one corner and work your way around.
- Inspect the old seal for any signs of wear, tears, or hardening.
- Rengør rillen:
- Thoroughly clean the seal groove on the dishwasher tub using a clean cloth and a mild cleaning solution. Remove any food debris, detergent residue, or mold. Ensure the groove is completely dry before installing the new seal.
- Installer ny tætning:
- Begin by pressing one end of the new seal into the groove at the top center of the dishwasher tub.
- Carefully work your way around the perimeter, pressing the seal firmly into the groove. Ensure the seal is seated evenly and completely.
- Pay close attention to the corners, ensuring the seal is not twisted or kinked.
- Once fully installed, gently close and open the dishwasher door a few times to help the seal settle into place.
- Test for lækager:
- Tilslut opvaskemaskinen til strømforsyningen igen.
- Run a short wash cycle and carefully observe the perimeter of the door for any signs of water leakage.
- If leaks occur, check the seal's seating, especially in the area of the leak, and re-adjust if necessary.
5. Vedligeholdelse
Regular maintenance can extend the life of your dishwasher door seal:
- Regelmæssig rengøring: Periodically wipe down the door seal with a damp cloth to remove food particles, grease, and detergent residue. This prevents buildup that can harden the rubber and compromise the seal.
- Undersøg for skader: Routinely check the seal for cracks, tears, hardening, or any signs of wear. Early detection of damage can prevent leaks and allow for timely replacement.
- Undgå barske kemikalier: Do not use abrasive cleaners or harsh chemicals on the door seal, as these can degrade the rubber material.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Water leaking from dishwasher door | Damaged, worn, or improperly installed door seal. | Inspect the seal for damage. If damaged, replace it. If new, ensure it is seated correctly in the groove. Clean any debris from the seal and groove. |
| Door not closing tightly | Seal is stiff, swollen, or improperly seated. | Clean the seal. If it's stiff or swollen, it may need replacement. Ensure the seal is fully pushed into its groove. |
| Unpleasant odor from dishwasher | Food debris or mold buildup on the seal. | Thoroughly clean the door seal and its groove with a mild detergent and brush. |
7. Specifikationer
- Model: AS0010960
- Materiale: Gummi
- Farve: Multicolour (typically black or grey for seals)
- Dimensioner (L x B x H): Approximately 21 x 17 x 14 cm (packaged dimensions); 120 grams (weight)
- Fabrikant: Brandt
8. Kompatibilitet
The Brandt Dishwasher Door Seal AS0010960 is compatible with a wide range of dishwashers from various brands, including Brandt, De Dietrich, Sauter, Fagor, and Vedette. This seal is designed to fit numerous models, ensuring a reliable replacement for your appliance.
Nogle kompatible modeller inkluderer (men er ikke begrænset til):
- Brandt: Dfh1030e/c, Dfh1031/a, Dfh1042/b, Dfh1042e/c, Dfh1044/a, Dfh1044/b, Dfh1044ex/a, Dfh1044ex/b, Dfh1044x/a, Dfh10s/a, Dfh1125/a-f, Dfh1125/b, Dfh1129, Dfh1129/a, Dfh1130/a, Dfh1130b/b, Dfh1132/b, Dfh1132x/a, Dfh1230, Dfh1330/a, Dfh510 hb0bbrffa, Dfh525 hb1cbrffa, Dfh625 hb1bbrffd, Dfh725we1/a, Dfh725x, Dfh745 hb2fbrffd, Dfh745x, Dfh815/a, Dfh825we1/b, Dfh825xe1/a, Dfh925e/a, Dfh925x/a, Dvh1054b/a, Dvh1054w/a, Dvh1054x/b, Dvh1064x/a, Dvh1084j/a, Dvh1084j/a-e, Dvh1084j/b, Dvh1084x/a, Dvh1100j/a, Dvh1100j/b, Dvh1110b/a, Dvh1110b/b, Dvh1110j/a, Dvh1110j/b, Dvh1110w/a, Dvh1110x/a, Dvh1110x/b, Dvh1120b/a, Dvh1120j/a, Dvh1120w/a, Dvh1120x/a, Dvh1140b/a, Dvh1140b/b, Dvh1140j/b, Dvh1140j/c, Dvh1140w/a, Dvh1140w/b, Dvh1140x/a, Dvh1140x/b, Dvh1150b/a, Dvh1150j/b, Dvh1150jc, Dvh1150jc/a, Dvh1150ju/a, Dvh1150w/a, Dvh1150wc/a, Dvh1230b, Dvh1230x/a, Dvh1238b/a, Dvh1238j/a, Dvh1238w/a, Dvh1238x/a, Dvh1245b/a, Dvh738be1/a, Dvh740be1/a, Dvh740xe1/a, Fdh835aaa, Fdh836ax/a, Fdw100lx 906010021, Fdw200we 906010043, Ho2fstffa, Lff-350w 906010019
- De Dietrich: Dkh1315i/a, Dkh810ix/b, Dkh915i/a
- Sauter: Es2+2/a, Es2+2/b, Es2+2it/b-e, Es2+2x/b, Es2+2x/b-e, Es23/a, Es23x/b, Es25/b, Es25x, Es25x/b, Es26/a, Es26/a-e, Es26x/a-e, Es30/a, Es30it/a, Es30it/b, Es38x/a, Es40it/a, Es90it
- Fagor: Dvc829xe1/a, Dvf1064x/a, Dvf1230w/b, Dvf1235w/a, Dvf1280w/a, Dvf1280wu/a, Dvf1285x, Dvf720xa1/a, Dvf720xa1/b, Dvf742we1/a, Dvf742xe1/a, Dvf754xe1/a, Dvf910we1/a, Dvf910we1/b, Dvf910xe1/a, Dvf910xe1/a-e, Dvf910xe1/b, Dvf910xe1/c, Dvf942we1/a, Dvf942xe1/a, Dvf942xe1/b, Dvf943be1/a, Dvf943we1/a, Dvf943xe1/a
- Vedette: Lvf32x/a, Lvf74it/a, Lvf75it/a, Lvf78it/a, Lvi-11fb lvi-11fb/b
Always verify the compatibility with your specific dishwasher model before purchasing and installing the seal.
9. Support og garanti
For technical assistance, further information, or warranty inquiries, please refer to the documentation provided with your original dishwasher appliance or contact Brandt customer support directly. Ensure you have your dishwasher's model number and the seal's model number (AS0010960) available when seeking support.
