ECOWITT WittCam udendørs vejrkamera HP10 brugermanual

1. Introduktion

The ECOWITT WittCam HP10 is an outdoor weather camera designed for continuous monitoring of various environmental conditions. It is suitable for observing plant growth, weather changes, water levels, and other outdoor phenomena. Featuring IP66 waterproofing and a 150-degree wide-angle lens, the camera connects via Wi-Fi for remote access and data management through a dedicated app and webwebsted.

Figur 1: Forside view of the ECOWITT WittCam HP10 Outdoor Weather Camera.

2. Produktet er slutview

2.1. komponenter

• WittCam HP10 Camera Unit: The main camera device.
• Monteringsbase: For securing the camera to a surface.
• USB strømledning: Provides power to the camera.
• Brugermanual: Denne instruktionsvejledning.

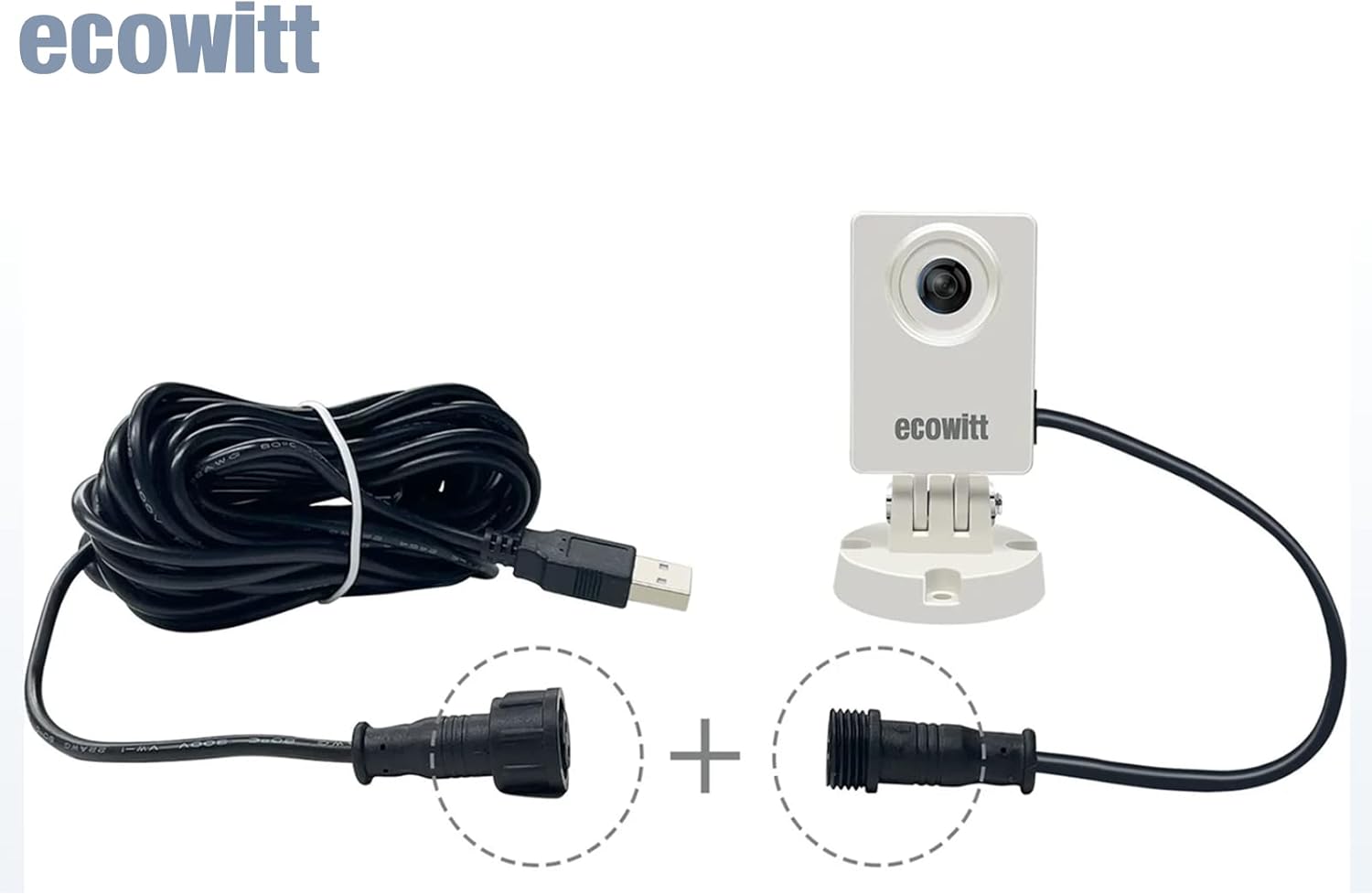

Figure 2: The ECOWITT WittCam HP10 camera connected to its USB power cable.

2.2. Nøglefunktioner

• Picture Hosting: Images are hosted on www.ecowitt.net, with automatic time-elapsed video generation for daily activity.
• HTTP GET Command Support: Allows retrieval of the last taken picture.
• Trådløs forbindelse: Supports 2.4 GHz Wi-Fi (802.11 b/g/n) with a transmission distance of up to 30 meters (100 feet) in open fields.
• Holdbarhed: IP66 waterproof rating ensures protection against dust and strong jets of water.
• Vidvinkelobjektiv: 150 graders vidvinkel view til omfattende overvågning.
• Høj opløsning: 1080p video capture resolution.
• App kontrol: Administrer og view camera feeds via a dedicated mobile application.
• No Local Storage: The camera does not support Micro SD card storage.

Figure 3: Key features of the WittCam HP10, including Wi-Fi connectivity and wide-angle lens.

3. Opsætning

3.1. Udpakning og indledende inspektion

Pak forsigtigt alle komponenter ud, og kontroller, at følgende dele er inkluderet:

• ECOWITT WittCam HP10 Camera
• Monteringsbase
• USB Power Cord (approximately 2 meters / 6.56 feet)
• Quick Start Guide / User Manual (digital version available via QR code or at s.ecowitt.com/JC83NU)

Figure 4: The WittCam HP10 packaging and included items.

3.2. Fysisk installation

1. Vælg en placering: Select an outdoor location that provides a clear view of the area you wish to monitor. Ensure the location is within range of your 2.4 GHz Wi-Fi network.
2. Monter kameraet: Use the provided mounting base to securely attach the camera to a wall or other stable surface. Ensure the camera is positioned to capture the desired field of view.
3. Tilslut strøm: Connect the USB power cord to the camera and plug it into a suitable power source. The camera requires a continuous power supply.

Figur 5: Eksample of the WittCam HP10 mounted outdoors for environmental monitoring.

3.3. Wi-Fi Connection and App Integration

1. Download appen: Søg efter the "ECOWITT" app on your smartphone's app store (iOS or Android) and install it.
2. Opret en konto: Open the ECOWITT app and follow the instructions to create a new account or log in if you already have one.
3. Tilføj enhed: In the app, select the option to add a new device. Follow the on-screen prompts to connect your WittCam HP10 to your 2.4 GHz Wi-Fi network. This typically involves scanning a QR code on the camera or entering Wi-Fi credentials.
4. Bekræft forbindelsen: Once connected, the camera's status indicator should confirm a successful Wi-Fi connection. You should be able to view live snapshots or recent images within the app.

Figure 6: The WittCam HP10 indicating a strong Wi-Fi signal.

4. Betjeningsvejledning

4.1. Overvågningsfunktioner

The WittCam HP10 is designed for various monitoring applications:

• Plantevækst: Observe the development of plants over time.
• Weather Changes: Monitor cloud formations, precipitation, and other atmospheric conditions.
• Vandstand: Track changes in water bodies or containers.
• Snedybde: Measure snow accumulation.

Figure 7: Monitoring plant growth stages with the WittCam HP10.

Figur 8: Eksamples of monitoring weather conditions and seedlings.

Figure 9: The WittCam HP10 observing an agricultural environment.

4.2. Picture Hosting and Time-Lapse Video

The camera uploads pictures to www.ecowitt.net. De website organizes received pictures for the current day. If the time exceeds 24 hours, it automatically generates a time-elapsed video for easier review of changes.

4.3. HTTP GET Command

The camera supports HTTP GET commands for reading the last picture taken. To utilize this feature, the device's IP address must be obtained.

5. Vedligeholdelse

• Rengøring af linser: Rengør kameralinsen regelmæssigt med en blød kludamp cloth to ensure clear image quality. Avoid abrasive materials.
• Strømtilslutning: Regularly check that the USB power cord is securely connected to both the camera and the power source.
• Wi-Fi-signal: Ensure the camera maintains a stable Wi-Fi connection. If signal strength is low, consider repositioning the camera or Wi-Fi router.
• Driftstemperatur: The camera is designed to operate within a temperature range of 0°C to 50°C (32°F to 122°F).

6. Fejlfinding

• Kameraet opretter ikke forbindelse til Wi-Fi:
  Ensure your Wi-Fi network is 2.4 GHz. Verify the Wi-Fi password. Move the camera closer to the router. Restart both the camera and your router.
• No Images or Snapshots in App/Webwebsted:
  Check the camera's power supply and Wi-Fi connection. Confirm the camera is properly added to your ECOWITT account. Allow some time for images to upload, as the camera primarily takes snapshots, not live streaming video.
• Problemer med billedkvalitet:
  Rengør kameralinsen. Sørg for, at der ikke er nogen forhindringer i kameraets synsfelt. view.
• Intet nattesyn:
  Please note that this camera does not feature dedicated night vision capabilities. It is primarily designed for daytime monitoring.
• Vanskeligheder med opsætning:
  Refer to the digital user manual at s.ecowitt.com/JC83NU for detailed setup instructions. Ensure all steps are followed precisely.

7. Specifikationer

Figure 10: Dimensions of the ECOWITT WittCam HP10.

8. Garanti og support

For warranty information, please refer to the documentation included with your purchase or visit the official ECOWITT website. For technical support, frequently asked questions, and additional resources, please visit www.ecowitt.net.
