Sungale 1300Mbps WiFi Wireless LAN Adapter User Manual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Sungale 1300Mbps WiFi Wireless LAN Adapter. Please read this manual carefully before using the product to ensure proper functionality and to avoid any potential issues. Keep this manual for future reference.

2. Produktet er slutview

The Sungale 1300Mbps WiFi Wireless LAN Adapter is designed to provide high-speed wireless connectivity for your desktop or laptop computer. Featuring USB 3.0 connectivity and dual-band (2.4GHz/5GHz) support with 802.11ac standard, it offers fast and stable internet access for various applications.

Image 2.1: The Sungale 1300Mbps WiFi Wireless LAN Adapter, featuring a compact design with two external antennas for enhanced signal reception.

Nøglefunktioner omfatter:

• AC1300Mbps High-Speed: Offers speeds up to 400Mbps on 2.4GHz and 867Mbps on 5GHz.
• USB 3.0-interface: Provides data transfer speeds up to 10 times faster than USB 2.0.
• Dual-band support: Operates on both 2.4GHz and 5GHz frequencies for flexible and stable connections.
• Højforstærkningsantenner: Equipped with two 5dBi antennas for extended range and improved signal penetration.
• Bred kompatibilitet: Supports Windows 11/10/8.1/8/7/XP/Vista and Mac OS X (10.9-10.14).

Image 2.2: A laptop connected to the Sungale WiFi adapter, illustrating its wireless connectivity capabilities with icons for 2.4G/5G, USB, and antennas.

Billede 2.3: Et nærbillede view of the Sungale WiFi adapter connected to a laptop, emitting wireless signals, highlighting its role in establishing a network connection.

3. Opsætningsvejledning

Follow these steps to install your Sungale WiFi Wireless LAN Adapter:

1. Indsæt driver-cd'en: Insert the included compact disc into your computer's CD-ROM drive. If your computer does not have a CD-ROM drive, you may need to download the driver from the manufacturer's website (refer to the support section for more information).


   Image 3.1: Visual guide for driver installation, showing the driver CD, the adapter being plugged into a USB port, and the network selection screen.
2. Installer driveren: Follow the on-screen instructions to install the necessary drivers. For Windows 11/10, the adapter may be plug-and-play, meaning drivers might install automatically. However, manual installation via CD or download is recommended if automatic installation fails or for other operating systems.
3. Tilslut adapteren: Plug the USB WiFi adapter into an available USB 3.0 port on your desktop or laptop computer. Ensure the connection is secure.
4. Opret forbindelse til et netværk: Once the driver is installed and the adapter is connected, your computer should detect available Wi-Fi networks. Select your desired network from the list and enter the password if prompted.

The adapter supports a wide range of operating systems:

Image 3.2: An illustration of the adapter's broad compatibility, displaying icons for Windows, Mac, and Linux operating systems, alongside desktop, laptop, and mobile device types.

4. Betjeningsvejledning

After successful installation, the adapter will function as your computer's primary wireless network interface. You can switch between 2.4GHz and 5GHz bands depending on your router's capabilities and network conditions.

• 2.4 GHz bånd: Offers wider coverage and better penetration through obstacles like walls. Ideal for general web browsing, email, and tasks that do not require extremely high bandwidth. Max speed up to 400Mbps.
• 5 GHz bånd: Provides faster speeds and less interference, suitable for online gaming, HD video streaming, and video calls. Max speed up to 867Mbps.

Image 4.1: A visual representation of the dual-band capabilities, detailing the advantages of 2.4GHz (wider range, better penetration) and 5GHz (higher speed, less interference) for different activities like streaming, gaming, and video conferencing.

The adapter supports two operational modes:

• Station Mode (Client/Receiver): The adapter connects to an existing Wi-Fi network (router) to provide internet access to your computer. This is the standard mode for most users.
• AP Mode (Access Point/Transmitter): The adapter can create a Wi-Fi hotspot, allowing other devices (e.g., smartphones, tablets) to connect to your computer's internet connection. This mode requires specific software configuration.

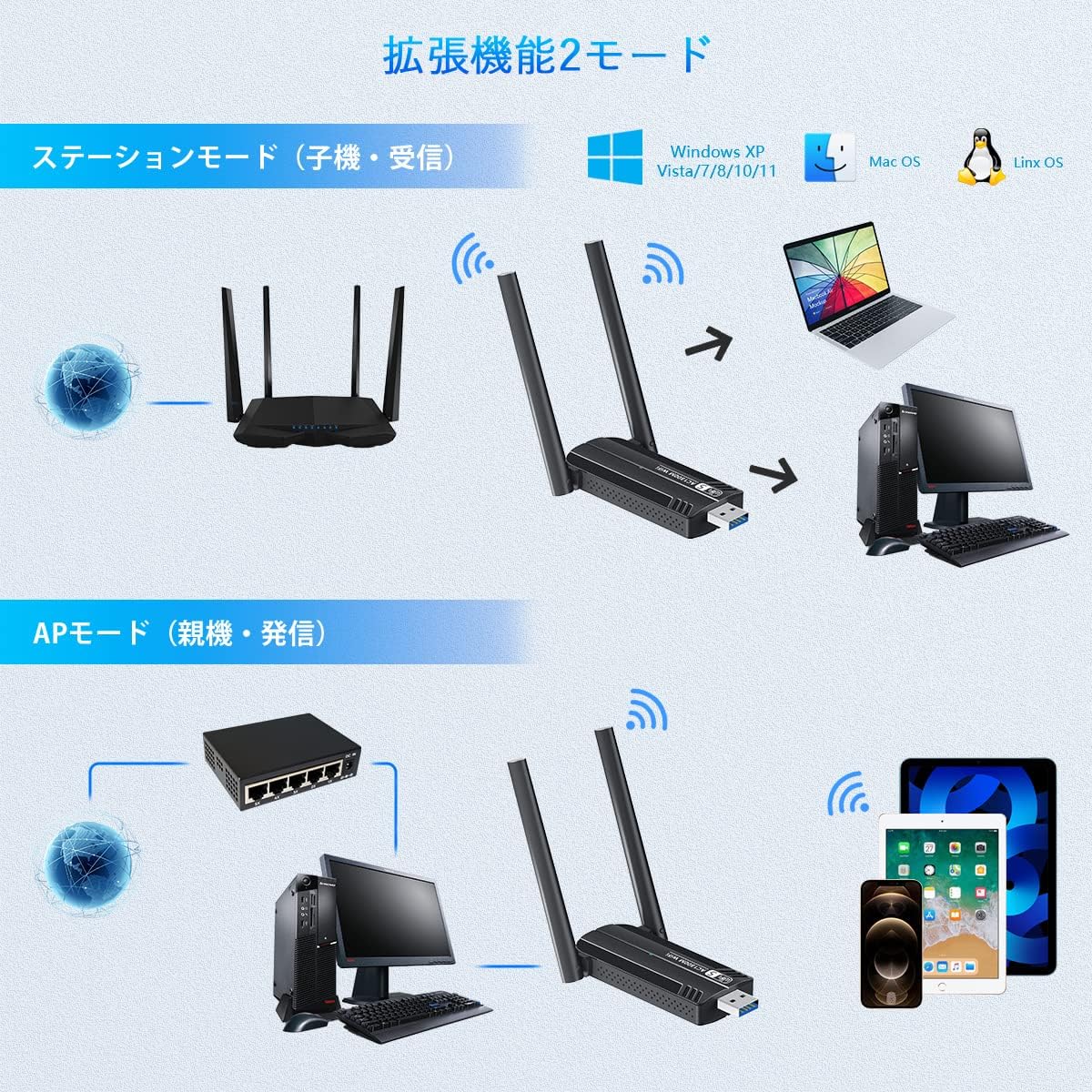

Image 4.2: A diagram explaining the two functional modes: Station Mode, where the adapter acts as a client connecting to a router, and AP Mode, where it functions as an access point for other devices.

5. Vedligeholdelse

To ensure the longevity and optimal performance of your Sungale WiFi adapter, consider the following maintenance tips:

• Hold adapteren ren og fri for støv. Brug en blød, tør klud til rengøring.
• Undgå at udsætte adapteren for ekstreme temperaturer, fugtighed eller direkte sollys.
• Forsøg ikke selv at skille adapteren ad eller reparere den, da dette vil ugyldiggøre garantien.
• Ensure the antennas are not bent or damaged.
• Periodically check for updated drivers on the Sungale support webwebsted for at sikre kompatibilitet og forbedret ydeevne.

6. Fejlfinding

Hvis du støder på problemer med din WiFi-adapter, skal du se følgende fejlfindingstrin:

• Ingen Wi-Fi-forbindelse:
  • Sørg for, at adapteren er korrekt tilsluttet en USB-port.
  • Kontroller, at driverne er korrekt installeret. Geninstaller om nødvendigt.
  • Check if your computer's Wi-Fi is enabled (if applicable).
  • Genstart din computer og router.
• Langsom forbindelseshastighed:
  • Ensure you are connected to the 5GHz band if your router supports it and you are within range.
  • Move closer to your Wi-Fi router to improve signal strength.
  • Tjek for interferens fra andre elektroniske enheder.
  • Update your adapter's drivers to the latest version.
• Hyppige afbrydelser:
  • Sørg for, at adapteren ikke overopheder.
  • Kontrollér for driverkonflikter eller forældede drivere.
  • Prøv at tilslutte adapteren til en anden USB-port.
  • Adjust the antenna position for better signal stability.
• Problemer med driverinstallation:
  • Ensure your operating system is supported.
  • Disable any antivirus software temporarily during installation if it interferes.
  • If using the CD, ensure the CD drive is functioning correctly.
  • Download the latest drivers from the official Sungale support website if the CD is not working or unavailable.

7. Specifikationer

The following table details the technical specifications of the Sungale 1300Mbps WiFi Wireless LAN Adapter:

8. Garanti og support

For warranty information, please refer to the documentation included with your product or visit the official Sungale website. If you require technical assistance or have questions not covered in this manual, please contact Sungale customer support through their official channels.

Gem venligst dit købsbevis for garantikrav.
