1. Produktet er slutview
The HOFTRONIC Malta recessed LED downlight is a versatile lighting solution designed for various environments. It consumes only 5W, providing a 2700K warm white light. With an IP44 rating, it is suitable for damp locations, including bathrooms and covered outdoor areas. This downlight is dimmable and features a tiltable design for adjustable illumination.

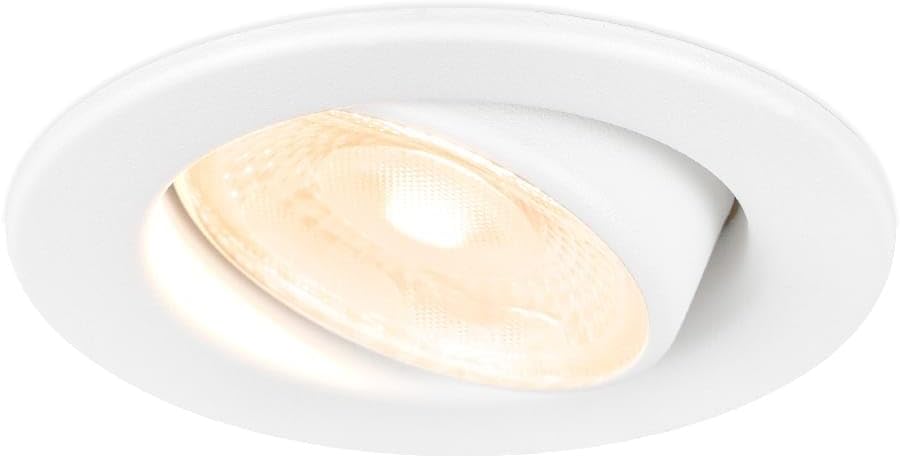

Billede: Et nærbillede view of the HOFTRONIC Malta LED recessed downlight, showing its white finish and warm light output.
2. Sikkerhedsinstruktioner
Læs venligst disse sikkerhedsinstruktioner omhyggeligt inden installation og brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller andre farer.
- Afbryd altid strømmen ved hovedafbryderen, før du forsøger installation, vedligeholdelse eller rengøring.
- Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter.
- Se ikke direkte ind i lyskilden, når armaturet er tændt.
- Ensure the fixture is securely mounted and that all electrical connections are tight and correct.
- Do not cover the fixture with insulating material unless specifically designed for it. Ensure proper ventilation around the fixture.
- This product is rated IP44 for splashwater resistance. It is suitable for damp locations but not for direct immersion in water.
3. Pakkens indhold
Bekræft at alle komponenter er til stede i pakken:
- 1x HOFTRONIC Malta LED Recessed Downlight (White, 2700K)
- 1x Quick Connect Box
Image: Illustration of the package contents, showing one Malta LED recessed downlight and its quick connect box.
4. Installationsvejledning
4.1. Forinstallation
- Sørg for, at strømforsyningen til installationsområdet er helt afbrudt.
- Prepare the ceiling cutout with a diameter of 60-67 mm.
- Ensure there is a minimum recess depth of 85 mm in the ceiling to accommodate the fixture.
Image: Technical drawing showing the dimensions of the downlight, including its 82mm outer diameter, 60-67mm cutout diameter, and 85mm recess depth.
4.2. Ledninger
The downlight is equipped with a tool-free quick connect box for simplified wiring.
- Open the quick connect box.
- Connect the live (L), neutral (N), and earth (E) wires from your electrical supply to the corresponding terminals in the quick connect box. Ensure a secure connection.
- The quick connect box supports loop-in/loop-out wiring for connecting multiple downlights in series.
Image: Diagram illustrating the tool-free quick connect box and wiring connections for easy installation.
4.3. Montering
- Once wired, gently push the downlight into the prepared ceiling cutout.
- The spring clips on the sides of the fixture will automatically engage and secure the downlight in place.
- Ensure the downlight is flush with the ceiling surface.
5. Betjeningsvejledning
5.1. Tænd/sluk
After successful installation and power restoration, the downlight can be switched on and off using a standard wall switch connected to the circuit.
5.2. Dæmpningsfunktion
This LED downlight is dimmable. To adjust the light intensity, connect the fixture to a compatible LED dimmer switch. The light output can be continuously adjusted from 100% down to 0% to create the desired ambiance.
5.3. Hældningsjustering
The downlight features a tiltable design, allowing you to manually adjust the beam angle by up to 25 degrees. This enables you to direct the light to highlight specific areas or objects in the room.
Image: The downlight shown tilted, illustrating its 25-degree adjustable beam angle and dimmable functionality.
6. Vedligeholdelse
The HOFTRONIC Malta downlight requires minimal maintenance.
- Rensning: Ensure the power is off before cleaning. Wipe the surface of the downlight with a soft, dry, or slightly damp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen.
- Ingen dele, der kan serviceres af brugeren: There are no user-serviceable parts inside this fixture. Do not attempt to disassemble or repair the downlight yourself. Contact qualified personnel for any issues beyond basic cleaning.
- IP44-klassificering: The aluminum housing with a powder coating is resistant to humidity, preventing rust or discoloration in damp miljøer.
Image: A close-up of the downlight, highlighting its splashwater-resistant design suitable for damp miljøer.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke | No power supply; faulty wiring; defective switch. | Check the circuit breaker. Verify all wiring connections. Test the wall switch. |
| Lyset flimrer eller dæmpes uventet | Incompatible dimmer switch; loose wiring connection; power fluctuations. | Ensure you are using an LED-compatible dimmer. Check all wiring connections. Consult an electrician if power fluctuations are suspected. |
| Lyset er for svagt eller for stærkt | Dæmperindstilling. | Juster lysdæmperen til det ønskede lysstyrkeniveau. |
| Lys farve ser forkert ud | Product specification misunderstanding. | This model provides 2700K warm white light. No adjustment is possible for color temperature. |
8. Tekniske specifikationer
| Parameter | Værdi |
|---|---|
| Mærke | HOFTRONIC |
| Modelnummer | 5420351 |
| Strømforbrug | 5 watt |
| Lys farvetemperatur | 2700K varm hvid |
| Lysstrøm | 480 lm |
| Voltage | 230 volt (AC) |
| Materiale | Aluminium |
| Slutte | Pulverlakering |
| IP-vurdering | IP44 (Splashwater Resistant) |
| Strålevinkel | 60 grader |
| Tilt vinkel | 25 grader |
| Gennemsnitlig levetid | 50,000 timer |
| Ceiling Cutout Diameter | 60-67 mm |
| Udvendig diameter | 82 mm |
| Fordybningsdybde | 85 mm |
| Produktmål (L x B x H) | 8.2 x 8.2 x 8.5 cm |
| Vægt | 5 kilo |
| Særlige funktioner | Dimmable, Tiltable, Tool-free quick connection |

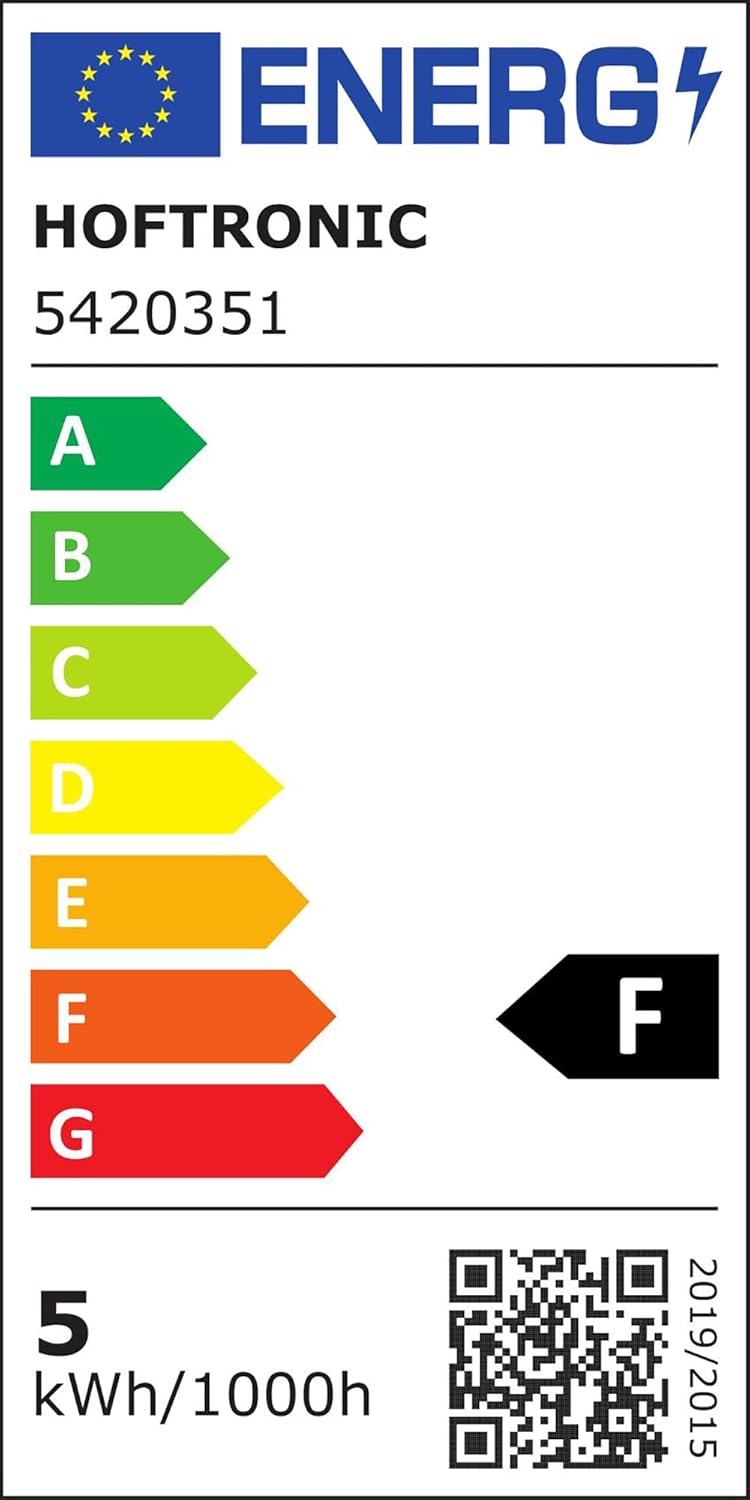

Image: EU Energy Label for HOFTRONIC model 5420351, indicating an energy efficiency rating of F and 5 kWh/1000h consumption.
For more information on energy efficiency, visit the EPREL database: https://eprel.ec.europa.eu/qr/729214
9. Garanti og support
9.1. Garantioplysninger
HOFTRONIC provides a standard 5-year warranty for this Malta LED Recessed Downlight. This warranty covers manufacturing defects and ensures that any defects occurring within this period will be replaced free of charge. Please retain your proof of purchase for warranty claims.
9.2. Kundesupport
For technical assistance, troubleshooting, or warranty inquiries, please contact HOFTRONIC customer support. We are committed to providing prompt service and aim to respond to all inquiries within 24 hours.
