CONBOLA Bladeless Desk Fan Instruction Manual

Produkt overview

The CONBOLA Bladeless Desk Fan (Model TF001) is a versatile and portable cooling device designed for various indoor and outdoor settings. It features a 10000mAh rechargeable battery, offering extended cordless operation. The fan includes adjustable speed settings, an oscillation function, a timer, and an LED light. Its bladeless design enhances safety, making it suitable for households with children and pets.

Figur 1: The CONBOLA Bladeless Desk Fan, showcasing its sleek design, internal battery, and USB-C charging cable.

Opsætning

1. 1. Udpakning og inspektion:

   Carefully remove all components from the packaging. Verify that all parts are present and undamaged. The package should contain the fan unit, a base, and a USB to C-type charging cable. Note that a power adapter is not included.

2. 2. Attaching the Base:

   Align the fan unit with the provided circular base. Gently push the fan into the base until it snaps securely into place. The base provides stability for the fan, especially during oscillation.

3. 3. Indledende opladning:

   Before first use, fully charge the fan. Connect the provided USB to C-type cable to the USB-C port located at the base of the fan. Connect the other end of the cable to a compatible USB power source (e.g., computer USB port, USB wall adapter - not included). A full charge takes approximately 5 hours. The fan's HD LED display will indicate the battery level.



   Figur 2: The fan's dimensions (16.22 inches tall, 6.5 inches diameter at base) and its 10000mAh battery capacity, highlighting its portability and long-lasting power.

Betjeningsvejledning

The CONBOLA Bladeless Desk Fan features a user-friendly 4-button control system located on the top of the unit, along with a manual knob for vertical airflow adjustment.

Figur 3: Close-up of the fan's control panel, showing the buttons for speed, oscillation, timer, and LED light.

• Tænd/sluk og hastighedsjustering:

  Tryk på Power knap (usually indicated by a power symbol) to turn the fan on. Each subsequent press will cycle through the 3 available speed settings (1, 2, 3). Pressing it a fourth time will turn the fan off. The current speed setting is displayed on the HD LED screen.

• Oscilleringsfunktion:

  Tryk på Oscillationsknap (often a circular arrow symbol) to activate the 90° oscillating feature. This allows the fan to distribute cool air across a wider area. Press the button again to stop oscillation.

• Timerindstilling:

  Brug Timer knap (clock symbol) to set an auto-off timer. Available settings are 1, 2, or 4 hours. The fan will automatically turn off after the selected duration.

• LED -lysstyring:

  Tryk på LED lys knap (light bulb symbol) to turn the integrated LED light on or off. This feature can provide ambient lighting.

• Manual Airflow Adjustment:

  A manual knob located on the side of the fan allows for up-down adjustment of the airflow direction. This provides precise control over where the cool air is directed.

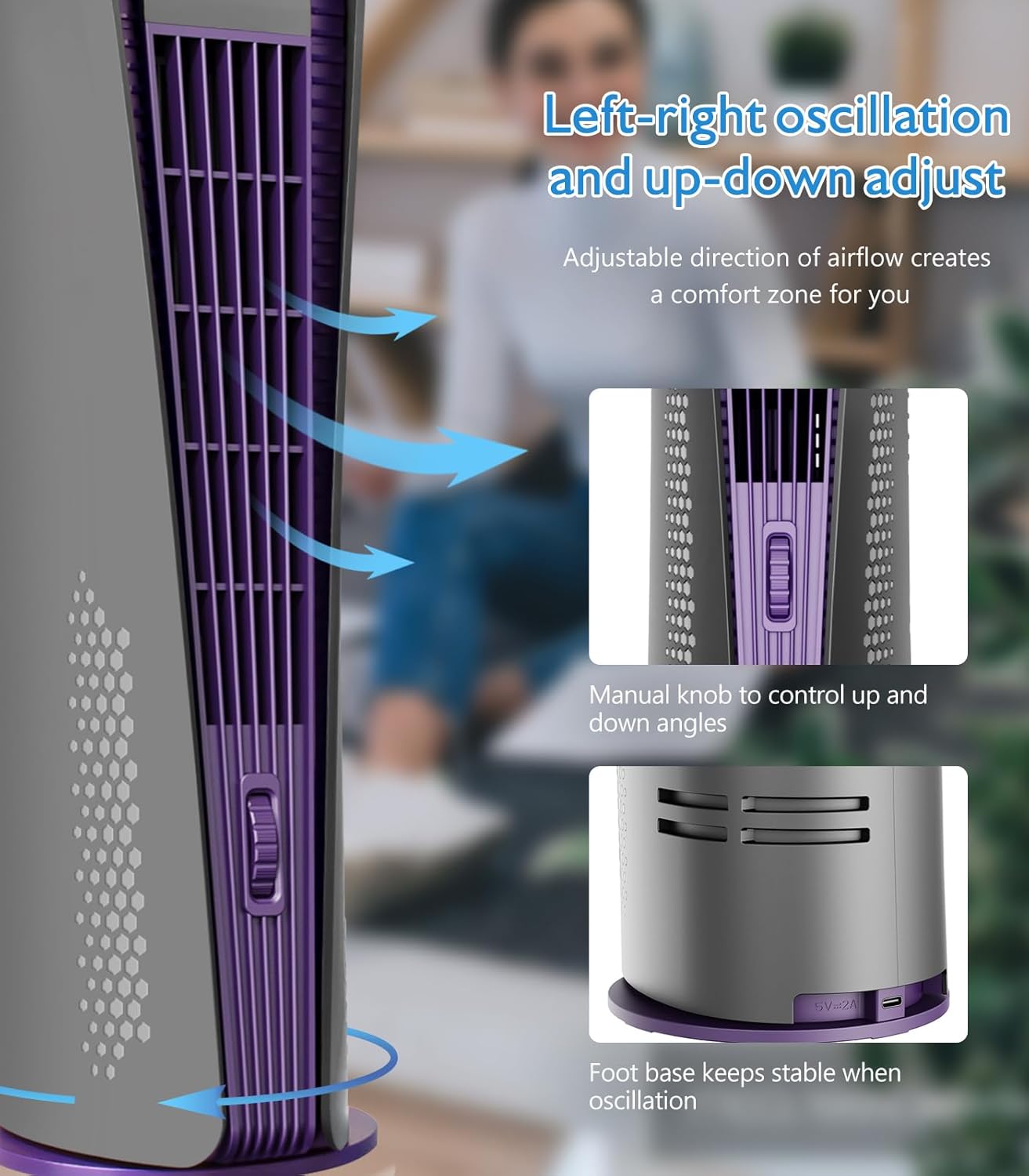

  Figur 4: Illustration of the fan's left-right oscillation and the manual knob for adjusting the up-down airflow direction.

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your CONBOLA Bladeless Desk Fan.

• Rengøring af blæseren:

  Due to its bladeless design, cleaning is simplified. Use a soft, dry cloth to wipe down the exterior surfaces of the fan. For dust accumulation within the air vents, a soft brush or compressed air can be used. Ensure the fan is turned off and unplugged (if charging) before cleaning.

• Batteripleje:

  To prolong battery life, avoid completely draining the battery frequently. Recharge the fan when the battery indicator shows low power. If storing the fan for an extended period, charge it to approximately 50% and recharge every few months to prevent deep discharge.

• Sikkerhedsfunktion:

  The bladeless design with a narrow fence ensures safety, preventing children and pets from accidental contact with moving parts.



  Figur 5: The bladeless design of the fan, emphasizing its safety for use around children and pets.

Fejlfinding

Specifikationer

• Mærke: CONBOLA
• Modelnavn: TF001
• Farve: Grå
• Elektrisk ventilator design: Bordventilator
• Strømkilde: Batteridrevet
• Stil: Moderne
• Produktdimensioner: 6.69" D x 5.9" B x 16.53" H
• Speciel funktion: Manual Airflow Adjustment, Oscillating, LED Light, Timer
• Støjniveau: 52 dB
• Wattage: 5 watt
• Voltage: 5 volt
• Switch Type: Tryk knap
• Inkluderede komponenter: Cord (USB to C-type cable)
• Indendørs/udendørs brug: Indendørs, Udendørs
• Specifikation opfyldt: FCC
• Kontrolmetode: Røre
• Lystype: LED
• Connector Type: USB Type C
• Bladmateriale: Plast
• Genanvendelighed: Genopladelig
• Effektivitet: Energieffektiv
• Er trådløs?: Ja
• Antal effektniveauer: 3
• Fabrikant: CONBOLA
• UPC: 764742717311
• Varens vægt: 3.39 pund
• Batterier: 1 Lithium Ion batterier påkrævet (medfølger)
• Dato først tilgængelig: 1. maj 2023

Garanti og support

Specific warranty details for the CONBOLA Bladeless Desk Fan (Model TF001) are typically provided with the product packaging or available on the manufacturer's official website. Please refer to these resources for comprehensive warranty information, including coverage duration and terms.

For technical support, troubleshooting assistance, or any inquiries regarding your CONBOLA product, please contact CONBOLA customer service. Contact information can usually be found on the product packaging, the official CONBOLA webwebstedet eller gennem dit købssted.
