Sharkoon SHA-VS4-WBK Mid-Tower PC-kabinet Brugsanvisning

1. Introduktion

This manual provides detailed instructions for the assembly, operation, and maintenance of your Sharkoon SHA-VS4-WBK Mid-Tower PC Case. Please read this manual thoroughly before beginning installation to ensure proper setup and to maximize the lifespan of your components.

2. Produktet er slutview

The Sharkoon SHA-VS4-WBK is a mid-tower PC case designed for ATX and Micro-ATX motherboards, featuring a full black aesthetic and an acrylic side window panel. It offers ample space for various components and efficient cable management.

Nøglefunktioner:

• Acrylic side window panel for component visibility.
• Three 5.25-inch drive bays (two with tool-less mounting).
• Three 3.5-inch drive bays.
• Four 2.5-inch drive bays.
• Two external USB 3.0 ports on the front panel.
• Expansion card clearance up to 385mm (with 2.5-inch drive cage removed).
• CPU cooler height support up to 160mm.
• Convex side panel design for improved cable management space.

Visuel reference:

Figur 2.1: Forside view of the Sharkoon SHA-VS4-WBK Mid-Tower PC Case, showcasing the acrylic side panel and front I/O ports.

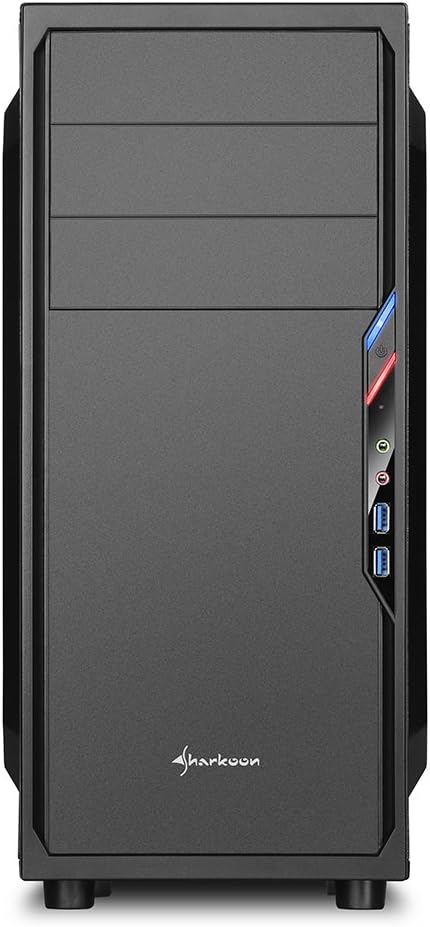

Figur 2.2: Forside view of the PC case, highlighting the drive bays and front panel design.

Figur 2.3: Side view of the PC case, clearly showing the acrylic window panel.

Figur 2.4: Bagside view of the PC case, showing expansion slots and power supply mounting area.

Figur 2.5: Interiør view of the PC case, illustrating the motherboard tray, drive bays, and cable routing options.

3. Opsætning og installation

Follow these steps for proper installation of your PC components into the SHA-VS4-WBK case.

3.1 Forberedelse af sagen

1. Carefully unpack the case and remove all packaging materials.
2. Remove the side panels by unscrewing the thumbscrews at the rear of the case.

3.2 Installation af bundkort

1. Install the necessary standoffs onto the motherboard tray according to your motherboard's form factor (ATX or Micro-ATX).
2. Place the I/O shield into the rear opening of the case.
3. Carefully align your motherboard with the standoffs and I/O shield, then secure it with screws.

3.3 Installation af drev

• 5.25-tommer drev: For the two tool-less bays, simply slide the drive in until it clicks into place. For the third bay, secure with screws.
• 3.5-tommer drev: Mount 3.5-inch HDDs into the designated drive cages.
• 2.5-tommer drev: Mount 2.5-inch SSDs/HDDs into the designated drive cages. The 2.5-inch drive cage can be removed to accommodate longer expansion cards.

3.4 Installation af udvidelseskort

1. Fjern de nødvendige dæksler til udvidelsespladserne fra bagsiden af ​​kabinettet.
2. Insert your expansion card (e.g., graphics card) into the appropriate PCIe slot on your motherboard.
3. Secure the expansion card with the provided screws. Note the maximum clearance of 310mm, or 385mm if the 2.5-inch drive cage is removed.

3.5 Installation af strømforsyning

1. Install your power supply unit into the rear-mount power supply bay at the bottom of the case.
2. Secure it with screws from the outside of the case. Ensure the power supply's fan faces the correct direction for optimal airflow.

3.6 Kabelstyring

Utilize the space behind the motherboard tray and the convex design of the side panel to route cables neatly. This improves airflow and the overall aesthetic of your build.

3.7 Connecting Front I/O Ports

Connect the front panel cables (USB 3.0, audio, power, reset, LED indicators) to the corresponding headers on your motherboard. Refer to your motherboard manual for specific header locations.

4. Driftsmæssige overvejelser

Once all components are installed, ensure all cables are securely connected and the side panels are reattached. Power on your system and verify all components are functioning correctly. Monitor temperatures to ensure adequate cooling.

5. Vedligeholdelse

Regelmæssig vedligeholdelse er med til at sikre optimal ydeevne og levetid for dine pc-komponenter.

• Støvrensning: Periodically clean dust from the interior of the case, especially from fans and heatsinks, using compressed air or a soft brush.
• Udvendig rengøring: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.
• Acrylic Panel Care: Clean the acrylic side panel with a soft, lint-free cloth and a mild plastic cleaner to prevent scratches.

6. Fejlfinding

Hvis du støder på problemer, kan du overveje følgende almindelige fejlfindingstrin:

• Ingen strøm: Check all power connections, including the power supply to the wall outlet, the 24-pin ATX connector, and the 8-pin CPU power connector on the motherboard. Ensure the power button cable is correctly connected to the motherboard.
• Komponenter passer ikke: Double-check component dimensions against the case specifications. For long graphics cards, ensure the 2.5-inch drive cage is removed if necessary.
• Dårlig luftgennemstrømning/Overophedning: Verify all fans are spinning correctly and are oriented for optimal airflow. Ensure cables are neatly managed to avoid obstructing airflow.
• Front Panel I/O Issues: Confirm that all front panel connectors (USB, audio) are correctly plugged into the motherboard headers.

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the official Sharkoon webwebstedet eller kontakt din lokale forhandler. Gem din købsbevis til garantikrav.
