Povasee 3500A Jump Starter with Air Compressor User Manual

Produkt overview

The Povasee A50 is a versatile all-in-one device designed for automotive emergencies and portable power needs. It functions as a powerful jump starter, a built-in tire inflator, a portable power bank, and an emergency LED flashlight.

Figure 1: Povasee A50 Jump Starter with Air Compressor and accessories.

This device is equipped with advanced safety features to ensure reliable and secure operation. Its compact design makes it an essential tool for any vehicle owner.

Nøglefunktioner

• Alt-i-en funktionalitet: Combines a 3500A peak current jump starter, 150PSI tire inflator, 24W Type-C fast charging power bank, and an 800-lumen LED flashlight with multiple modes (constant, strobe, SOS).

Figure 2: The A50 can fast start a car battery within 1-3 seconds.
• Built-in Intelligent 150 PSI Tire Inflator: Features an LCD display for real-time tire pressure readings and an auto-stop function to prevent over-inflation. Inflates 205/65R15 car tires from 0 to 36PSI in approximately 7 minutes. Supports unit switching (BAR/PSI/KPA).


Figure 3: Integrated air compressor for various inflation needs.

• Powerful Start-Up Performance: Delivers 3500A peak current, capable of starting 12V vehicles (all gas and up to 8.0L diesel engines). Can start a car up to 30 times on a single charge, even in extreme temperatures (-4°F to 140°F).
• Dual Smart Display: Two user-friendly intelligent displays show battery level, inflator mode, and real-time tire pressure for clear operation.
• Humaniseret design: Equipped with two USB output ports (one QC3.0 for fast charging) for simultaneous device charging. Includes a DC port to power 12V car devices like cleaners or refrigerators.

Figure 4: Charge two devices simultaneously with QC3.0 fast charging.
• Multiple Intelligent Secure Protection: Features 10 protection systems including over-charge, over-current, short-circuit, reverse-polarity, low-temp, high-temp, over-voltage, over-load, spark-proof, and reverse-charge, ensuring user safety. Red/green indicators confirm correct usage.

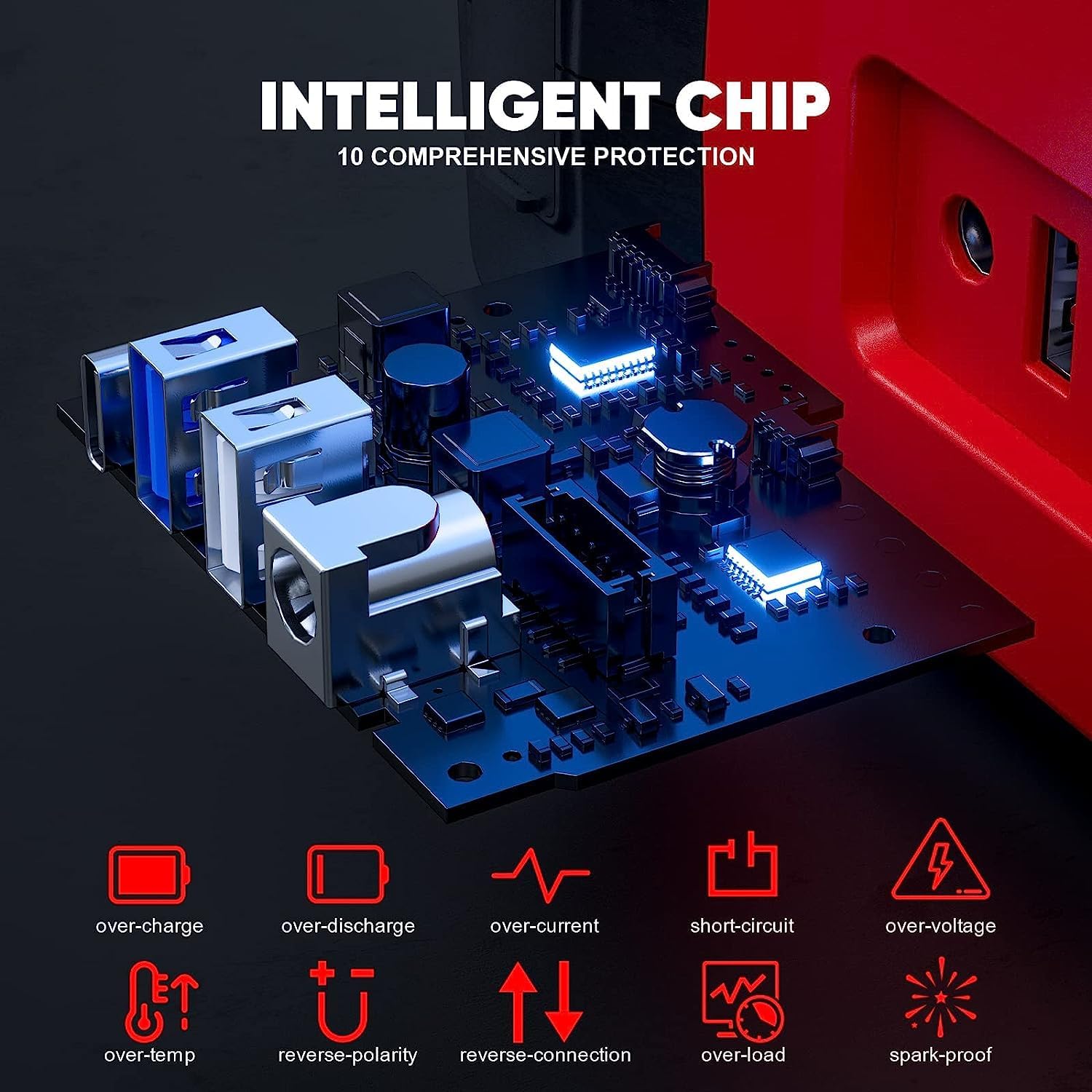

Figure 5: The intelligent chip provides comprehensive safety protection.

• Nødlys LED: The 800-lumen LED light offers three modes: constant lighting, strobe lighting, and SOS, useful for various emergency situations.


Figure 6: The LED light offers constant, SOS, and strobe modes for emergencies.

Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1 x Povasee Jump Starter with Air Compressor (Model A50)
• 1 x Smart Jump Cable
• 1 x USB-C kabel
• 1 x Pump Hose
• 3 x luftdyser
• 1 x DC 12V Cigarette Lighter Converter
• 1 x brugermanual

Figure 7: All components included in the Povasee A50 package.

Opsætning og førstegangsbrug

Opladning af startstarter

Before first use, fully charge the Povasee A50. Use the provided USB-C cable and a compatible 24W (or higher) USB wall adapter (not included) to charge the unit. The dual smart display will indicate the battery level during charging.

• Connect the USB-C cable to the input port on the jump starter.
• Connect the other end of the USB-C cable to a suitable USB wall adapter.
• Sæt vægadapteren i en stikkontakt.
• Allow the unit to charge until the display shows 100%.

Connecting the Smart Jump Cable

The smart jump cable connects to the dedicated port on the jump starter. Ensure a secure connection before attempting to jump start a vehicle.

• Locate the jump cable port on the jump starter.
• Insert the smart jump cable plug firmly into the port.
• Sørg for, at den røde og sorte kludamps rører ikke hinanden.

Betjeningsvejledning

Hopstart af et køretøj

Follow these steps carefully to jump start your vehicle:

1. Sørg for, at jumpstarteren er tilstrækkeligt opladet.
2. Tilslut den røde (+) clamp til den positive pol på køretøjets batteri.
3. Tilslut den sorte (-) clamp til den negative pol på køretøjets batteri.
4. Ensure the smart jump cable is securely plugged into the jump starter.
5. Check the indicator light on the smart jump cable:
   • Solid grøn: Ready to start.
   • Fast rød: Reverse polarity detected. Disconnect and re-connect clamps korrekt.
   • Blinker rødt: Batteri voltage too low or other error. Refer to troubleshooting.
6. Once the indicator is solid green, start the vehicle's engine.
7. After the vehicle starts, immediately remove the black (-) clamp fra køretøjets batteri.
8. Then, remove the red (+) clamp fra køretøjets batteri.
9. Frakobl smart jump-kablet fra jumpstarteren.

Figure 8: Visual guide for jump starting a car.

Using the Tire Inflator

The built-in air compressor can inflate tires and other inflatables:

1. Short press the power button on the jump starter to activate the display.
2. Connect the pump hose to the tire valve stem.
3. Press the 'R' button to cycle through pressure units (PSI, BAR, KPA).
4. Use the '+' and '-' buttons to set the desired tire pressure. The maximum pressure is 150 PSI.
5. Turn on the air compressor switch (located on the side of the unit).
6. Pumpen stopper automatisk, når det forudindstillede tryk er nået.
7. Disconnect the pump hose from the tire valve.
8. Use the included air nozzles for inflating balls, swimming rings, etc.

Figure 9: Visual guide for using the tire inflator.

Bruges som powerbank

The A50 can charge your electronic devices:

• Connect your device's USB charging cable to one of the USB output ports (USB1 is QC3.0 fast charge).
• Jumpstarteren vil automatisk begynde at oplade din enhed.
• For 12V car devices, use the provided DC 12V Cigarette Lighter Converter and connect it to the DC output port.

Brug af LED-lys

The integrated LED light has three modes:

• Press the light button once for constant illumination.
• Tryk igen for strobetilstand.
• Tryk en tredje gang for SOS-signaltilstand.
• Tryk en fjerde gang for at slukke lyset.

Opretholdelse

• Opladning: For optimal battery life, it is recommended to fully charge the unit every 3-6 months, even if not in use.
• Opbevaring: Store the jump starter in a cool, dry place away from direct sunlight and extreme temperatures. Keep it in a protective pouch or bag to prevent damage.
• Rensning: Wipe the unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are free of dust and debris.
• Kabelpleje: Inspect jump cables and air hose for any signs of wear or damage before each use. Replace if necessary.

Fejlfinding

Specifikationer

Garanti og support

Povasee provides a 24 måneders garanti for this Jump Starter with Air Compressor. This warranty covers manufacturing defects and ensures reliable performance of your product.

Derudover en 30-day worry-free return policy is offered for your convenience.

Figur 10: Garanti- og kundesupportoplysninger.

For any after-sales questions, technical support, or warranty claims, please feel free to contact Povasee customer service. Refer to the contact information provided in your original purchase documentation or visit the official Povasee webwebsted.
