Albrecht DR 114 Portable Hand-Crank DAB+/FM Outdoor Radio

Indledning

The Albrecht DR 114 is a versatile outdoor radio designed for adventurers and everyday use. This compact multi-talent provides current information and music via FM, DAB+, and Bluetooth streaming. It also integrates a flashlight, a camping lamp, and a power bank, all without requiring an external power supply. As a solar or hand-crank radio, the DR 114 is independent of external power sources, making it ideal for camping trips, hiking, picnics, beach outings, and daily situations. For home or car use, the DR 114 can be conveniently charged via its USB-C port. Its robust casing ensures high shock resistance and IPX5 water protection. Additionally, the integrated SOS alarm function allows for optical and acoustic emergency calls when needed.

Sikkerhedsoplysninger

• Udsæt ikke enheden for ekstreme temperaturer eller direkte sollys i længere perioder.
• Hold enheden væk fra stærke magnetiske felter.
• Du må ikke selv adskille eller forsøge at reparere enheden. Kontakt kvalificeret servicepersonale.
• Ensure the USB-C port cover is securely closed when not in use, especially in wet conditions, to maintain IPX5 water protection.
• When using the hand-crank, turn it at a steady, moderate pace. Excessive force can damage the mechanism.
• The SOS alarm function emits a loud sound and flashing light. Use responsibly and only in genuine emergencies.

Pakkens indhold

Kontroller venligst, at alle varer er til stede i pakken:

• Albrecht DR 114 Radio
• USB-C ladekabel
• Brugervejledning (dette dokument)

Produkt overview

Figur 1: Albrecht DR 114 Radio in its compact form and with the camping lamp extended. This image highlights the device's dual functionality as a radio and a light source.

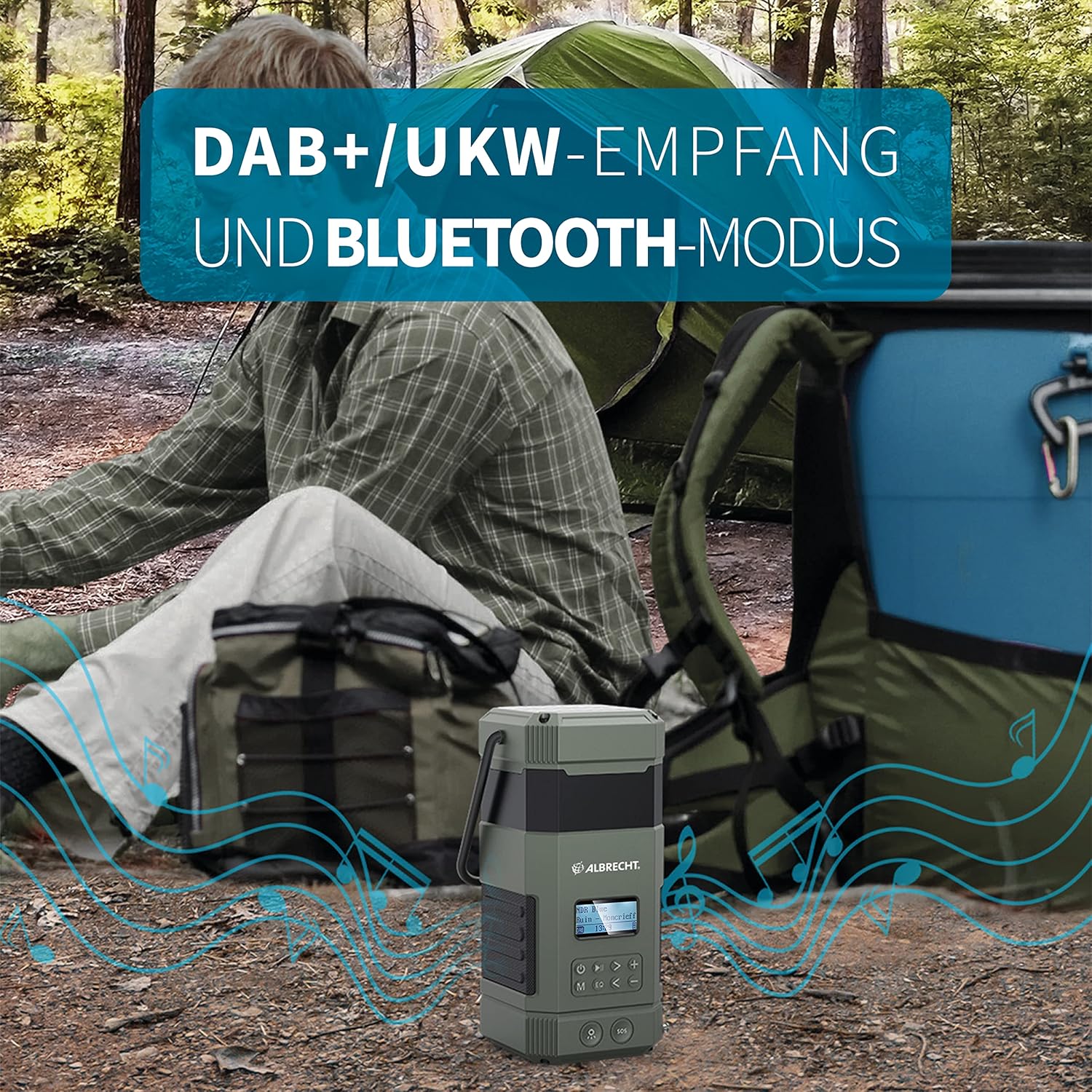

Figur 2: The Albrecht DR 114 Radio demonstrating its DAB+/FM reception and Bluetooth connectivity. Sound waves emanate from the device, illustrating its audio capabilities in an outdoor setting.

Figur 3: En eksploderede view of the Albrecht DR 114 Radio, highlighting its dual 7-watt stereo speakers. This image emphasizes the audio output quality of the device.

Figur 4: The Albrecht DR 114 Radio functioning as a power bank, charging a smartphone via its USB-C port. The image also shows the solar panel and hand-crank, illustrating the multiple charging options for the integrated 5000 mAh battery.

Figur 5: The Albrecht DR 114 Radio being exposed to rain, illustrating its shock and water-resistant design compliant with the IPX5 standard. A tent is visible in the background, suggesting outdoor use.

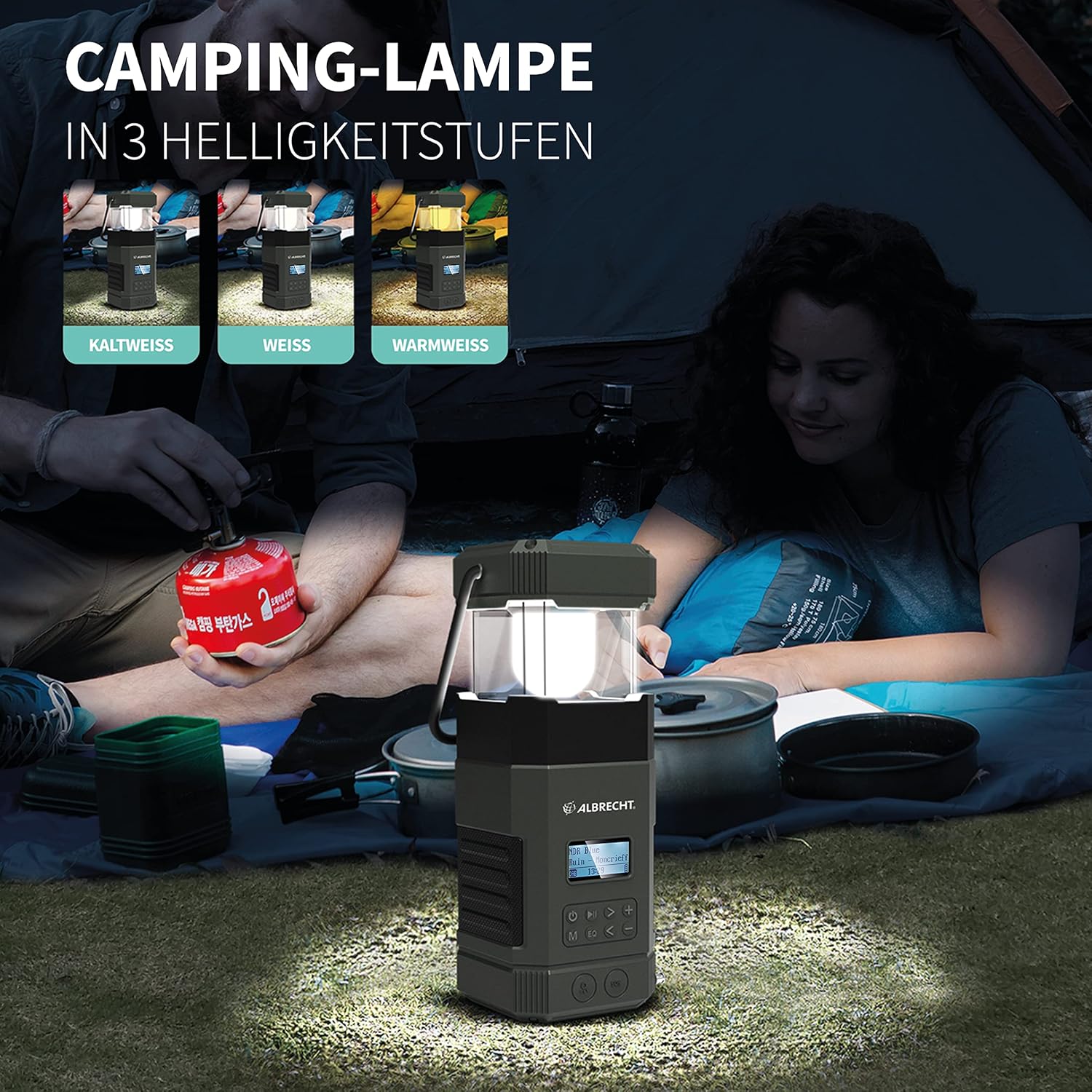

Figur 6: The Albrecht DR 114 Radio's camping lamp feature, showcasing its three adjustable brightness levels: cool white, white, and warm white. The lamp is extended, providing illumination in a dark campmiljø.

Nøglekomponenter:

• Vise: Shows radio frequency, time, battery status, and menu options.
• Kontrolknapper: Power, Mode, Tune/Volume, Menu, OK, SOS.
• Teleskopantenne: For FM and DAB+ reception.
• Hand-Crank: Til manuel strømproduktion.
• Solpanel: Placeret ovenpå til solcelleopladning.
• USB-C-port: For charging the device and outputting power (Power Bank).
• Campi L.amp: Udtrækkelig lamp with multiple brightness settings.
• Lommelygte: Integreret LED-lys.
• SOS-alarmknap: Activates emergency signal.

Opsætning

1. Opladning af batteriet

The Albrecht DR 114 features an integrated 5000 mAh Lithium-ion battery that can be charged via three methods:

• USB-C opladning: Connect the supplied USB-C cable to the device's USB-C port and the other end to a USB power adapter (not included) or a computer USB port. The charging indicator will illuminate. A full charge typically takes several hours.
• Solopladning: Place the radio with its solar panel facing direct sunlight. The solar charging indicator will light up. Solar charging is slower and best for maintaining charge or for emergency top-ups.
• Hand-Crank Charging: Unfold the hand-crank handle. Rotate the crank clockwise or counter-clockwise at a steady pace (approx. 120-150 RPM). One minute of cranking can provide enough power for a few minutes of radio use or a short burst of light. This method is ideal for emergencies when other power sources are unavailable.

2. Første opstart

Tryk og hold på Magt knap () for a few seconds until the display illuminates. The radio will typically start in the last used mode (DAB+, FM, or Bluetooth).

Betjeningsvejledning

1. Radiobetjening (DAB+/FM)

• Skiftemetoder: Tryk på Mode button to cycle between DAB+, FM, and Bluetooth modes.
• Tuning (DAB+): In DAB+ mode, the radio will automatically scan for available stations upon first use. Use the Tune/Volume knapper ( / ) to navigate through the station list. Press OK for at vælge en station.
• Tuning (FM): I FM-tilstand skal du trykke på og holde nede Tune/Volume buttons to auto-scan for the next available station. Briefly press to fine-tune manually.
• Lydstyrkekontrol: Drej på Tune/Volume knob or use the dedicated volume buttons (if present) to adjust the volume.
• Antenne: Extend the telescopic antenna fully for optimal DAB+ and FM reception.

2. Bluetooth-streaming

• Parring: Switch the radio to Bluetooth mode. The display will show "Pairing" or "Bluetooth". On your smartphone or other Bluetooth device, search for "Albrecht DR 114" in the Bluetooth settings and select it to pair.
• Afspilning: Once paired, you can stream audio from your device to the radio. Use your connected device to control playback (play/pause, skip tracks).

3. Campi L.amp og lommelygte

• Campi L.amp: Gently pull the top section of the radio upwards to extend the camping lamp. Tryk på Lamp knap () repeatedly to cycle through the three brightness levels (low, medium, high) and turn off.
• Lommelygte: The flashlight is located on the side of the unit. Press the Lommelygte button (usually next to the lamp button, or integrated) to turn it on/off.

4. Powerbank-funktion

The Albrecht DR 114 can be used to charge external devices like smartphones:

• Connect your device's charging cable to the USB-C port on the radio.
• The radio will automatically begin charging the connected device. Ensure the radio has sufficient battery charge.

5. SOS Alarm Function

In an emergency, press and hold the SOS button for a few seconds. The radio will emit a loud siren sound and flash its lights (including the flashlight and potentially the camping lamp) to attract attention. Press the SOS knappen igen for at deaktivere alarmen.

Opretholdelse

• Rensning: Tør enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the radio in a cool, dry place when not in use. If storing for extended periods, charge the battery to about 50% every few months to prolong its lifespan.
• Vandbeskyttelse: While IPX5 rated, avoid submerging the device in water. Ensure all port covers are sealed when exposed to water.

Fejlfinding

Specifikationer

Garanti og support

Albrecht products are designed for reliability and performance. For warranty information and technical support, please refer to the official Albrecht webwebstedet eller kontakt din lokale forhandler. Gem din købsbevis til garantikrav.

For yderligere hjælp, besøg venligst: www.albrecht-midland.de
