1. Produktet er slutview & Pakkeindhold
The Bileeko RV Backup Camera System provides enhanced visibility for safe maneuvering of your vehicle. This system includes a 7-inch LCD monitor and a waterproof rear view camera with night vision capabilities, designed for various vehicles such as cars, trailers, vans, jeeps, and SUVs.
Pakkeindhold:

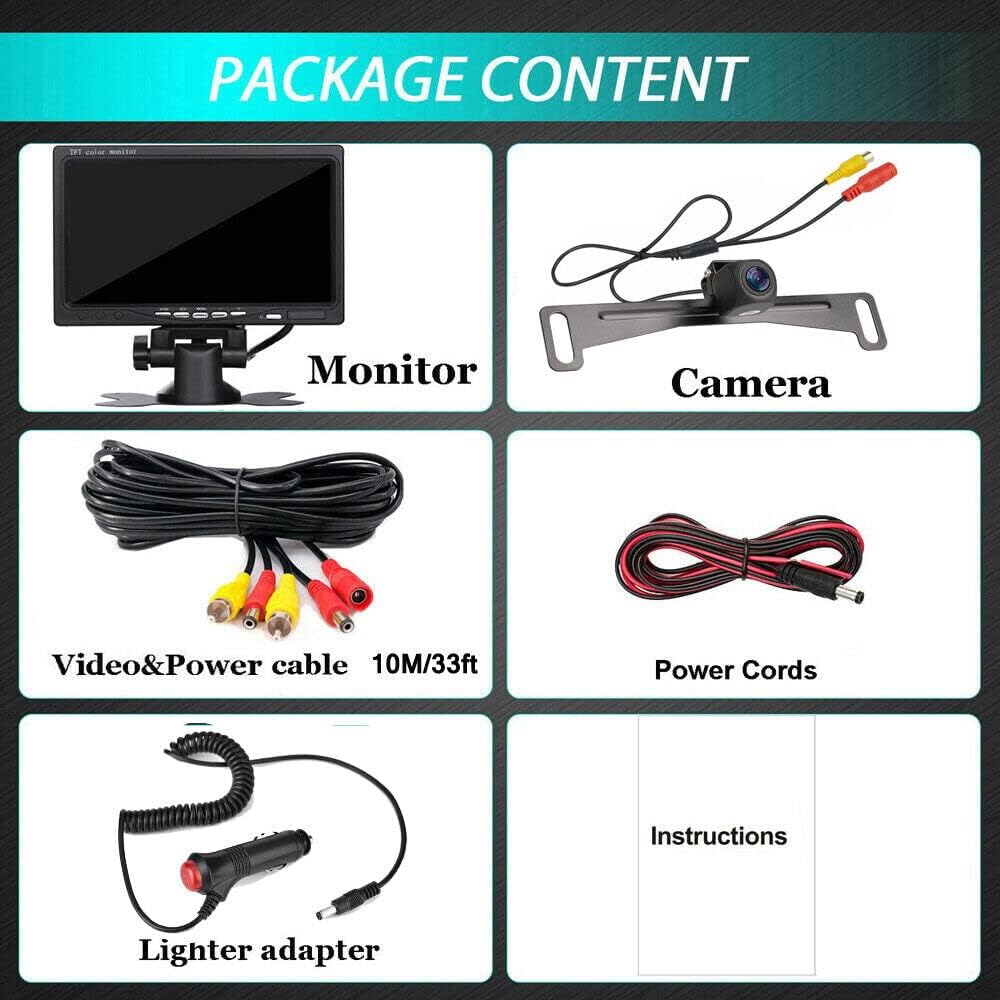

This image displays the complete package contents: the 7-inch LCD monitor, the backup camera, a lighter adapter with on/off switch, a 3.3ft power cable, and a 33ft 2-in-1 video power cable.
En omfattende view of the Bileeko RV Backup Camera System, showing the 7-inch monitor, the rear view camera, and the necessary wiring for installation.
- 1 x 7 inch LCD Monitor
- 1 x backup kamera
- 1 x Lighter adapter with on/off
- 1 x Power Cable 3.3ft
- 1 x Video Power cable 33ft 2 In 1
Nøglefunktioner:
This image highlights the amazing features of the system, such as 12V power supply, HD quality (1080x720 pixels), Color CMOS sensor, 800 TV lines, IP69 waterproof rating, RCA connector, guide lines, NTSC video system, and an ultra-wide 170-degree angle.
An illustration demonstrating the super wide-angle capability of the camera, featuring a 145-degree horizontal angle and a 170-degree diagonal angle, along with waterproof protection, HD quality, and distance guidelines.
- 7-inch HD color LCD monitor.
- IP68 waterproof camera with IR lights for enhanced night vision.
- Supports continuous viewing or reverse-only activation.
- Monitor has a removable pedestal with foam adhesive for flexible mounting.
- Additional cameras can be installed for monitoring multiple positions (front/side/back).
2. Opsætning og installation
The Bileeko RV Backup Camera System is designed for straightforward installation. Please follow the diagrams and instructions carefully.
Installationsdiagram:

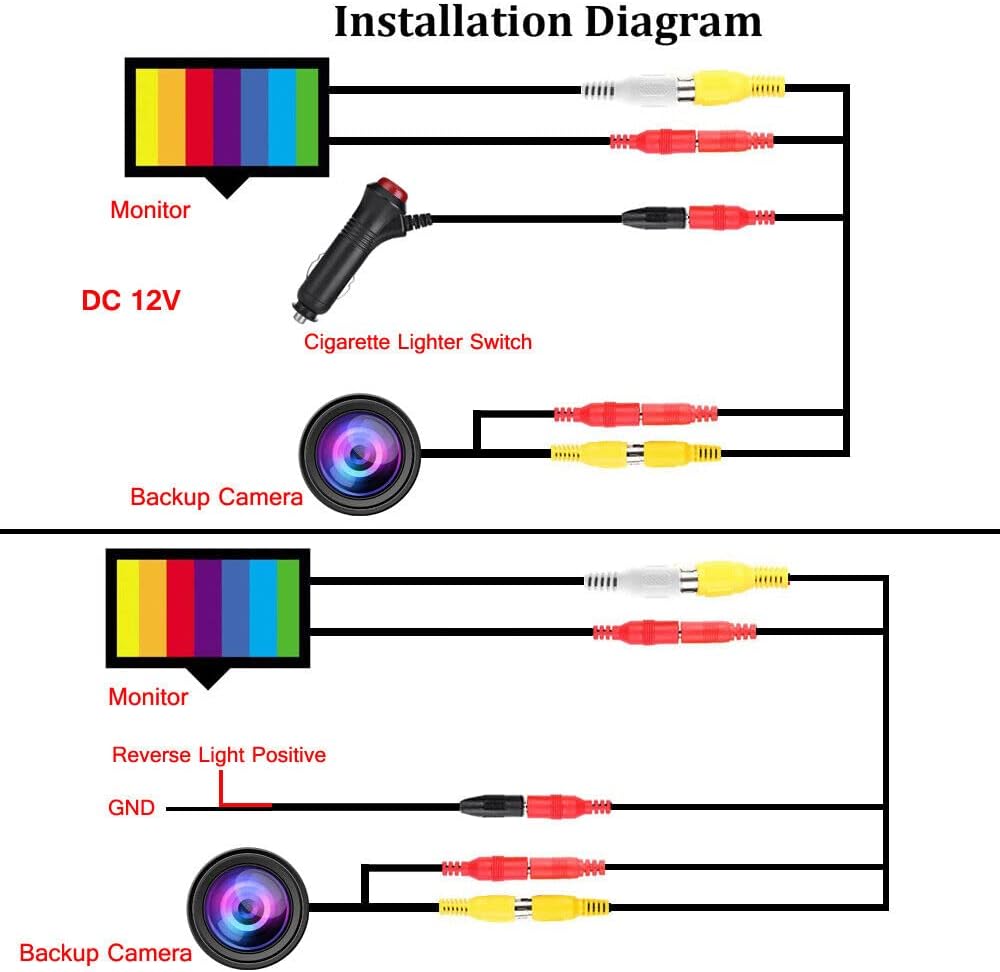

This diagram illustrates two primary wiring methods: one using the cigarette lighter switch for continuous power, and another connecting to the reverse light positive for activation only when the vehicle is in reverse gear.
Ledningsmuligheder:
- Sammenhængende Viewing: Connect the monitor and camera power to the included cigarette lighter adapter. This allows the system to be powered on continuously when the vehicle's accessory power is active.
- Reverse-Activated Viewing: Connect the camera's power wire to your vehicle's reverse light positive wire. This will activate the camera and monitor only when the vehicle is shifted into reverse. The monitor can be powered separately or also tied into the reverse light circuit.
Ensure all RCA connectors are securely fastened. The system is ideal for cars, trucks, SUVs, MPVs, or any vehicle where you need a reliable rear view.
A detailed diagram showing the wiring for continuous use, including connections for the monitor, lighter adapter, video wire, and camera, with V1 (2nd camera) and V2 (prioritized) inputs.
3. Betjeningsvejledning
Familiarize yourself with the monitor and remote controls for optimal use of your backup camera system.
Skærmkontrol:
This image labels the buttons on the 7-inch monitor and the corresponding functions on the remote control. Monitor buttons include AV1/AV2 push button, Screen Switch, Menu button, Volume-, Volume+, Power standby, and Infrared receiver. Remote control buttons include Power, Video (V1/V2 selecting), VOL+ (Increase), Menu (brightness, colors, contrast), Mode (selecting display results), and VOL- (Reduce).
- AV1/AV2 Push Button: Switches between video input sources (if multiple cameras are connected).
- Skærmskifter: Toggles display modes or aspect ratios.
- Menu-knap: Accesses the on-screen display (OSD) menu for settings like brightness, color, and contrast.
- Volumen +/-: Adjusts the volume (if audio input is available, though typically not for backup cameras).
- Strømstandby: Puts the monitor into standby mode.
- Infrarød modtager: For use with the included remote control.
Fjernbetjeningsfunktioner:
- MAGT: Switches the power supply on/off.
- VIDEO (V1/V2): Selects between video input V1 and V2.
- VOL+: Øger volumen.
- MENU: Opens the menu for adjusting brightness, colors, and contrast.
- KØRSELSVEJLEDNING: Selects different display results or viewing-tilstande.
- VOL-: Reduces volume.
The camera features include HD quality, CMOS sensor, 170° wide angle, and IP68 waterproof rating. It also offers control for mirror image and guide lines.
This image details the backup camera's specifications: HD resolution, CMOS sensor, 170-degree viewing angle, and IP68 waterproof rating. It also shows options for controlling mirror image and guide lines.
4. Vedligeholdelse
Proper maintenance ensures the longevity and optimal performance of your Bileeko RV Backup Camera System.
- Rensning: Brug en blød, damp cloth to clean the monitor screen and camera lens. Avoid abrasive cleaners or solvents.
- Kamerapleje: The camera is IP68 waterproof, but avoid directing high-pressure water jets directly at it. Regularly check for any debris or mud obstructing the lens.
- Kabelforbindelser: Kontrollér regelmæssigt alle kabelforbindelser for at sikre, at de er fastgjorte og fri for korrosion eller beskadigelse.
- Opbevaring: If the system is not in use for an extended period, store it in a cool, dry place away from direct sunlight and extreme temperatures.
5. Fejlfinding
Hvis du støder på problemer med dit system, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag/løsning |
|---|---|
| No Image on Monitor |
|
| Sløret eller forvrænget billede |
|
| Ingen nattesyn |
|
| Monitor Not Turning On |
|
If you experience any problems with installation or operation that are not covered here, please do not hesitate to contact customer support for assistance.
6. Specifikationer
7 inch LCD Monitor:
- Standarder: Meets FCC/CE/RoHS/UL/IP6X standards
- Vise: 7 tommer LCD skærm
- Strømforbrug: Ultra-low, to prevent overheating
- Signalformat: PAL / NTSC (Compatible with all signal formats)
- Nominel voltage: 9V - 35V, 400mA-20A
- Displayteknologi: LCD
- Installationstype: Dashboardmontering, overflademontering
Bag View Kamera:
- Standarder: Meets FCC/CE/RoHS/UL/IP6X standards
- Billedsensor: 1/3" CMOS
- S/N-forhold: Better than 48db
- Video output: RCA connector, 1.0vp-p, 75 Ohm
- Magt: 9V-14V DC, 400mA-20A
- Vandtæt klasse: IP68
- Nattesyn: IR Night Vision
- Optisk sensorteknologi: CMOS
- Videooptagelsesopløsning: 750
- Viewvinkel: 170 degrees (Ultra Wide Angle)
General System Specifications:
- Mærke: Bileeko
- Modelnummer: BI-7monitorAV-02
- Voltage: 12 volt
- Kompatible enheder: Overvåge
- Connector Type: RCA
7. Garanti og support
For any inquiries, technical support, or to purchase additional accessories such as longer RCA video cables (20ft/50ft/66ft), please contact Bileeko customer service. Refer to your product packaging or the retailer's webwebsted for specifikke kontaktoplysninger.
While specific warranty details are not provided in this manual, it is recommended to retain your proof of purchase for any warranty claims or support needs.
