Indledning
This manual provides essential instructions for the safe and proper assembly, operation, and maintenance of your Lionel The Polar Express FlyerChief Bluetooth 5.0 Electric S Gauge Train Set. Please read all instructions carefully before use to ensure optimal performance and longevity of your product.
Vigtige sikkerhedsoplysninger
- KVÆLINGSFARE: Små dele. Ikke for børn under 3 år.
- CAUTION - ELECTRIC TOY: Anbefales ikke til børn under 14 år. Som med alle elektriske produkter skal der tages forholdsregler under håndtering og brug for at forhindre elektrisk stød.
- ADVARSEL: This product can expose you to chemicals including lead, which is known in the State of California to cause cancer, birth defects, or other reproductive harm.
Indstil indhold
Your Lionel The Polar Express FlyerChief Bluetooth 5.0 Electric S Gauge Train Set includes the following components:
- 1x 2-8-4 Berkshire steam locomotive and tender
- 1x Coach Car
- 1x Abandoned Toy Car
- 1x Observation Car
- 3x AF FasTrack 10" straight track sections
- 12x AF FasTrack R20 curve track sections
- 1x AF FasTrack 10" terminal track
- 1x 54W 18VDC Wall Pack Power Supply
- 1x FlyerChief remote control
- 1x The Polar Express Bell
Opsætningsinstruktioner
1. Samling af skinner
Assemble the AF FasTrack sections to form your desired layout. Ensure all track pieces are securely connected to provide continuous electrical contact. The set includes three 10" straight sections, twelve R20 curve sections, and one 10" terminal track.
2. Strømtilslutning
Connect the 54W 18VDC Wall Pack Power Supply to the AF FasTrack 10" terminal track. Plug the power supply into a standard electrical outlet. Ensure the power supply is easily accessible for disconnection if needed.
3. Locomotive and Car Placement
Carefully place the 2-8-4 Berkshire steam locomotive and its tender, followed by the Coach Car, Abandoned Toy Car, and Observation Car, onto the assembled track. Ensure all wheels are properly seated on the rails. The cars feature operating couplers for easy connection.
Betjeningsvejledning
1. FlyerChief Remote Control
The FlyerChief remote control requires three AAA batteries (not included). Insert batteries according to polarity markings. The remote features a speed control knob for forward and reverse movement, and three buttons to activate the whistle, bell, and announcements.
2. Lionel Voice Control (LVC) and App Operation
The locomotive supports Lionel Voice Control (LVC) via the LionChief App, allowing you to operate the train by speaking commands into your phone. The app also provides additional control options for sound, smoke, and speed settings. Ensure your device's Bluetooth is enabled and paired with the train set.
3. Locomotive Features
- Driftstilstande: User-selected operation modes include Conventional AC transformer mode or FlyerChief wireless remote control (with AC or DC power) or the downloadable app.
- AF Speed Control: Maintains a steady constant speed on inclines, declines, or flat terrain.
- Tænd/sluk-kontakter: Separate switches for sound, smoke, and transformer/remote operation mode.
- RailSounds RC Sound System: Features steam chuffing while in motion, realistic background sounds, whistle, and bell, all triggered by the remote.
- Belysning: Operating headlight and directional LED on the tender (rear light).
- Couplers: Operating coupler on the rear of the tender.
- Smoke Unit: Fan-driven smoke unit.
- Motor: Powerful, maintenance-free motor with two traction tires for added grip.
- Æstetik: Large "Polar" pilot and headlight lens shield.

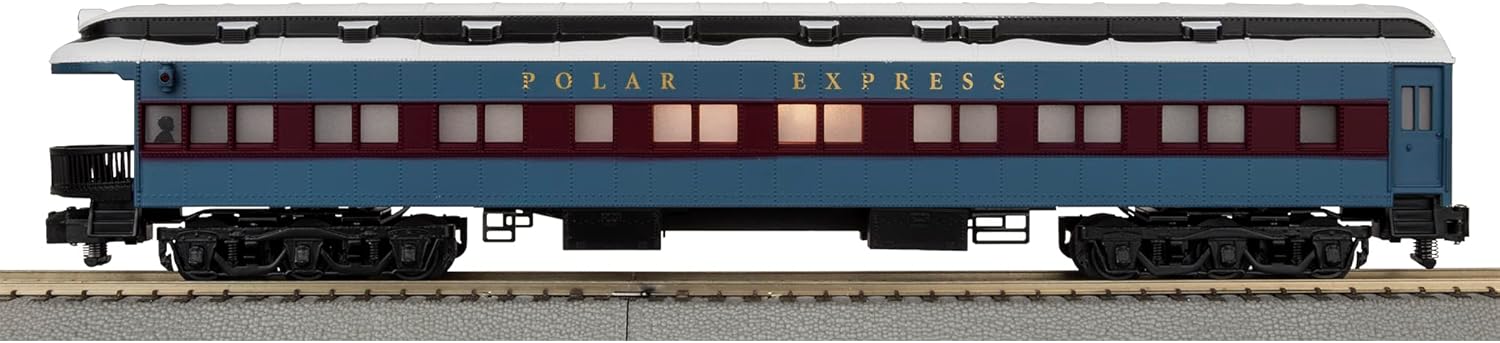

4. Passenger Car Features
- Interior Illumination: All passenger cars feature interior lighting.
- Couplers: Operating couplers on the front and rear of each car.
- Power Pickup: Dual rail collector and flicker-free lighting.
- Observation Car: Decorated drumhead and rounded viewing platform.
- Window Silhouettes: Silhouettes of characters in windows.
- Detaljer: Underbody detail and simulated snow on the roof.
Opretholdelse
To keep your train set in optimal condition, wipe it with a soft cloth occasionally to clean. Refer to the specific instructions for the smoke unit for maintenance related to smoke fluid.
Fejlfinding
If you encounter issues with your train set, consider the following common solutions:
- No Power/Train Not Moving:
- Ensure the power supply is securely plugged into both the track and a working electrical outlet.
- Check all track connections for tightness and proper alignment.
- Verify that the locomotive's wheels are correctly seated on the rails.
- Confirm the remote control has fresh batteries and is properly paired with the locomotive.
- Intermittent Operation/Flickering Lights:
- Clean the track and locomotive wheels to remove any dirt or debris that may be interfering with electrical contact.
- Ensure all track sections are firmly connected.
- Smoke Unit Not Producing Smoke:
- Check the smoke unit's on/off switch.
- Ensure there is sufficient smoke fluid in the reservoir.
- Problemer med fjernbetjening:
- Replace the AAA batteries in the FlyerChief remote control.
- Re-pair the remote control with the locomotive if connection is lost.
For further assistance, please refer to the official Lionel support resources or contact customer service.
Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner | 18 x 16.25 x 5.5 tommer |
| Varens vægt | 13.25 pund |
| Fabrikant | Lionel Racing |
| ASIN | B0BM4Y1WBZ |
| Varemodelnummer | 2217050 |
| Batterier påkrævet | Yes (3 AAA batteries for remote) |
| Batteritype | Alkalisk |
| Montering påkrævet | No (referring to the main product, track assembly is required) |
| Gauge Details | Lionel S Gauge (approx. 1:64 scale), American Flyer compatible, two-rail AF FasTrack system. |
Garanti og support
For information regarding product warranty, technical support, or replacement parts, please visit the official Lionel webwebstedet eller kontakt deres kundeserviceafdeling. Du kan også besøge Lionel-butikken på Amazon for additional products and information.
