Graco Extend2Fit Cabriolet Autostol Brugermanual

1. Introduktion

Thank you for choosing the Graco Extend2Fit Convertible Car Seat. This car seat is engineered to provide safety and comfort for your child as they grow, from infancy through toddlerhood. It supports both rear-facing and forward-facing modes, with innovative features designed for ease of use and extended safety.

This manual provides essential information for the proper installation, use, and maintenance of your Graco Extend2Fit Convertible Car Seat. Please read it thoroughly before first use and keep it for future reference.

Billede: Forside view of the Graco Extend2Fit Convertible Car Seat.

2. Sikkerhedsoplysninger

Your child's safety is paramount. The Graco Extend2Fit Convertible Car Seat is Graco ProtectPlus Engineered to help protect your child in frontal, side, rear, and rollover crashes. Always ensure the car seat is installed correctly and your child is properly secured according to the instructions in this manual.

• Bagudvendt sele: For infants from 1.8-22.5 kg (4-50 lb). Children are safer riding rear-facing and should ride rear-facing as long as possible.
• Fremadvendt sele: For toddlers from 10-30 kg (22-65 lb).
• Always register your car seat to receive important safety notices and updates.
• Brug aldrig en autostol, der har været involveret i en moderat til alvorlig ulykke, selvom den ser ubeskadiget ud.

Image: Diagram illustrating Graco ProtectPlus Engineering for crash protection.

3. Opsætning og installation

Proper installation is crucial for the car seat's effectiveness. Refer to your vehicle's owner's manual for specific car seat installation instructions and locations.

3.1 brugsformer

The Graco Extend2Fit offers two primary modes:

• Bagudvendt sele: For infants 1.8-22.5 kg (4-50 lb).
• Fremadvendt sele: For toddlers 10-30 kg (22-65 lb).

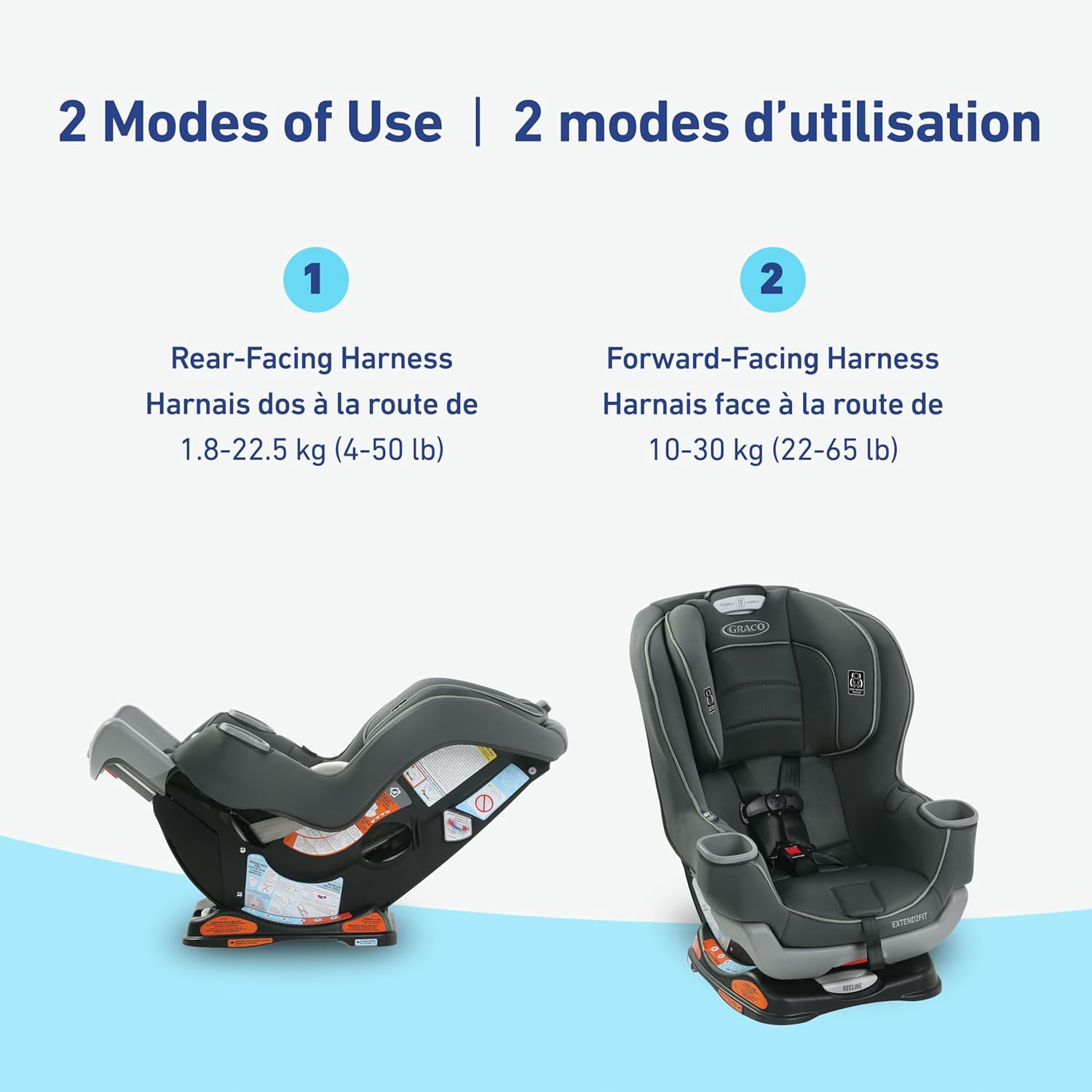

Image: Visual representation of the two modes of use for the car seat.

3.2 Extend2Fit Extension Panel

The 4-position extension panel provides up to 12.7 cm (5 inches) of additional legroom, allowing your child to safely ride rear-facing for a longer period. To adjust, locate the release lever under the front of the seat and slide the panel to the desired position.

Image: Detail of the Extend2Fit 4-position extension panel.

3.3 InRight UAS Attachment

The InRight UAS (Universal Anchorage System) provides a one-second attachment for quick and secure installation using your vehicle's lower anchors. Ensure you hear a click to confirm proper connection.

Image: Demonstrating the InRight UAS attachment process.

4. Betjeningsvejledning

Familiarize yourself with the car seat's adjustable features to ensure your child's comfort and safety.

4.1 Simply Safe Adjust Harness System

The No-Rethread Simply Safe Adjust Harness System allows you to adjust the height of the headrest and harness in one motion, ensuring a proper fit as your child grows without the need to rethread the harness.

Image: Illustration of the Simply Safe Adjust Harness System.

4.2 Adjustable Headrest and Recline

The car seat features a one-hand, 10-position adjustable headrest and a 6-position reclining seat to keep your child comfortable and properly positioned.

Image: Diagram illustrating the adjustable headrest.

Billede: Side view of the car seat demonstrating recline positions.

4.3 Fuss-Free Harness Storage and Cup Holders

Fuss-free harness storage pockets conveniently hold the harness out of the way, making it easier to get your child in and out of the car seat. Two integrated cup holders keep drinks close at hand.

Image: Detail of the fuss-free harness storage pocket.

Image: Detail of an integrated cup holder.

5. Vedligeholdelse

Regular maintenance ensures the longevity and cleanliness of your car seat.

• Sædepude: The seat pad is comfortable and machine-washable. Refer to the care label on the seat pad for specific washing instructions.
• Sele og spænde: Tør selestropperne af med enamp cloth. Do not machine wash or immerse the harness in water. Clean the buckle by placing it in a cup of warm water and gently squeezing the red button several times. Do not use soaps or detergents.
• Plast- og metaldele: Tør plastik- og metaldele af med mild sæbe og koldt vand. Brug ikke slibende rengøringsmidler eller opløsningsmidler.

6. Fejlfinding

If you encounter any issues with your Graco Extend2Fit Convertible Car Seat, please refer to the following common solutions:

• Harness difficult to tighten/loosen: Check for twists in the harness straps behind the car seat. Ensure the harness is not caught on any part of the car seat shell. The harness adjuster strap should move freely.
• Car seat feels loose after installation: Re-read the installation section (Section 3) carefully. Ensure the UAS connectors or vehicle seat belt are pulled as tightly as possible, with less than 1 inch of movement at the belt path. Check that the recline angle indicator is within the acceptable range for your child's weight and mode of use.
• Spændet klikker ikke: Ensure there is no debris in the buckle mechanism. Clean the buckle as described in the Maintenance section. Insert both buckle tongues fully until you hear a clear click.

If problems persist, contact Graco customer support for assistance.

7. Specifikationer

Image: Dimensions of the Graco Extend2Fit Convertible Car Seat.

8. Garantioplysninger

For detailed warranty information regarding your Graco Extend2Fit Convertible Car Seat, please refer to the warranty card included with your product packaging or visit the official Graco webGarantibetingelserne kan variere afhængigt af region og forhandler.

9. Support

If you require further assistance, have questions about installation, or need to report a safety concern, please contact Graco customer support. Contact information can typically be found on the Graco webwebstedet eller på produktets registreringskort.

You can also visit the official Graco Store for more information and product resources: Graco Store on Amazon.ca
