Totem Osprey Electric Mountain Bike User Manual

Indledning

Thank you for choosing the Totem Osprey Electric Mountain Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety. Keep this manual for future reference.

Figure 1: Totem Osprey Electric Mountain Bike, showcasing dens slanke design og robuste ramme.

Sikkerhedsoplysninger

Always prioritize safety when operating your electric bicycle. Failure to follow safety guidelines can result in serious injury or damage to the bike.

• Brug altid en hjelm, der opfylder sikkerhedsstandarderne.
• Perform a pre-ride inspection before each use, checking brakes, tires, and battery.
• Familiarize yourself with local e-bike regulations and traffic laws.
• Rid ikke under påvirkning af alkohol eller stoffer.
• Avoid riding in adverse weather conditions or on excessively rough terrain if you are not experienced.
• Ensure all quick releases and bolts are properly tightened before riding.

Opsætning og montering

Your Totem Osprey electric mountain bicycle is 85% pre-assembled. The following steps outline the final assembly process. Tools required for assembly are included with your purchase.

Udpakning

1. Tag forsigtigt cyklen og alle komponenter ud af emballagen.
2. Remove all protective packaging materials and zip ties.
3. Inspect the bike for any visible damage that may have occurred during shipping. Contact customer support immediately if damage is found.

Styrinstallation

• Loosen the bolts on the stem faceplate.
• Position the handlebar in the stem, ensuring it is centered.
• Tighten the stem faceplate bolts evenly to secure the handlebar.

Installation af forhjul

• Align the front wheel with the fork dropouts.
• Ensure the brake rotor is correctly seated within the brake caliper.
• Insert the quick release skewer or axle through the hub and tighten securely.

Installation af pedaler

• Identificer venstre (L) og højre (R) pedal.
• The right pedal (R) threads clockwise into the right crank arm.
• The left pedal (L) threads counter-clockwise into the left crank arm.
• Tighten both pedals firmly with a wrench.

Montering af sadelpind

• Sæt sadelpinden ind i sadelrøret.
• Adjust the seat height to a comfortable and safe riding position.
• Secure the seat post with the quick release lever or bolt. Ensure the minimum insertion mark is not visible.

Komponenter overview

Understanding the key components of your Totem Osprey e-bike will enhance your riding experience and maintenance efforts.

Figure 2: Key dimensions of the Totem Osprey Electric Mountain Bike, including handlebar height, stand over height, seat tube, reach, wheelbase, and total length. Recommended rider height is 5'4" - 6'5", with a maximum load capacity of 300 lbs.

Motorsystem

The Osprey is equipped with a 350W high-speed brushless motor, providing robust power for various terrains. It features a built-in overheat protection module for enhanced safety during demanding rides.

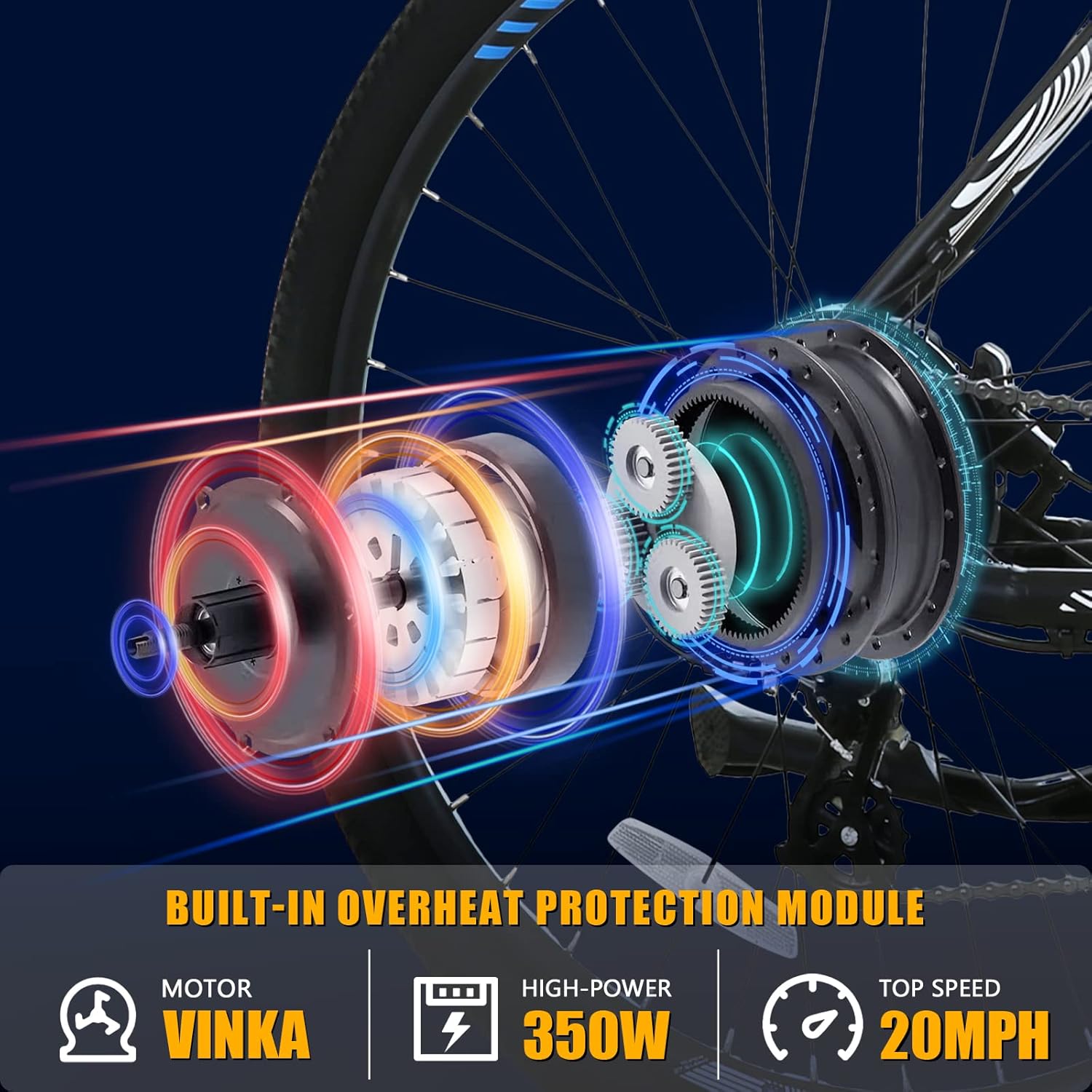

Figure 3: Diagram illustrating the internal components of the 350W brushless motor, highlighting its high-power output and integrated overheat protection module.

Batteri

The bike features a removable 36V Lithium-Ion Battery with a 14Ah capacity, offering a range of 50-75 miles per charge. It integrates a smart battery management system for extended life and includes an anti-theft security lock.

Figure 4: Visual representation of the 36V 14Ah Lithium-Ion Battery integrated within the bike frame, emphasizing its removable design and power-saving features.

Suspensionssystem

Equipped with a professional Suntour XCT suspension fork featuring HLO (Hydraulic Lockout) technology, this system provides significant shock absorption and a smoother ride. The lockout feature allows for on-the-fly travel adjustment.

Figur 5: Nærbillede view of the Suntour XCT front suspension fork with its hydraulic lockout mechanism, illustrating its shock absorption capabilities.

Brakes and Gears

The bike features professional electric bicycle-grade hydraulic disc brakes for reliable stopping power in various conditions. The Shimano 3x8 (24-speed) gear system ensures accurate and smooth shifting across diverse road conditions.

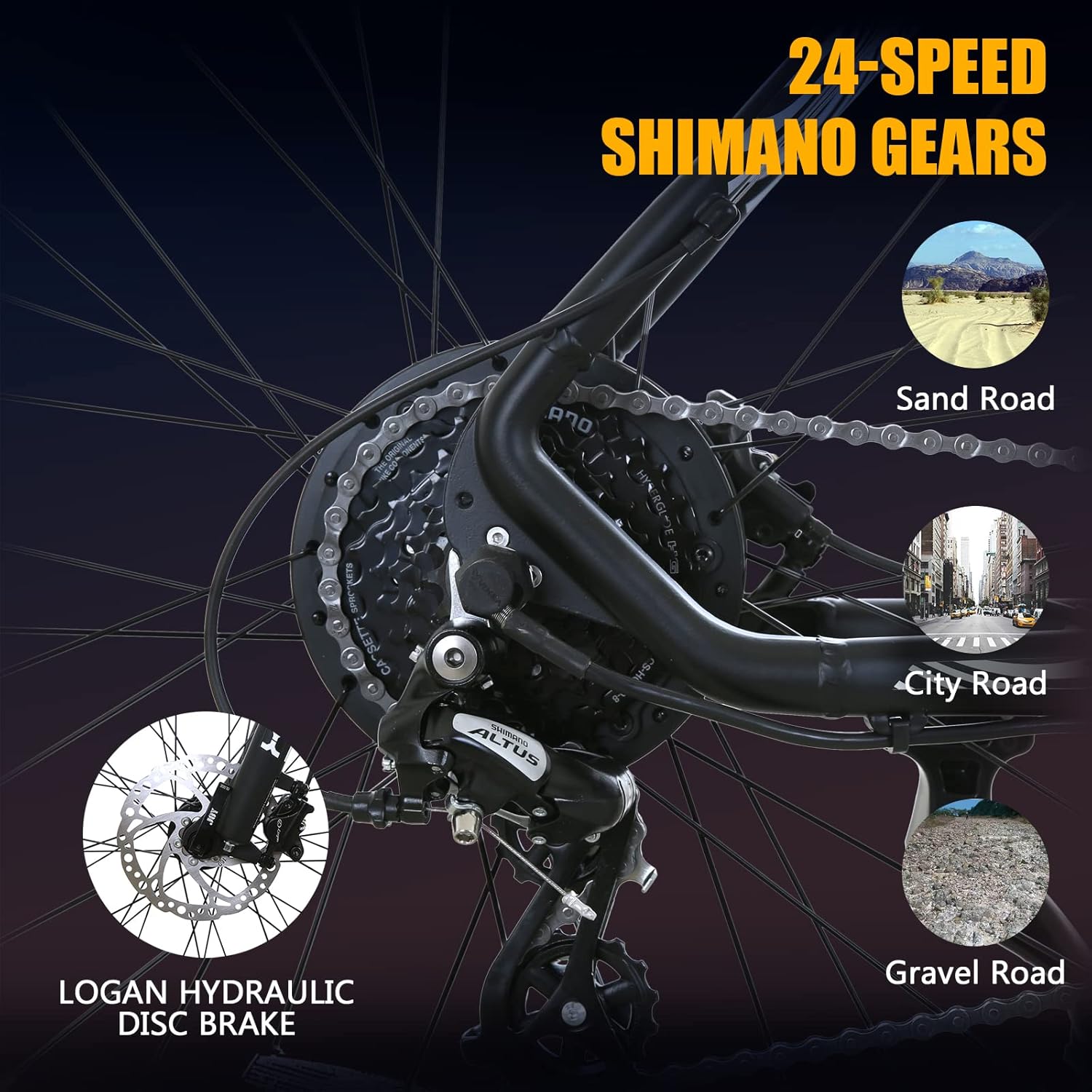

Figur 6: Detaljeret view of the Logan hydraulic disc brake caliper and the Shimano 24-speed gear derailleur and cassette, indicating suitability for sand, city, and gravel roads.

Betjeningsvejledning

Tænd/sluk

• To power on the bike, press and hold the power button on the display unit.
• For at slukke skal du trykke på tænd/sluk-knappen igen, indtil skærmen slukker.

Pedal Assist System (PAS)

The Totem Osprey offers 5 levels of pedal assist. Use the '+' and '-' buttons on the control panel to adjust the assist level. Higher levels provide more motor assistance.

Opladning af batteriet

• The battery can be charged while installed on the bike or removed.
• Tilslut opladeren til batteriets opladningsport, og sæt derefter opladeren i en almindelig stikkontakt.
• A full charge typically takes 4-6 hours. The charger indicator light will change when charging is complete.
• Always use the original charger provided by Totem.

Skifte gear

Use the Shimano shifters on the handlebars to change gears. Shift gears smoothly and avoid shifting under heavy load to prevent damage to the drivetrain. Practice shifting in a safe area before riding on varied terrain.

Bremsning

The hydraulic disc brakes provide strong and consistent stopping power. Apply both front and rear brakes simultaneously for optimal control and stopping distance. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.

Opretholdelse

Regular maintenance is crucial for the longevity and safe operation of your e-bike.

• Dæktryk: Check tire pressure before each ride. Recommended pressure is typically found on the tire sidewall.
• Bremser: Regularly inspect brake pads for wear and ensure brake levers feel firm. Adjust or replace as needed.
• Kæde: Keep the chain clean and lubricated to ensure smooth shifting and prevent premature wear.
• Bolte og fastgørelseselementer: Periodically check all bolts and fasteners for tightness, especially on critical components like the handlebars, stem, wheels, and seat post.
• Batteripleje: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% every few months.
• Rensning: Rengør cyklen med en damp klud og mild sæbe. Undgå højtryksspuling direkte på elektriske komponenter.

Fejlfinding

This section addresses common issues you might encounter with your Totem Osprey e-bike.

Specifikationer

Garanti og support

Totem provides customer support and stands behind its products. For warranty information, technical assistance, or replacement parts, please contact Totem customer service.

• Refer to the warranty card included with your purchase for specific terms and conditions.
• For direct support, visit the official Totem webwebsted eller kontakt deres kundeserviceafdeling.
• Gem din købskvittering som købsbevis i tilfælde af garantikrav.
