MOUNTUP MU2005 Gas Spring Single Monitor Wall Mount

1. Introduktion

This manual provides instructions for the installation, operation, and maintenance of your MOUNTUP MU2005 Gas Spring Single Monitor Wall Mount. This mount is designed to securely hold computer screens and televisions, offering adjustable positioning for an ergonomic viewing experience. Please read these instructions carefully before installation to ensure safe and correct usage.

2. Sikkerhedsoplysninger

ADVARSEL: Improper installation may result in serious personal injury and property damage. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer.

• Do not install on drywall alone. This mount is designed for installation on wood studs, solid concrete walls, or brick walls.
• Sørg for, at monteringsfladen sikkert kan bære den samlede vægt af beslaget og skærmen.
• Overskrid ikke den maksimale vægtkapacitet på 12 kg.
• Use only the provided hardware. If any parts are missing or defective, contact MOUNTUP customer service.
• Hold børn og kæledyr væk under installationen.
• Periodically check that the mount is secure and all fasteners are tight.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter med installationen.

• Monitor Wall Mount Arm (MU2005)
• VESA-plade
• VESA Extension Kit (for larger VESA patterns)
• Mounting Hardware (screws, anchors, washers)
• Hex Keys for Adjustment
• Instruktionsmanual

Image: Main components of the MOUNTUP MU2005 monitor wall mount, including the gas spring arm, VESA mounting plate, and VESA extension brackets.

4. Specifikationer

Image: Detailed diagram illustrating the mount's dimensions, VESA compatibility (75x75, 100x100, 100x200, 200x100, 200x200), weight capacity (4.4-26.5 lbs), and supported screen sizes (22-35 inches).

5. Opsætning og installation

Before beginning, ensure you have all necessary tools and that your wall type is compatible. This mount is suitable for wood studs, concrete walls, and brick walls. It is NOT for drywall alone.

5.1 Kompatibilitetskontrol

Confirm your monitor meets the following criteria:

1. Skærmstørrelse: 22-35 tommer
2. Skærmvægt: 4.4-26.5 lbs
3. VESA mønster: 75x75mm, 100x100mm, 100x200mm, 200x100mm, 200x200mm
4. Vægtype: Wood Stud, Brick Wall, or Concrete Wall

Image: A visual guide to checking monitor compatibility with the mount, covering screen size, weight, VESA pattern, and suitable wall types.

5.2 Installationstrin

1. Install the Arm to the Wall: Securely attach the wall plate of the monitor arm to a wood stud, concrete wall, or brick wall using the appropriate hardware. Ensure it is level and firmly anchored.


Image: Illustration of mounting the arm's wall plate to the wall.

2. Attach VESA Plate to Monitor Back: Fasten the VESA plate to the back of your monitor using the screws that fit your monitor's VESA holes. Use the VESA extension kit if your monitor requires a larger VESA pattern.


Image: Illustration of attaching the VESA plate to the monitor's rear.

3. Attach Monitor onto the Arm: Carefully slide the monitor (with the attached VESA plate) onto the arm's mounting head. Ensure it clicks into place securely.


Image: Illustration of sliding the monitor onto the arm's VESA head.

4. Adjust Gas Spring to Proper Tension: This is crucial for the arm to hold your monitor at the desired height. Refer to the 'Operating' section for detailed adjustment instructions.


Image: Illustration of adjusting the gas spring tension on the arm.

5.3 Kabelstyring

Før dine kabler gennem de integrerede kabelkanaler på armen for at opretholde et rent og organiseret arbejdsområde.

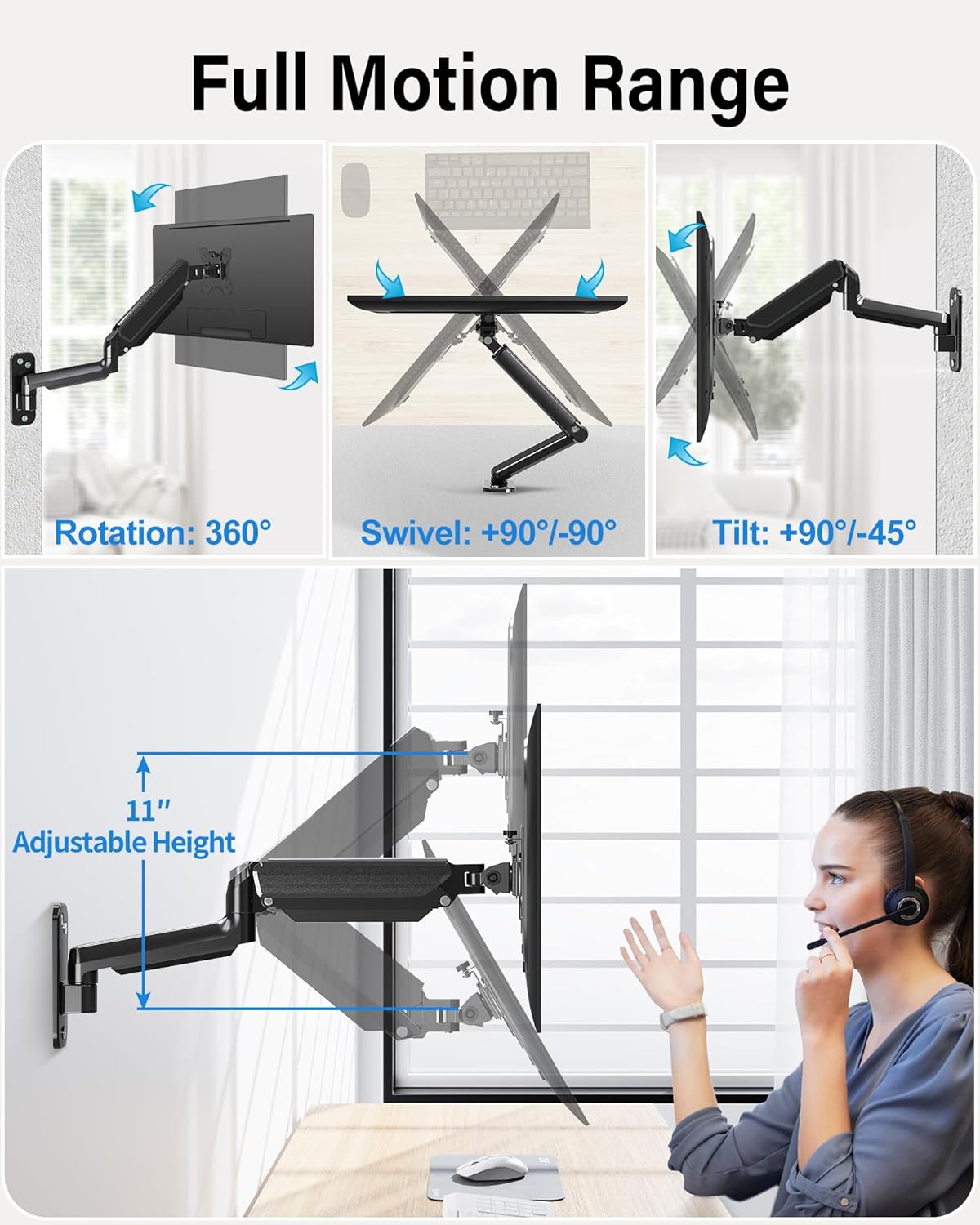

Image: The monitor arm demonstrating its full range of motion, including 360° rotation, 90°/-90° swivel, 90°/-45° tilt, and 11 inches of adjustable height.

6. Operating the Monitor Arm

The MOUNTUP MU2005 offers extensive adjustability to achieve optimal viewvinkler og ergonomisk placering.

6.1 Gas Spring Adjustment (Monitor Height)

The gas spring allows for effortless height adjustment. If your monitor does not stay at the desired height, adjust the tension:

• Monitor raises up (too light): Turn the screw clockwise ("-" direction) to reduce tension.
• Monitor drops down (too heavy): Turn the screw counter-clockwise ("+" direction) to increase tension.

Note: Hold the arm in a horizontal position during adjustment. Refer to the table below for approximate turns based on monitor weight.

Image: Comprehensive guide for adjusting gas spring tension and tilt angle, including a table correlating monitor weight with the number of turns for adjustment.

6.2 Justering af hældningsvinkel

If your monitor faces down or up unintentionally, adjust the tilt tension:

1. Loosen the tilting bolt (Turn to "-" direction).
2. Adjust the monitor to your desired angle.
3. Retighten the tilting bolt (Turn to "+" direction).

Image: Visual instructions for adjusting the gas spring tension and the monitor's tilt angle using a hex key.

6.3 Drejning og rotation

• The arm can swivel 180° at the wall plate and 360° at the arm joint.
• The VESA plate allows for 180° swivel and 360° rotation, enabling easy switching between portrait and landscape orientations.

Image: The monitor arm demonstrating its full range of motion, including 360° rotation, 90°/-90° swivel, 90°/-45° tilt, and 11 inches of adjustable height.

7. Vedligeholdelse

Regular maintenance ensures the longevity and safe operation of your monitor mount.

• Rensning: Tør holderen af ​​med en blød kludamp klæde. Undgå slibende rengøringsmidler.
• Tjek forbindelser: Periodically inspect all screws and bolts to ensure they are tight. Retighten if necessary.
• Gas Spring Function: If the gas spring's performance changes over time, re-adjust the tension as described in the 'Operating' section.

8. Fejlfinding

Hvis du støder på problemer med din MOUNTUP-skærmarm, kan du se følgende almindelige problemer og løsninger:

8.1 Arm Does Not Stay at Desired Height

• Problem: Monitor arm falls down.
• Løsning: The gas spring tension is too low for the monitor's weight. Increase tension by turning the adjustment screw counter-clockwise ("+" direction).
• Problem: Monitor arm rises up.
• Løsning: The gas spring tension is too high for the monitor's weight. Decrease tension by turning the adjustment screw clockwise ("-" direction).

Refer to the 'Gas Spring Adjustment' section for detailed instructions and the weight-to-turns table.

8.2 Monitor Tilts Down Unintentionally

• Problem: The monitor head cannot maintain its tilt angle.
• Løsning: The tilting bolt is loose. Loosen the tilting bolt, adjust the monitor to the desired angle, and then retighten the tilting bolt firmly.

9. Garanti og support

MOUNTUP provides a 3-year support for this product. If you have any questions regarding pre-purchase compatibility, installation, or require assistance with any issues, please do not hesitate to contact MOUNTUP customer service. Our team is available to provide friendly and helpful support.
