BATAVIA Cordless Drill Instruction Manual

1. Vigtige sikkerhedsoplysninger

Læs og forstå altid alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Manglende overholdelse af alle nedenstående instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv. Elværktøj skaber gnister, der kan antænde støv eller dampe.
• Elektrisk sikkerhed: Elværktøjsstik skal passe til stikkontakten. Modificer aldrig stikket på nogen måde. Misbrug ikke ledningen. Brug aldrig ledningen til at bære, trække eller tage stikket ud af elværktøjet. Hold ledningen væk fra varme, olie, skarpe kanter eller bevægelige dele.
• Personlig sikkerhed: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. Always wear eye protection. Use safety glasses, goggles, or a face shield.
• Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din opgave. Det korrekte elværktøj vil udføre arbejdet bedre og mere sikkert med den hastighed, det er designet til. Tag stikket ud af strømkilden, og/eller fjern batteriet, hvis det kan tages af, fra elværktøjet, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
• Brug og pleje af batteripakken: Genoplad kun med den oplader, der er specificeret af producenten. En oplader, der er egnet til én type batteripakke, kan skabe brandrisiko, når den bruges sammen med en anden batteripakke. Brug kun elværktøj med specielt beregnede batteripakker.

2. Pakkens indhold

Carefully unpack all items and ensure you have received the following:

• BATAVIA Cordless Drill (BT-CTD001)
• 20V MAX 2.0Ah Lithium-Ion Battery
• 2.4A batterioplader
• Instruktionsmanual

Image: The BATAVIA Cordless Drill, including the main unit, a 20V MAX 2.0Ah Lithium-Ion battery, and a 2.4A battery charger.

3. Produktet er slutview

Familiarize yourself with the components of your BATAVIA Cordless Drill:

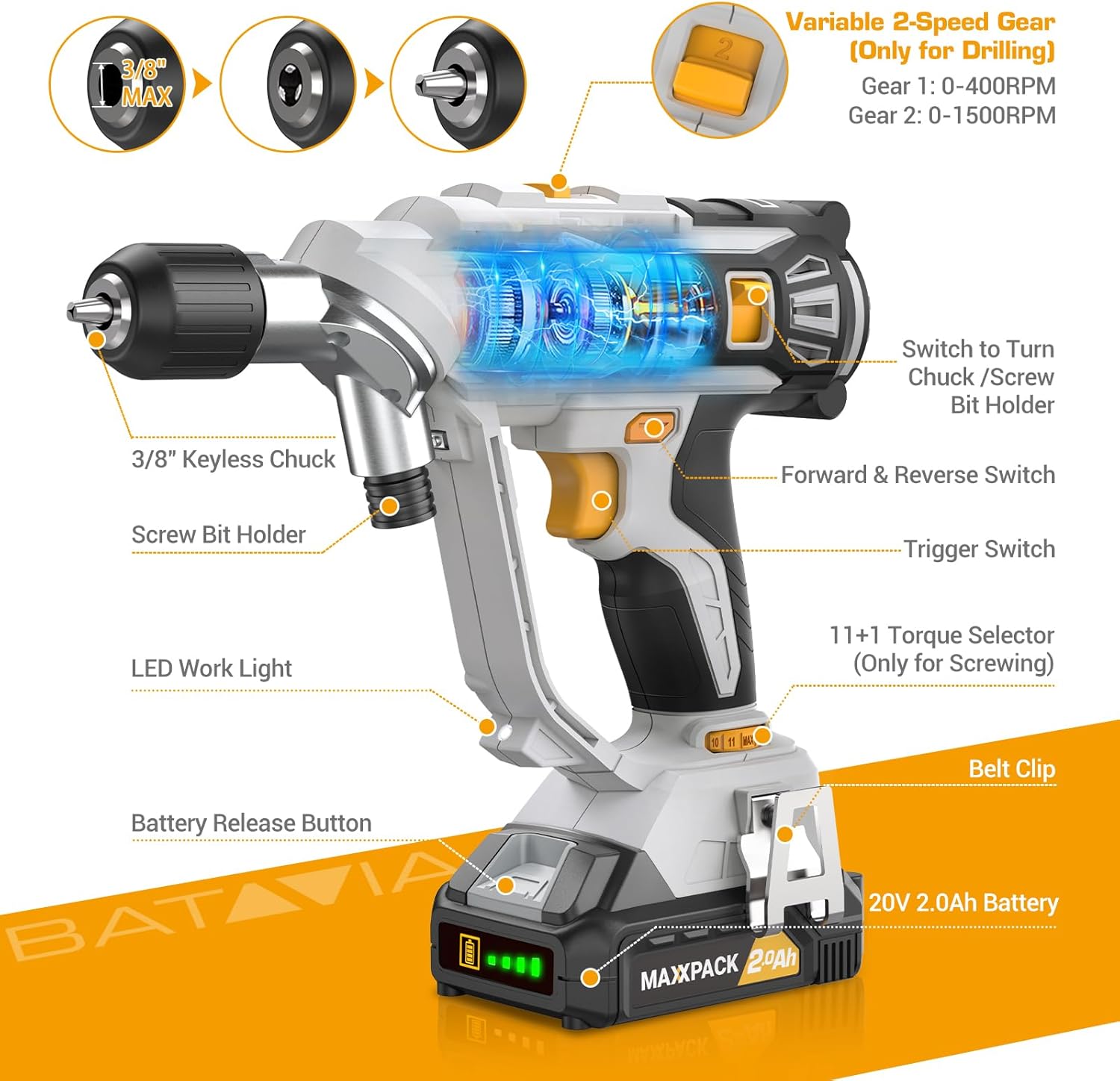

Image: A detailed diagram highlighting key components of the BATAVIA Cordless Drill, including the 3/8" Keyless Chuck, Screw Bit Holder, LED Work Light, Battery Release Button, 20V 2.0Ah Battery, Belt Clip, 11+1 Torque Selector, Trigger Switch, Forward & Reverse Switch, and Variable 2-Speed Gear switch.

• Dual Rotating Chucks: Features both a 3/8" keyless chuck for drilling and a 1/4" hex chuck for driving, allowing quick transitions between tasks.
• 11+1 Momentindstillinger: Provides precise control for various applications and materials.
• 2 variable hastigheder: Offers two speed ranges (0-400 RPM and 0-1500 RPM) for optimal performance in different drilling and driving scenarios.
• Automatic LED Work Light: Oplyser arbejdsområdet for forbedret udsyn under dårlige lysforhold.
• Bælteklips: Conveniently attaches the drill to your belt for easy access.

4. Opsætning

4.1 Opladning af batteriet

1. Ensure the battery is securely inserted into the 2.4A battery charger.
2. Plug the charger into a standard 120V AC electrical outlet.
3. The indicator lights on the charger will show the charging status. A full charge typically takes less time due to the 2.4A charger.
4. Once fully charged, disconnect the charger from the outlet and remove the battery.

4.2 Installation/fjernelse af batteriet

• To install: Align the battery with the base of the drill handle and slide it in until it clicks securely into place.
• To remove: Press the battery release button located on the front of the battery pack and slide the battery out.

4.3 Using the Dual Rotating Chucks

This drill features a unique dual rotating chuck system for quick changes between drilling and driving tasks.

Image: The BATAVIA Cordless Drill demonstrating its dual rotating chuck feature, allowing users to switch between a drill bit and a screwdriver bit by rotating the chuck assembly.

• For Drilling (3/8" Keyless Chuck): Rotate the front section of the drill head to expose the 3/8" keyless chuck. Insert the drill bit and tighten the chuck by hand until the bit is secure.
• For Driving (1/4" Hex Chuck): Rotate the front section of the drill head to expose the 1/4" hex chuck. Insert the screwdriver bit directly into the hex opening until it locks into place.

5. Betjeningsvejledning

5.1 Setting Torque (11+1 Settings)

The torque selector ring allows you to adjust the amount of rotational force the drill applies. This is crucial for preventing overtightening screws or damaging materials.

Image: The BATAVIA Cordless Drill highlighting its 11+1 torque settings, with recommendations for low settings for small screws/soft materials and high settings for large screws/hard materials.

• Rotate the torque selector ring to choose a setting from 1 to 11. Lower numbers are for smaller screws or softer materials, while higher numbers are for larger screws or harder materials.
• The 'Drill' symbol (often indicated as 'MAX' or a drill icon) bypasses the clutch for maximum torque, suitable for drilling applications.

5.2 Selecting Speed (2 Variable Speeds)

The drill features a 2-speed gearbox to match the speed to the application.

Image: The BATAVIA Cordless Drill showing its adjustable variable 2-speed gear selector. Gear 1 (0-400 RPM) is recommended for large diameter drilling, and Gear 2 (0-1500 RPM) for small diameter drilling.

• Gear 1 (0-400 RPM): Use for high-torque applications, such as driving large screws or drilling large holes in tough materials.
• Gear 2 (0-1500 RPM): Use for high-speed applications, such as drilling small holes or driving small screws quickly.
• The trigger switch provides variable speed control within the selected gear range. Pressing the trigger further increases the speed.

5.3 Frem/Baglæns kontakt

The forward/reverse switch is located above the trigger. It controls the direction of rotation.

• Push the switch to the left for forward rotation (for drilling and driving screws).
• Push the switch to the right for reverse rotation (for removing screws or backing out drill bits).
• When the switch is in the center position, the trigger is locked, preventing accidental starting.

5.4 Automatic LED Work Light

The built-in LED light automatically illuminates when the trigger is pressed, providing visibility in dimly lit work areas.

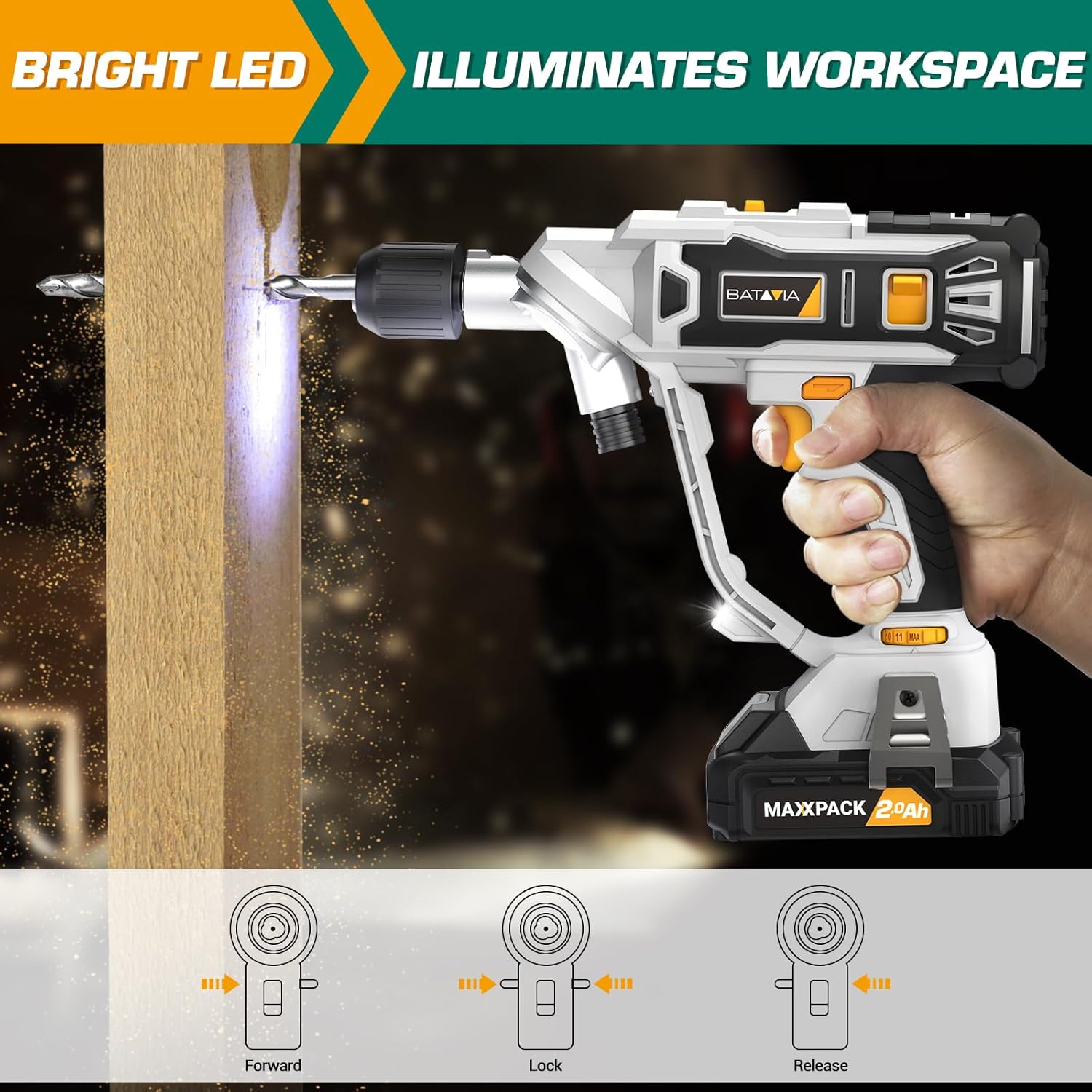

Image: The BATAVIA Cordless Drill in use, with its bright LED light illuminating the work surface, demonstrating its utility in dark or confined spaces.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din boremaskines levetid og optimale ydeevne.

• Rensning: Efter hver brug skal boremaskinen tørres af med en ren klud.amp klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler. Hold ventilationsåbningerne fri for støv og snavs.
• Opbevaring: Store the drill, battery, and charger in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is removed from the drill before storage.
• Batteripleje: Opbevar ikke batterier i afladet tilstand. Genoplad dem med jævne mellemrum, hvis de ikke er i brug i længere perioder.

7. Fejlfinding

If you encounter issues with your BATAVIA Cordless Drill, refer to the following common problems and solutions:

8. Specifikationer

9. Garanti og support

BATAVIA products are designed and manufactured to the highest quality standards. This product is ETL certified, ensuring product quality and safety.

For any questions, technical assistance, or warranty claims, please contact BATAVIA customer service:

• Telefon: (+1) 866-272-5789
• Operating Hours (EDT): 10am - 7pm
• Operating Hours (PDT): 7am - 4pm

Please have your model number (BT-CTD001) and purchase information ready when contacting support.
