Vibox I-26 PC Gaming Complete System Brugermanual

Indledning

This manual provides essential instructions for setting up, operating, maintaining, and troubleshooting your Vibox I-26 PC Gaming Complete System. Please read this manual thoroughly before using your new system to ensure optimal performance and longevity.

1. Opsætningsvejledning

1.1 Udpakning og komponenttjek

Fjern forsigtigt alle komponenter fra emballagen. Kontroller, at alle nedenstående dele er til stede:

• Vibox I-26 PC Tower
• 22 tommer skærm
• Gaming tastatur
• Gaming mus
• Gaming høretelefoner
• Musemåtte
• WiFi Adapter
• Power Cables (for PC and Monitor)
• Video Cable (DVI-D or VGA)

Image 1.1: The complete Vibox I-26 PC Gaming System, including the PC tower, 22-inch monitor, gaming keyboard, gaming mouse, and gaming headphones.

1.2 Tilslutning af eksterne enheder

1. Skærmforbindelse: Connect the monitor to the PC using the provided video cable (DVI-D or VGA). Ensure the cable is securely fastened.
2. Tastatur og mus: Plug the gaming keyboard and mouse into available USB ports on the rear of the PC.
3. Hovedtelefoner: Connect the gaming headphones to the audio jacks (usually green for audio out, pink for microphone in) on the front or rear of the PC.
4. WiFi adapter: Insert the WiFi adapter into an available USB port. Drivers may install automatically.
5. Magt: Connect the power cables to the PC and the monitor, then plug them into a power outlet.

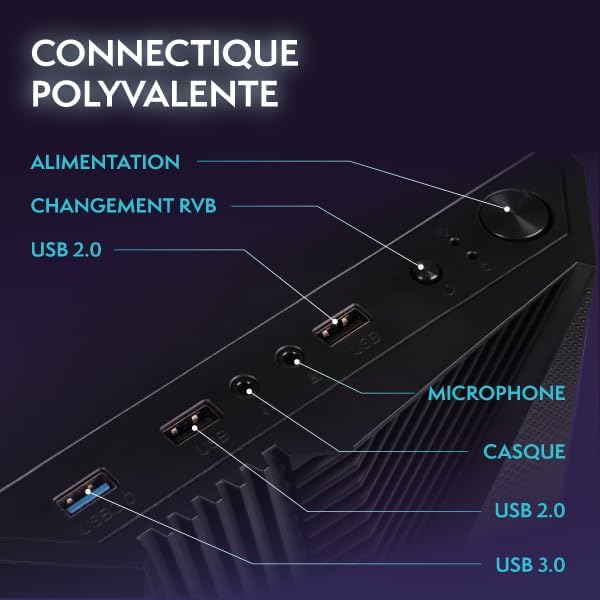

Image 1.2: Front panel connectivity ports, showing USB 2.0, USB 3.0, headphone, and microphone jacks for easy access.

1.3 Første opstart og Windows 11-opsætning

Press the power button on the PC tower. The system will boot up. Follow the on-screen instructions to complete the Windows 11 Home setup. This typically involves selecting your region, language, creating a user account, and connecting to a network.

2. Betjening af din pc

2.1 Grundlæggende betjening

• Tænd/sluk: Press the power button to turn on the PC. To shut down, click the Start button in Windows, then Power > Shut down.
• Genstart: To restart the system, click the Start button, then Power > Restart.
• Sove mode: To put the PC into sleep mode, click the Start button, then Power > Sleep.

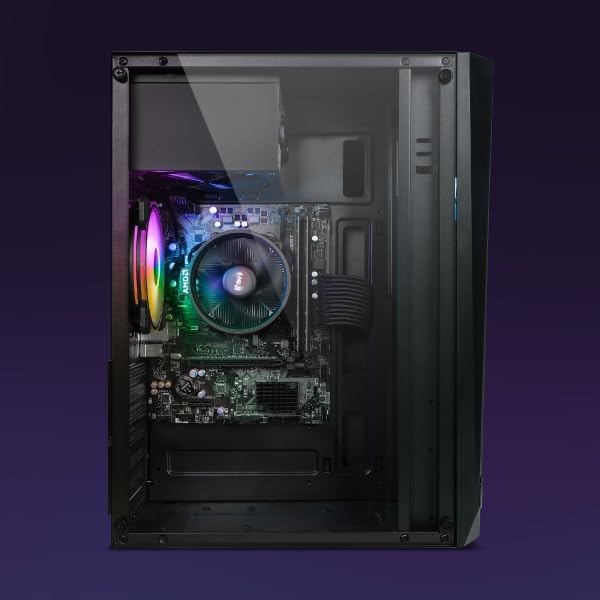

Billede 2.1: En intern view of the PC tower, highlighting the main components and RGB lighting.

2.2 Windows 11 Navigation and Features

Windows 11 Home is pre-installed, offering a modern interface and optimized performance. Key features include:

• Faster loading times with DirectStorage.
• Auto HDR for enhanced graphics.
• Seamless Xbox Game Pass integration.
• Optimized CPU performance.

Image 2.2: Visual representation of Windows 11 Home features, emphasizing its benefits for gaming and general use.

2.3 Installing Software and Games

You can install software and games from various sources:

• Microsoft Store: Access a wide range of applications and games directly from the pre-installed Microsoft Store.
• Game Launchers: Download and install popular game launchers like Steam, Epic Games Store, or GOG Galaxy for your gaming library.
• Web Downloads: Install software downloaded from trusted webwebsteder.

3. Vedligeholdelse

3.1 Cleaning Your PC

Regular cleaning helps maintain optimal performance and extends the lifespan of your PC.

• Ydre: Brug en blød, damp cloth to wipe down the exterior of the PC case and monitor. Avoid harsh chemicals.
• Fjernelse af støv: Periodically use compressed air to clear dust from vents and internal components. Ensure the PC is powered off and unplugged before doing so.

Billede 3.1: En intern view of the PC, illustrating the layout of components and areas where dust may accumulate.

3.2 Softwareopdateringer

Keep your operating system and drivers updated for security and performance:

• Windows-opdateringer: Go to Settings > Windows Update to check for and install the latest OS updates.
• Driver opdateringer: Tjek regelmæssigt AMD'en website for the latest graphics drivers for your Radeon Vega 8.

3.3 Datasikkerhedskopiering

Sikkerhedskopier regelmæssigt vigtige data til et eksternt drev eller cloud-lagring for at forhindre datatab.

4. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på.

4.1 Ingen strøm

• Tjek strømkabler: Ensure all power cables are securely connected to the PC, monitor, and wall outlet.
• Power Strip: Verify that the power strip or surge protector is switched on and functioning.

4.2 Ingen visning på skærmen

• Video kabel: Confirm the video cable is firmly connected to both the PC and the monitor.
• Monitorinput: Check the monitor's input source settings to ensure it's set to the correct input (e.g., DVI-D, VGA).
• Skærmstyrke: Sørg for, at skærmen er tændt.

4.3 Langsom ydeevne

• Luk baggrundsapplikationer: Luk unødvendige programmer, der kører i baggrunden.
• Diskplads: Ensure your 500GB NVMe M.2 SSD has sufficient free space.
• Opdateringer: Verify that Windows and graphics drivers are up to date.
• Malware-scanning: Run a full system scan using reputable antivirus software.

4.4 Problemer med netværksforbindelse

• WiFi adapter: Ensure the USB WiFi adapter is properly inserted and its drivers are installed.
• Router/Modem: Genstart din router og dit modem.
• Netværksindstillinger: Check Windows network settings to ensure WiFi is enabled and connected to the correct network.

5. Specifikationer

Detailed technical specifications for the Vibox I-26 PC Gaming Complete System:

Image 5.1: Dimensions of the Vibox I-26 PC tower for reference.

6. Garanti og support

6.1 Garantioplysninger

Your Vibox I-26 PC Gaming Complete System comes with a Vibox Lifetime Evolution Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Vibox webwebsted.

6.2 Teknisk support

If you encounter issues not covered in this manual or require further assistance, please contact Vibox customer support. Contact details can typically be found on the Vibox webwebstedet eller i din produktemballage.

Before contacting support, please have your product model (I-26) and any relevant purchase information ready.
