Audeze Filter Speakerphone User Manual

1. Introduktion

The Audeze Filter Speakerphone is a portable conference device designed for clear voice communication. It features advanced Artificial Intelligence (A.I.) noise filtering and proprietary planar magnetic speaker technology to optimize speech clarity. This manual provides instructions for setting up, operating, maintaining, and troubleshooting your Audeze Filter Speakerphone.

2. Hvad er der i æsken

Upon unboxing your Audeze Filter Speakerphone, verify that all the following items are included:

• Audeze Filter Speakerphone Unit
• USB-C til USB-C opladerkabel
• USB-C til USB-A-adapter
• Quick Start Guide (Multi-language)
• Leatherette Magnetic Closure Carry Case
• Anti-slip Pad with Audeze Logo

Image: All items included in the Audeze Filter Speakerphone package.

3. Produktet er slutview

The Audeze Filter is designed for portability and ease of use, featuring a sleek aluminum chassis. It is comparable in size to a large cellphone when folded.

3.1 Fysiske egenskaber

• Kontrolelementer: Touch-sensitive buttons for mute, AI filter, volume adjustment, and call management.
• Mikrofoner: Intelligent beamforming microphone array.
• Højttaler: Patented Audeze Planar Magnetic Speaker optimized for speech clarity.
• USB-C-port: Til opladning og kabelforbindelse.
• Power knap: Located on the side for easy access.
• LED-indikator: Giver statusfeedback.
• Sammenfoldeligt design: Allows the speaker to stand upright for optimal sound direction or fold flat for portability.

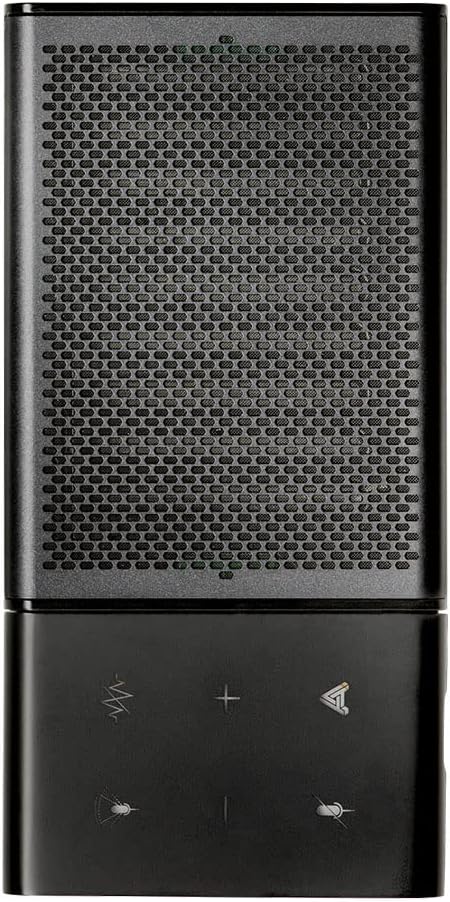

Image: Close-up of the speakerphone's control panel and speaker grille.

Image: The Audeze Filter Speakerphone in its upright position, ready for use.

Image: Dimensions of the Audeze Filter Speakerphone.

Image: The Audeze Filter Speakerphone in its compact, folded state.

Image: The Audeze Filter Speakerphone neatly stored in its protective carry case.

4. Opsætning

4.1 Opladning af enheden

The Audeze Filter has a built-in rechargeable Lithium Polymer battery, providing up to 15 hours of usage. To charge:

1. Connect the provided USB-C cable to the USB-C port located on the inside of the speakerphone when it is unfolded.
2. Connect the other end of the USB-C cable to a power source (e.g., computer, wall adapter). If your power source only has a USB-A port, use the included USB-C to USB-A adapter.
3. En fuld opladning tager cirka 2.5 timer.

4.2 Tænd/sluk

To power on the device, press the singular power button located on the side. The LED indicator will illuminate. To power off, press and hold the power button.

4.3 Bluetooth -parring

The Audeze Filter supports Bluetooth connectivity for wireless use with compatible devices.

1. Power on the Audeze Filter. It will automatically enter pairing mode, indicated by a blinking LED.
2. Gå til Bluetooth-indstillingerne på din enhed (smartphone, tablet, bærbar computer).
3. Select "Audeze Filter" from the list of available devices to connect.
4. For Android devices, a prompt may appear for quick connection. For other operating systems like Windows or macOS, you may need to manually select it in Bluetooth settings.

4.4 USB-kablet forbindelse

For a direct and stable connection, you can use the USB-C cable:

1. Connect one end of the USB-C cable to the Audeze Filter's USB-C port.
2. Connect the other end to your computer's USB-C port. Use the provided USB-C to USB-A adapter if necessary.
3. The device will be recognized as an audio input/output device.

5. Operating the Speakerphone

5.1 Styringer

The Audeze Filter features intuitive touch controls on its surface:

• Mute-knap: Located at the upper left, mutes/unmutes the microphone.
• AI Filter Button: Located to the right of the mute button, cycles through AI Noise Suppression settings (Off, Low, Medium, High).
• Lydstyrkeknapper (+/-): Adjust speaker volume. Long-press to skip tracks (forward/reverse) when listening to media.
• Multifunktionsknap: Located at the lower right, used for accepting and rejecting phone calls.

5.2 AI Noise Filtering

The Audeze Filter utilizes A.I. to identify and remove background noises, enhancing voice clarity. It is trained to recognize over 1000 different sounds, such as barking dogs, crying babies, fan noises, and car sounds.

• Adjust the level of noise suppression (Low, Medium, High) via the AI Filter button on the device or through the companion app.

5.3 Beamforming Microphones

The intelligent beamforming microphone array allows you to adjust the microphone pickup pattern to suit your environment:

• 30°: Ideal for a single user directly in front of the speakerphone.
• 90°: Suitable for a small group or two people facing the speakerphone.
• 180°: For users on one side of a table.
• 360°: Best for multiple participants around the speakerphone in a conference setting.

5.4 Companion App (Audeze Hub)

The Audeze Hub app, available for iOS and Android, provides advanced control and customization options for your Audeze Filter Speakerphone.

• Indikator for batterilevetid: View det resterende batteritage.
• Speaker Boost: Increase speaker loudness by up to 15dB for larger rooms or louder environments.
• Mikrofon afstand: Fine-tune the microphone pickup range from 0.5 meters to 5.5 meters to optimize for different room sizes and participant distances.
• Mikrofon mute: One-tap microphone mute control.
• Automatisk nedlukning: Configure the device to automatically shut down after 30 minutes, 1 hour, 2 hours, 4 hours, or disable this feature.
• Stemmemeddelelser: Adjust the volume level of voice prompts from 0% to 100%.
• Firmwareopdateringer: Keep your device updated with the latest features and improvements by checking for and installing firmware updates directly through the app.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your Audeze Filter Speakerphone, follow these maintenance guidelines:

• Rensning: Brug en blød, tør klud til at rengøre ydersiden af ​​enheden. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Opbevaring: When not in use, store the speakerphone in its provided leatherette carry case to protect it from scratches and dust.
• Temperatur: Undgå at udsætte enheden for ekstreme temperaturer eller direkte sollys i længere perioder.

7. Fejlfinding

If you encounter issues with your Audeze Filter Speakerphone, refer to the following common solutions:

• Difficulty Hearing Others / Low Volume:
  • Check the volume level on the device and your connected computer/smartphone.
  • Use the Audeze Hub app to activate the Speaker Boost funktion.
• Others Cannot Hear You Clearly / Background Noise:
  • Sørg for, at mikrofonen ikke er slået fra.
  • Juster AI støjdæmpning level (Low, Medium, High) via the device button or the Audeze Hub app.
  • Juster Stråleformning setting to focus on the speaker(s) and minimize ambient noise.
  • In the Audeze Hub app, verify the Mikrofon afstand setting is appropriate for your position relative to the speakerphone.
• Problemer med Bluetooth-forbindelse:
  • Ensure the speakerphone is powered on and in pairing mode (blinking LED).
  • Turn off and on Bluetooth on your connecting device.
  • Glem enheden i dine Bluetooth-indstillinger, og parr igen.
  • Try connecting via the USB-C cable as an alternative.
• Firmwareopdateringsproblemer:
  • Ensure the device has sufficient battery charge before attempting an update.
  • Maintain a stable Bluetooth connection between the speakerphone and the device running the Audeze Hub app during the update process.

8. Specifikationer

9. Garanti og support

The Audeze Filter Speakerphone comes with a Fuld garanti. For detailed warranty information, product support, or to contact customer service, please visit the official Audeze Store:

Visit the Audeze Store
