1. Introduktion
The pecron EB3000-24V is a 3072Wh expansion battery designed to significantly increase the capacity of your pecron E2000LFP Portable Power Station. This unit provides additional power storage and features independent output ports for charging various devices. This manual provides essential information for the safe and efficient use of your EB3000-24V expansion battery.
Image 1: pecron EB3000-24V Expansion Battery
2. Sikkerhedsoplysninger
Please read and understand all safety instructions before operating the pecron EB3000-24V. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Enheden må ikke skilles ad, repareres eller modificeres.
- Hold enheden væk fra varmekilder, direkte sollys og brandfarlige materialer.
- Udsæt ikke enheden for vand eller andre væsker.
- Sørg for tilstrækkelig ventilation under brug og opladning.
- Opbevares utilgængeligt for børn og kæledyr.
- Brug kun godkendt tilbehør og kabler.
- I tilfælde af brand, brug en tørpulverslukker. Vand kan forårsage elektrisk stød.
3. Pakkens indhold
Bekræft at alle varer er inkluderet i din pakke:
- pecron EB3000-24V udvidelsesbatteri
- Batteriudvidelseskabel
- Solar ladekabel
- DC udgangskabel
- Bil ladekabel
- 12V Alligator Clips
- Brugermanual
Image 2: Contents included with the pecron EB3000-24V
4. Produktet er slutview
The pecron EB3000-24V is a robust expansion battery featuring a 3072Wh LiFePO4 battery. It is designed to integrate seamlessly with the pecron E2000LFP Portable Power Station, expanding its total capacity up to 8064Wh with two EB3000 units. The EB3000-24V also offers independent charging capabilities and multiple output ports for direct device charging.
4.1 Nøglefunktioner
- Høj kapacitet: 3072Wh LiFePO4 battery.
- Kan udvides: Increases E2000LFP capacity up to 8064Wh with two EB3000 units.
- Alsidige udgange: 100W USB-C, 12V/30A DC Output, and 18W USB-A ports.
- Flere opladningsmuligheder: Can be charged independently via solar panels, AC, or car.
- Holdbar og sikker: Features an ultra-safe LiFePO4 battery with a built-in Battery Management System (BMS) for protection against short circuits, overload, and overheating.
Image 3: LiFePO4 Battery Technology
Image 4: EB3000-24V expanding E2000LFP capacity
5. Opsætning
5.1 Connecting to pecron E2000LFP
To expand the capacity of your E2000LFP, connect the EB3000-24V using the provided Battery Expansion Cable. Ensure both units are powered off before connecting.
- Locate the expansion ports on both the E2000LFP and the EB3000-24V.
- Carefully connect one end of the Battery Expansion Cable to the E2000LFP and the other end to the EB3000-24V.
- Once connected, you can power on the E2000LFP. The system will recognize the additional battery capacity.
Image 5: Modular Power Supply Expansion

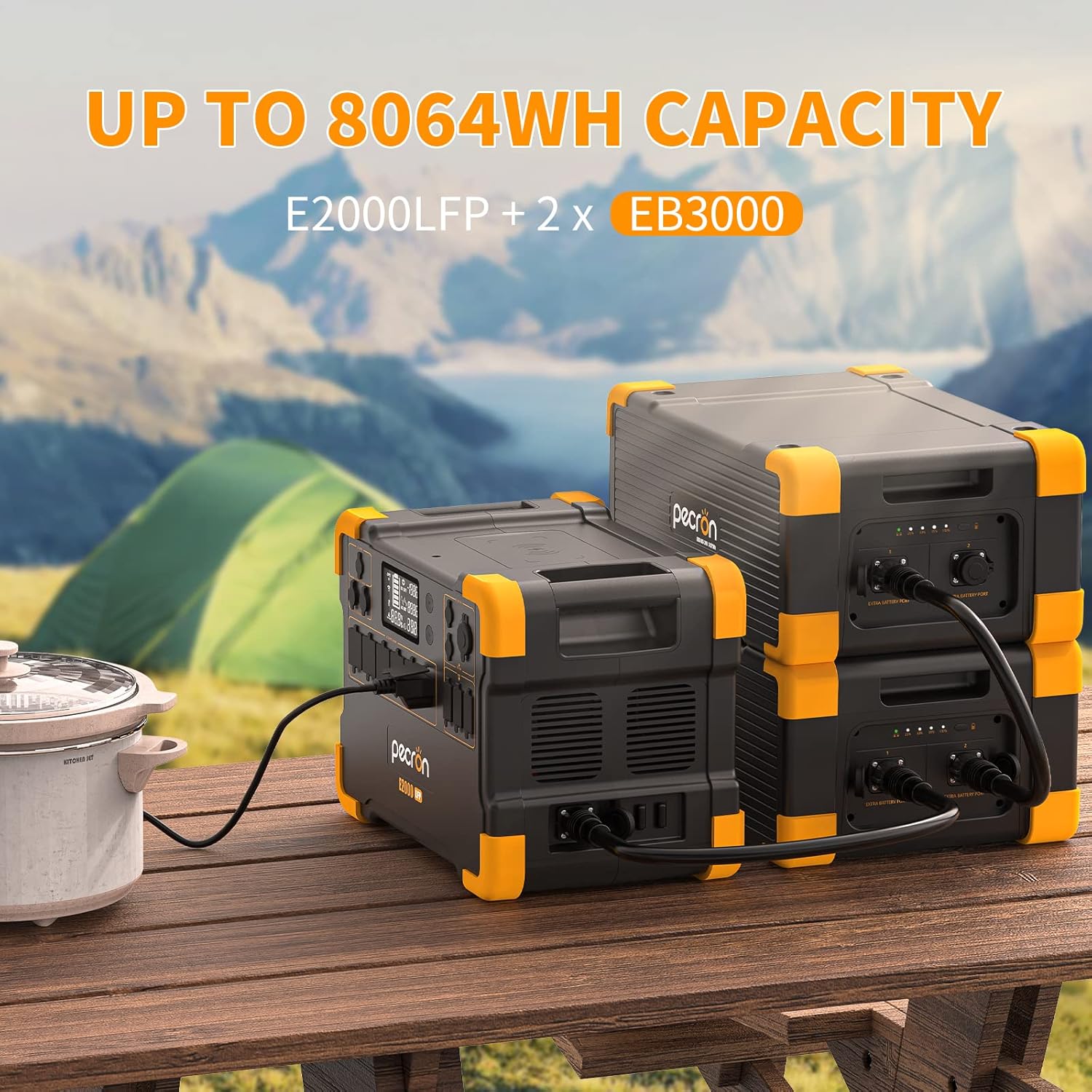

Image 6: E2000LFP with two EB3000 units
Video 1: Demonstrates connecting the pecron E2000LFP with EB3000 expansion batteries and various usage scenarios.
6. Betjeningsvejledning
6.1 Charging the EB3000-24V
The EB3000-24V can be charged independently or when connected to the E2000LFP for faster charging.
6.1.1 AC-opladning
Connect the AC charging cable to the EB3000-24V's AC input port and then to a standard wall outlet. The charging indicator will illuminate.
6.1.2 Solopladning
Connect compatible solar panels (12V-95V range, 400W max input) to the EB3000-24V using the provided Solar Charging Cable. The unit features a built-in MPPT controller for efficient solar charging. When connected to the E2000LFP, the combined system can achieve up to 1600W max solar input.

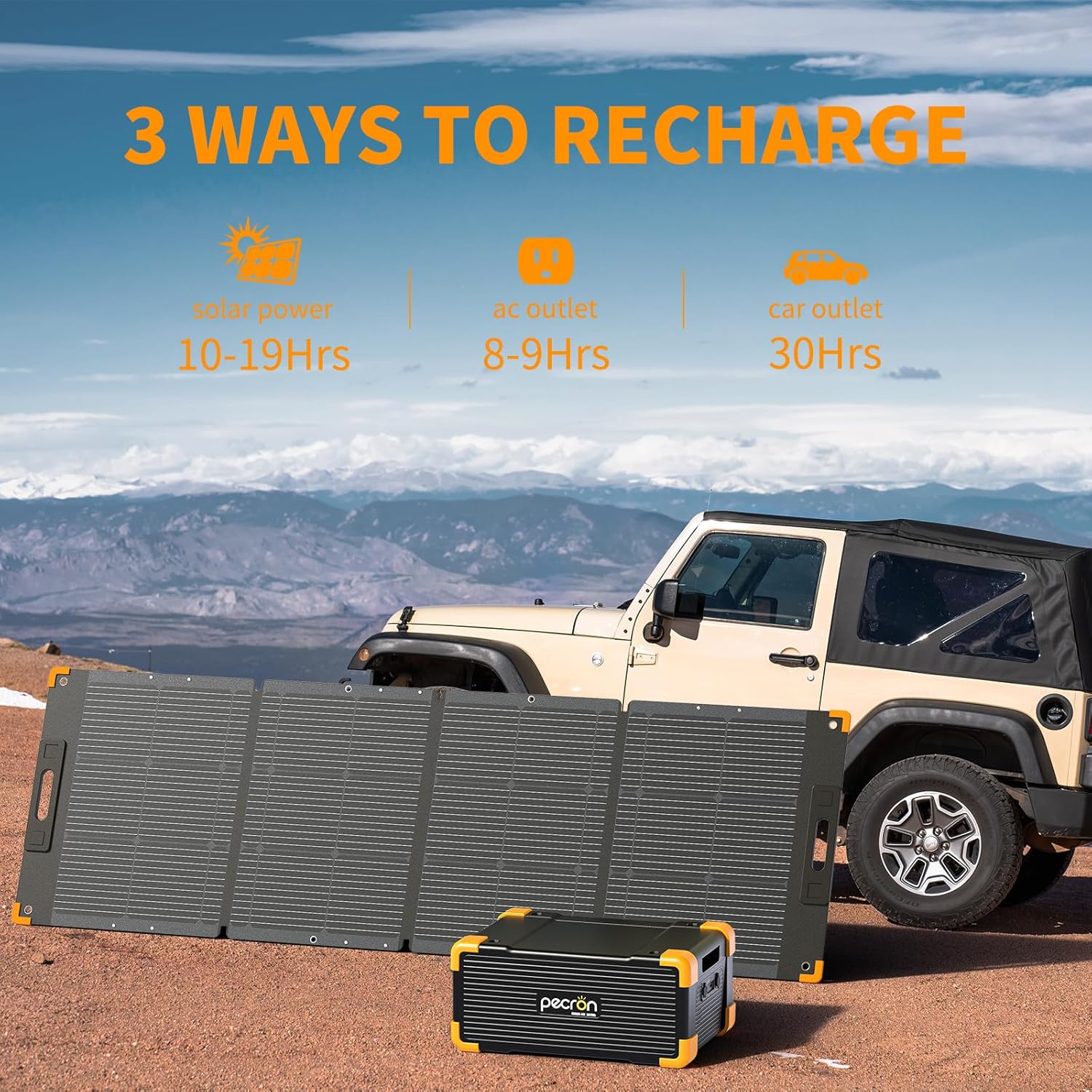

Image 7: Three Ways to Recharge
Image 8: Solar Charging Capabilities
6.1.3 Bilopladning
Use the provided Car Charging Cable to charge the EB3000-24V from your vehicle's 12V auxiliary power outlet.
6.2 Brug af udgangsporte
The EB3000-24V features multiple output ports for direct charging of devices, even when not connected to an E2000LFP.
- 100W USB-C-port: For fast charging compatible laptops, smartphones, and other USB-C devices.
- 12V/30A DC-udgang: Suitable for powering car refrigerators, air pumps, and other 12V DC appliances.
- 18W USB-A-port: For charging standard USB devices.
Image 9: Independent Charging Capabilities
Image 10: Powering various devices with 8064Wh capacity
7. Vedligeholdelse
Proper maintenance ensures the longevity and optimal performance of your EB3000-24V expansion battery.
- Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer. Ved langtidsopbevaring skal batteriet oplades til cirka 50-80% hver 3.-6. måned.
- Rensning: Brug en tør, blød klud til at rengøre enhedens yderside. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Ventilation: Sørg for, at ventilationsåbningerne er fri for støv og snavs for at forhindre overophedning.
- Batteriets sundhed: The LiFePO4 battery is designed for over 3500+ life cycles to 85% capacity. Avoid consistently draining the battery to 0% or charging to 100% if not immediately needed for optimal long-term health.
8. Fejlfinding
If you encounter issues with your EB3000-24V, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Batteriet er helt afladet. | Connect to an AC outlet for charging. |
| Ingen output fra porte | Output port not activated or device incompatible. | Ensure the specific output port is turned on. Verify device compatibility and cable connection. |
| Langsom opladning | Low input power or high ambient temperature. | Ensure the charging source meets specifications. Charge in a cooler environment. Connecting to E2000LFP can provide faster charging. |
| Advarsel om overbelastning | Connected device exceeds output limit. | Disconnect the device. Reduce the load or use a device within the specified power limits. |
If the problem persists, please contact pecron customer service for assistance.
9. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | EB3000-24V |
| Batterikapacitet | 3072Wh |
| Battericellesammensætning | LiFePO4 |
| Voltage | 24 volt (intern driftsspændingtage) |
| Produktdimensioner | 16 x 10 x 11 tommer |
| Varens vægt | 57 pund |
| USB-C udgang | 100W |
| DC-udgang | 12V/30A |
| USB-A-output | 18W |
| Solar Input Max | 400W (12V-95V) |
| Genanvendelighed | Genopladelig |
10. Garanti og support
pecron warrants the EB3000-24V expansion battery for one year from the date of purchase. If the original purchaser registers their purchase within 30 days, the warranty is extended for an additional 1 year, totaling two years. The Accessory Pack, AC Power Cord, Solar Charging Cable, and Car Charger Cable are warranted for one year.
For warranty claims, technical support, or any inquiries, please contact pecron customer service through their official website or the platform where the product was purchased. Please have your purchase receipt and product serial number ready.
