1. Introduktion
This manual provides essential information for the safe and proper use, assembly, and maintenance of your Graco EezeFold Stroller. Please read all instructions carefully before assembly and use. Keep this manual for future reference.
The Graco EezeFold Stroller is designed to be lightweight and compact, suitable for newborns up to approximately 3 years of age (0-15 kg). It features a one-hand fold mechanism and 4-wheel suspension for ease of use and comfort.
2. Sikkerhedsoplysninger
- ADVARSEL: Efterlad aldrig dit barn uden opsyn i klapvognen.
- ADVARSEL: Sørg for, at alle låseanordninger er aktiveret før brug.
- ADVARSEL: Do not overload the storage basket. Maximum weight for the basket is typically 4.5 kg (10 lbs).
- ADVARSEL: Always use the harness system. Ensure it is correctly fitted and adjusted.
- ADVARSEL: Dette produkt er ikke egnet til løb eller skøjteløb.
- ADVARSEL: The parking brake must be engaged when placing and removing the child.
- ADVARSEL: Enhver belastning på håndtaget påvirker klapvognens stabilitet.
- Ensure your child is clear of any moving parts when making adjustments.
- Brug ikke tilbehør, der ikke er godkendt af producenten.
- The stroller is suitable for children from birth up to 15 kg.
3. Komponentliste
Before assembly, verify that all parts are present:
- Stroller Frame with Seat Fabric
- Baldakin
- Forhjul (2)
- Baghjul (2)
- Bumper Bar
- Instruktionsmanual
4. Opsætning og montering
4.1 Udfoldning af klapvognen
- Placer den sammenfoldede klapvogn på en plan overflade.
- Release the folding latch, usually located on the side of the frame.
- Lift the handle upwards until the frame clicks into its fully open position. Ensure all locking mechanisms are securely engaged.
Figure 4.1: The Graco EezeFold Stroller in its fully unfolded position, viewed forfra.
4.2 Montering af hjulene
- Insert the front wheel assemblies into the designated slots on the front legs of the stroller until they click securely into place.
- Attach the rear wheels to the rear axle by pushing them firmly until they lock.
- Træk i hvert hjul for at sikre, at det er sikkert fastgjort.
4.3 Attaching the Bumper Bar
Align the bumper bar with the attachment points on either side of the seat and push until it clicks into place. Ensure it is firmly attached before use.
4.4 Fastgørelse af baldakinen
Slide the canopy attachments onto the frame until they are secure. Extend the canopy as desired.
5. Betjeningsvejledning
5.1 Sammenfoldning af klapvognen
The EezeFold stroller features a one-hand compact fold. Locate the folding mechanism (often a button or lever on the handle or frame). Activate the mechanism and push the handle downwards to collapse the stroller. Ensure the stroller is fully folded and the auto-lock engages for compact storage.
Figure 5.1: The Graco EezeFold Stroller in its compact folded state, ready for transport or storage.
Figure 5.2: A parent demonstrating the ease of carrying the compactly folded Graco EezeFold Stroller while holding a child.
5.2 Justering af sædets lænestilling
The multi-position recline adjusts smoothly with one hand. Locate the recline lever or strap mechanism behind the seat. Squeeze the lever or adjust the strap to achieve the desired recline position, from upright to lie-flat, suitable for newborns.
Figur 5.3: Side view of the Graco EezeFold Stroller with the seat in a reclined position, suitable for infants.
5.3 Brug af 5-punktsselen
Always secure your child with the 5-point harness. Place the child in the seat, bring the shoulder straps over their shoulders, and the waist straps around their hips. Insert the buckle tongues into the buckle housing until they click. Adjust the straps for a snug fit, ensuring two fingers can fit between the strap and your child's shoulder.
5.4 Engaging the Brakes
To engage the parking brake, press down firmly on the brake pedal located near the rear wheels. Ensure both wheels are locked. To release, lift the pedal upwards. Always engage the brake when the stroller is stationary.
5.5 Adjusting the Calf Support
The calf support can be adjusted to provide comfort for your growing child. Locate the adjustment buttons or levers on the sides of the calf support and move it to the desired position.
5.6 Kompatibilitet med rejsesystemer
The Graco EezeFold Stroller is compatible with Graco SnugEssentials i-Size infant car seats, allowing it to transform into a travel system. The car seat attaches securely with a single click, without the need for additional adapters. (Infant car seat sold separately).

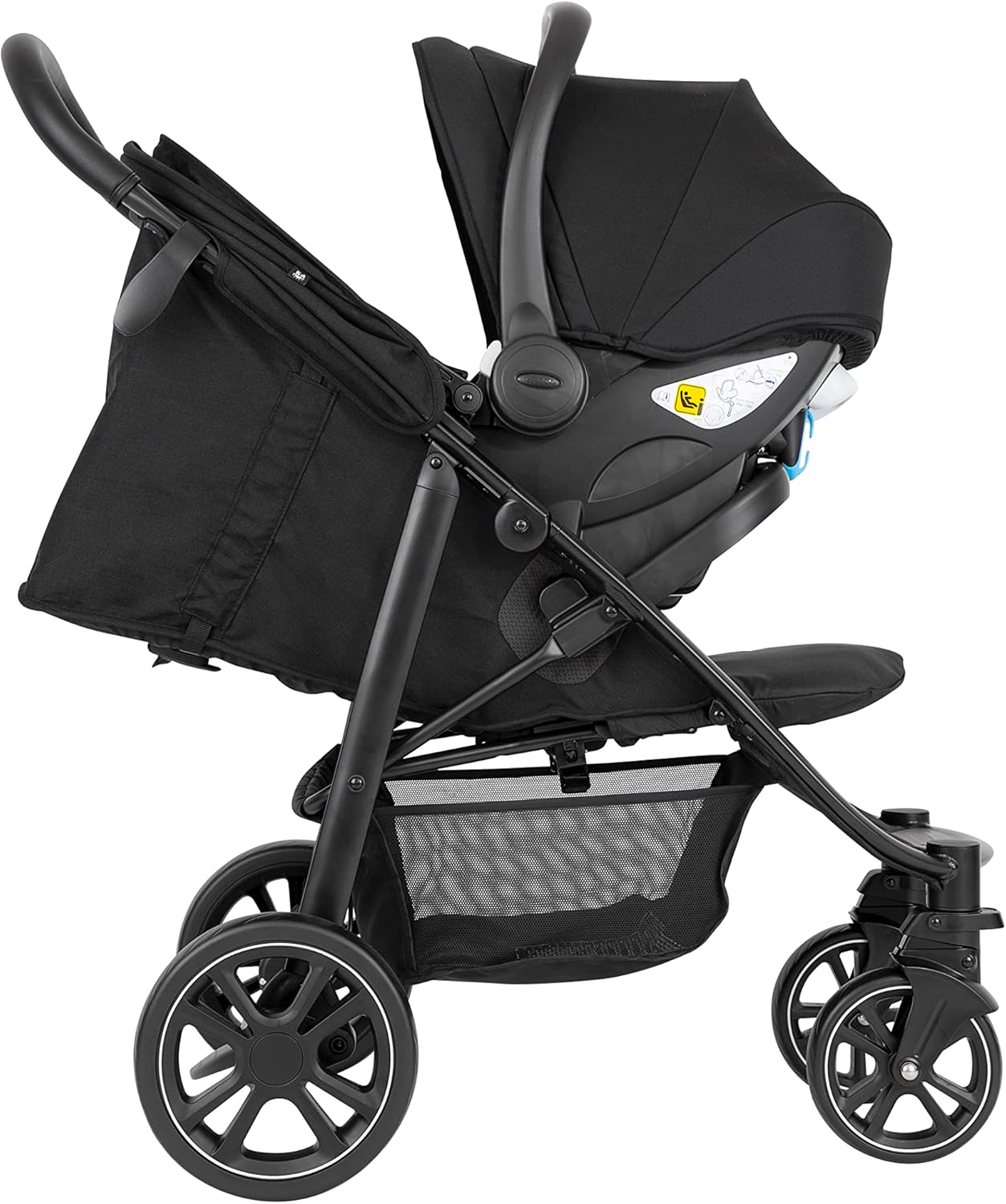

Figure 5.4: The Graco EezeFold Stroller configured as a travel system with a compatible Graco infant car seat securely attached.
6. Vedligeholdelse og pleje
- Rensning: Clean the stroller fabric with a damp cloth and mild detergent. Do not use bleach. Allow to air dry completely.
- Rammepleje: Tør rammen af med en blød kludamp klæde. Tør grundigt.
- Vedligeholdelse af hjul: Regularly check wheels for wear and tear. Remove any debris that may be caught in the wheel mechanisms. Lubricate moving parts with a silicone-based lubricant if necessary.
- Opbevaring: Store the stroller in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
- Inspektioner: Periodically check all fasteners, rivets, and components to ensure they are secure and not damaged. Replace worn or broken parts immediately.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Stroller does not fold easily. | Folding mechanism not fully disengaged; debris in mechanism. | Ensure all levers/buttons are pressed correctly. Clear any obstructions. Refer to Section 5.1. |
| Wheels squeak or are stiff. | Lack of lubrication; dirt/debris in wheel bearings. | Rengør hjul og aksler. Påfør et silikonebaseret smøremiddel på de bevægelige dele. |
| Harness is difficult to buckle/unbuckle. | Buckle is dirty or misaligned. | Clean the buckle mechanism. Ensure buckle tongues are inserted correctly. |
| Barnevognen trækkes til den ene side. | Uneven tire pressure (if applicable); bent wheel axle; uneven weight distribution. | Check wheel alignment. Ensure weight is evenly distributed. Inspect for damage. |
8. Specifikationer
- Modelnummer: GS1112SAMDN000
- Mærke: Graco
- Farve: Midnat
- Aldersinterval: Newborn to approximately 3 years
- Maksimal understøttet vægt: 15 kg (33 lbs)
- Varens vægt: 8.95 kg (19.7 lbs)
- Seletype: 5 point
- Rammemateriale: Legeret stål
- Main Fabric Material: 50% polyester
- Særlige funktioner: 4-wheel suspension, One-hand compact fold, Multi-position recline, Adjustable calf support
- Foldede dimensioner: L 86 x W 60 x H 34 cm (L 33.8 x W 23.6 x H 13.4 inches)
- Hjultype: All-terrain
9. Garanti og support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Graco webwebsted. Gem din købsbevis til garantikrav.
Kontaktoplysninger: Besøg venligst www.gracobaby.com for the most up-to-date support resources, FAQs, and contact details for your region.
