ToolkitRC M7AC Multi-Function AC Smart Balance Charger User Manual

Indledning

The ToolkitRC M7AC is a versatile multi-function smart balance charger designed for various battery types and applications. It features dual AC/DC input and supports 2-6S batteries. Beyond its primary charging capabilities, the M7AC integrates several useful tools, including a power supply, multimeter, signal source, drone charger, and signal tester, making it an indispensable tool for hobbyists and professionals alike.

Nøglefunktioner omfatter:

• Dual AC/DC Input for flexible power options.
• XT30/XT60 Output for broad compatibility.
• Supports 2-6S LiPo, LiHV, LiFe, Lion, LTO batteries, 1-16S NiMh, and 1-10S Pb batteries.
• Integrated functions: Power supply, multimeter, signal source, drone charger, and signal tester.
• IPS 2.4 inch LCD display for clear information.

Sikkerhedsoplysninger

Please read and understand all safety warnings and instructions before using the M7AC charger. Improper use can lead to property damage, injury, or death.

• Always operate the charger in a well-ventilated area, away from flammable materials.
• Efterlad ikke opladeren uden opsyn under drift.
• Ensure correct battery type and cell count settings before charging.
• Use only compatible power sources and cables.
• Hold enheden væk fra vand, fugt og ekstreme temperaturer.
• Forsøg ikke at adskille eller modificere opladeren.

Produkt overview

Familiarize yourself with the components and interfaces of your M7AC charger.

Figur 1: Forside View. This image displays the front of the M7AC charger, highlighting its 2.4-inch IPS LCD screen. The screen shows real-time charging data, including voltage, current, capacity, and individual cell voltages. To the right of the screen are the navigation button and scroll wheel for menu interaction.

Figur 2: Side View (Havne). This image shows the side of the M7AC charger where various input and output ports are located. Visible ports include a USB-A output (5.0V 2.1A), a balance port (2-6S), and dual XT60 output ports labeled "OUTPUT".

Figure 3: Signal Output Display. This image captures the M7AC's screen displaying the "Signal Output" function, specifically for SBUS. It shows multiple channels with adjustable pulse widths, demonstrating the device's capability as a signal source or tester.

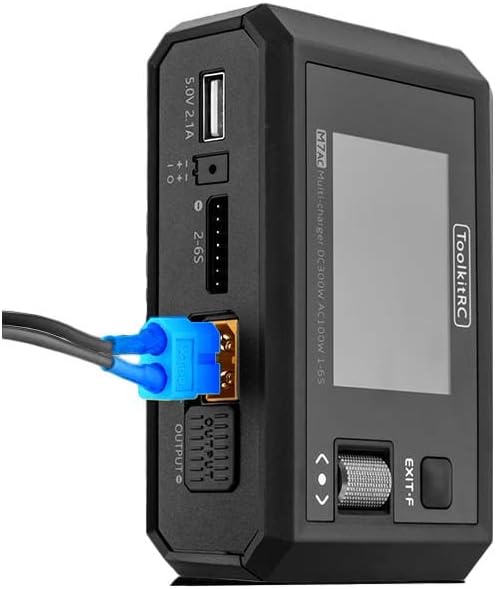

Figure 4: XT60 Output in Use. This image illustrates an XT60 connector plugged into one of the M7AC's output ports, demonstrating how a battery or device would connect for charging or power supply functions.

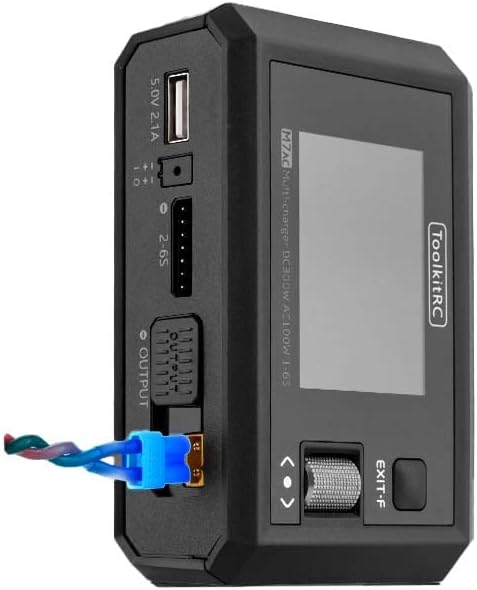

Figure 5: XT60 and Balance Lead Connected. This image provides another perspective of the M7AC with an XT60 connector and a balance lead connected, showing the typical setup for balanced charging of a multi-cell battery pack.

Opsætning

1. Strømtilslutning:
   • For AC input, connect the provided AC power cable to the charger's AC input port and then to a standard wall outlet (AC 100-240V).
   • For DC input, connect a DC power source (7.0-28.0V) to the charger's DC input port. Ensure correct polarity.
2. Første gang tændt: Once connected to power, the charger will automatically power on and display the main menu on the IPS LCD screen.
3. Navigation: Use the scroll wheel and button on the right side of the charger to navigate through menus and select options.

Betjeningsvejledning

1. Batteriopladning

1. Tilslut batteri: Connect your battery's main discharge lead to one of the XT60 output ports. For multi-cell batteries, also connect the balance lead to the appropriate balance port (2-6S).
2. Vælg batteritype: From the main menu, navigate to the "Charger" function. Select the correct battery type (LiPo, LiHV, LiFe, Lion, LTO, NiMh, Pb) and cell count (e.g., 3S, 6S).
3. Set Charging Parameters: Adjust the charging current (up to 15A) and mode (e.g., Balance Charge, Fast Charge, Storage Charge) as required for your battery. The maximum charging power is 300W.
4. Start opladning: Confirm settings and start the charging process. The screen will display real-time charging status, including total voltage, current, charged capacity, and individual cell voltages.

2. Batteriafladning

The M7AC supports discharging batteries with a power of up to 300W in Recycle mode or 15W in Normal mode.

1. Tilslut batteri: Connect the battery to the XT60 output and balance port.
2. Select Discharge Function: Navigate to the "Discharge" function in the menu.
3. Indstil parametre: Set the discharge current and target voltage.
4. Start Discharging: Initiate the discharge process. Monitor the battery temperature and voltage under udskrivelsen.

3. Power Supply Function

The M7AC can act as a regulated DC power supply (1.0-28.0V, 0.5-15A).

1. Access Power Supply Mode: Select the "Power Supply" option from the main menu.
2. Indstil Output Voltage og Strøm: Juster den ønskede udgangsvolumentage and current limit using the scroll wheel.
3. Tilslut enhed: Connect your device requiring power to the XT60 output port.
4. Aktiver output: Enable the power supply output.

4. Multimeterfunktion

Mål voltage and internal resistance of batteries.

• Voltage Måling: Connect the battery to the balance port to measure individual cell voltages (1.0-5.0V per cell, 1-6S).
• Internal Resistance Measurement: The charger can measure internal resistance from 0.1 mR to 99mR for 1-6S batteries.

5. Signal Source / Tester

The M7AC can generate and test various signals.

• PWM udgang: Generate PWM signals (500-2500us @ 20-1000Hz).
• PPM-udgang: Generate PPM signals (880-2200us * 8CH @ 20-50Hz).
• SBUS Output: Generate SBUS signals (880-2200us * 16CH @ 20-100Hz).

6. USB-A udgang

The USB-A port provides 5.0V at 2.1A, suitable for charging mobile devices or powering small electronics.

Opretholdelse

• Rensning: Use a soft, dry cloth to clean the charger's exterior. Do not use solvents or abrasive cleaners.
• Opbevaring: Opbevar opladeren på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Kabelinspektion: Regularly inspect all cables and connectors for signs of wear or damage. Replace damaged cables immediately.
• Firmwareopdateringer: Check the ToolkitRC official website periodically for firmware updates to ensure optimal performance and access to new features. The TF Card slot (128MB-16GB) is used for updates.

Fejlfinding

Specifikationer

Garanti og support

ToolkitRC products are manufactured to high quality standards. For warranty information and technical support, please refer to the official ToolkitRC webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

For yderligere hjælp, besøg ToolkitRC Official Webwebsted.
