Bonaire Diet 12i Evaporative Air Cooler

Indledning

Thank you for choosing the Bonaire Diet 12i Evaporative Air Cooler. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.

The Bonaire Diet 12i is designed to provide a cool and fresh breeze by transforming hot, dry air into a comfortable environment. It features i-Pure Technology, an intricate honeycomb cooling pad, and a dust filter for enhanced air quality. This portable unit is an energy-efficient cooling solution suitable for various indoor and outdoor settings.

Figur 1: Forside view of the Bonaire Diet 12i Evaporative Air Cooler.

Opsætning og installation

1. Udpakning: Carefully remove the air cooler from its packaging. Inspect the unit for any signs of damage. Retain the packaging for future storage or transport.
2. Attaching Castors: The unit comes with 4 castors. Insert each castor firmly into the designated slots at the bottom of the air cooler until it clicks into place. Ensure all castors are securely attached for stable movement.
3. Placering: Position the air cooler on a flat, stable surface. For optimal performance, place the unit near an open window or door to allow for cross-ventilation. Evaporative coolers require a source of fresh air and an exhaust for humid air to operate effectively.


Figure 2: Illustration of proper air circulation for evaporative coolers, emphasizing cross-ventilation.

4. Påfyldning af vandtanken: Locate the water inlet. Slowly pour clean, cool water into the tank. The water level indicator on the front of the unit will show the current water level. Do not exceed the 'MAX' fill line. The tank capacity is 12 liters.

Figure 3: Key components including the water tank and indicator.
5. Strømtilslutning: Sæt strømkablet i en passende stikkontakt (220 volt).

Betjeningsvejledning

The Bonaire Diet 12i can be operated using the control panel on top of the unit or the included remote control.

Figure 4: Top control panel with various function buttons.

Kontrolpanel / Fjernbetjeningsfunktioner:

• Tænd/sluk-knap (): Tryk for at tænde eller slukke enheden.
• Knap til ventilatorhastighed (): Cycle through different fan speeds (Low, Medium, High).
• Cooling Button (): Activates or deactivates the evaporative cooling function. Ensure the water tank is filled when using this mode.
• Svingknap (): Activates or deactivates the automatic oscillation of the vertical louvers for wider air distribution. Horizontal louvers can be adjusted manually.
• Timer-knap (): Set the operating time for up to 7 hours. Each press increases the timer setting.
• Dvaletilstandsknap (): Activates a quieter operation mode, often with reduced fan speed and dimmed lights, suitable for night-time use.
• i-Pure-teknologi: This feature integrates multi-stage air purification, including a dust filter and honeycomb cooling pad, to deliver cleaner and fresher air.

Håndtering af vandtank:

• Genopfyldning: When the water level is low, the unit may emit an alarm or indicator light. Refill the tank as described in the Setup section.
• Empty Water Tank Alarm: The unit is equipped with an alarm that alerts you when the water level is critically low, preventing damage to the pump.

Figur 5: Overview of key operational features.

Opretholdelse

Regular maintenance ensures the longevity and efficient performance of your air cooler.

• Cleaning the Cooling Pad and Dust Filter:
  1. Tag enheden ud af stikkontakten.
  2. Carefully remove the back panel to access the honeycomb cooling pad and dust filter.
  3. Rinse the cooling pad and dust filter under running water to remove dust and mineral deposits. For stubborn dirt, use a soft brush.
  4. Allow them to air dry completely before reinserting.
• Rengøring af vandtanken:
  1. Drain any remaining water from the tank using the drain plug (if available) or by carefully tilting the unit.
  2. Wipe the inside of the tank with a soft cloth and mild detergent. Rinse thoroughly to remove any soap residue.
  3. Regular cleaning prevents mold and mildew growth.
• Udvendig rengøring: Tør enhedens udvendige overflader af med en blød, tør klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: If storing the unit for an extended period, ensure the water tank is completely empty and dry. Clean all components and store the unit in a cool, dry place, preferably in its original packaging.

Fejlfinding

Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger på disse:

Specifikationer

Detailed technical specifications for the Bonaire Diet 12i Evaporative Air Cooler:

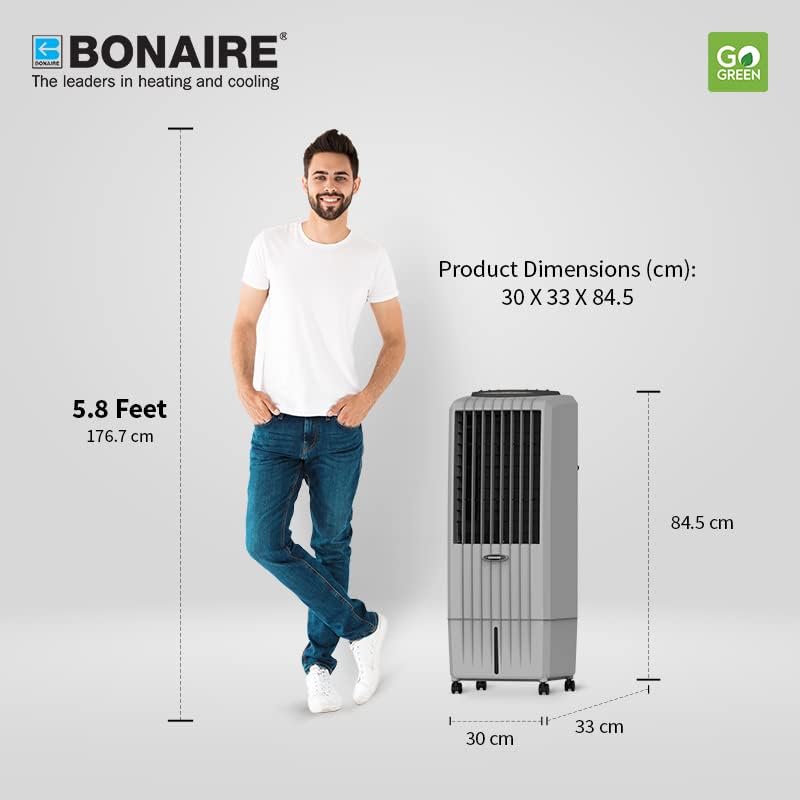

Figure 6: Product dimensions for the Bonaire Diet 12i.

Garanti og support

Your Bonaire Diet 12i Evaporative Air Cooler comes with a 12 måneders begrænset garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl under normale brugsforhold.

For warranty claims, technical support, or any inquiries regarding your product, please contact Bonaire customer service. Keep your proof of purchase for warranty validation.

You can find more information and contact details by visiting the official Bonaire store on Amazon: Bonaire Amazon Store.
