Pretul KIT-8P Hulsavsæt Instruktionsmanual

1. Produktet er slutview

The Pretul KIT-8P is a comprehensive set of hole saws designed for efficient and precise cutting in various materials. This kit includes 6 carbon steel hole saws of different sizes and 2 mandrels, providing versatility for your projects.

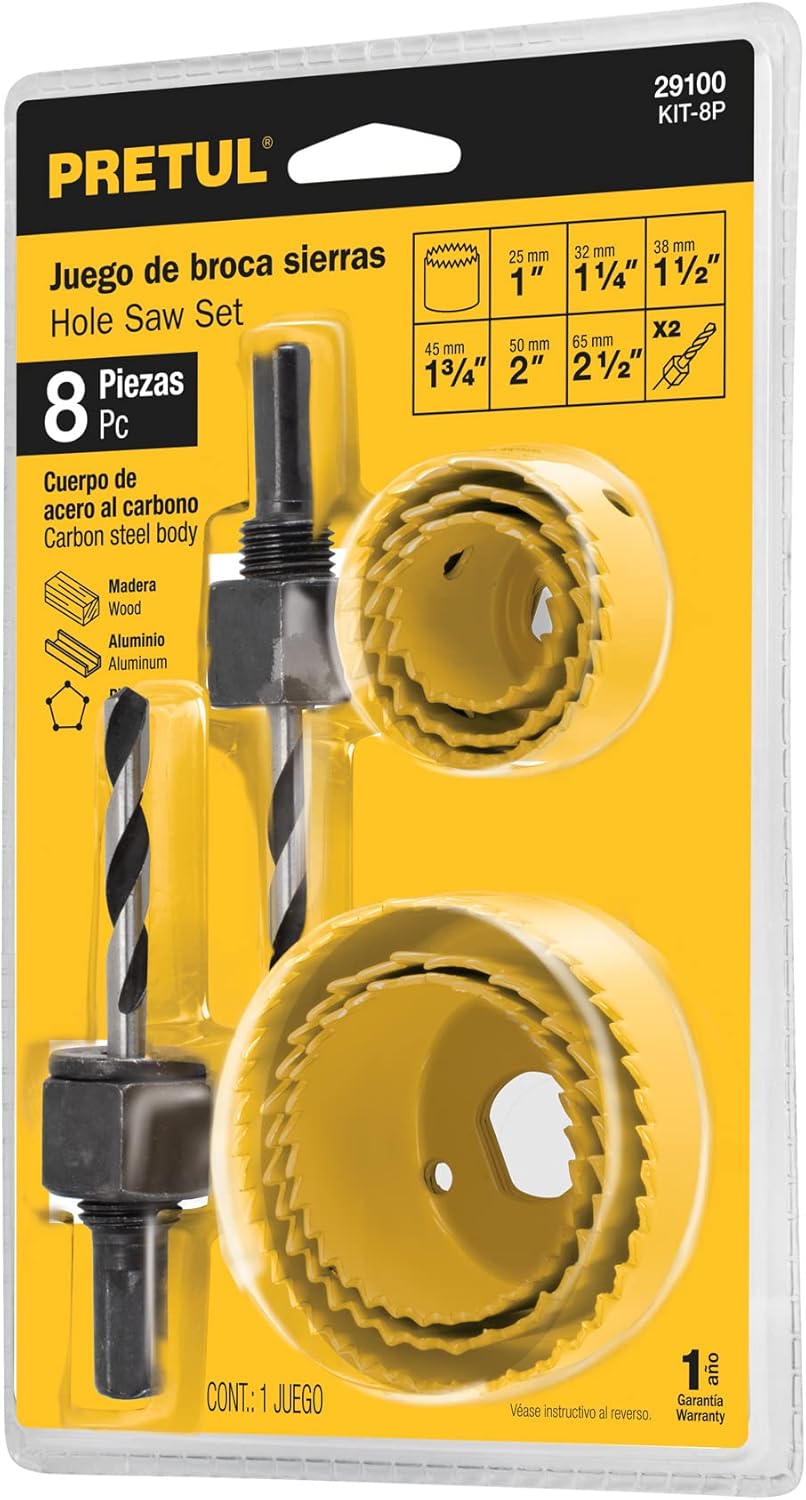

Image 1.1: Pretul KIT-8P Hole Saw Set, complete package.

Nøglefunktioner:

• Carbon Steel Body: Ensures durability and effective cutting performance.
• Alsidig anvendelse: Suitable for cutting holes in aluminum, wood, and plastic.
• Flere størrelser: Includes a range of common hole saw diameters for various tasks.

2. Sikkerhedsoplysninger

Always prioritize safety when using power tools and accessories. Failure to follow these safety guidelines may result in serious injury or damage to the product.

• Brug personlige værnemidler (PPE): Always wear safety glasses or goggles to protect your eyes from flying debris. Consider gloves and hearing protection as needed.
• Sikkert arbejdsemne: Ensure the material you are cutting is firmly clampeller sikret for at forhindre bevægelse under drift.
• Brug korrekt hastighed: Refer to your drill's manual for recommended speeds for different materials. Using an incorrect speed can cause overheating, premature wear, or material damage.
• Efterse før brug: Before each use, check the hole saws and mandrel for any signs of damage, cracks, or excessive wear. Do not use damaged tools.
• Hold hænderne klare: Never touch the rotating hole saw or the workpiece near the cutting area while the drill is operating.
• Afbryd strømmen: Always disconnect the drill from the power source before changing hole saws, making adjustments, or performing maintenance.
• Korrekt ventilation: Work in a well-ventilated area, especially when cutting materials that may produce dust or fumes.
• Opbevar sikkert: Store hole saws and mandrels in a dry, secure place, out of reach of children.

3. Pakkens indhold

The Pretul KIT-8P Hole Saw Set includes the following components:

Billede 3.1: Detaljeret view of KIT-8P contents and sizes.

• 6 Carbon Steel Hole Saws:
  • 1 tomme (25 mm)
  • 1 1/4 tommer (32 mm)
  • 1 1/2 tommer (38 mm)
  • 1 3/4 tommer (45 mm)
  • 2 tommer (50 mm)
  • 2 1/2 tommer (65 mm)
• 2 Mandrels:
  • 3/8 tomme
  • 5/16 tomme

4. Opsætning og montering

Follow these steps to properly assemble the hole saw with the mandrel and attach it to your drill.

Image 4.1: Hole Saw Assembly Diagram.

1. Select the Correct Hole Saw: Choose the hole saw size appropriate for your cutting needs.
2. Attach Hole Saw to Mandrel: Thread the selected hole saw onto the mandrel. Ensure it is securely tightened. The pilot drill on the mandrel should extend beyond the teeth of the hole saw.
3. Insert Mandrel into Drill Chuck: Open the chuck of your power drill. Insert the straight shank of the mandrel into the chuck, ensuring it is centered and fully seated.
4. Tighten Drill Chuck: Securely tighten the drill chuck around the mandrel shank. Most drills require a chuck key or hand-tightening until the mandrel is firmly gripped and will not slip during operation.
5. Bekræft samling: Gently tug on the assembled hole saw to ensure it is securely attached to the drill and the hole saw is tight on the mandrel.

5. Betjeningsvejledning

Once the hole saw is assembled and attached to your drill, follow these steps for effective and safe operation:

1. Forbered emnet: Mark the center of the desired hole on your material. Secure the workpiece firmly to a stable surface using clamps eller en skruestik for at forhindre bevægelse under skæring.
2. Position the Pilot Drill: Place the tip of the pilot drill directly on the marked center of your hole.
3. Begynd at bore: Begin drilling at a slow speed to allow the pilot drill to create a guide hole. Once the pilot drill has penetrated the material, gradually increase the drill speed.
4. Anvend konstant tryk: Apply consistent, moderate pressure to the drill. Avoid excessive force, which can cause the hole saw to bind, overheat, or damage the material.
5. Bevar kontrol: Keep a firm grip on the drill and maintain control throughout the cutting process. Be prepared for potential kickback, especially when the hole saw breaks through the material.
6. Ryd affald: Periodically withdraw the hole saw from the cut to clear chips and debris, especially when cutting thicker materials. This helps prevent overheating and improves cutting efficiency.
7. Færdiggør snittet: Continue drilling until the hole saw has fully penetrated the material.
8. Remove Core: Once the cut is complete, carefully remove the drill. The cut material core will typically be inside the hole saw. Use a screwdriver or similar tool to push out the core from the side slots of the hole saw.

Anbefalede materialer:

• Aluminium
• Træ
• Plast

6. Vedligeholdelse

Proper maintenance will extend the life of your Pretul KIT-8P Hole Saw Set and ensure optimal performance.

• Rensning: After each use, clean the hole saws and mandrel to remove any accumulated dust, chips, or residue. Use a brush or compressed air. Avoid using harsh chemicals that could damage the finish.
• Smøring (valgfrit): For prolonged cutting or harder materials, applying a suitable cutting lubricant can reduce friction and heat, extending the life of the hole saw.
• Inspektion: Regularly inspect the teeth of the hole saws for dullness, damage, or missing teeth. Inspect the mandrel for bends or damage to the pilot drill. Replace worn or damaged components.
• Opbevaring: Store the hole saw set in its original packaging or a suitable tool case to protect it from moisture, dust, and physical damage. Keep it in a dry environment to prevent rust.

7. Fejlfinding

Her er nogle almindelige problemer, du kan støde på, og deres mulige løsninger:

8. Specifikationer

9. Garanti og support

The Pretul KIT-8P Hole Saw Set comes with a 1 års garanti fra købsdatoen, dækker fabrikationsfejl. Gem venligst din købsbevis i tilfælde af garantikrav.

For technical support, warranty inquiries, or replacement parts, please contact Pretul customer service. Refer to the product packaging or the official Pretul webhjemmeside for de seneste kontaktoplysninger.

Pretul is a brand of Grupo Truper.
