1. Introduktion
This manual provides essential information for the safe and efficient operation of your BYGD 3000W Power Inverter. Please read these instructions thoroughly before installation and use, and retain them for future reference. This device converts 12V DC power from a battery into 110V/120V AC household power, suitable for various electronic devices and appliances.
Image 1.1: The BYGD 3000W Power Inverter, showcasing its compact design and included battery connection cables.
2. Produktfunktioner og komponenter
Nøglefunktioner:
- Høj effekt: Provides 3000W continuous DC to AC power and up to 6000W peak power.
- Flere udtag: Equipped with 4 standard North American AC outlets.
- USB- og Type-C-opladning: Includes 5V/3.1A USB ports and 9V/1.67A Type-C ports for charging mobile devices.
- Avanceret sikkerhedsbeskyttelse: Features protection against over voltage, lav voltage, overload, short circuit, over heat, and over charge.
- Effektiv køling: Built-in smart silent cooling fans minimize noise and extend product life.
- Kompakt design: Easy to carry and store for various applications.
Produktkomponenter:
Image 2.1: Detailed diagram illustrating the various ports, indicators, and controls on the BYGD 3000W Power Inverter.
- AC stikkontakter: 4 standard North American AC outlets.
- USB-A og USB-C porte: Til opladning af kompatible enheder.
- Afbryderknap: To turn the inverter on or off.
- Battery Mode Switch: Selects between different battery modes (if applicable).
- Strømindikator (grøn): Illuminates when the inverter is operating correctly.
- Lithium Battery Working Mode (Blue Light): Indicates operation in lithium battery mode.
- Fault Indicator (Red Light): Illuminates to indicate an error or protection mode.
- Overbelastningsbeskytter: Nulstillingsbar afbryder til overbelastningsbeskyttelse.
- Cable Connection Port: Terminals for connecting to the 12V DC power source.
- Køleventilatorer: Integrerede ventilatorer til temperaturstyring.
- Ground Connection End: Til sikkerhedsjordforbindelse.
- Positiv terminal: Rød pol til positiv batteriforbindelse.
- Negativ terminal: Sort pol til negativ batteriforbindelse.
3. Sikkerhedsoplysninger
WARNING: Failure to follow these safety instructions may result in injury, damage to the inverter, or damage to connected devices.
- Åbn ikke inverteren casing. Der er ingen dele indeni, som kan serviceres af brugeren.
- Sørg for tilstrækkelig ventilation omkring inverteren. Køleåbningerne må ikke blokeres.
- Keep the inverter away from water, moisture, flammable materials, and corrosive substances.
- Connect the inverter only to a 12V DC power source. Do not connect to 24V or 48V systems.
- Always connect the inverter to the battery before connecting any AC appliances.
- Sørg for det samlede wattage of connected AC appliances does not exceed the inverter's continuous power rating (3000W).
- Use appropriate gauge cables for battery connection to prevent overheating.
- Properly ground the inverter according to local electrical codes.
- Frakobl inverteren fra batteriet, når den ikke er i brug, for at forhindre batteriafladning.

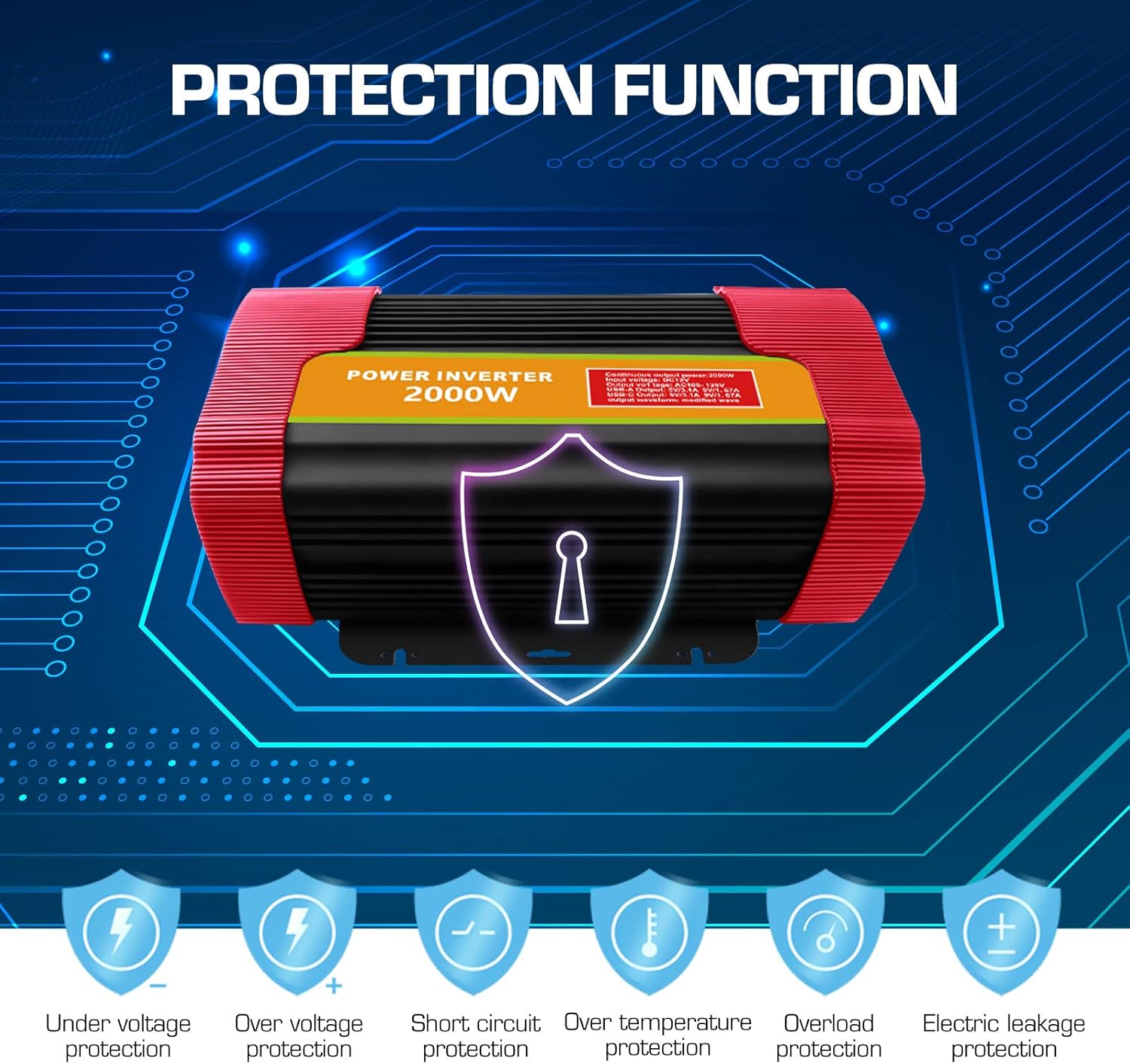

Image 3.1: Visual representation of the comprehensive protection functions integrated into the BYGD Power Inverter.
4. Opsætning
4.1 Hvad er der i æsken:
- BYGD 3000 Watt Power Inverter
- Batteritilslutningskabler (rød for plus, sort for minus)
- Brugervejledning (dette dokument)
4.2 Connecting the Inverter to a 12V Battery:
- Sørg for, at inverterens strømafbryder er i 'OFF'-positionen.
- Tilslut rød batterikabel til positiv (+) inverterens terminal.
- Tilslut sort batterikabel til negativ (-) inverterens terminal.
- Tilslut den anden ende af rød kabel til positiv (+) terminalen på dit 12V-batteri.
- Tilslut den anden ende af sort kabel til negativ (-) terminalen på dit 12V-batteri.
- Sørg for, at alle forbindelser er stramme og sikre for at forhindre buedannelse eller dårlig ydeevne.
- Connect the ground wire from the inverter's ground connection end to a suitable chassis ground point (e.g., vehicle chassis or earth ground).
Image 4.1: Illustration of the inverter's dimensions and the components typically included in the package, such as battery clamps and the user manual.
5. Betjeningsvejledning
5.1 Tænd/sluk:
- After securing all battery connections, press the power switch button on the inverter to turn it 'ON'.
- The green power indicator light should illuminate, indicating the inverter is operational.
- To turn off the inverter, press the power switch button again. The green indicator light will turn off.
5.2 Connecting AC Devices:
- Ensure the AC appliance you wish to power is within the inverter's continuous wattage-klassificering (3000W).
- Plug the AC appliance into one of the 4 AC outlets on the inverter.
- Turn on the AC appliance.
- If the inverter's fault indicator (red light) illuminates or an audible alarm sounds, immediately disconnect the appliance and refer to the Troubleshooting section.
5.3 Using USB and Type-C Ports:
- Connect your USB or Type-C compatible device to the respective port on the inverter.
- The inverter will automatically provide power for charging.
Billede 5.1: Eks.amples of common household and portable electrical appliances that can be powered by the BYGD Power Inverter.
6. Vedligeholdelse
- Rensning: Periodically clean the exterior of the inverter with a dry, soft cloth. Do not use liquids or abrasive cleaners. Ensure cooling vents are free from dust and debris.
- Forbindelser: Regularly check battery cable connections for tightness and corrosion. Clean any corrosion with a wire brush and baking soda solution.
- Opbevaring: Når inverteren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer. Frakobl den fra batteriet.
- Batterivedligeholdelse: Ensure your 12V battery is properly maintained and charged to prolong its lifespan and the inverter's performance.
7. Fejlfinding
If you encounter issues with your BYGD Power Inverter, refer to the table below for common problems and their solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Inverteren tænder ikke. | Løse batteriforbindelser, lavt batterivolumentage, defekt strømafbryder. | Check battery cable connections. Ensure battery voltage is above 11V. Try pressing the power switch firmly. |
| Red fault indicator light is on. | Overload, over-temperature, low/high input voltage, short circuit. | Reduce load. Allow inverter to cool. Check battery voltage. Disconnect all loads and restart. |
| Ingen AC-udgang. | Inverter off, low battery, appliance fault, overload protector tripped. | Turn inverter on. Charge battery. Test appliance directly. Reset overload protector if tripped. |
| Cooling fan is constantly running or very loud. | High internal temperature, heavy load. | Ensure adequate ventilation. Reduce load. This is normal operation under heavy load. |
| USB/Type-C-porte oplades ikke. | Inverter off, device not compatible, cable fault. | Ensure inverter is on. Try a different device or cable. |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | P3000U-Red |
| Kontinuerlig kraft | 3000 watt |
| Peak Power | 6000 watt |
| Input bindtage | 12V DC |
| Udgang Voltage | 110V/120V AC |
| AC-stikkontakter | 4 Standard North American |
| USB udgang | 5V/3.1A |
| Type-C udgang | 9V/1.67A |
| Produktdimensioner | 15.1 x 9.4 x 5.1 tommer |
| Varens vægt | 8.52 pund |
| Fabrikant | BYGD |
9. Garanti og support
9.1 Garantioplysninger:
BYGD products are designed and manufactured to high-quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or contact BYGD customer support. Keep your purchase receipt as proof of purchase for warranty claims.
9.2 Kundesupport:
If you have any questions, require technical assistance, or need to report an issue with your BYGD 3000W Power Inverter, please contact BYGD customer support. Contact information can typically be found on the BYGD official webwebstedet eller på produktemballagen.
