Patriot Lighting Lakota solcelledrevet integreret LED-stolpelampe (model 26263) - brugsanvisning

1. Introduktion

Thank you for choosing the Patriot Lighting Lakota Solar Integrated LED Post Cap Light. This manual provides essential information for the proper installation, operation, and maintenance of your solar post cap lights. Please read these instructions carefully before installation and retain them for future reference.

The Lakota Solar Post Cap Light features a contemporary design with a clear hammered lens, providing soft white LED illumination. Designed for outdoor use, it charges during the day using solar energy and automatically illuminates at dusk.

2. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• 2 x Solar Post Cap Lights
• 3 x Adapters Per Light (3.625 inch, 4 inch, 4.5 inch)
• 2 x AA 600mAh Ni-Mh Rechargeable Batteries (1 per light, pre-installed or separate)
• 4 x skruer
• 4 x plastik ankre

3. Sikkerhedsoplysninger

• Sørg for, at solpanelet er udsat for direkte sollys for optimal opladning.
• Do not attempt to disassemble or modify the light fixture.
• Keep batteries away from children. If swallowed, seek medical attention immediately.
• Bortskaf gamle batterier i henhold til lokale regler.
• This product is designed for outdoor use and is water-resistant, but should not be submerged in water.

4. Opsætning og installation

The Lakota Solar Post Cap Light is designed for easy installation on 4, 4.5, and 5-inch posts. Choose a location that receives maximum direct sunlight throughout the day for best performance.

1. Udpak komponenter: Fjern forsigtigt alle varer fra emballagen.
2. Aktiver lys: Locate the ON/OFF switch, usually on the underside of the light base. Ensure it is in the 'ON' position.
3. Vælg adapter: Identify the correct adapter (3.625 inch, 4 inch, or 4.5 inch) that fits snugly over your post. The light itself fits 5-inch posts directly without an adapter.
4. Positionslys: Place the post cap light (with the appropriate adapter if needed) onto the top of your fence or deck post.
5. Secure Light (Optional): For added security, use the included screws and plastic anchors to fasten the light to the post. Drill pilot holes if necessary.

Figur 1: Forside view of the Patriot Lighting Lakota Solar Post Cap Light.

Figure 2: Lakota Solar Post Cap Light installed on a wooden post during daytime (unlit).

Figure 3: Lakota Solar Post Cap Light installed on a wooden post, illuminated at night.

5. Betjeningsvejledning

The Patriot Lighting Lakota Solar Post Cap Light operates automatically:

• During the day, the integrated solar panel charges the internal rechargeable battery using sunlight.
• At dusk, the light sensor automatically detects low light conditions and turns the LED light on.
• The light will provide illumination for up to 8 hours on a full charge.
• At dawn, the light automatically turns off and begins recharging.

6. Vedligeholdelse

• Rensning: Periodically clean the solar panel and the clear hammered lens with a soft, damp cloth to ensure optimal charging and light output. Avoid abrasive cleaners.
• Udskiftning af batteri: The light uses 1 x AA 600mAh Ni-Mh rechargeable battery per light. If the light output diminishes significantly or stops working after a full day of charge, the battery may need replacement. Use only a rechargeable Ni-Mh battery of the same specifications.

7. Fejlfinding

8. Specifikationer

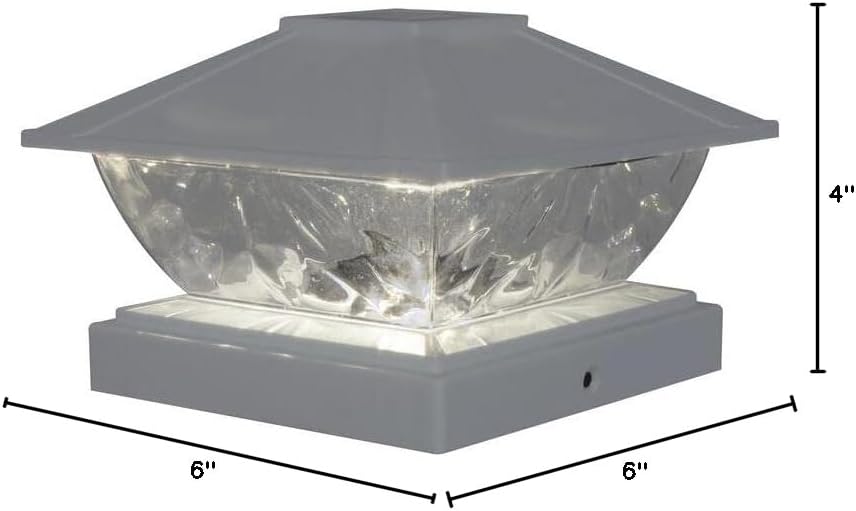

Figure 4: Dimensions of the Lakota Solar Post Cap Light.

9. Garanti og support

For warranty information or technical support, please contact Patriot Lighting customer service. Refer to your purchase documentation for specific contact details or visit the official Patriot Lighting webwebsted.
