REL HT/1205 MKII 12-tommer aktiv subwoofer brugsanvisning

Produkt overview

The REL HT/1205 MKII is a high-performance 12-inch powered subwoofer designed to deliver powerful and precise bass for home theater, audiophile stereo systems, and surround sound setups. It features a front-firing 12-inch driver powered by a 500-watt Class D amplifier, ensuring deep, accurate low-frequency reproduction. This subwoofer is engineered for seamless integration into various audio environments, enhancing both movie and music experiences.

REL HT/1205 MKII 12-Inch Powered Subwoofer, angled view

Billede: Vinklet view of the REL HT/1205 MKII 12-Inch Powered Subwoofer, showcasing its sleek black finish and front-firing driver.

Opsætning og installation

Udpakning

Carefully remove the subwoofer from its packaging. Inspect the unit for any signs of damage during transit. Retain all packaging materials for future transport or servicing.

Placering

Optimal placement of the HT/1205 MKII is crucial for achieving the best bass performance. For most home theater applications, placing the subwoofer in a corner or along a wall can enhance bass output. This unit is suitable for spaces up to 400 sq ft. For larger spaces or a more elevated experience, consider using a stereo pair of subwoofers.

Hjørneplacering: Often provides the most output and deepest extension.
Vægplacering: Can offer a good balance of output and accuracy.
Near Main Speakers: For music-focused systems, placing the subwoofer near the main stereo speakers can improve integration.

Forbindelser

The HT/1205 MKII offers flexible connection options to integrate with your audio system.

Rear panel of REL HT/1205 MKII subwoofer showing input connections

Image: Rear panel of the REL HT/1205 MKII subwoofer, illustrating the various input connections including RCA LFE and stereo RCA inputs.

For Home Theater (LFE): Connect an RCA cable from your AV receiver's dedicated subwoofer output (LFE or Sub Out) to the LFE input on the HT/1205 MKII. This is the primary connection method for movie playback.
For Stereo Systems (Low Level): For music applications or stereo systems without a dedicated LFE output, connect RCA cables from your pre-amplifier's Left and Right RCA outputs to the Low Level inputs (Left/Right) on the subwoofer.
Strømtilslutning: Once audio connections are made, connect the supplied AC power cord to the subwoofer's power inlet and then to a suitable wall outlet.

Sørg for, at alle forbindelser er sikre, før du tænder for enheden.

Betjeningsvejledning

Tænd/sluk

The HT/1205 MKII features a power switch on the rear panel. Set it to the 'ON' position for operation. The unit also has a standby mode, indicated by a light on the rear panel, which conserves power when no audio signal is detected.

Indledende justeringer

After connecting, perform initial adjustments to integrate the subwoofer with your main speakers and room acoustics.

Niveaukontrol: Adjust the 'LEVEL' knob on the rear panel to match the output volume of the subwoofer with your main speakers. Start with a low setting and gradually increase.
Krydsfrekvens: The 'CROSSOVER' knob determines the highest frequency the subwoofer will reproduce. Adjust this to blend seamlessly with your main speakers. A common starting point is 80Hz, but it may vary depending on your main speakers' low-frequency capabilities.
Fasestyring: The 'PHASE' switch (0° or 180°) helps ensure the subwoofer's output is in phase with your main speakers, preventing cancellation or reinforcement of bass frequencies. Experiment with both settings to find the one that produces the most impactful and coherent bass.
Trådløs kommunikation: The HT/1205 MKII supports HT Air Wireless technology for wireless connectivity. Refer to the separate HT Air Wireless module instructions for setup and pairing.

Front view of REL HT/1205 MKII subwoofer

Billede: Forside view of the REL HT/1205 MKII subwoofer, highlighting its 12-inch driver.

Opretholdelse

Rensning

To maintain the appearance of your HT/1205 MKII, wipe the cabinet with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the finish. Do not apply cleaning solutions directly to the subwoofer.

Almen pleje

Hold subwooferen væk fra direkte sollys, varmekilder og overdreven fugtighed.
Sørg for tilstrækkelig ventilation omkring enheden for at forhindre overophedning.
Do not place objects on top of the subwoofer that could block ventilation or scratch the finish.
If moving the subwoofer, lift it carefully from the base to avoid damage to the feet or cabinet.

Fejlfinding

This section addresses common issues you might encounter with your REL HT/1205 MKII subwoofer.

Problem	Mulig årsag	Løsning
Ingen lyd fra subwooferen	Netledningen er ikke tilsluttet, eller strømmen er slukket. Audio cables loose or incorrectly connected. Source component (AV receiver/pre-amp) not sending signal. Subwoofer level set too low.	Sørg for, at netledningen er korrekt tilsluttet, og at tænd/sluk-knappen er tændt. Check all RCA connections at both the subwoofer and source. Verify LFE/subwoofer output settings on your AV receiver. Increase the 'LEVEL' knob on the subwoofer.
Forvrænget eller buldrende bas	Subwooferniveauet er for højt. Incorrect crossover frequency setting. Phase mismatch with main speakers. Dårlig rumakustik eller placering.	Reduce the 'LEVEL' knob. Adjust the 'CROSSOVER' knob to a lower frequency. Toggle the 'PHASE' switch (0°/180°) to find the best blend. Eksperimentér med forskellige placeringer af subwoofere i rummet.
Unreliable Auto On/Off Function	Input signal too low for auto-sensing.	Ensure the input signal from your source is sufficient. Some units have a bypass switch for auto on/off, if available, use that.

If the problem persists after attempting these solutions, please refer to the Support section for further assistance.

Specifikationer

Feature	Detalje
Modelnavn	HT/1205 MKII
Højttaler type	Subwoofer
Monteringstype	Floor Standing
Materiale	Træ
Subwoofer diameter	12 tommer
Bashøjttaler diameter	12 tommer
Højttaler Maksimal udgangseffekt	500 Watts (Class D Amplivligere)
Frekvensrespons	22 Hz (-6dB)
Forbindelsesteknologi	RCA, HT Air Wireless
Kontrolmetode	App (via HT Air Wireless)
Produktmål (D x B x H)	17.25" D x 16.25" B x 15.25" H
Varens vægt	38 pund
Farve	Sort
Inkluderede komponenter	Subwoofer
Strømkilde	AC
Surround Sound Kanalkonfiguration	5.1, 7.1 (Compatible)
UPC	857316005638
Fabrikant	REL Akustik

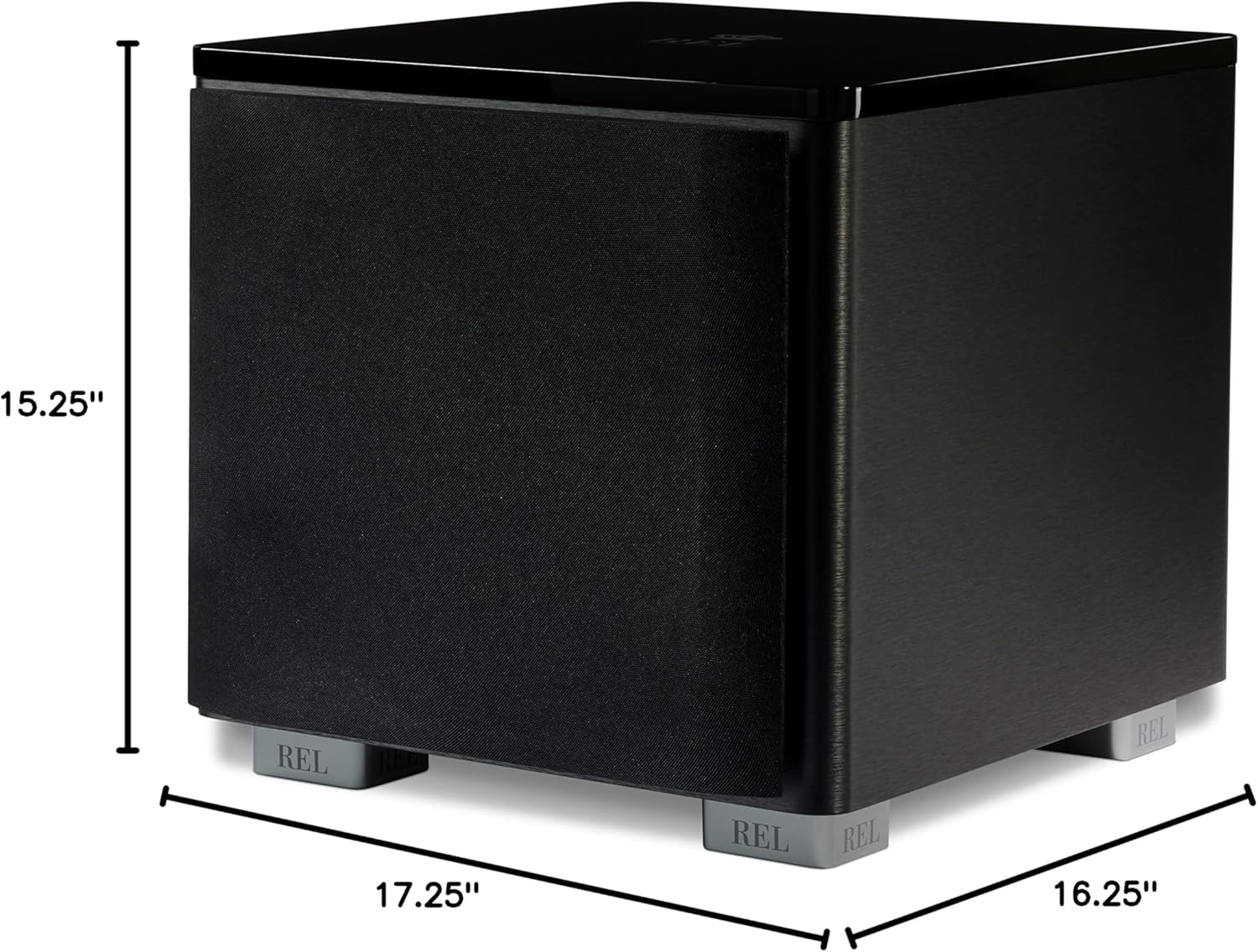

Dimensions of REL HT/1205 MKII subwoofer

Image: Diagram showing the dimensions of the REL HT/1205 MKII subwoofer: 17.25 inches deep, 16.25 inches wide, and 15.25 inches high.

Garantioplysninger

The REL HT/1205 MKII Powered Subwoofer comes with a Tre års garanti from the date of original purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or visit the official REL Acoustics webwebsted.

Støtte

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact REL Acoustics customer support. You can typically find contact information on the official REL Acoustics website or through your authorized dealer. When contacting support, please have your product model number (HT/1205 MKII) and serial number ready.

Besøg REL Acoustics Store on Amazon for yderligere information og produktressourcer.
