Brugermanual til SilverStone Technology RM44 4U rackmonteret serverkabinet

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the SilverStone Technology RM44 4U Rackmount Server Chassis. The RM44 is designed for versatility, supporting both industrial rackmount and high-end home system configurations. It features enhanced cooling capabilities, extensive storage options, and compatibility with various motherboard form factors and large graphics cards.

Figure 1.1: The SilverStone RM44 chassis demonstrating its dual-purpose design for both horizontal rackmount and vertical tower placements.

2. Funktioner

The SilverStone RM44 chassis incorporates several key features designed for high-performance server and workstation builds:

• Advanced Cooling Support: Accommodates liquid cooling radiators up to 360mm for efficient thermal management.
• Bundkort kompatibilitet: Supports SSI-EEB / Extended ATX motherboards, providing flexibility for various system architectures.
• Udvidelsespladser: Features 8 PCIe / PCI expansion slots for multiple add-in cards.
• Rack installation: Includes sliding rail mounting holes for simplified rack integration (rails sold separately).
• Tilslutningsmuligheder på frontpanelet: Equipped with a USB Type-C interface for modern peripheral connectivity.
• Alsidig opbevaring: Offers mounting options for multiple 2.5" and 3.5" drives.
• Sikkerhed: Front panel features an anti-theft lock.

Figure 2.1: Illustration of the internal cooling capabilities, showing a 360mm liquid cooling radiator and multiple fans for optimal airflow.

3. Opsætning og installation

Follow these steps for proper assembly and installation of components within your RM44 chassis.

3.1. Chassis Overview

Figur 3.1: Forside view of the RM44 chassis, highlighting the perforated front panel and integrated handles.

Figur 3.2: Bagside view of the RM44 chassis, showing the power supply cutout, fan mounts, and PCIe expansion slots.

3.2. Installation af bundkort

1. Remove the top cover of the chassis.
2. Install the I/O shield into the rear panel cutout.
3. Align your SSI-EEB, E-ATX, ATX, Micro-ATX, or Mini-ITX motherboard with the standoffs inside the chassis.
4. Fastgør bundkortet med de medfølgende skruer.

3.3. Drevinstallation

The RM44 supports various drive configurations. Refer to the internal layout diagram for specific mounting points.

Figure 3.3: Internal layout diagram detailing motherboard compatibility, GPU length, and drive bay locations.

Figur 3.4: Intern view illustrating the mounting points for 3.5-inch or 2.5-inch storage drives.

1. Identify the desired drive bays (e.g., 3.5" or 2.5" bays).
2. Mount your hard drives or SSDs using the provided screws and trays.
3. Connect necessary power and data cables.

3.4. Installation af kølesystem

The chassis supports various cooling configurations, including large liquid cooling radiators.

1. For front radiator installation, ensure adequate clearance. The chassis supports up to 360mm radiators.
2. Install case fans in designated mounting points (e.g., front, rear).
3. Connect fan power cables to the motherboard or a fan controller.

3.5. Installation af udvidelseskort

The RM44 provides 8 PCIe expansion slots and an expansion card retainer for secure installation.

Figure 3.5: Close-up of the expansion card retainer, designed to secure graphics cards and other PCIe devices.

1. Remove the necessary slot covers from the rear of the chassis.
2. Insert your expansion card (e.g., graphics card, network card) into the motherboard's PCIe slot.
3. Secure the card using the chassis's screwless retention mechanism or screws.
4. Utilize the expansion card retainer for additional support, especially for heavy graphics cards.

3.6. Installation af strømforsyning

1. Mount your ATX power supply in the designated rear bottom area.
2. Secure the power supply with screws from the rear of the chassis.
3. Connect all necessary power cables to your motherboard and components.

3.7. Tilslutninger på frontpanelet

The front panel provides convenient access to I/O ports and controls.

Figure 3.6: The front panel door opened, revealing the power button, reset button, and front I/O ports.

Figur 3.7: Detaljeret view of the front I/O panel, featuring one USB Type-C port and two USB 3.0 ports.

1. Connect the front panel cables (USB, audio, power switch, reset switch, LED indicators) to the corresponding headers on your motherboard.
2. The front panel also features a lock for security.

Figure 3.8: Close-up of the key lock on the front panel, providing security for internal components.

4. Betjening af chassiset

Once all components are installed and secured, the RM44 chassis functions as a protective enclosure for your server or workstation hardware. Ensure proper airflow by not obstructing the front and rear ventilation areas.

4.1. Rackmount Installation

The chassis is designed for standard 4U rackmount environments. Utilize the integrated sliding rail mounting holes for quick and secure installation into a server rack (sliding rails are sold separately).

4.2. Vertical Placement

For non-rackmount applications, the RM44 can be placed vertically using optional feet (included or sold separately) for a tower-style setup.

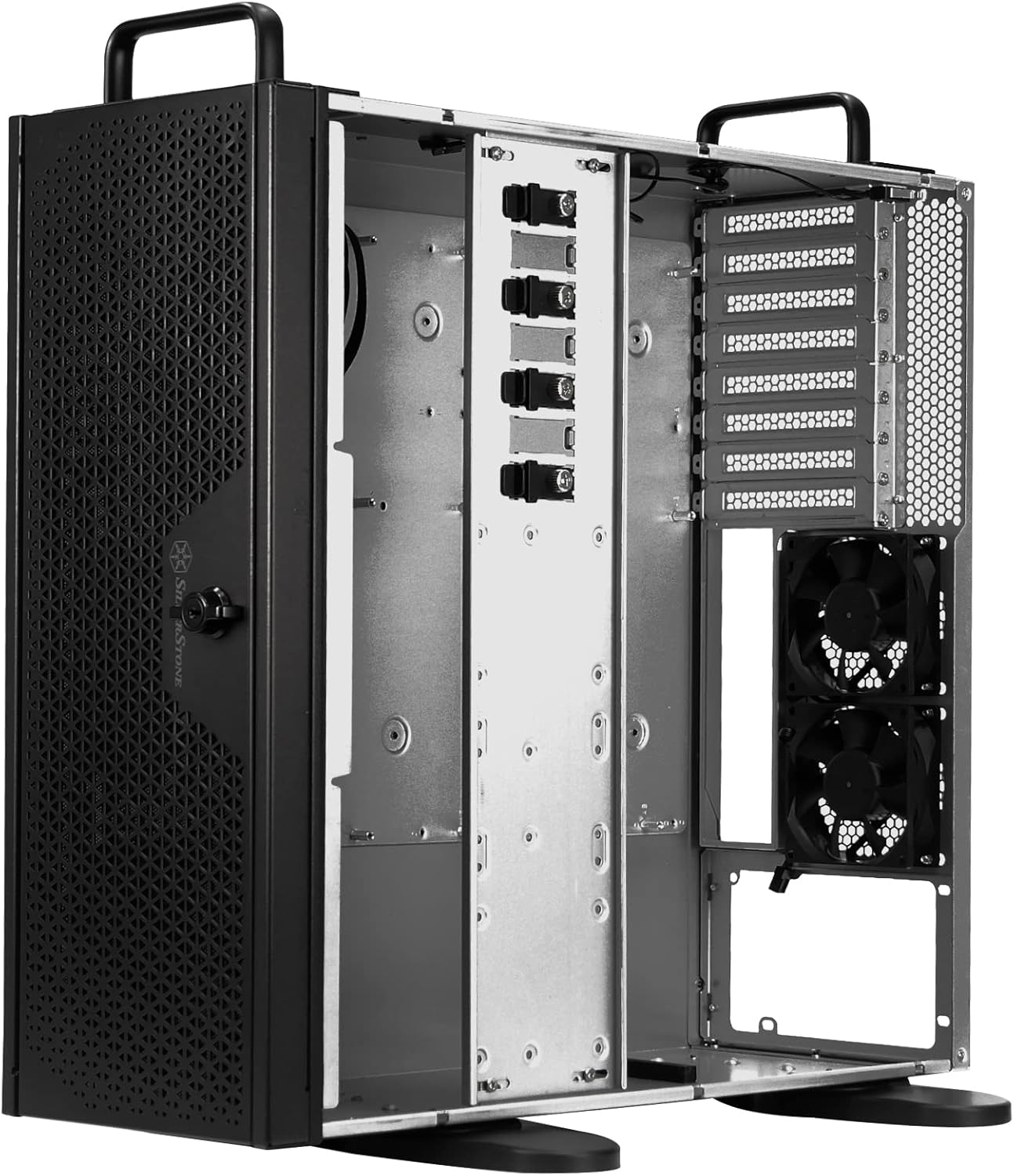

Figure 4.1: The RM44 chassis configured for vertical placement, showcasing dens tilpasningsevne.

5. Vedligeholdelse

Regular maintenance helps ensure optimal performance and longevity of your chassis and its components.

• Fjernelse af støv: Periodically clean dust filters (if present) and internal components using compressed air.
• Kabelstyring: Ensure internal cables are neatly routed to prevent obstruction of airflow.
• Ventilator inspektion: Check fans for dust buildup and ensure they are operating correctly.
• Fysisk inspektion: Regularly inspect the chassis for any loose screws or physical damage.

6. Fejlfinding

This section addresses common issues that may arise with a server chassis.

6.1. Problemer med overophedning

• Tjek luftstrøm: Ensure front and rear panels are unobstructed. Verify that fans are installed correctly and spinning.
• Støvopbygning: Clean dust from fans, radiators, and internal components.
• Ventilatorkonfiguration: Confirm fans are configured for optimal front-to-back airflow.

6.2. Problemer med komponenttilpasning

• Bundkort: Ensure the correct motherboard form factor is used and properly aligned with standoffs.
• Udvidelseskort: Verify cards are fully seated in PCIe slots and secured with the retainer.
• Strømforsyning: Confirm power supply dimensions are compatible with the chassis.

6.3. Front Panel Connectivity Problems

• Kabelforbindelser: Double-check that all front panel cables (USB, power, reset, audio) are securely connected to the correct headers on the motherboard.
• Driver installation: Ensure necessary drivers for USB ports are installed on your operating system.

7. Specifikationer

Detailed technical specifications for the SilverStone RM44 4U Rackmount Server Chassis.

8. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle SilverStone Technology-side. webwebstedet eller kontakt deres kundeservice direkte. Garantivilkår og -betingelser kan variere afhængigt af region og forhandler.

SilverStone Technology Official Webwebsted: www.silverstonetek.com
