CSLP Smart Lock User Manual

Indledning

This manual provides comprehensive instructions for the installation, operation, and maintenance of your CSLP Smart Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety. The CSLP Smart Lock offers multiple unlocking methods, including app control, keypad entry, traditional key, and card access, designed for enhanced security and convenience for your front door.

Sikkerhedsoplysninger

• Do not attempt to disassemble or modify the lock. This may cause damage to the product and void the warranty.
• Brug kun den angivne batteritype, og sørg for korrekt polaritet under installationen.
• Keep physical keys in a secure location outside the property to prevent lockout situations.
• Regularly check the lock for any signs of wear or damage. Contact support if issues arise.
• Protect the keypad from direct exposure to harsh chemicals or abrasive materials.

Produkt overview

The CSLP Smart Lock system consists of an exterior keypad unit, an interior deadbolt unit, and associated accessories. It integrates with a mobile application for advanced control and monitoring.

Figur 1: CSLP Smart Lock components. This image displays the exterior keypad with number buttons and a keyhole, the interior unit with a thumb turn, two key fobs, and a smartphone screen showing the lock's app interface with an unlock button.

Figur 2: Multiple unlocking methods. This image illustrates the four primary ways to unlock the CSLP Smart Lock: via the mobile application, a traditional physical key, a proximity card, and the integrated keypad.

Figur 3: Key features of the CSLP Smart Lock. This image highlights various functionalities including keyless entry, app control, keypad access, keytag compatibility, automatic locking, touchscreen interface, simple installation, physical key backup, external power option, and anti-theft alerts.

Opsætning og installation

The CSLP Smart Lock is designed for easy installation, typically requiring only a screwdriver. Ensure your door meets the compatibility requirements before beginning.

1. Check Door Compatibility

Before installation, verify your door's dimensions and existing lock type. The CSLP Smart Lock is compatible with most standard wooden doors and single cylinder deadbolts.

Figur 4: Door compatibility and dimensions. This diagram provides critical measurements for door size, including backset, door hole diameter, cross bore diameter, and minimum distance. It also indicates that the lock is compatible with single cylinder deadbolts but not with integrated, mortise, or rim cylinder lock types.

• Dørtykkelse: 1.38" to 2.17" (35mm to 55mm)
• backset: 2.38" or 2.75" (60mm or 70mm)
• Dørhuls diameter: 1.01" (25 mm)
• Tværboringsdiameter: 2.13" (54 mm)

2. Installationstrin

1. Prepare the door by ensuring the existing deadbolt is removed and the door frame strike plate is correctly aligned.
2. Install the deadbolt latch into the door edge. Ensure the latch bolt is facing the correct direction for your door swing.
3. Mount the exterior keypad assembly. Feed the cable through the door hole.
4. Attach the interior mounting plate to the exterior assembly using the provided screws.
5. Connect the cable from the exterior unit to the interior unit.
6. Secure the interior unit to the mounting plate.
7. Install 4 AA batteries into the battery compartment of the interior unit.
8. Test the lock's functionality manually with the thumb turn and physical key.

3. App-opsætning og parring

1. Download the CSLP Smart Lock app from your device's app store.
2. Opret en konto og log ind.
3. Follow the in-app instructions to add your new smart lock. This typically involves enabling Bluetooth on your phone and pressing a pairing button on the interior unit of the lock.
4. Once paired, you can name your lock and begin managing settings.

Betjeningsvejledning

Oplåsning af døren

• Via App (Bluetooth): Open the CSLP Smart Lock app, select your lock, and tap the "Unlock" button when within Bluetooth range.
• Via tastatur: Enter your programmed passcode on the keypad followed by the '#' key.
• Via Physical Key: Insert the provided physical key into the keyhole on the exterior unit and turn to unlock.
• Via Card (if applicable): Present the registered key card to the designated sensor area on the lock.

Låsning af døren

• Automatisk lås: The built-in sensor detects when your door is closed and automatically locks it after a set delay (configurable in the app).
• One-Touch Låsning: Tryk og hold '#'-tasten på tastaturet nede i et par sekunder for manuelt at låse døren udefra.
• Via app: Open the CSLP Smart Lock app, select your lock, and tap the "Lock" button.
• Indefra: Use the thumb turn on the interior unit to manually lock the door.

Figur 5: Automatic and one-touch locking. This image demonstrates how the CSLP Smart Lock can automatically lock the door when closed and also features a one-touch locking function for manual activation.

App funktioner

• Brugeradministration: Add, modify, or delete user passcodes and access cards.
• Midlertidige adgangskoder: Generate time-limited or one-time passcodes for guests or service providers.
• Activity Log: View a detailed history of lock and unlock events, including method and timestamp.
• Remote Control (with Wi-Fi Bridge): For remote unlocking/locking and real-time notifications, a separate Wi-Fi Bridge (sold separately) is required. This enables integration with smart home systems like Amazon Alexa and Google Assistant.

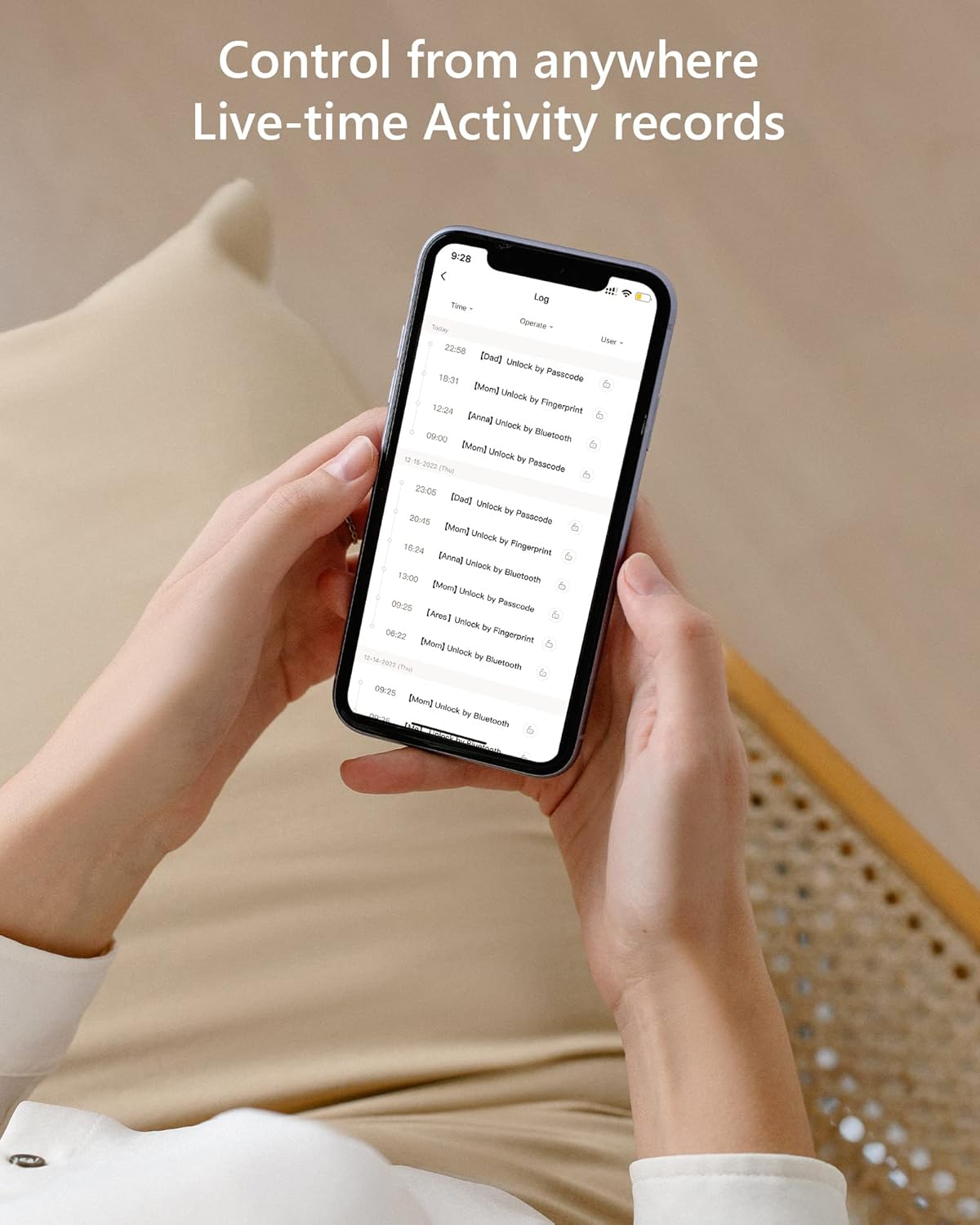

Figur 6: Live-time activity records. This image provides a chronological record of all lock operations, including the time and method of access (e.g., unlock by passcode, unlock by Bluetooth).

Figur 7: Smart home integration. This image illustrates the CSLP Smart Lock's compatibility with Amazon Alexa and Google Assistant, noting that a separate Tuya gateway is required for these integrations.

Figur 8: Remote passcode sharing. This image depicts two common scenarios where temporary passcodes can be shared remotely, such as for a visitor arriving at the house or for someone needing access while on the go.

Opretholdelse

• Udskiftning af batteri: When the battery level is low, the lock will provide an alert. Replace all four AA batteries promptly to ensure continuous operation. Access the battery compartment on the interior unit.
• Rensning: Clean the keypad and lock body with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.
• Vejrbeskyttelse: The CSLP Smart Lock has an IP52 weatherproof rating, designed to withstand various weather conditions, including temperatures from -30°C to 70°C and rainfall. However, avoid direct high-pressure water exposure.

Fejlfinding

Specifikationer

Garanti og support

CSLP offers a 30-day money-back guarantee and a 1-year product warranty from the date of purchase. Lifetime customer support is also provided.

For any questions regarding installation, app usage, or gateway information, please contact CSLP customer support. Refer to your product packaging or the official CSLP webwebsted for kontaktoplysninger.
