Indledning
This manual provides comprehensive instructions for setting up and operating your PPLEE Alarm Clock. Please read it thoroughly to ensure proper use and to take full advantage af alle funktioner.
Image: The PPLEE Alarm Clock displaying "12:00" with a smartphone connected for charging.
Opsætning
Power Source and Battery Backup
The PPLEE Alarm Clock is primarily powered by an AC outlet (100-240V). The included power adapter must be connected for all functions (digital display, phone charging, dimmer, etc.) to operate.
Billede: Bagside view of the alarm clock highlighting the power input and battery compartment.
For battery backup, install 2 AAA batteries (not included) into the designated compartment. These batteries are solely for memorizing time and alarm settings during a power outage. The display will go blank, but the alarm function will still work. No need to reset time when power is restored.
Image: What's in the box - Alarm clock, user manual, power adapter, and power cable.
Betjeningsvejledning
Time Setting (12H/24H & DST)
To set the time, press the "TIME/DST" button. The hour display will start flickering. Use the "+" or "-" buttons to adjust the hour. Press "TIME/DST" again to confirm the hour and move to minute setting. Adjust minutes with "+" or "-" and press "TIME/DST" to save.
To switch between 12-hour and 24-hour formats, press the "12/24H" button.
The clock also supports Daylight Saving Time (DST). Press and hold the "TIME/DST" button to activate or deactivate DST.
Billede: Eksamples of 12H, 24H, and DST time displays.
Alarm Setting (Dual Alarms, Volume, Snooze)
This alarm clock features dual alarms (Alarm 1 and Alarm 2) for different schedules.
- To set Alarm 1, press the "ALARM 1" button. The hour display will flicker. Use "+" or "-" to set the hour, then press "ALARM 1" to confirm.
- The minute display will then flicker. Use "+" or "-" to set the minutes, then press "ALARM 1" to save.
- Repeat the process for Alarm 2 using the "ALARM 2" button.
Image: Visual representation of setting dual alarms for different wake-up times.
Justering af alarmvolumen
The alarm volume can be adjusted to 7 different levels, ranging from 50dB to 120dB. Rotate the volume knob (located on the side/rear) to increase or decrease the alarm sound.
Image: A visual scale indicating the 7 adjustable volume levels for the alarm.
Snooze funktion
When the alarm sounds, lightly touch the large "SNOOZE/NIGHT LIGHT" button on top to activate the 9-minute snooze function. The alarm will temporarily pause and sound again after 9 minutes.

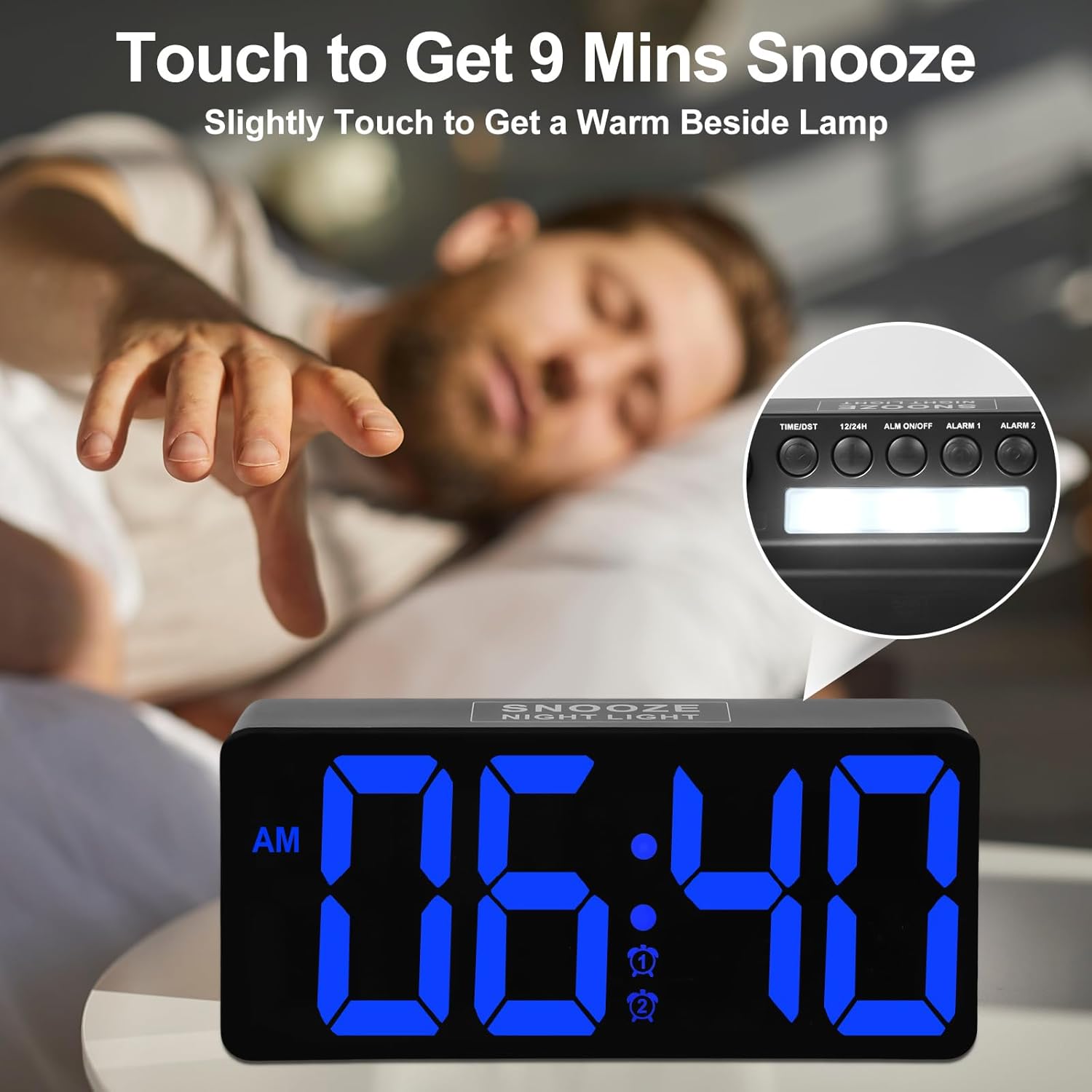

Image: Demonstrating the touch-sensitive snooze button on top of the clock.
Justering af lysstyrke
The LED display brightness is fully adjustable from 0-100%. Use the rotary dimmer switch (located on the side/rear) to set your preferred brightness level. This allows for comfortable viewdag eller nat.
Image: The alarm clock display at different brightness settings, illustrating the full dimming range.
Natlys
The alarm clock features a night light at the rear. To turn it on or off, lightly touch the "SNOOZE/NIGHT LIGHT" button on the top of the clock. This provides a soft, ambient light.
USB- og Type-C-opladningsporte
The alarm clock is equipped with both a USB (5V/1A) and a Type-C (5V/1A) output port. These ports allow you to conveniently charge two digital devices, such as your smartphone or smartwatch, simultaneously.
Image: The alarm clock providing power to a smartphone and a tablet via its integrated charging ports.
Opretholdelse
To clean the alarm clock, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the finish. Keep the device away from excessive moisture and direct sunlight.
Fejlfinding
| Problem | Løsning |
|---|---|
| Displayet er tomt. | Ensure the power adapter is securely plugged into both the clock and a working electrical outlet. If using battery backup, the display will be blank during a power outage, but the alarm function will still work. |
| Alarmen lyder ikke. | Check if the alarm is activated (Alarm 1 or Alarm 2 indicator should be visible on the display). Verify the alarm volume is not set to the lowest level. Ensure the time is set correctly for AM/PM. |
| Kan ikke indstille tid/alarm. | Follow the time/alarm setting instructions carefully. Ensure you are pressing the correct buttons ("TIME/DST", "ALARM 1", "ALARM 2") and using the "+" or "-" buttons for adjustment. |
| Opladningsporte virker ikke. | Confirm the clock is connected to AC power. The charging ports require the main power supply to function. Check the charging cables for damage. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | PPLE |
| Modelnummer | CR1023 |
| Display Type | LED |
| Strømkilde | Corded Electric and Battery Backup |
| Batteri backup | 2 x AAA (for settings memory only) |
| Opladningsporte | 1 x USB 5V/1A, 1 x Type-C 5V/1A |
| Alarmtype | Dobbelte alarmer |
| Alarmvolumen | 7 Levels (50dB to 120dB) |
| Snooze-varighed | 9 minutter |
| Displayets lysstyrke | 0-100% justerbar |
| Dimensioner | 1.77 cm B x 3.03 cm H |
| Varens vægt | 9.9 ounce |
Garanti og support
PPLEE provides an 18-month warranty, 12-month replacement, and 3-month refund policy for this product. For any questions or technical support, please contact the seller directly.
