Rointe CT.0 TSMTIB0 Digital gulvvarmetermostat Brugermanual

1. Introduktion

Welcome to your Rointe CT.0 TSMTIB0 Digital Thermostat. This device is engineered to provide intelligent control for Rointe underfloor heating systems. It features an adaptive start mode and three pre-installed programs, designed for efficient energy management and enhanced comfort in your home.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your thermostat. Please read it thoroughly before use and retain it for future reference. Ensure all installation procedures are performed by a qualified professional.

2. Produktet er slutview

The Rointe CT.0 TSMTIB0 thermostat features a modern design with a backlit display and intuitive button controls for easy interaction.

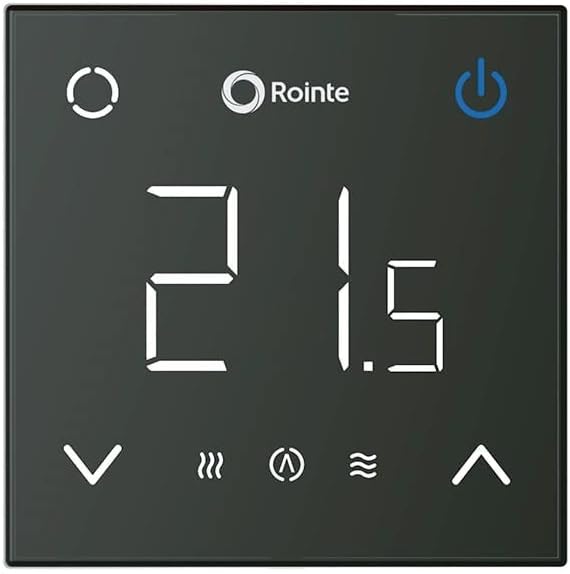

Billede 1: Front view of the Rointe CT.0 TSMTIB0 digital thermostat. It features a black square face with a large white digital display showing '21.5'. Above the display are the Rointe logo and a power button. Below the display are temperature adjustment arrows (down and up), and icons for heating mode, adaptive start, and a wave symbol, likely indicating comfort or eco mode.

Billede 2: Vinklet view of the Rointe CT.0 TSMTIB0 digital thermostat, showcasing its slim profile. The display and controls are identical to the front view, providing a clear perspective of the device's physical form.

3. Installation og opsætning

3.1 Sikkerhedsoplysninger

• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter.
• Always disconnect the main power supply before commencing any installation or maintenance work.
• Ensure the thermostat is installed in a dry location, away from direct sunlight or heat sources.
• Udsæt ikke enheden for fugt eller ekstreme temperaturer.

3.2 Montering af termostaten

1. Choose an appropriate wall location, typically 1.5 meters (5 feet) from the floor, away from drafts or heat-emitting appliances.
2. Åbn forsigtigt termostaten casing for at få adgang til ledningsterminalerne.
3. Connect the electrical wiring according to the provided wiring diagram (refer to the separate installation guide for detailed diagrams).
4. Secure the thermostat base to the wall using appropriate screws.
5. Reattach the front cover of the thermostat, ensuring it clicks securely into place.

3.3 Indledende opstart

After installation, restore power to the circuit. The thermostat display will illuminate. Follow the on-screen prompts to set the initial date, time, and language if applicable. The device may perform a self-test upon first power-up.

4. Betjening

4.1 Grundlæggende kontroller

• Power knap: Located at the top right of the display, press to turn the heating system ON or OFF.
• Temperaturjusteringsknapper: Located at the bottom of the display (up and down arrows), use these to increase or decrease the target temperature.
• Mode knap: (Circular icon, top left) Press to cycle through different operating modes (e.g., Manual, Programmed, Frost Protection).

4.2 Indstilling af temperaturen

In Manual mode, press the up or down arrow buttons to adjust the desired room temperature. The new target temperature will be displayed and the system will adjust accordingly.

4.3 Programmeringstilstande

The Rointe CT.0 TSMTIB0 includes an adaptive start mode and three pre-installed programs to optimize energy consumption and comfort.

• Adaptive Start Mode: This intelligent feature learns the heating characteristics of your room and activates the heating system in advance to reach your desired temperature at the programmed time, rather than starting at the programmed time.
• Forinstallerede programmer: The thermostat comes with three factory-set programs. These can be selected via the Mode button or within the settings menu. Refer to the detailed programming section in the full user guide for customization options.
• Brugerdefinerede programmer: You can create and save your own weekly heating schedules to match your lifestyle. Access the programming menu through the thermostat's interface to set specific temperatures for different times of the day and days of the week.

4.4 Displayindikatorer

The backlit display provides clear information about the current status of your heating system:

• Aktuel temperatur: Large digits in the center of the display.
• Indikator for opvarmning tændt: A flame or wave icon typically indicates when the heating element is active.
• Adaptive Start Indicator: An icon (e.g., a clock with an arrow) may appear when adaptive start is active.
• Programindikator: Shows which program (e.g., P1, P2, P3) is currently active.

5. Vedligeholdelse

The Rointe CT.0 TSMTIB0 thermostat requires minimal maintenance to ensure optimal performance.

• Rensning: Tør forsigtigt displayet og c afasinmed en blød, tør eller let damp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller kemiske spray, da disse kan beskadige overfladen og de indvendige komponenter.
• Ingen dele, der kan serviceres af brugeren: The thermostat contains no user-serviceable parts. Do not attempt to open or repair the device yourself. Unauthorized repairs will void the warranty and may pose a safety risk.
• Udskiftning af batteri: If your model includes backup batteries for settings retention during power outages, refer to the full installation guide for instructions on safe replacement.

6. Fejlfinding

If you encounter issues with your Rointe CT.0 TSMTIB0 thermostat, please consult the following common problems and solutions before contacting support.

• Intet display/Ingen strøm:
  • Check the main power supply to the thermostat and the circuit breaker.
  • Ensure all wiring connections are secure (this should be checked by a qualified electrician).
• Forkert temperaturaflæsning:
  • Sørg for, at termostaten ikke udsættes for direkte sollys, træk eller varmekilder, der kan påvirke dens sensor.
  • Verify that the temperature sensor (if external) is correctly installed and connected.
• Opvarmning aktiveres ikke:
  • Check if the thermostat is in the ON position and not in Frost Protection or OFF mode.
  • Ensure the target temperature is set higher than the current room temperature.
  • Verify that the heating system itself (e.g., boiler, underfloor heating manifold) is operational.
• Programmeringsfejl:
  • Review the programming instructions in the full user guide to ensure schedules are set correctly.
  • Consider resetting the thermostat to factory settings and reprogramming if issues persist (refer to the full user guide for reset procedures).

If these steps do not resolve the issue, please contact Rointe customer support or a qualified technician.

7. Specifikationer

8. Garanti og support

8.1 Garantioplysninger

The Rointe CT.0 TSMTIB0 thermostat is covered by a manufacturer's warranty. Specific warranty terms and conditions, including duration and coverage details, are provided at the time of purchase or can be obtained directly from Rointe or your authorized dealer. Please retain your proof of purchase for warranty claims.

8.2 Kundesupport

For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact Rointe customer support through their official website or the retailer from whom you purchased the product. Have your model number (TSMTIB0) and proof of purchase ready when contacting support.
