Baseus Heyo Hidden Camera Detector User Manual

1. Produktet er slutview

The Baseus Heyo Hidden Camera Detector is a compact and portable device designed to help protect your privacy by detecting hidden cameras. It utilizes infrared scanning and a specialized color filter to reveal the reflections of camera lenses, making them easy to spot.

Nøglefunktioner:

• Accurate infrared hidden camera detection.
• Kompakt og bærbart design for nem transport.
• Quick detection with continuous operation mode and flash mode.
• Lang batterilevetid til længerevarende brug.

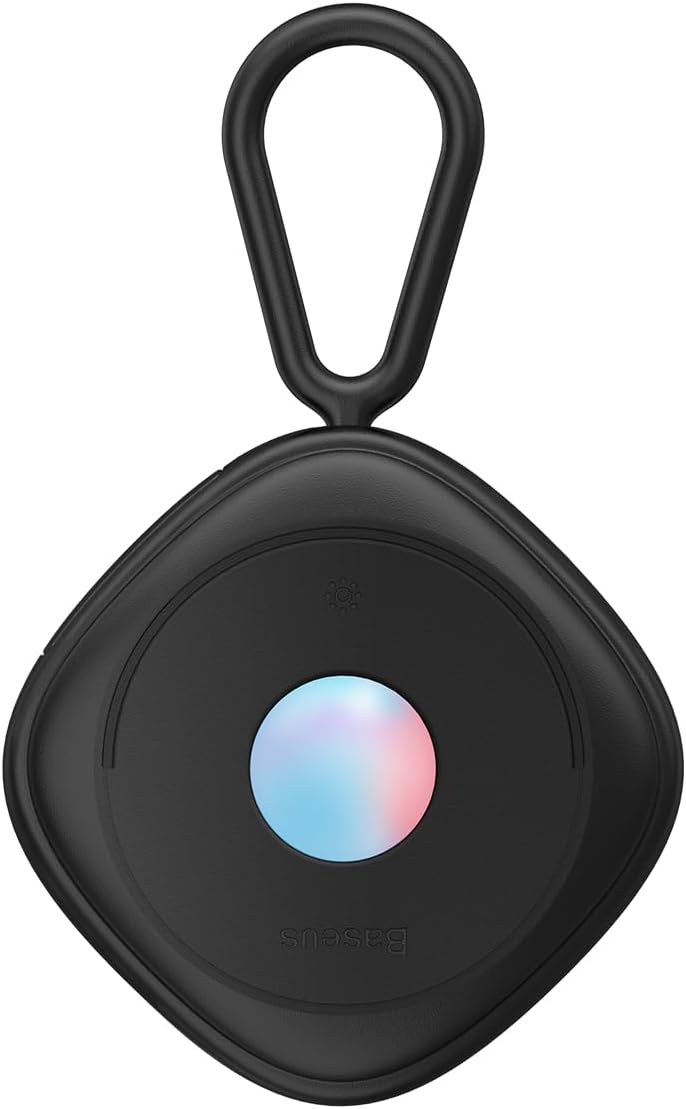

Figur 1: Forside view of the Baseus Heyo Hidden Camera Detector.

2. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning:

• 1 x Baseus Heyo Hidden Camera Detector (Black)
• 1 x Charging Cable (USB-C, typically)
• 1 x Brugermanual (dette dokument)

3. Opsætning

3.1 Opladning af enheden

The device comes with a built-in Lithium-ion battery. Before first use, it is recommended to fully charge the detector.

1. Locate the charging port on the device (usually USB-C).
2. Connect the provided charging cable to the detector and a compatible USB power source (e.g., computer USB port, wall adapter).
3. The indicator light will show charging status (e.g., red for charging, green/off for fully charged).
4. Opladning tager typisk 1-2 timer for en fuld opladning.

Figure 2: The detector connected to a charging cable, illustrating its long battery life.

3.2 Tænd/sluk

Press and hold the power button (refer to device diagram for location) for a few seconds to turn the device on or off.

4. Betjeningsvejledning

The Baseus Heyo Hidden Camera Detector offers two primary detection modes: Continuous Operation and Flash Mode.

4.1 Understanding Hidden Camera Detection

Hidden cameras often use lenses that reflect infrared light. The detector emits infrared light, and when you look through its special filter, these reflections appear as bright red dots, indicating a potential hidden camera.

Figure 3: Illustration of how the detector reveals hidden cameras by showing red reflections.

4.2 Continuous Operation Mode

This mode provides a steady infrared light emission for a thorough scan.

1. Tænd for enheden.
2. Select the continuous operation mode (refer to button layout).
3. Hold the detector at eye level and look through the red filter.
4. Slowly scan the room, paying close attention to common hiding spots for cameras such as smoke detectors, air vents, power outlets, shower heads, books, and decorative items.
5. Any hidden camera lenses will appear as bright red, reflective dots.

4.3 Flash Mode

Flash mode emits infrared light in pulses, which can make reflections more noticeable due to the blinking effect.

1. Tænd for enheden.
2. Select the flash mode (refer to button layout).
3. Hold the detector at eye level and look through the red filter.
4. Scan the room slowly, observing for blinking red dots. This mode can be particularly effective for quickly identifying reflections.

Figure 4: The detector has a 5-meter detection radius, allowing for effective room scanning.

4.4 Effective Scanning Tips

• Scan from different angles and heights.
• Pay attention to objects that seem out of place or have small holes.
• Common hiding spots include: smoke alarms, air conditioner vents, power outlets, light fixtures, shower heads, clocks, picture frames, and soft furnishings like pillows.

Figure 5: The detector is effective against various types of hidden cameras found in common objects.

5. Vedligeholdelse

5.1 Rengøring

To ensure optimal performance and longevity of your detector:

• Tør enheden af ​​med en blød, tør klud.
• Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Keep the infrared lens and viewing filter clean and free of dust or smudges.

5.2 Opbevaring

Store the detector in a cool, dry place away from direct sunlight and extreme temperatures. Keep it away from liquids and corrosive materials.

5.3 Pleje af batterier

For at maksimere batterilevetiden:

• Undgå at aflade batteriet helt ofte.
• Oplad enheden regelmæssigt, selvom den ikke bruges hyppigt, for at opretholde batteriets sundhedstilstand.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Baseus webwebsted. Gem venligst din købsbevis til garantikrav.

Bemærk: Specifikke garantivilkår kan variere fra region til region.
