QIACHIP WiFi Smart Relay Module (Model KR05-1CHKG-W-EW) User Manual

1. Produktet er slutview

The QIACHIP WiFi Smart Relay Module is a versatile device designed for home automation. It allows users to remotely control connected appliances or devices via the eWeLink app. This module supports third-party voice control systems such as Amazon Alexa and Google Home, offering enhanced convenience for smart home integration. Key functionalities include timing on/off, scene linkage, power-on settings, inching (momentary) settings, and sharing control.

Image 1.1: QIACHIP WiFi Smart Relay Module with its packaging, highlighting compatibility with Google Home and Alexa.

2. Sikkerhedsoplysninger

• Strømforsyning: This device requires a stable USB 5V DC power input. Do not use power sources exceeding 5V to prevent damage.
• Ledningsføring: Ensure all wiring is performed by a qualified individual if connecting to AC loads. Always disconnect power before wiring.
• Miljø: Use the module in a dry environment. Avoid exposure to moisture, extreme temperatures, or corrosive substances.
• Belastningskapacitet: Adhere to the maximum switching voltage og wattage specifications to prevent overloading the relay.

3. Pakkens indhold

• QIACHIP WiFi Smart Relay Module (KR05-1CHKG-W-EW)
• Brugervejledning (dette dokument)

Note: A USB power adapter and cable are required for operation and are not included. Remote controls are also sold separately.

4. Produktfunktioner

• Fjernbetjening: Styr enheder hvor som helst med eWeLink-appen på din smartphone.
• Stemmestyring: Kompatibel med Amazon Alexa og Google Home for håndfri betjening.
• Arbejdstilstande: Supports both self-locking (toggle) and inching (momentary) modes, configurable via the app.
• Planlægning og timere: Set schedules, countdowns, and loop timers for automated control.
• Tør kontakt output: Provides a passive output, suitable for controlling various devices like garage door openers, access control systems, and traditional switches.
• 2.4G Remote Control Support: Can be paired with a 2.4G smart remote control (sold separately) for local control, offering a range of up to 30 meters in open areas.

Billede 4.1: Eks.amples of devices and systems that can be controlled by the smart relay module.

5. Komponentidentifikation

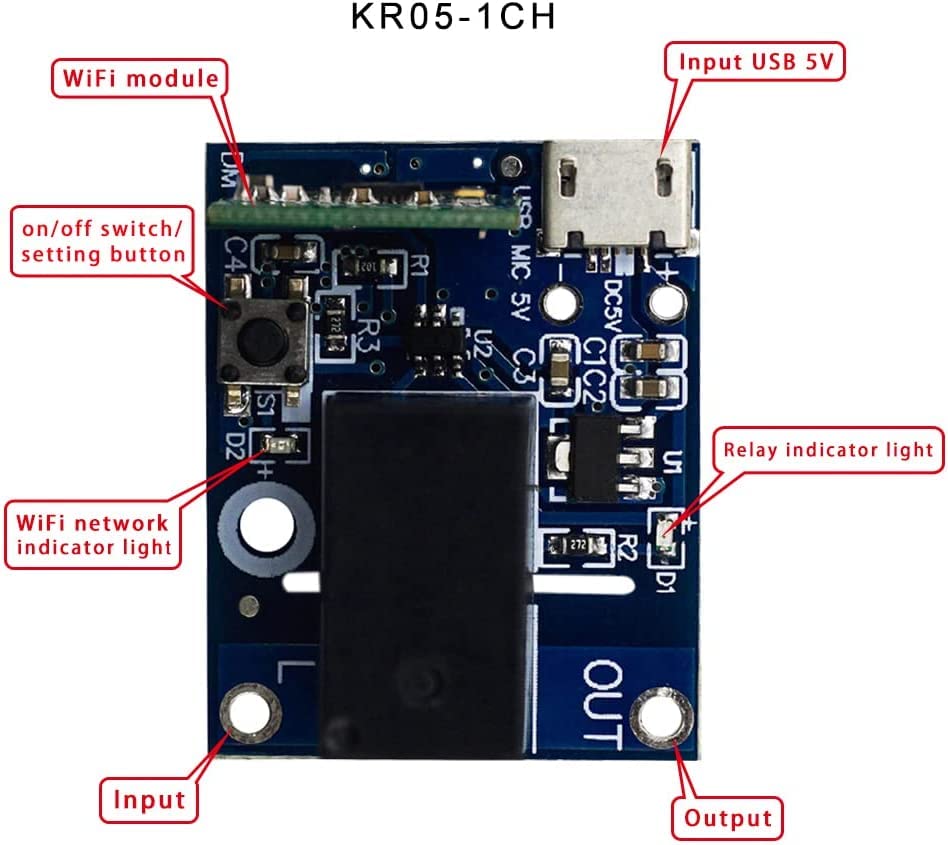

Billede 5.1: Detaljeret view of the KR05-1CH module with key components labeled.

• Input USB 5V: Micro USB port for power supply.
• On/Off Switch/Setting Button: Used for manual control and pairing.
• WiFi Network Indicator Light: Viser status for Wi-Fi-forbindelsen.
• Relay Indicator Light: Indicates the relay's activation status.
• Input/output terminaler: Screw terminals for connecting the device to be controlled (dry contact).

6. Opsætningsvejledning

6.1. Strømforsyning til enheden

Connect a standard USB 5V power adapter (not included) to the Micro USB port on the module. The module will power on, and the Wi-Fi indicator light will begin to flash, indicating it is ready for pairing.

6.2. Wiring Diagram (Dry Contact)

The module provides a dry contact (passive output) relay. This means it acts as a switch, opening or closing a circuit without supplying power itself. You will need to connect the device you wish to control to the Input and Output terminals.

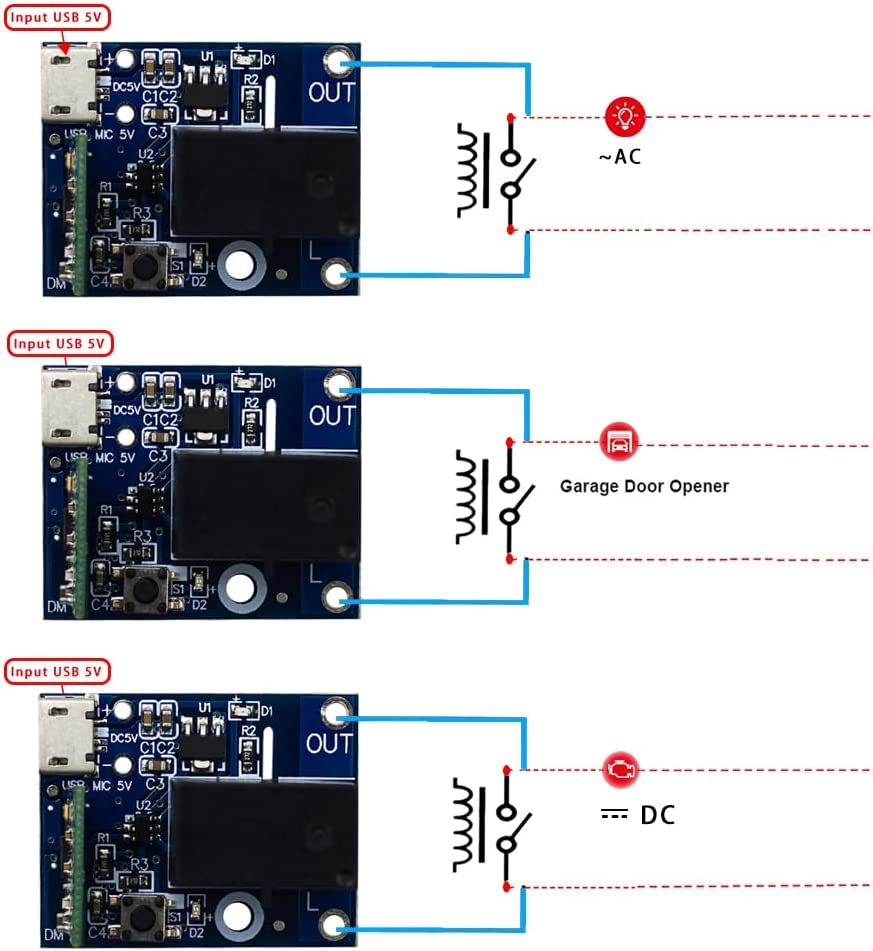

Billede 6.1: Eks.amples of dry contact wiring for various applications.

• For AC Loads: Connect the module's output terminals in series with one of the AC lines (e.g., Live wire) of your AC device. The module itself is powered by USB 5V, not the AC line.
• For DC Loads: Connect the module's output terminals in series with the positive or negative line of your DC device.
• For Garage Door/Access Control: Connect the module's output terminals to the control input terminals of your garage door opener or access control system, which typically require a momentary contact closure.

6.3. Appinstallation og parring

1. Download eWeLink-appen: Søg efter "eWeLink" in your smartphone's app store (Google Play Store for Android or Apple App Store for iOS) and install it.
2. Registrer/Log ind: Åbn eWeLink-appen, og opret en ny konto, eller log ind med en eksisterende.
3. Gå ind i parringstilstand: Power on the module. Press and hold the "on/off switch/setting button" on the module for approximately 5 seconds until the Wi-Fi network indicator light flashes rapidly.
4. Tilføj enhed: In the eWeLink app, tap the "+" icon (or "Add Device") and follow the on-screen instructions to add a new device. Select the appropriate pairing mode (e.g., Quick Pairing Mode).
5. Opret forbindelse til Wi-Fi: Enter your 2.4GHz Wi-Fi network name and password. The module only supports 2.4GHz Wi-Fi networks, not 5GHz.
6. Fuld parring: Appen vil søge efter og oprette forbindelse til modulet. Når den er oprettet forbindelse, kan du omdøbe enheden og tildele den til et rum.

Image 6.2: eWeLink app interface for controlling the smart relay module.

7. Driftstilstande

7.1. Self-Locking Mode (Default)

In self-locking mode, the relay acts like a traditional toggle switch. When you turn it ON, it stays ON until you manually turn it OFF. Similarly, when you turn it OFF, it stays OFF until manually turned ON. This mode is suitable for controlling lights, fans, or other devices that require a continuous ON/OFF state.

7.2. Inching (Momentary) Mode

In inching mode, the relay will automatically turn OFF after a set duration once it has been turned ON. This mode is ideal for applications like garage door openers, electric strikes, or pulse-activated devices. The duration of the momentary pulse can be adjusted within the eWeLink app (e.g., 0.5 seconds to several minutes).

To switch between modes, access the device settings within the eWeLink app and select the desired working mode.

8. Smart Home Integration

The QIACHIP WiFi Smart Relay Module is compatible with popular smart home platforms:

• Amazon Alexa: Link your eWeLink account in the Alexa app to control the module with voice commands (e.g., "Alexa, turn on the garage door").
• Google Home/Assistant: Link your eWeLink account in the Google Home app to control the module with voice commands (e.g., "Hey Google, open the gate").
• IFTTT: Create custom automations and applets by connecting your eWeLink account to IFTTT (If This Then That).

Ensure your eWeLink account is bound and devices are synchronized within the respective third-party smart home applications.

Image 8.1: Illustration of multiple modules in a home environment, indicating remote control capabilities.

9. Vedligeholdelse

• Rensning: Gently wipe the module with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Firmwareopdateringer: Tjek regelmæssigt eWeLink-appen for tilgængelige firmwareopdateringer for at sikre optimal ydeevne og sikkerhed.
• Strømstabilitet: Ensure the USB 5V power supply is stable to prevent unexpected behavior.

10. Fejlfinding

Q: Device not connecting to Wi-Fi?

A: Ensure your Wi-Fi network is 2.4GHz. Check that the Wi-Fi password is correct. Move the module closer to your Wi-Fi router. Try resetting the module by holding the setting button for 5 seconds until the indicator flashes rapidly, then re-attempt pairing.

Q: Relay not responding to app commands?

A: Verify the module is powered on and connected to Wi-Fi (solid blue indicator light). Check your internet connection. Ensure the wiring to the controlled device is correct and secure. Test the manual button on the module.

Q: Voice control not working?

A: Confirm that your eWeLink account is correctly linked and synchronized with Amazon Alexa or Google Home. Check the device name in the eWeLink app and use that name in your voice commands. Ensure your smart speaker is connected to the internet.

Q: Inching mode duration is incorrect?

A: Adjust the inching duration setting within the device's settings in the eWeLink app.

11. Specifikationer

12. Garanti og support

For warranty information, technical support, or further assistance, please refer to the contact details provided with your purchase or visit the official QIACHIP webwebsted. Gem din købsbevis til garantikrav.
