MAF 14 tommer kingsize metalplatformsengramme instruktionsmanual

1. Produktet er slutview

The MAF 14 Inch King Metal Platform Bed Frame is designed to provide a sturdy and noise-free foundation for your mattress. Constructed from heavy-duty steel, it supports up to 3000 pounds and eliminates the need for a box spring. The frame features rounded corners for safety and offers significant under-bed storage space.

Billede 1.1: Overview of the MAF 14 Inch King Metal Platform Bed Frame.

2. Sikkerhedsoplysninger

• Vægt kapacitet: Overskrid ikke den maksimale vægtkapacitet på 3000 pund.
• Forsamling: Ensure all bolts are securely tightened before use. Periodically check and retighten fasteners.
• Afrundede hjørner: The frame is designed with rounded corners to minimize injury from accidental contact.
• Gulvbeskyttelse: Rubber foot cushions are included to prevent floor damage and reduce noise.

3. Reservedelsliste

Verify that all components are present before beginning assembly. All necessary tools are included in the package.

• Metal Frame Sections
• Støtteben
• Stållameller
• Mattress Slide Stoppers (Plastic Anti-Slip Baffles)
• Rubber Foot Cushions
• Assembly Hardware (Bolts, Washers, Nuts)
• Samleværktøj (skruenøgle)

4. Opsætnings- og monteringsvejledning

Assembly typically takes approximately 20 minutes for one person. Follow these steps carefully:

1. Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en ren, blød overflade for at forhindre ridser.
2. Saml rammesektioner: Connect the main frame sections using the provided hardware. Do not fully tighten bolts until all sections are aligned.
3. Fastgør støtteben: Securely attach the support legs to the frame. Ensure rubber foot cushions are properly seated on the bottom of each leg.
4. Installer stållameller: Place the steel slats into the designated U-shaped grooves on the frame. The slats are designed to be fixed and prevent sliding.
5. Install Mattress Slide Stoppers: Attach the plastic anti-slip baffles to the frame. Ensure they are mounted outwards to effectively prevent the mattress from slipping.
6. Endelig stramning: Once all components are assembled and aligned, fully tighten all bolts using the provided wrench.

Image 4.1: Proper orientation for mattress slide stopper installation.

Image 4.2: Key features for assembly and stability.

5. Betjeningsvejledning

• Madrasplacering: Place your mattress directly onto the steel slats. A box spring is not required.
• Madrasskompatibilitet: This King size frame is compatible with standard 80 x 76 inch mattresses.
• Opbevaring under sengen: The 14-inch height provides 12.4 inches of clearance for under-bed storage.

Image 5.1: Illustration of available under-bed storage space.

Image 5.2: Confirmation that no box spring is required.

6. Vedligeholdelse

• Rensning: Tør metalrammen af ​​med reklameamp cloth and mild detergent as needed. Avoid abrasive cleaners.
• Fastgørelseskontrol: Periodically inspect all bolts and connections to ensure they remain tight. Retighten if any looseness is detected.
• Støjreduktion: The frame is designed to be noise-free. If any squeaking occurs, check all connections and ensure the rubber foot cushions are intact.

7. Fejlfinding

• Issue: Mattress is sliding.
  Løsning: Ensure the plastic anti-slip baffles are correctly installed and facing outwards. Verify that the mattress is properly centered on the frame.
• Issue: Frame is making noise (squeaking/rattling).
  Løsning: Check all assembly bolts and tighten them securely. Ensure the rubber tips on the cross-rails are properly seated and the rubber foot cushions are in place.
• Problem: Vanskeligheder under samling.
  Løsning: Refer to the assembly instructions (Section 4). Do not fully tighten bolts until all parts are loosely assembled and aligned. If a part seems difficult to fit, double-check the orientation and part number against the manual.

8. Specifikationer

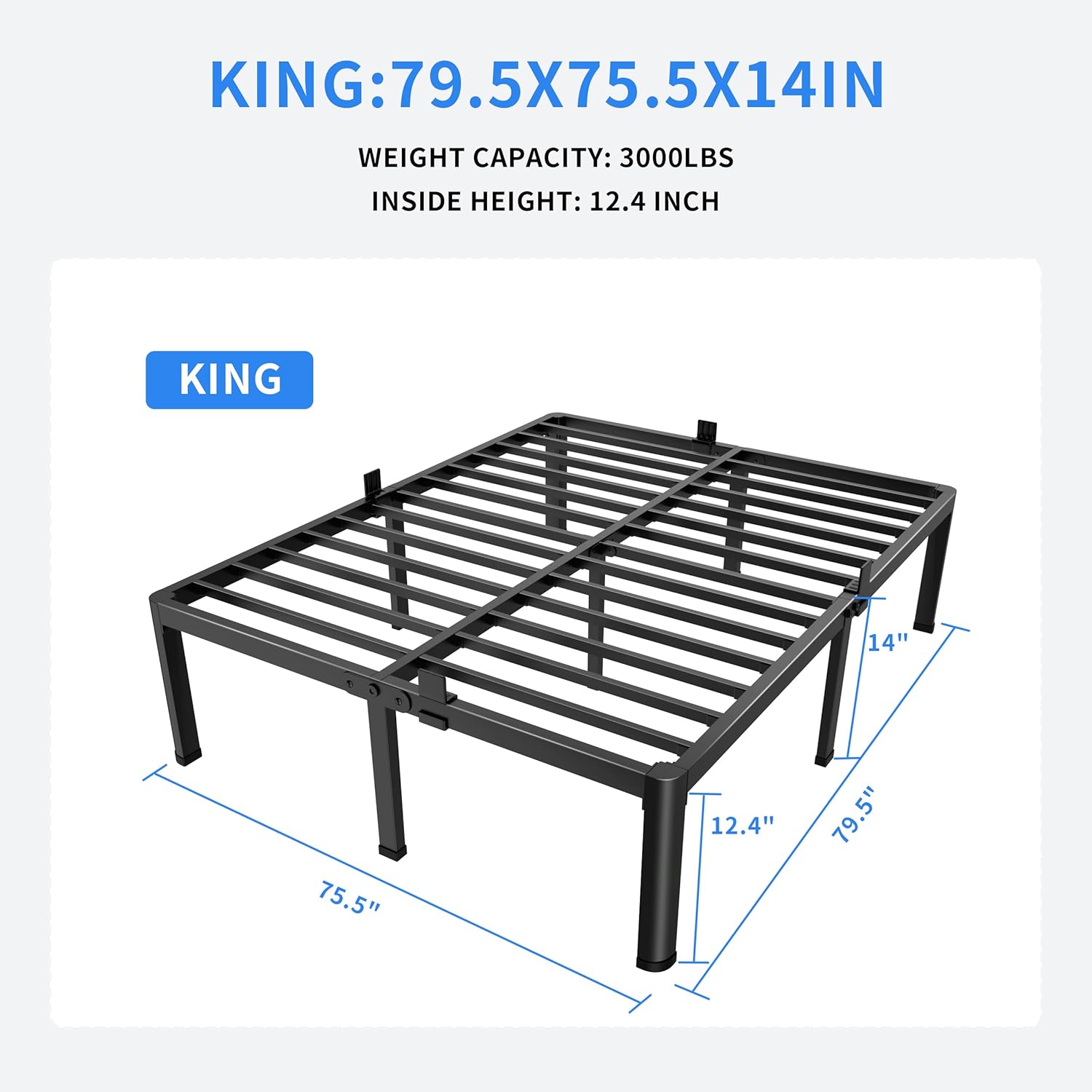

Image 8.1: Key dimensions and weight capacity.

Image 8.2: Detailed size chart and contents.

9. Garanti og support

This MAF metal bed frame comes with a 5-year after-sale service. For any questions, concerns, or assistance with your product, please contact MAF customer support. We are committed to providing a satisfactory solution.
