Dorman 601-325 Radiatorjalousi monteringsvejledning

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of the Dorman 601-325 Radiator Shutter Assembly. This component is designed to match the fit and function of the original equipment shutter, restoring proper operation to the vehicle's active grille shutter system. It is compatible with select Dodge models, specifically the Dodge Dart from 2013 to 2016.

2. Sikkerhedsoplysninger

Always prioritize safety when working on any vehicle. Failure to follow safety precautions can result in serious injury or damage to the vehicle.

• Ensure the vehicle is parked on a level surface and the parking brake is engaged.
• Disconnect the vehicle's battery before beginning any electrical work to prevent accidental shorts or electrical shock.
• Brug passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker.
• Allow the engine and cooling system to cool completely before working on the radiator area. Hot fluids and components can cause severe burns.
• Se din bils specifikke servicehåndbog for detaljerede instruktioner og momentspecifikationer.
• Hvis du er usikker på et trin, skal du kontakte en kvalificeret biltekniker.

3. Produktet er slutview

The Dorman 601-325 Radiator Shutter Assembly is a direct replacement component for the active grille shutter system. It includes the shutter mechanism and a factory-style electrical connector for seamless integration.

3.1 Komponenter

• Radiator Shutter Assembly (1)

3.2 Nøglefunktioner

• Ideel erstatning: Matches the original equipment assembly for specific makes and models.
• Plug & Play installation: Features a factory-style electrical connector for a trouble-free installation.
• Omkostningseffektiv løsning: Offers original equipment quality at a competitive price.
• Kvalitetstestet: Undergone extensive testing for a quality fit and reliable performance.

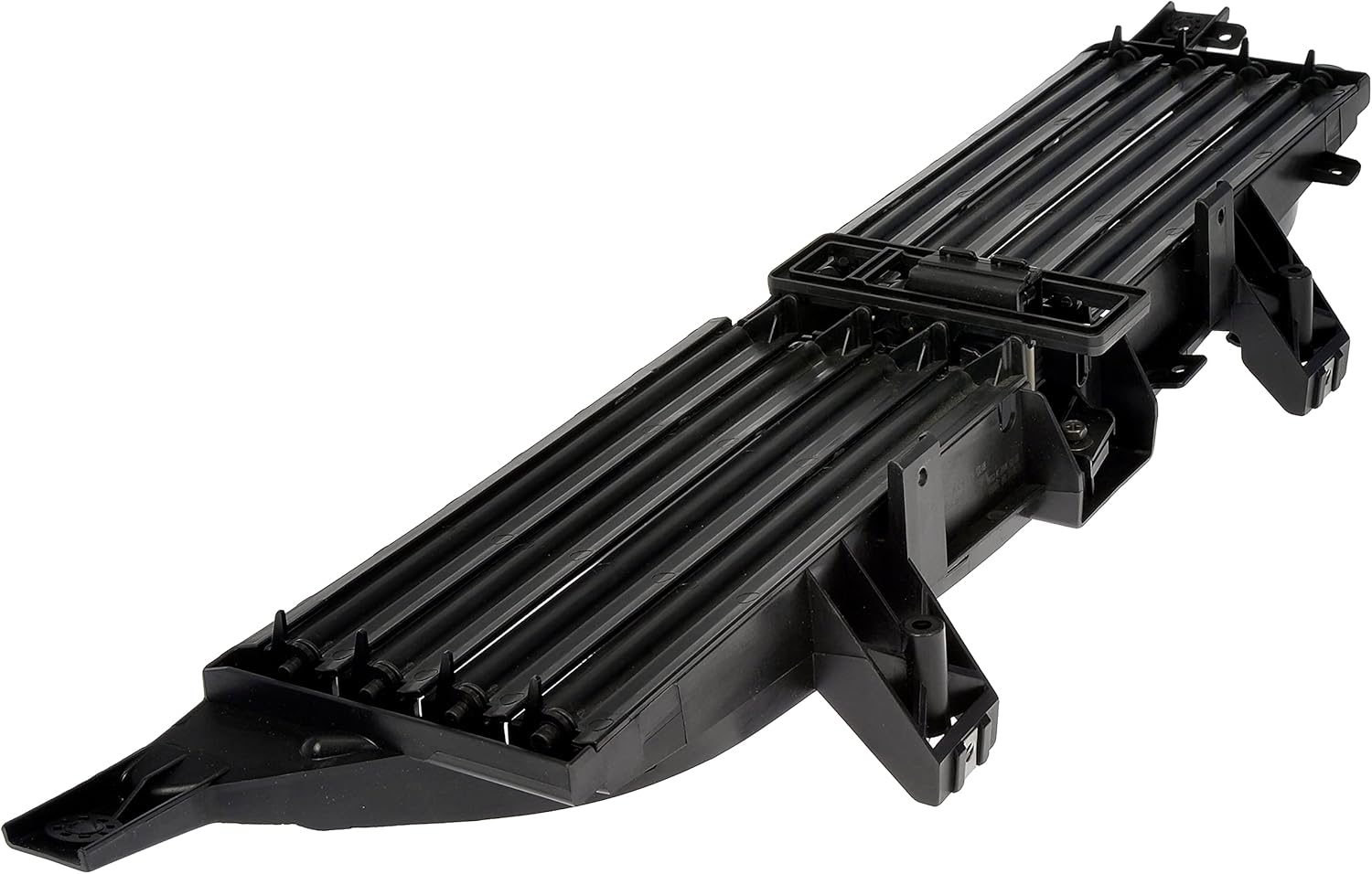

3.3 Produktbilleder

4. Installation (Opsætning)

The Dorman 601-325 Radiator Shutter Assembly is designed for a direct replacement and plug-and-play installation. While specific steps may vary by vehicle model, the general procedure involves removing the old assembly and installing the new one.

1. Forberedelse: Ensure the vehicle is off and cooled down. Disconnect the negative battery terminal.
2. Adgang: Depending on the vehicle, it may be necessary to remove the front bumper cover, grille, or other components to gain access to the radiator shutter assembly.
3. Afbryde: Carefully disconnect the electrical connector from the existing shutter assembly.
4. Fjern gammel samling: Unbolt or unclip the old radiator shutter assembly from its mounting points. Note the orientation and any specific fasteners.
5. Installer ny samling: Position the Dorman 601-325 Radiator Shutter Assembly in place, ensuring all mounting tabs and holes align. Secure it with the appropriate fasteners.
6. Tilslut elektrisk: Reconnect the factory-style electrical connector to the new assembly. Ensure it clicks securely into place.
7. Saml igen: Reinstall any removed components (bumper cover, grille, etc.) in reverse order of removal.
8. Sidste trin: Reconnect the negative battery terminal. Start the vehicle and check for proper operation of the active grille shutter system.

Note: For detailed, vehicle-specific instructions, always consult your vehicle's official service manual.

4.1 Installation Visual Aid

5. Betjening

The active grille shutter system is an integral part of modern vehicle design, primarily aimed at improving fuel efficiency and reducing emissions. The system operates automatically, controlled by the vehicle's engine control unit (ECU).

• Engine Warm-up: Upon cold startup, the shutters typically remain closed to help the engine reach its optimal operating temperature more quickly. This also assists in bringing the catalytic converter to operating temperature faster, reducing cold-start emissions.
• Aerodynamik: At stable cruising speeds, the shutters may close to improve the vehicle's aerodynamics by reducing drag. This contributes to better fuel economy.
• Køling: When the engine requires additional cooling (e.g., during heavy load, high temperatures, or low speeds), the shutters will open to allow maximum airflow to the radiator.
• Heater/Defroster Function: The system also helps improve the warm-up time for the vehicle's heater and defroster functions.

The operation is fully automatic and does not require manual intervention from the driver.

5.1 Operationel Overview Video

6. Vedligeholdelse

The Dorman 601-325 Radiator Shutter Assembly is designed for durability and typically requires minimal maintenance. However, periodic inspection can help ensure its longevity and proper function.

• Visuel inspektion: Periodically inspect the shutter blades and linkage for any signs of damage, cracks, or obstructions (e.g., debris, leaves).
• Renhed: Keep the area around the grille and radiator free from excessive dirt and debris, which could impede shutter movement.
• Funktionstjek: If possible, observe the shutters opening and closing during vehicle operation (e.g., during cold start and after the engine warms up) to confirm they are moving freely.

7. Fejlfinding

If you experience issues with your active grille shutter system after installing the Dorman 601-325 assembly, consider the following common troubleshooting steps:

• Kontrollampe for motor (CEL): If a Check Engine Light illuminates related to the active grille shutter, use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs). These codes can pinpoint the specific issue.
• Shutter Not Moving:
  • Verify the electrical connector is securely attached and free from corrosion.
  • Inspect the wiring harness for any visible damage or breaks.
  • Check for any physical obstructions preventing the shutters from moving.
  • Ensure the motor (if separate from the assembly) is functioning correctly. Dorman offers assemblies with and without motors; if your original motor was reused, it might be the point of failure.
• Usædvanlige lyde: Grinding or clicking noises could indicate a mechanical issue with the shutter linkage or motor. Inspect for broken or worn components.
• Problemer med tilpasning: Double-check that the part number 601-325 is correct for your specific vehicle year, make, and model (Dodge Dart 2013-2016). Incorrect fitment can lead to operational problems.

If troubleshooting does not resolve the issue, it is recommended to consult a professional automotive technician.

8. Specifikationer

9. Garanti og support

Dorman products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your product or visit the official Dorman Products webwebsted.

If you require technical assistance or have questions regarding the Dorman 601-325 Radiator Shutter Assembly, please contact Dorman Technical Support. Their team is available to provide guidance and help resolve any issues you may encounter.

Besøg Dorman-butikken på Amazon for flere produkter og information.
