Joyoung CJ-A9U Intelligent Automatisk Madlavningsmaskine Brugermanual

1. Introduktion

Thank you for choosing the Joyoung CJ-A9U Intelligent Automatic Cooking Machine. This appliance is designed to simplify your cooking experience with its multi-functional capabilities and intelligent features. Please read this manual thoroughly before operating the machine to ensure safe and efficient use.

The CJ-A9U combines frying, stewing, boiling, and stir-frying functions in one compact unit, featuring an automatic stirring spatula and intelligent temperature control for consistent results and a smoke-free cooking environment.

2. Vigtige sikkerhedsinstruktioner

ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater.

• Læs alle instruktioner før brug.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• For at beskytte mod elektrisk stød må ledning, stik eller hovedenheden ikke nedsænkes i vand eller anden væske.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Der skal udvises ekstrem forsigtighed ved flytning af et apparat, der indeholder varm olie eller andre varme væsker.
• Sæt altid stikket i apparatet først, og sæt derefter ledningen i stikkontakten. For at afbryde forbindelsen skal du slukke for en vilkårlig knap og derefter tage stikket ud af stikkontakten.
• Brug ikke apparatet til andet end tilsigtet brug.

3. Produktet er slutview

The Joyoung CJ-A9U is designed for ease of use and versatility in your kitchen. Below are the key components of your cooking machine.

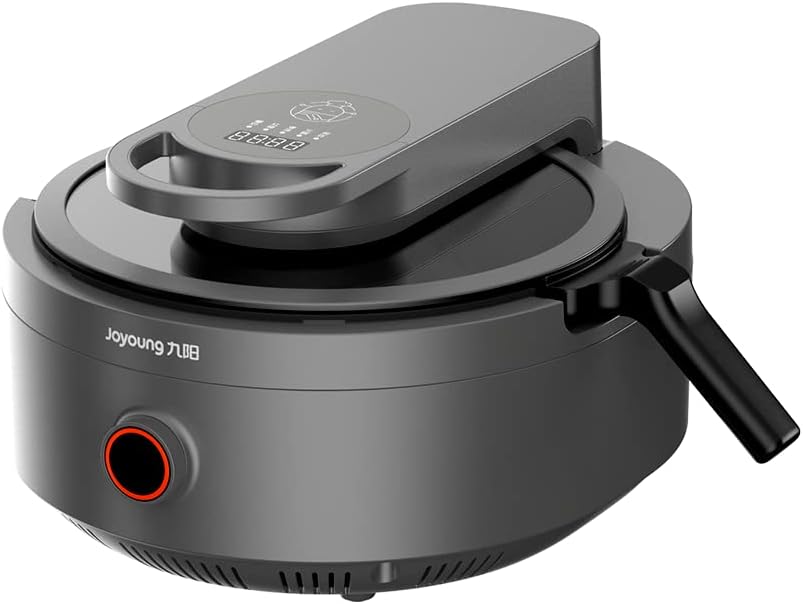

Figur 3.1: Front view of the Joyoung CJ-A9U Intelligent Automatic Cooking Machine. It features a dark gray body, a transparent lid with a handle, and a control panel on the lid. A red circular button is visible on the front of the base unit, and a black handle extends from the side.

Figur 3.2: Nærbillede view of the internal double-wing stirring spatula. This component is responsible for automatically stirring ingredients during cooking, ensuring even distribution and preventing burning.

Nøglekomponenter:

• Hovedenhed: Houses the heating element and motor.
• Kogegryde: Non-stick interior for various cooking tasks.
• Gennemsigtigt låg: Giver mulighed for overvågning af tilberedningens fremskridt.
• Kontrolpanel: Digital display and buttons for program selection and settings.
• Double-Wing Stirring Spatula: Automatically stirs food.
• Håndtag: For sikker håndtering og hældning.

4. Opsætning og første brug

1. Udpakning: Carefully remove the cooking machine and all accessories from the packaging. Retain packaging for future storage or transport.
2. Indledende rengøring: Before first use, wash the cooking pot, stirring spatula, and lid with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp klæde. Nedsænk ikke hovedenheden i vand.
3. Placering: Placer apparatet på en stabil, flad og varmebestandig overflade, væk fra vægge og andre apparater for at sikre korrekt ventilation. Sørg for, at der er tilstrækkelig plads omkring enheden.
4. Strømtilslutning: Plug the power cord into a grounded electrical outlet. The appliance is ready for use.

5. Betjeningsvejledning

The Joyoung CJ-A9U offers a range of cooking functions with intelligent controls. Follow these steps for optimal performance.

5.1 Powering On and Control Panel

Connect the appliance to a power source. The digital display on the control panel will illuminate. Use the intuitive buttons to select your desired cooking program and adjust settings.

5.2 madlavningsfunktioner

The CJ-A9U supports multiple cooking methods:

• Stegning: Ideal for quick cooking with minimal oil.
• Kogning: For slow-cooked dishes, tenderizing ingredients.
• Kogning: For soups, pasta, or blanching vegetables.
• Wok-stegning: Utilizes the automatic stirring spatula for even cooking and flavor distribution.

Figur 5.1: An illustration showing the versatility of the Joyoung CJ-A9U, capable of various cooking methods such as stir-frying, braising, stewing, and deep-frying, indicated by different food preparations.

5.3 Automatic Stirring

The built-in double-wing stirring spatula automatically stirs ingredients, eliminating the need for manual intervention. This ensures even cooking, prevents food from sticking or burning, and frees your hands for other tasks.

Figur 5.2: The Joyoung CJ-A9U in operation, showcasing the automatic stirring function. The internal spatula is actively mixing ingredients, highlighting the hands-free cooking capability.

5.4 Intelligent Temperature Control and Smoke-Free Cooking

The CJ-A9U features an intelligent temperature control program that maintains the oil temperature below its smoke point. This results in a virtually smoke-free cooking environment, making your kitchen cleaner and more pleasant.

Figur 5.3: The Joyoung CJ-A9U cooking with minimal to no visible smoke, illustrating its intelligent temperature control feature designed to keep oil temperatures below the smoke point for a cleaner cooking experience.

Figur 5.4: En intern view of the Joyoung CJ-A9U demonstrating its powerful and even heating capabilities. Ingredients inside the pot are shown being uniformly heated, indicating efficient cooking performance.

5.5 Using Recipes

The appliance comes with a variety of pre-programmed recipes and cooking suggestions. Refer to the included recipe chart for ingredient quantities, cooking times, and specific instructions for different dishes.

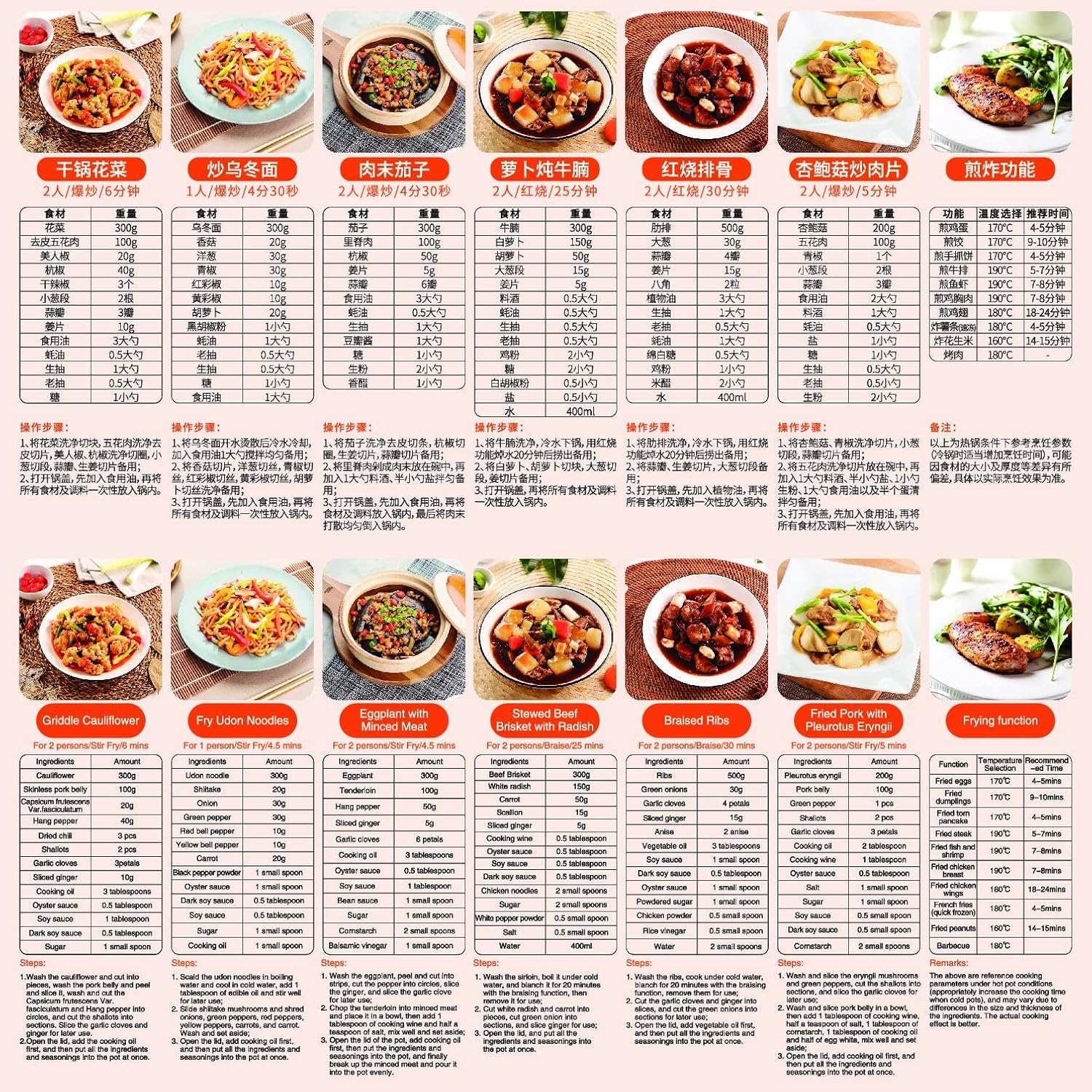

Figur 5.5: A detailed recipe chart for the Joyoung CJ-A9U, providing ingredient lists, quantities, and step-by-step cooking instructions for various dishes like Gribble Cauliflower, Fry Udon Noodles, Eggplant with Minced Meat, Stewed Ginger Beef, Braised Ribs, Fried Pork with Cucumber, and Frying Function. It also includes recommended temperatures and cooking times.

Example Recipe Usage (Referencing Figure 5.5):

For "Gribble Cauliflower" (first recipe on the chart):

• Ingredienser: Cauliflower, Pork belly, Green pepper, Red pepper, Ginger, Garlic, Shallots, Soy sauce, Cooking oil, Sugar.
• Trin:
  1. Wash the cauliflower and pork belly, cut the pork belly into slices, and cut the cauliflower into small pieces.
  2. Add oil, pork belly, ginger, garlic, and shallots into the pot.
  3. Add cauliflower, green pepper, red pepper, soy sauce, and sugar into the pot at once.
• Fungere: Stir-fry. Temperatur: 170°C. Tid: 4-8 minutter.

Always ensure ingredients are prepared as specified and follow the recommended cooking times and temperatures for best results.

6. Vedligeholdelse og rengøring

Regular cleaning and maintenance will prolong the life of your Joyoung CJ-A9U and ensure hygienic operation.

1. Træk stikket ud før rengøring: Tag altid stikket ud af stikkontakten, og lad det køle helt af, inden du rengør det.
2. Aftagelige dele: The cooking pot, stirring spatula, and lid are detachable for easy cleaning. Wash these parts with warm, soapy water using a non-abrasive sponge. Rinse thoroughly and dry completely before reassembling or storing.


Figur 6.1: The detachable lid of the Joyoung CJ-A9U being rinsed under running water, demonstrating the ease of cleaning for its components.

3. Hovedenhed: Tør hovedenhedens yderside af med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler eller skuresvampe. Hovedenheden må aldrig nedsænkes i vand eller andre væsker.
4. Opbevaring: Sørg for, at alle dele er rene og tørre, inden apparatet opbevares. Opbevar det et køligt og tørt sted.

7. Fejlfinding

If you encounter any issues with your Joyoung CJ-A9U, please refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.

8. Specifikationer

9. Garanti og kundesupport

For warranty information or technical assistance, please refer to the warranty card included with your product or contact Joyoung customer support. Keep your purchase receipt as proof of purchase.

For further inquiries, please visit the official JOYOUNG webwebsted eller kontakt deres kundeserviceafdeling.
