1. Introduktion
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Metro Mobility 4 Wheel Foldable Mobility Scooter M1. Please read this manual thoroughly before using the scooter for the first time. Keep it in a safe place for future reference.

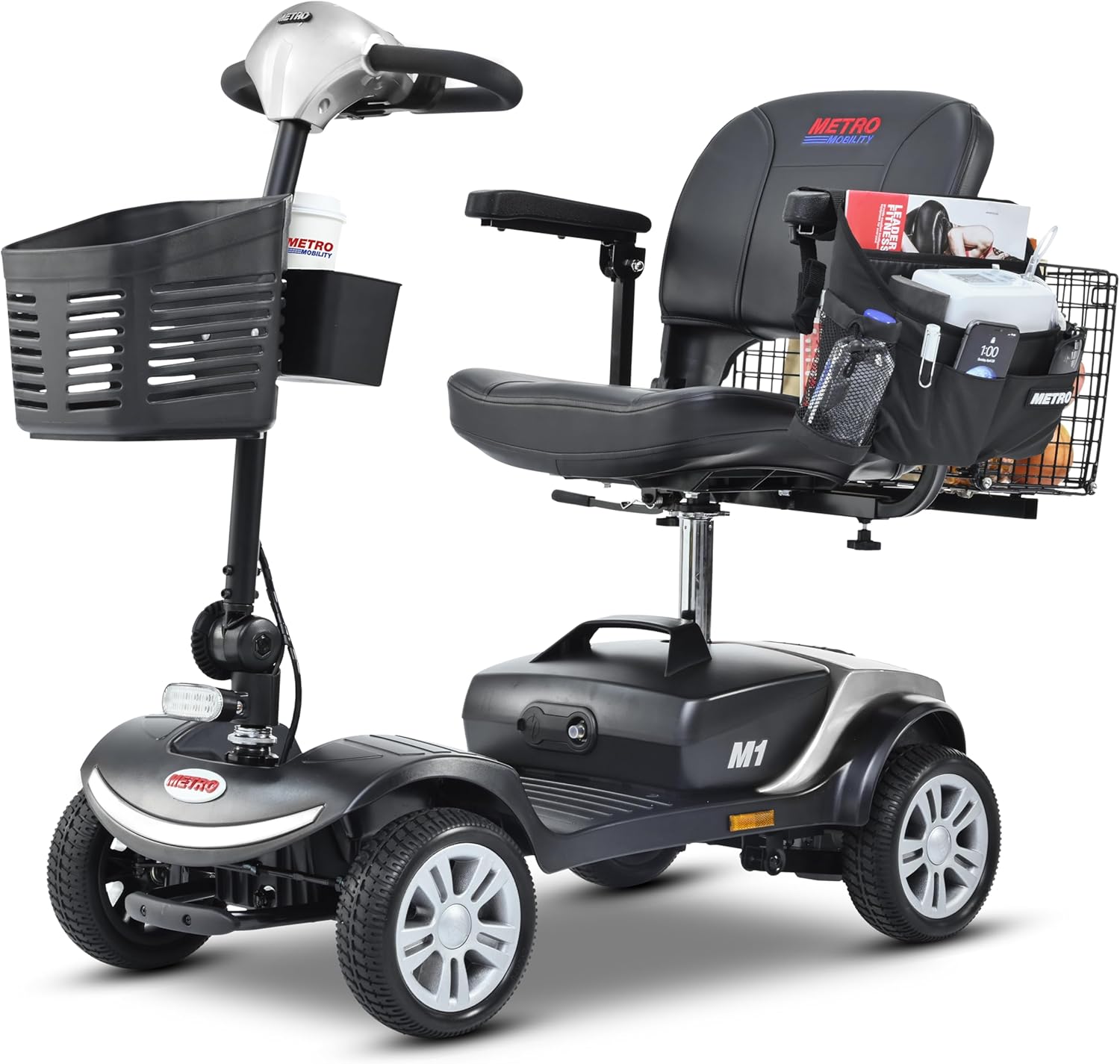

Figure 1: Metro Mobility M1 Scooter Overview
2. Sikkerhedsoplysninger
Din sikkerhed er altafgørende. Følg altid følgende retningslinjer:
- Vægt kapacitet: Overskrid ikke den maksimale vægtkapacitet på 300 pund.
- Terræn: Operate the scooter on stable, even surfaces. Avoid steep inclines exceeding 8 degrees.
- Sigtbarhed: Utilize the headlights and rear brake lights when operating in low-light conditions or at night to ensure visibility to others.
- Batteri: Use only the specified 12V batteries (two included) and charger.
- Opretholdelse: Regularly inspect all components for wear and tear. Do not operate if any part is damaged.
Figure 2: Headlights and Rear Brake Lights for enhanced visibility.
3. Opsætning og montering
The Metro Mobility M1 scooter is designed for easy assembly. Follow these steps to prepare your scooter for use:
- Udpakning: Fjern forsigtigt alle komponenter fra emballagen.
- Justering af rorpind: Adjust the tiller (handlebar column) to your preferred angle and secure it.
- Sædeinstallation: Place the seat onto the seat post and ensure it is securely locked. The seat is height-adjustable and can swivel for easy access.
- Armrest Attachment: Slide the armrests into their designated slots on either side of the seat. Adjust their width as needed.
- Montering af kurv: Attach the front basket to the tiller and the rear basket to the seat frame.
- Batteriforbindelse: Ensure the two 12V batteries are correctly installed and connected.
Video 1: Product Installation Instructions. This video demonstrates the step-by-step assembly of a similar mobility scooter, including attaching the tiller, seat, and baskets.
Video 2: THERASHIELDZ 4 Wheel Mobility Scooter Installation Video. This video provides a visual guide for the installation process of a 4-wheel mobility scooter.
Figure 3: Scooter components ready for assembly.
4. Betjeningsvejledning
Gør dig bekendt med betjeningselementerne, før du betjener scooteren.
- Tænd/sluk: Insert the key and turn to the 'On' position.
- Hastighedskontrol: Use the speed adjustment dial on the control panel to set your desired speed.
- Retningskontrol: Use the ergonomic wraparound handles to control forward and reverse motion. Push one lever for forward, the other for reverse.
- Bremsning: Release the levers to engage the automatic electromagnetic brake.
- Horn & Lights: Use the dedicated buttons on the control panel for the horn and to activate the headlights/rear brake lights.
Video 3: Maxplus Commuting Car Usage Video. This video demonstrates the general usage and maneuverability of a mobility scooter in various settings.
Video 4: User Guide Video. This video offers a comprehensive guide to operating a mobility scooter, covering controls and basic maneuvers.
Video 5: How to Drive an Electric Mobility Scooter. A short video demonstrating basic driving techniques for an electric mobility scooter.
Figure 4: Scooter in use on a paved path.
5. Vedligeholdelse
Korrekt vedligeholdelse sikrer din scooters levetid og ydeevne.
- Batteripleje: Charge the batteries regularly after each use. Avoid fully discharging the batteries. Store the scooter with fully charged batteries if not in use for extended periods.
- Rensning: Tør scooteren af med reklameamp klæde. Undgå at bruge skrappe kemikalier eller for meget vand.
- Dæk inspektion: Periodically check the 9-inch solid tires for wear or damage.
- Generel inspektion: Ensure all nuts, bolts, and connections are secure. Check the functionality of lights, horn, and brakes.
Figure 5: Removable battery pack for charging.
6. Fejlfinding
Hvis du støder på problemer, kan du bruge følgende almindelige løsninger:
- Scooter tænder ikke: Check if the key is fully inserted and turned to 'On'. Ensure batteries are charged and properly connected.
- Strømtab/Intermitterende drift: This may be due to a loose battery connection. Verify battery connections are secure.
- Usædvanlige lyde: Stop straks driften, og inspicer for løse dele eller blokeringer.
- Reduceret rækkevidde: This may indicate aging batteries or insufficient charging. Ensure full charge before each use.
Ved vedvarende problemer, kontakt kundesupport.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner | 45.27 x 21.06 x 37.4 tommer |
| Varens vægt | 101 pund |
| Vægt kapacitet | 300 lbs |
| Motorkraft | 300 watt |
| Max rækkevidde | Op til 10 miles pr. opladning |
| Dækstørrelse | 9'' solid tires |
| Venderadius | 42.5 tommer |
| Klatregrad | 8 grader |
| Batterier | 2 x 12V (inkluderet) |
| Materiale | Leather (seat) |
| Modelnummer | M1 |
8. Garanti og support
Metro Mobility provides a 5-year limited guarantee for this product. For any questions, technical assistance, or warranty claims, please contact Metro Mobility USA customer support. Your satisfaction is important to us.
Kontaktoplysninger kan typisk findes på producentens webwebsted eller via din købsplatform.
