TASVAC N7 Cordless Vacuum Cleaner User Manual

Vigtige sikkerhedsinstruktioner

Læs venligst alle instruktioner omhyggeligt, inden du bruger dette apparat. Gem denne manual til senere brug.

• Use only the original adapter for charging.
• Do not use the vacuum cleaner without filters.
• Ensure the dust cup and all inlets are clear of blockages.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Do not pick up flammable or combustible materials, or anything that is burning or smoking.
• Opbevar apparatet indendørs på et tørt sted.

Pakkens indhold

Bekræft at alle komponenter er til stede i pakken:

• Hovedvakuumenhed
• Motorized Main Floor Brush (with soft roller pre-installed)
• Stiff Roller Brush (for short-pile carpets)
• Spaltemundstykke
• 2-i-1 børste
• Vægbeslag
• Cleaning Gadget
• Ekstra filter
• Strømadapter
• Instruktionsmanual

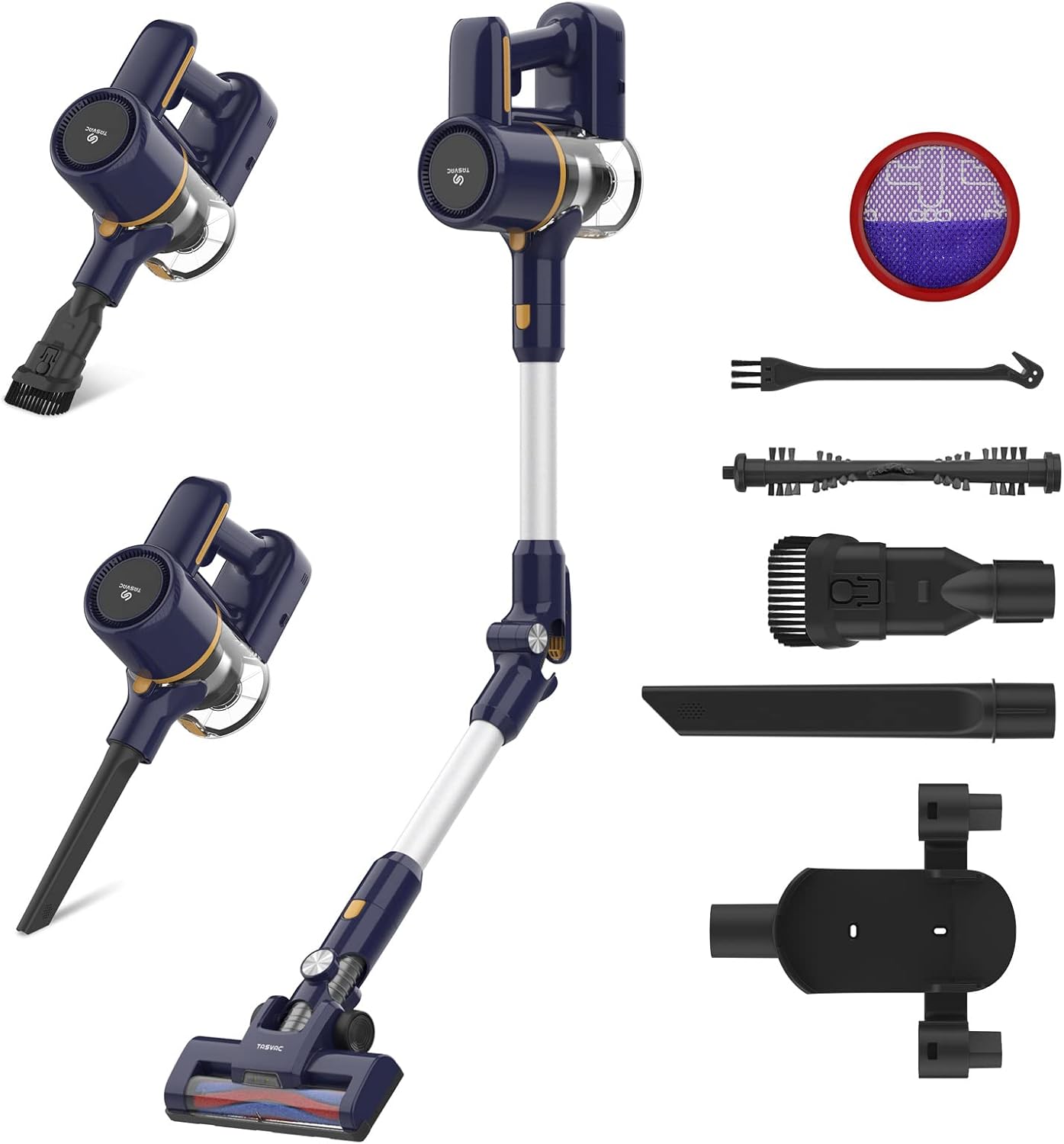

Image: All components of the TASVAC N7 Cordless Vacuum Cleaner, including the main unit, various attachments, wall mount, and charger.

Produkt overview

The TASVAC N7 is a versatile cordless vacuum cleaner designed for efficient cleaning of various surfaces and debris, including pet hair. It features a lightweight design, a foldable rod, and multiple attachments for different cleaning needs.

Image: A person using the TASVAC N7 Cordless Vacuum Cleaner on a hard floor, demonstrating its lightweight and convenient design.

Nøglefunktioner:

• Alsidigt 6-i-1 design: Can be used as a stick vacuum or handheld vacuum with various attachments.
• Kraftig sugning: Upgraded digital motor with 2 power modes for effective cleaning.
• Fleksibel og let: Main body weighs only 3 lbs, with a 180° foldable rod for easy access under furniture.
• LED Motorized Brush: Illuminates dark corners to track dust and dirt.
• 5-Stage Filtreringssystem: Ensures thorough air purification and motor protection.
• Easy to Operate & Maintain: One-click dust cup emptying and washable filters.

Opsætning og montering

1. Udpak komponenter: Fjern forsigtigt alle dele fra emballagen.
2. Fastgør forlængerstang: Connect the extension wand to the main vacuum unit until it clicks into place.
3. Fastgør gulvbørste: Connect the motorized floor brush to the other end of the extension wand. Ensure it clicks securely.
4. Indledende opkrævning: Fully charge the vacuum cleaner before first use. Connect the power adapter to the charging port and plug it into a wall outlet. The LED display will indicate charging status.
5. Installer vægbeslag (valgfrit): Choose a suitable location and secure the wall mount using the provided screws.

Image: The TASVAC N7 Cordless Vacuum Cleaner demonstrating its 180-degree foldable rod and highlighting its 6-in-1 versatility with different attachments.

Betjeningsvejledning

Tænd/sluk og sugefunktioner:

• Tryk på tænd/sluk-knappen på håndtaget for at tænde eller slukke støvsugeren.
• The vacuum has two power modes. Press the mode button to switch between the lower setting (longer runtime up to 35 minutes) and the high-speed setting (stronger suction).
• The LED display provides real-time information on battery level and selected power mode.

Brug af vedhæftede filer:

The TASVAC N7 comes with various attachments for different cleaning scenarios:

• Motorized Main Floor Brush: Ideal for hard floors and carpets. Features LED lights to illuminate dark areas.
• Spaltedyse: Perfekt til smalle sprækker, hjørner og kanter.
• 2-i-1 børste: Velegnet til polstring, gardiner og sarte overflader.

Image: A visual representation of the versatile tools included with the TASVAC N7, demonstrating their use for various cleaning tasks such as car interiors, furniture, and under low objects.

Roller Brush Options:

The motorized floor brush supports two types of roller brushes:

• Blød rulle: Recommended for hard floors and low-pile carpets.
• Stiff Roller: Designed for short-pile carpets, effectively picking up embedded dirt.

Billede: Nærbillede view of the soft roller and stiff roller brush options for the TASVAC N7, indicating their recommended surfaces.

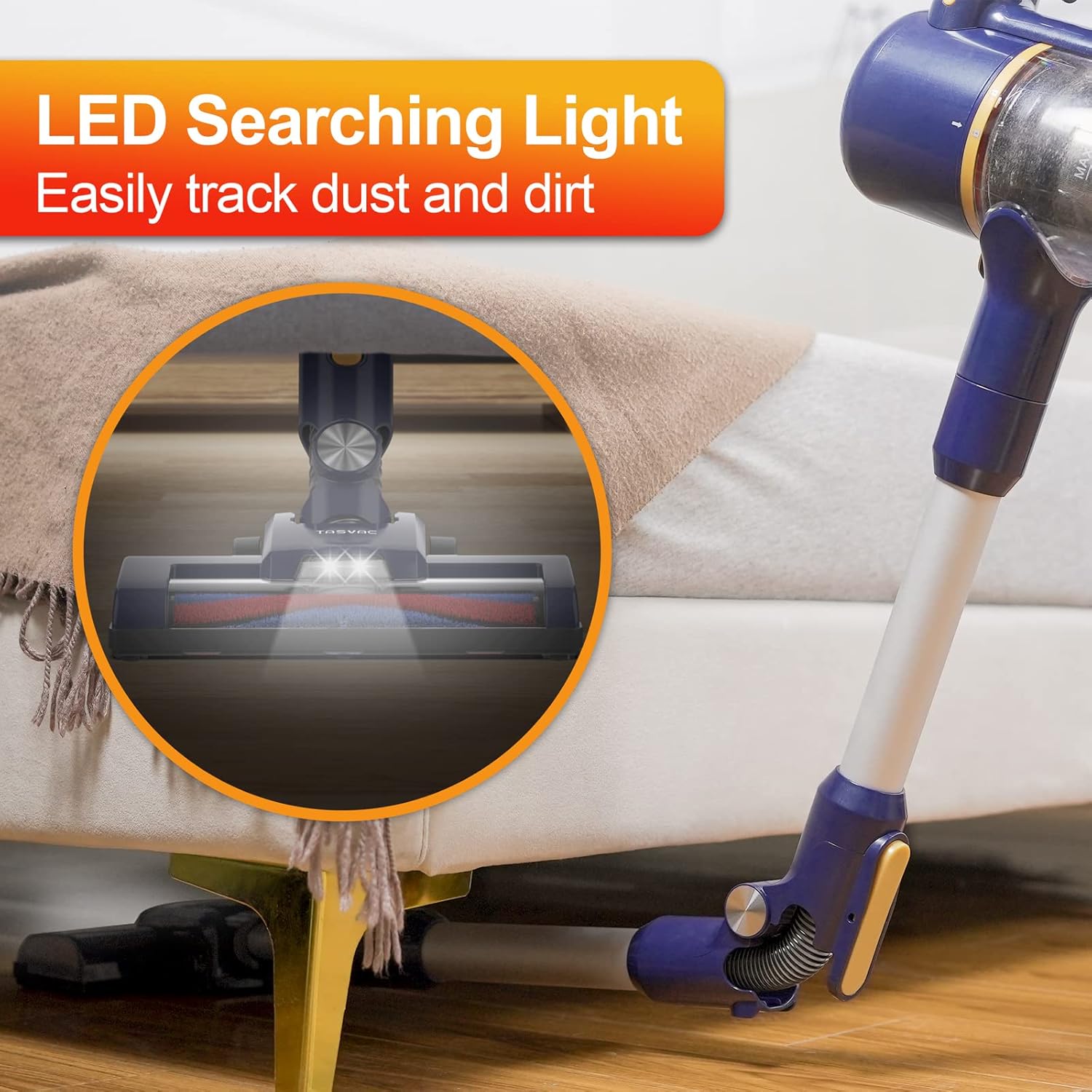

Image: The LED searching light feature on the TASVAC N7's motorized floor brush, illuminating dust and dirt under furniture.

Opretholdelse

Tømning af støvkoppen:

The dust cup is designed for easy, one-click emptying:

1. Hold hovedenheden over en skraldespand.
2. Tryk på udløserknappen til støvbeholderen for at åbne bundklappen og tømme indholdet.

Image: Illustration of the one-click dust cup emptying mechanism of the TASVAC N7, showing dirt falling into a bin and the removable filter components.

Cleaning and Replacing Filters:

Regular cleaning of filters is crucial for maintaining optimal suction performance and motor protection. An extra filter is provided for replacement.

1. Remove the filter components from the dust cup.
2. Wash the filters under running water. Do not use hot water or detergents.
3. Allow filters to air dry completely for at least 24 hours before reinstalling. Ensure they are completely dry to prevent damage to the motor.
4. Replace filters if they are heavily soiled or damaged.

5-Stage Filtreringssystem:

The TASVAC N7 employs a comprehensive filtration system:

• 1st Strong Cyclone: Separates larger debris.
• Honeycomb Filtration: Further separates particles.
• Cyclone Filtration: Additional cyclonic separation.
• High-efficiency Filter Pad: Collects fine dust and protects the motor.
• High Density Sponge: Final filtration stage in the vacuum motor.

Billede: Diagram der illustrerer 5-s'ernetage efficient filtration system of the TASVAC N7, showing the path of air and separation of debris through various filter components.

Fejlfinding

Specifikationer

Garanti og support

The TASVAC N7 Cordless Vacuum Cleaner comes with a 12 måneders garanti fra købsdatoen.

If you encounter any issues or require support, please contact TASVAC customer service. Ensure you have your purchase details and product model number (N7) ready when contacting support.

For assistance, please refer to the contact information provided on the product packaging or the official TASVAC webwebsted.
