1. Introduktion
This user manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Electrolux 600 Animal Bagged Vacuum Cleaner, model EB61A5UG. Please read this manual thoroughly before using the appliance and retain it for future reference.

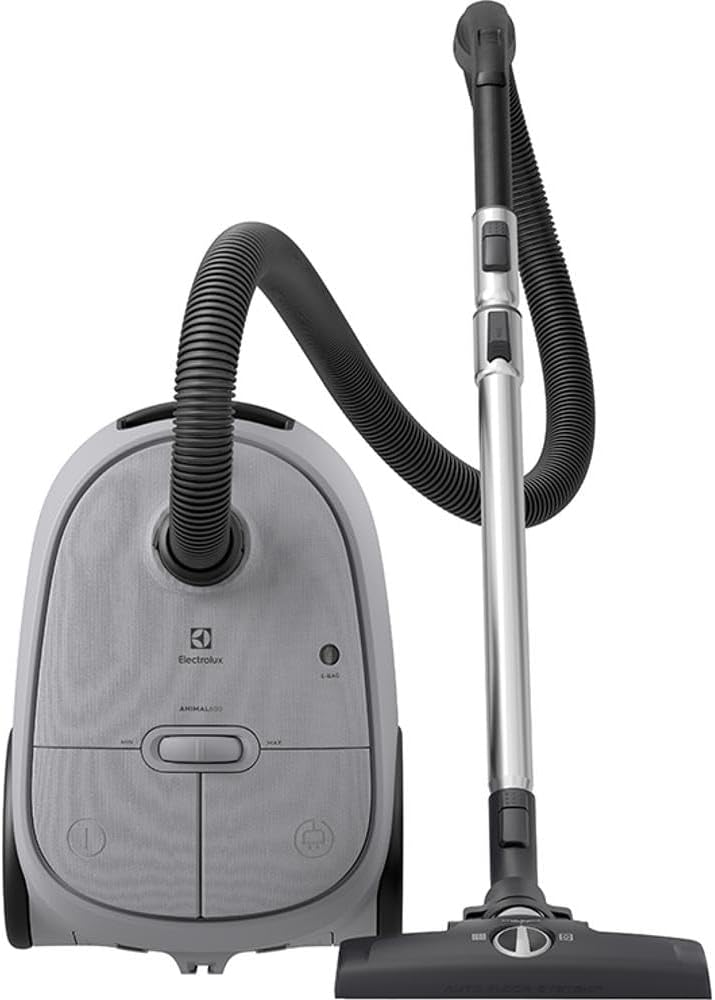

Image 1.1: The Electrolux 600 Animal Bagged Vacuum Cleaner, model EB61A5UG, in grey, with its hose and telescopic wand attached to the main unit.
The Electrolux 600 Animal vacuum cleaner is designed for effective cleaning, particularly for households with pets. It features an automatic mode brush for various floor types, an anti-odor S-bag, and a washable Hygiene 12 filter for improved air quality.
2. Sikkerhedsoplysninger
Overhold altid grundlæggende sikkerhedsforanstaltninger ved brug af elektriske apparater for at mindske risikoen for brand, elektrisk stød eller personskade.
- Sørg for, at voltage angivet på apparatet svarer til din lokale netspændingtage før tilslutning.
- Do not use the vacuum cleaner to pick up water, wet materials, hot ashes, or sharp objects.
- Brug ikke apparatet med en beskadiget ledning eller stik.
- Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
- Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring eller servicering.
- Dette apparat er ikke beregnet til at blive brugt af personer (herunder børn) med nedsatte fysiske, sensoriske eller mentale evner eller manglende erfaring og viden, medmindre de har fået opsyn eller instruktion.
3. Produktkomponenter
Your Electrolux 600 Animal vacuum cleaner comes with several components designed for various cleaning tasks:
- Hovedenhed: Contains the motor, dust bag compartment, and filters.
- Slange: Flexible hose connecting the main unit to the telescopic wand.
- Teleskopstav: Justerbart metalrør for længere rækkevidde.
- Dust Magnet Silent Brush: Main floor nozzle with automatic mode for efficient cleaning on various surfaces.
- Parketto Pro Hard Floor Brush: Specialized brush for gentle and effective cleaning of hard floors.
- Animal Kit: Includes specific accessories optimized for pet hair removal.
- S-bag Anti-Odor: Dust bag designed to capture and neutralize unpleasant odors.
- Turbo børste: A rotating brush head for deep cleaning carpets and removing stubborn pet hair.
Billede 3.1: Et nærbillede view of the Turbo Brush attachment, designed for effective removal of pet hair and deep cleaning of carpets.
4. Opsætning
- Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at alle dele, der er anført i afsnit 3, er til stede.
- Fastgør slangen: Sæt slangeenden ind i sugeindløbet på hovedenheden, indtil den klikker sikkert på plads.
- Saml tryllestaven: Connect the telescopic wand to the hose handle. Adjust the wand length by pressing the release button and sliding it to the desired position.
- Fastgør dysen: Select the appropriate floor nozzle (e.g., Dust Magnet Silent brush for general use, Parketto Pro for hard floors, or Turbo Brush for pet hair on carpets) and attach it to the end of the telescopic wand.
- Strømtilslutning: Extend the power cord from the main unit and plug it into a suitable electrical outlet. The extra-long 12-meter cord provides extended reach.
5. Betjeningsvejledning
- Tænd/sluk: Press the foot-operated ON/OFF button on the main unit to start or stop the vacuum cleaner.
- Sugeeffektjustering: Use the foot-operated power control buttons (Min/Max) on the main unit to adjust the suction power according to the cleaning task and surface.
- Using the Dust Magnet Silent Brush: This brush features an automatic mode that adapts suction to different floor types. Simply glide it over carpets or hard floors for optimal cleaning.
- Using the Pet Hair Kit: For effective pet hair removal, attach the specialized tools from the Animal Kit. The Turbo Brush is particularly effective on carpets and upholstery.
- Manøvredygtighed: The large, easy-rolling wheels and 12-meter operating radius allow for smooth movement across various floor surfaces and between rooms without frequent unplugging.
- Spol tilbage: After use, press the foot-operated cord rewind button to automatically retract the power cord into the main unit.
Image 5.1: The Dust Magnet Silent brush head, designed for efficient cleaning on various floor types with its automatic mode.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.
6.1 Replacing the S-bag Anti-Odor
- Tag støvsugeren ud af stikkontakten.
- Åbn dækslet til støvposen.
- Carefully remove the full S-bag. The S-bag Anti-Odor is designed to trap unpleasant smells, making disposal cleaner.
- Insert a new S-bag Anti-Odor, ensuring it is correctly seated in the holder.
- Luk dækslet til støvposen ordentligt.
Image 6.1: An Electrolux S-bag Anti-Odor dust bag, designed to neutralize odors and capture fine particles.
6.2 Cleaning the Hygiene 12 Washable Filter
The Hygiene 12 filter helps to remove up to 99.99% of particles larger than 1 µm, ensuring cleaner exhaust air. It is washable for extended use.
- Træk støvsugeren ud.
- Locate the filter compartment (refer to your vacuum's diagram for exact location, usually near the exhaust).
- Remove the Hygiene 12 filter.
- Skyl filteret under lunkent vand fra hanen. Brug ikke rengøringsmidler.
- Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not dry in direct sunlight or with heat.
- Sæt det tørre filter i igen, og luk rummet.
7. Fejlfinding
Hvis du støder på problemer med din støvsuger, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Støvsugeren starter ikke | Ingen strømforsyning; stikket er ikke sat korrekt i. | Kontroller netledningen og stikkontakten. |
| Nedsat sugeeffekt | Fuld støvpose; tilstoppet filter; tilstoppet slange/dyse. | Replace S-bag; clean/replace filter; check for blockages. |
| Usædvanlig støj | Fremmedlegeme i børste/slange; motorproblem. | Inspect brush and hose for obstructions. If noise persists, contact service. |
| Pet hair not picked up effectively | Incorrect attachment; brush head tangled. | Ensure Turbo Brush or Animal Kit tools are used. Clean brush head of tangled hair. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte Electrolux kundesupport.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Electrolux |
| Modelnummer | EB61A5UG |
| Farve | Grå |
| Produktmål (L x B x H) | 30.7 x 23.9 x 43.7 cm |
| Vægt | 4 kilo |
| Kapacitet | 3.5 liter |
| Magt | 750 watt |
| Voltage | 230 volt |
| Støjniveau | 73 decibel |
| Særlige funktioner | Portable, Wheels, Bagged, Waterproof (referring to sealed system) |
| Filtertype | Hygiene 12 Washable Filter |
| Overfladeanbefaling | Hårdt gulv, tæppe |
| Strømkilde | Elektrisk med ledning |
| Ledningslængde | 12 meters (XXL) |
| Inkluderede komponenter | Dust Magnet Silent Brush, Parketto Pro Hard Floor Brush, Animal Kit, S-bag Anti-Odor, Turbo Brush |
9. Garanti og support
For warranty information, please refer to the documentation provided with your purchase or visit the official Electrolux website for your region. Electrolux offers customer support for product inquiries, service requests, and spare parts.
Please note that information regarding spare parts availability is not provided in this manual. For spare parts, please consult the Electrolux customer service or authorized dealers.
Electrolux Officiel Webwebsted: www.electrolux.com
