Philips Meranti GU10 Surface Spotlight 1x White User Manual

1. Vigtige sikkerhedsoplysninger

Please read this manual carefully before installation and use. Keep it for future reference. Incorrect installation or use can lead to electric shock, fire, or other hazards.

• Afbryd altid strømmen før installation, vedligeholdelse eller udskiftning af pære.
• Sørg for, at strømforsyningen voltage opfylder produktets krav.
• Dette produkt er kun designet til indendørs brug.
• Overskrid ikke det maksimale wattage specified for the GU10 bulb.
• Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
• Holdes væk fra vand og damp miljøer.

2. Produktet er slutview

The Philips Meranti GU10 Surface Spotlight is a modern, adjustable lighting fixture designed for various indoor spaces such as living rooms, bedrooms, and hallways. It features a durable metal construction and a white finish, providing optimal light effect with its rotatable spot design.

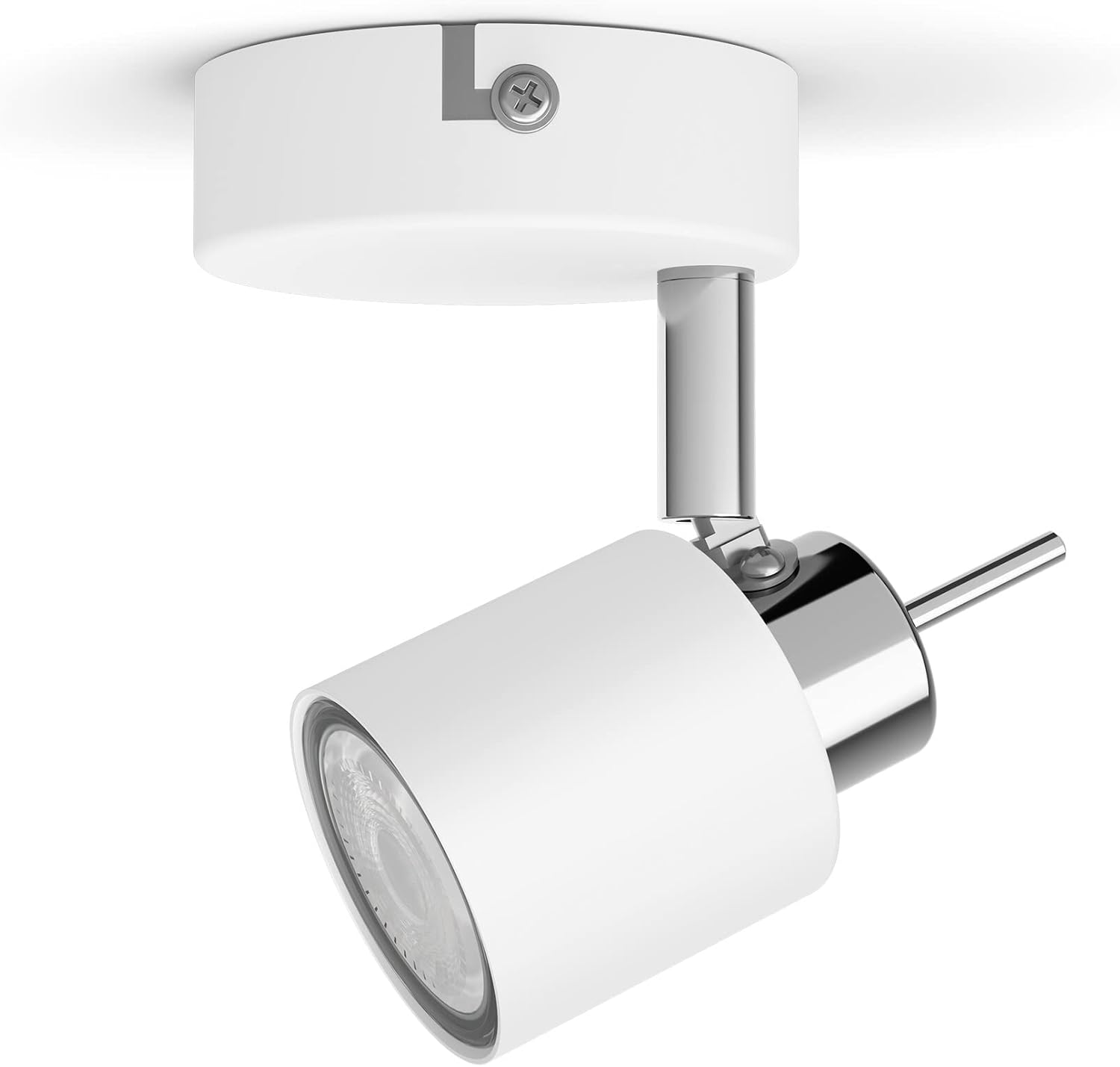

Billede 2.1: Forside view of the Philips Meranti GU10 Surface Spotlight.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• 1x Philips Meranti GU10 Surface Spotlight fixture
• Monteringsudstyr (skruer, vægdyvler)
• Instruktionsmanual
• Bemærk: GU10-pære er ikke inkluderet og skal købes separat.

4. Opsætning og installation

Følg disse trin for sikker og korrekt installation:

1. Sluk for strømmen: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
2. Markér borepunkter: Position the spotlight base on the ceiling or wall where you intend to install it. Use a pencil to mark the drilling points for the mounting screws.
3. Bore huller: Drill holes at the marked points. Use an appropriate drill bit size for the provided wall plugs (if applicable).
4. Indsæt vægstik: Insert the wall plugs into the drilled holes until they are flush with the surface.
5. Tilslut ledninger: Connect the household electrical wires to the spotlight's terminal block. Ensure correct polarity (Live to Live, Neutral to Neutral, Earth to Earth). Secure all connections firmly.
6. Monter armaturet: Align the spotlight base with the drilled holes and secure it to the ceiling/wall using the provided screws.
7. Installer GU10-pære: Insert a GU10 bulb into the spotlight socket. Push the bulb in and twist clockwise to secure it.
8. Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved afbryderen.

Image 4.1: Dimensional diagram for installation reference. Dimensions are in millimeters.

5. Betjeningsvejledning

After successful installation and power restoration, the spotlight is ready for use.

• Tænd/sluk: Use your standard wall switch to turn the spotlight on or off.
• Justering af lysretning: The spotlight head is rotatable and tiltable. Gently adjust the spotlight head to direct the light beam to your desired area.

Image 5.1: The Philips Meranti spotlight providing illumination.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your spotlight, follow these maintenance guidelines:

• Rensning: Afbryd strømmen før rengøring. Tør armaturet af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen.
• Udskiftning af pære:
  1. Turn off and disconnect power to the fixture.
  2. Lad pæren køle helt af, hvis den har været i brug for nylig.
  3. Gently push the GU10 bulb into its socket and twist counter-clockwise to remove it.
  4. Insert a new GU10 bulb (ensure it meets the specified wattage and type) by pushing it in and twisting clockwise until secure.
  5. Gendan strømmen.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

This Philips product comes with a standard manufacturer's warranty. For detailed warranty information, terms, and conditions, please refer to the warranty card included with your product or visit the official Philips webwebsted.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Philips customer service. You can find contact information on the Philips webhjemmeside eller gennem den forhandler, hvor du købte produktet.

Online support: www.philips.com/support
