Totem TX10 Mountain Bike User Manual

1. Introduktion

Welcome to the user manual for your new Totem TX10 Black Mountain Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

The Totem TX10 is designed for versatile riding, featuring a lightweight aluminum alloy frame, Shimano 21-speed derailleur system, and reliable mechanical disc brakes. Its 29-inch wheels and suspension fork are engineered to provide a smooth and efficient riding experience across various terrains, from city roads to mountain trails.

2. Sikkerhedsoplysninger

Din sikkerhed er altafgørende. Følg altid følgende sikkerhedsretningslinjer:

• Brug altid en hjelm, der opfylder sikkerhedsstandarderne.
• Perform a pre-ride inspection before each use, checking brakes, tires, and quick releases.
• Sørg for, at alle bolte og fastgørelseselementer er forsvarligt spændt.
• Ride defensively and be aware of your surroundings, including traffic and pedestrians.
• Overhold alle lokale færdselslove og regler.
• Use appropriate lighting when riding in low-light conditions or at night.
• Undgå at køre under påvirkning af alkohol eller stoffer.
• Overskrid ikke den maksimale lastekapacitet på 136 kg.

3. Komponenter overview

Familiarize yourself with the key components of your Totem TX10 Mountain Bike.

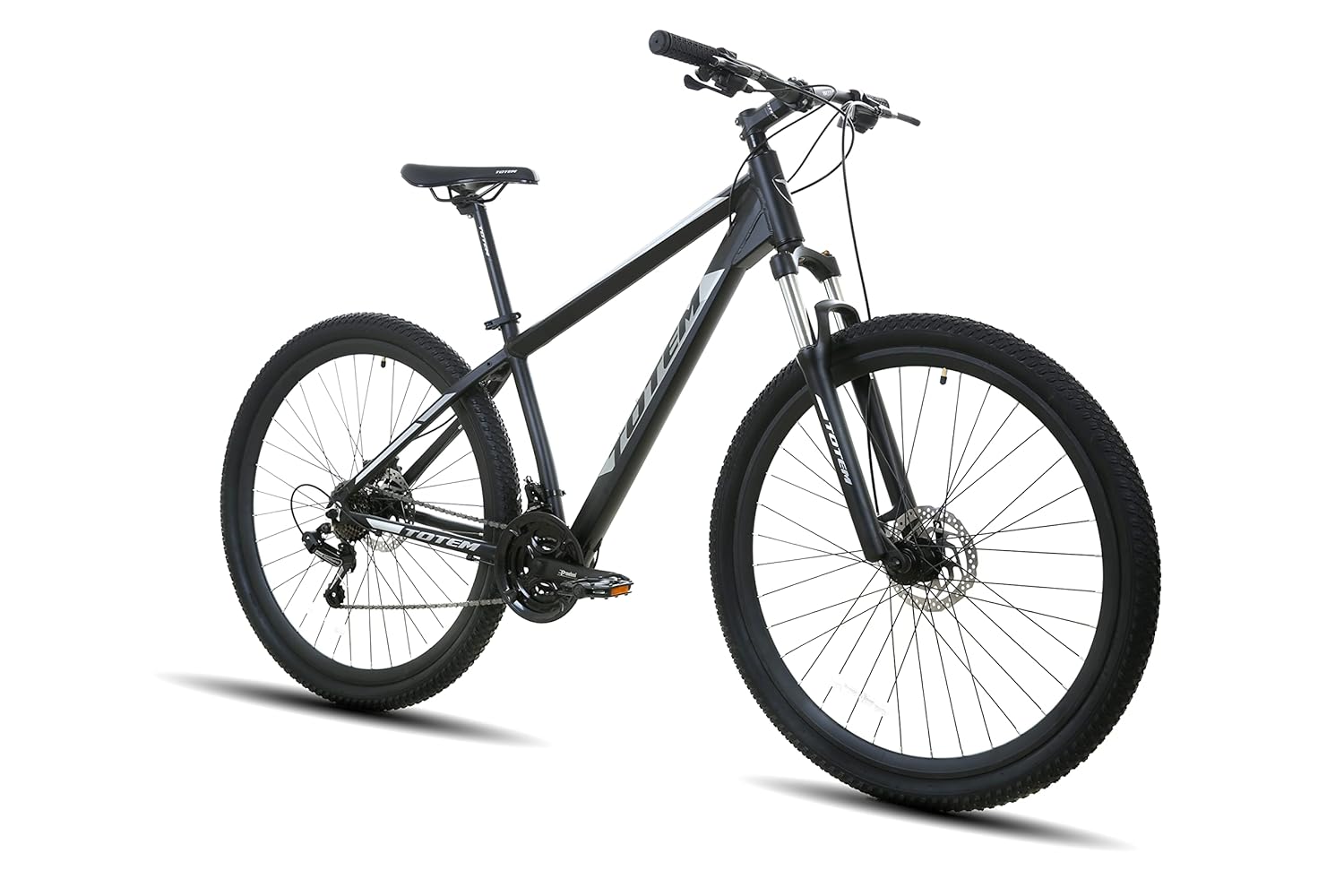

Figur 3.1: Overview of the Totem TX10 Black Mountain Bike.

3.1. Ramme

The Totem TX10 features a lightweight and durable 6061 aluminum alloy frame. This material provides excellent strength-to-weight ratio, making the bike responsive and easy to handle while resisting rust and deformation. The internal routing of the shifting cable contributes to a cleaner aesthetic and protects the cable from external elements.

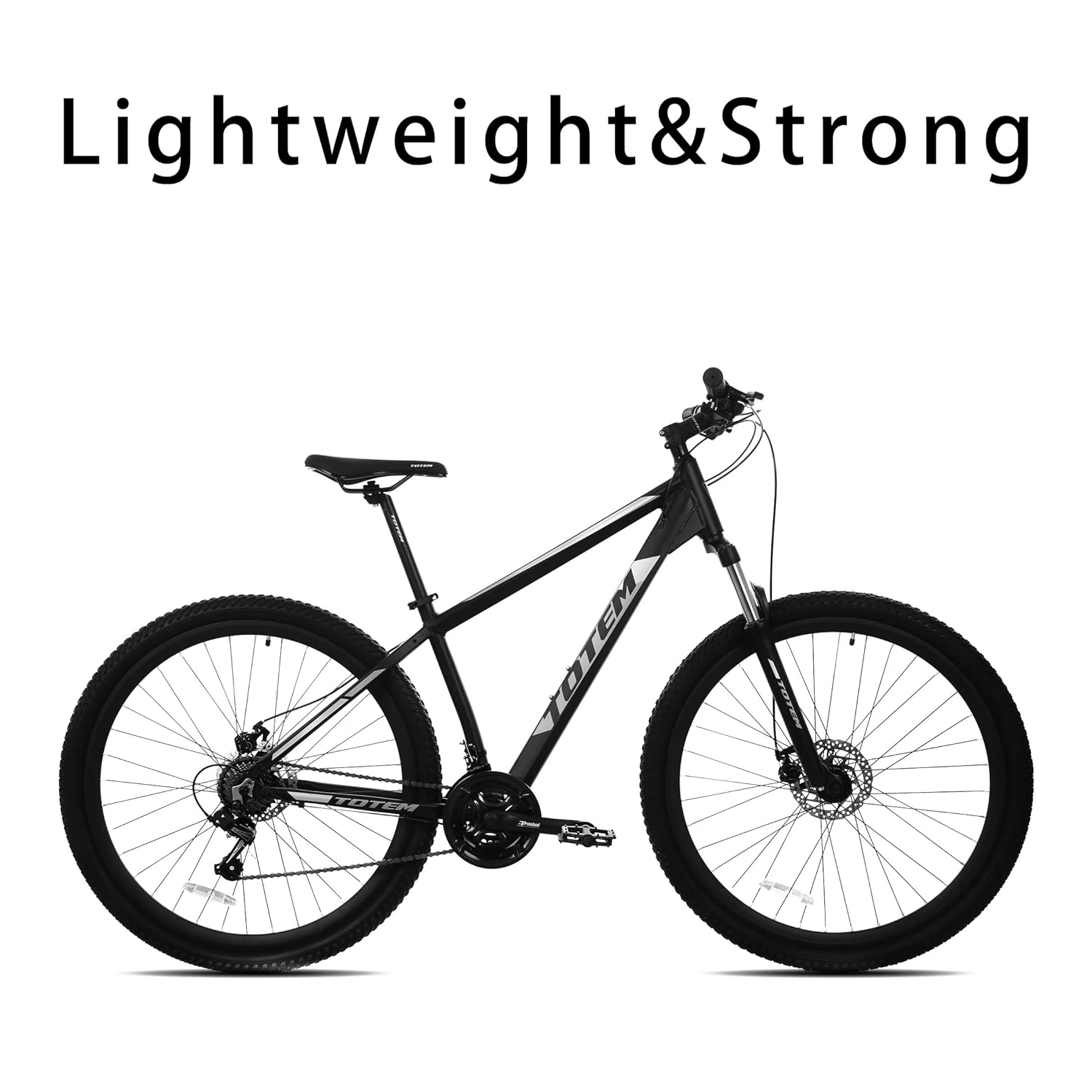

Figure 3.2: The lightweight and strong aluminum frame of the TX10.

3.2. Drivetrain (Shimano 21-Speed)

Equipped with a Shimano 21-speed derailleur system, the TX10 offers a wide range of gears suitable for various terrains. This includes a Shimano 14-28T positioning freewheel for smooth transitions between gears.

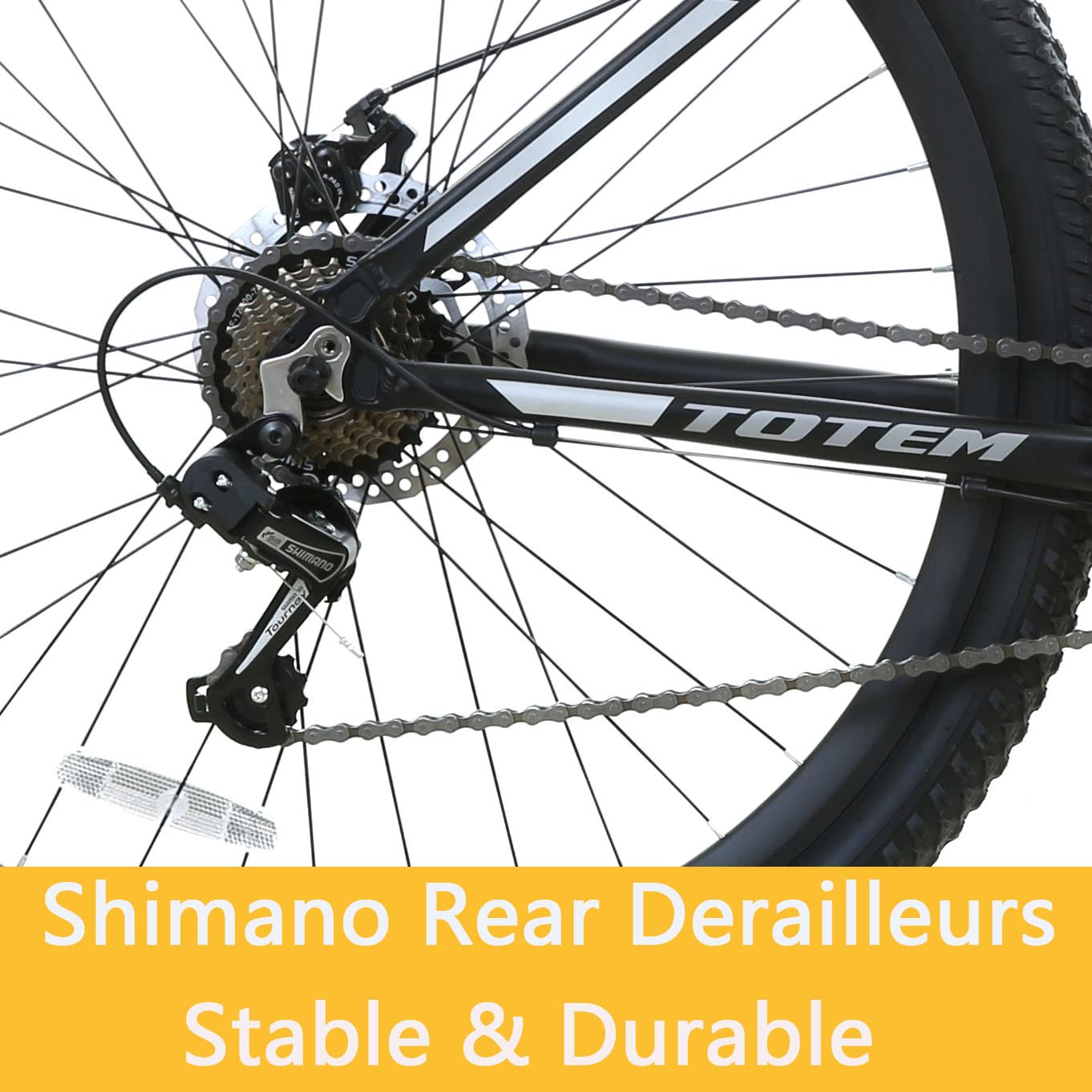

Figure 3.3: Close-up of the Shimano rear derailleur, ensuring stable and durable gear changes.

Figur 3.4: View of the Shimano front derailleur and KMC chain, designed for accurate and smooth shifting.

3.3. Brakes (Shimano Mechanical Disc Brakes)

The bike features Shimano front and rear mechanical disc brakes, providing reliable stopping power in all weather conditions. Disc brakes offer consistent performance and short braking distances.

Figure 3.5: Ergonomic brake lever designed for excellent braking control.

3.4. Ophængsgaffel

The front suspension fork is designed to absorb shocks and vibrations from rough terrain, enhancing comfort and control during your ride.

Figure 3.6: The adjustable suspension fork, paired with 29"x2.125" Wanda Tires, for a smooth ride.

3.5. Hjul og dæk

The TX10 is equipped with 29-inch wheels and special Wanda mountain bike tires. These large wheels improve riding efficiency and stability, while the tires provide excellent grip and durability on various surfaces.

3.6. Handlebar and Grips

The matte black handlebar adds to the bike's aesthetic and provides a sturdy grip. Comfortable and ergonomic grips are designed to reduce hand fatigue during long rides.

4. Opsætning og montering

Your Totem TX10 Mountain Bike arrives 85% pre-assembled. The remaining assembly steps are straightforward and can be completed with the included instruction manual and tool kit.

4.1. Udpakning

• Carefully remove the bicycle and all components from the packaging.
• Check for any shipping damage or missing parts. Refer to the packing list provided.

4.2. Installation af styr

• Attach the handlebar to the stem, ensuring it is centered and the brake levers and shifters are in an accessible position.
• Tighten the stem bolts securely.

4.3. Front Wheel Installation

• Insert the front wheel into the fork dropouts, ensuring the disc rotor aligns correctly with the brake caliper.
• Secure the wheel using the quick-release skewer or axle nuts.

4.4. Pedalmontering

• Identificer venstre (L) og højre (R) pedal.
• Thread the pedals into the crank arms. The right pedal tightens clockwise, the left pedal tightens counter-clockwise.
• Tighten firmly with a wrench.

4.5. Seat Post and Saddle Adjustment

• Insert the seat post into the frame's seat tube.
• Adjust the saddle height to allow for a slight bend in your knee when the pedal is at its lowest point.
• Secure the seat post quick release or bolt.

4.6. Brake and Gear Adjustment

While largely pre-adjusted, fine-tuning of brakes and gears may be necessary after assembly and initial rides. Refer to the detailed instructions in the included manual for precise adjustments.

5. Betjeningsvejledning

5.1. Riding Position

Ensure your saddle height is correctly adjusted for efficient pedaling and comfort. Your handlebars should be positioned to allow for a comfortable, controlled posture.

5.2. Gearskift

The Shimano 21-speed system allows you to adapt to different terrains.

• Front Derailleur (Left Shifter): Controls the larger chainrings. Shift to a smaller chainring for easier pedaling on inclines, and to a larger chainring for higher speeds on flat or downhill sections.
• Rear Derailleur (Right Shifter): Controls the smaller cogs on the rear wheel. Shift to a larger cog for easier pedaling (climbing), and to a smaller cog for harder pedaling (speed).
• Shift gears smoothly by pedaling lightly while shifting. Avoid shifting under heavy load.

5.3. Bremsning

Your bike is equipped with powerful Shimano mechanical disc brakes.

• Use both front and rear brakes simultaneously for effective and controlled stopping.
• Apply the rear brake slightly before the front brake to maintain stability.
• Avoid sudden, hard braking, especially with the front brake, as this can cause loss of control.
• Practice braking in a safe, open area to get a feel for the bike's stopping power.

6. Vedligeholdelse

Regular maintenance will extend the life of your Totem TX10 and ensure safe operation.

6.1. Rensning

• Clean your bike regularly, especially after riding in wet or muddy conditions.
• Use mild soap and water, avoiding high-pressure washers directly on bearings.
• Dry the bike thoroughly after washing.

6.2. Smøring

• Lubricate the chain regularly with bicycle-specific chain lubricant. Apply lubricant, pedal backward to distribute, then wipe off excess.
• Periodically lubricate pivot points on derailleurs and brake levers.

6.3. Tjek før kørsel

• Dæk: Check tire pressure before each ride. Recommended pressure is usually indicated on the tire sidewall.
• Bremser: Ensure brake levers engage firmly and stop the wheels effectively. Check brake pads for wear.
• Gear: Verify smooth shifting across all gears.
• Bolts & Fasteners: Check that all critical bolts (stem, handlebar, wheel axles, seat post) are tight.

6.4. Professionel service

It is recommended to have your bicycle professionally serviced at least once a year, or more frequently if you ride often or in challenging conditions.

7. Fejlfinding

This section addresses common issues you might encounter with your Totem TX10.

• Bremser hviner: Clean brake rotors and pads. Ensure rotors are not bent. If persistent, professional adjustment may be needed.
• Gearskift går ikke jævnt: Check for proper cable tension. Ensure the chain is clean and lubricated. Derailleur hanger might be bent.
• Tire Goes Flat Quickly: Inspect the tire for punctures. Check the inner tube for leaks. Ensure the valve stem is secure.
• Kædespring: Worn chain or cogs. Incorrect derailleur adjustment.
• Knirkende lyde: Check pedal tightness, bottom bracket, seat post, and handlebar stem. Lubricate as necessary.

For complex issues or repairs, it is always best to consult a qualified bicycle mechanic.

8. Specifikationer

Figure 8.1: Detailed size chart and key specifications for the Totem TX10 Mountain Bike.

9. Garanti og support

For information regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your purchase or contact Totem customer service directly. Keep your proof of purchase for any warranty-related inquiries.

For further assistance or to find authorized service centers, please visit the official Totem webwebstedet eller kontakt deres supportkanaler.
