Indledning
The ART HP-1 is a compact, battery-powered single-channel headphone amplifier designed for portable use in studio or stage environments. It provides personal volume control for monitoring audio signals, making it ideal for in-ear monitoring applications. Its robust construction and long battery life ensure reliable performance.
Sikkerhedsoplysninger
- Udsæt ikke enheden for regn eller fugt.
- Åbn ikke c'enasing; der er ingen dele indeni, som kan serviceres af brugeren.
- Use only specified battery types (AA alkaline).
- Bortskaf batterier korrekt i henhold til lokale regler.
- Undgå at lytte ved for høj lydstyrke i længere perioder for at forhindre høreskader.
Funktioner
- Single-channel battery-powered headphone amplifier with volume control.
- Battery life indicator for convenient power monitoring.
- Versatile XLR and 1/4-inch combo input jack.
- Standard 3.5mm (1/8-inch) headphone output.
- Integrated belt clip for secure and convenient attachment.
Opsætning
1. Batteriinstallation
The HP-1 operates on two AA alkaline batteries, providing approximately 40 hours of continuous use. To install batteries:
- Find batterirummet på enheden.
- Åbn dækslet til rummet.
- Isæt to AA-batterier, og sørg for at polerne (+/-) vender korrekt som angivet i batterirummet.
- Luk batterirummets dæksel forsvarligt.
2. Første tilslutning
Before operation, ensure all connections are secure.
Figur 1: Forside view of the ART HP-1 Headphone Amp.
Betjeningsvejledning
- Tilslut til lydenhed: Plug your audio source (e.g., mixer, audio interface) into the HP-1's input jack. The HP-1 features a versatile combo jack that accepts both 1/4-inch TRS/TS and XLR connectors.

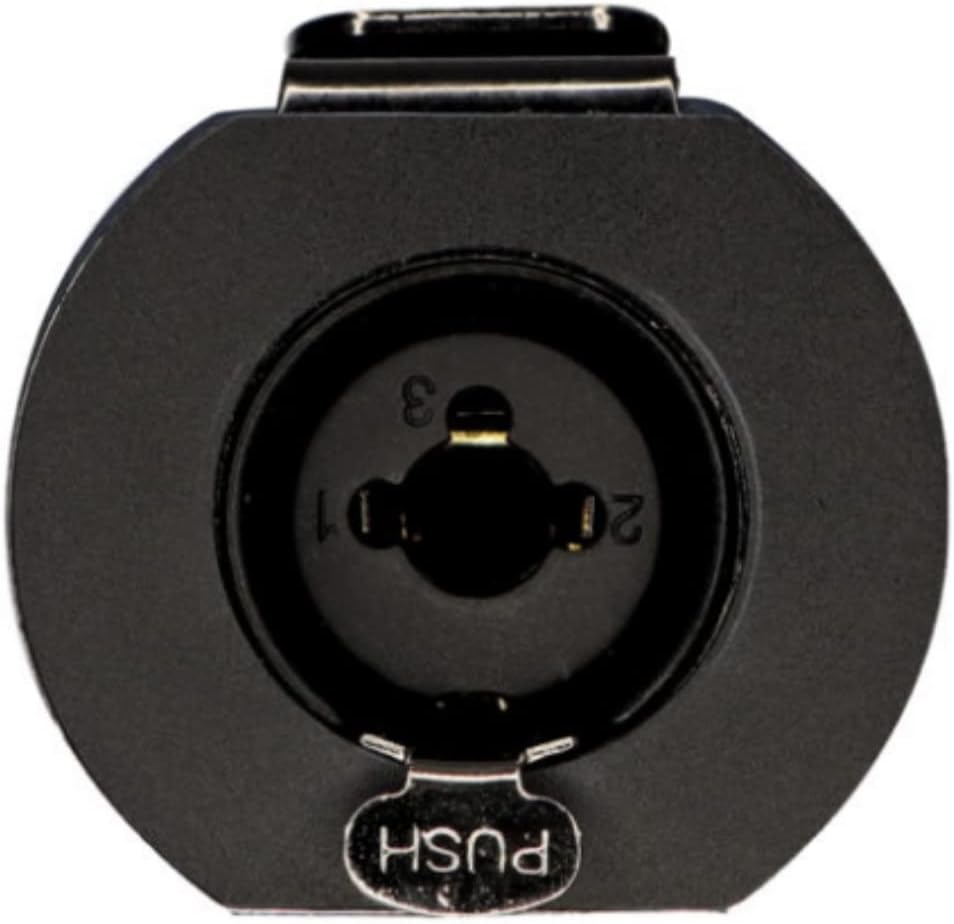

Figure 2: Input jack of the ART HP-1.
- Tilslut hovedtelefoner: Plug your headphones or in-ear monitors into the 3.5mm (1/8-inch) headphone output jack located on the top of the unit.
Figure 3: Headphone output and controls of the ART HP-1.
- Juster lydstyrken: Turn the volume knob clockwise to increase the headphone output level. Start with the volume at a low setting and gradually increase it to a comfortable listening level. The unit provides up to 9dB of gain.
- Attach to Belt (Optional): Utilize the integrated belt clip on the rear of the unit to secure the HP-1 to your belt, strap, or clothing for convenient, hands-free monitoring.
Opretholdelse
- Clean the unit with a soft, dry cloth. Do not use liquid cleaners or solvents.
- Fjern batterierne, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.
- Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd fra hovedtelefoner. |
|
|
| Forvrænget lyd. |
|
|
| Battery indicator light is off. |
|
|
Specifikationer
| Parameter | Værdi |
|---|---|
| Modelnavn | HP-1 |
| Varens vægt | 10.5 ounces (ca. 298 g) |
| Produktdimensioner | 7.4 x 3.25 x 2.2 tommer (ca. 18.8 x 8.25 x 5.6 cm) |
| Strømkilde | Batteridrevet |
| Batteritype | 2 x AA alkaliske batterier |
| Batterilevetid | Cirka 40 timer |
| Indgang tilslutning | XLR / 1/4-inch combo jack |
| Udgangsstik | 3.5mm (1/8-inch) headphone jack |
| Gevinst | Op til 9dB |
| Materiale | Plast |
| Speciel funktion | Portable, Belt Clip |
Garantioplysninger
ART (Applied Research and Technology) products are designed and manufactured to the highest standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official ART webwebsted. Gem din købsbevis til garantikrav.
Støtte
For technical support, product registration, or further inquiries, please visit the official ART website or contact their customer service department. Detailed contact information can typically be found on the manufacturer's webwebsted eller i produktemballagen.
Official ART Webwebsted: https://artproaudio.com/
