1. Introduktion
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Beninca BULL15MA KIT Slide Gate Electric Motor Opener/Operator. This robust single-phase operator is designed for sliding gates up to 40 feet or 3,000 lbs, offering silent and smooth operation with an integrated control panel.
Please read this manual thoroughly before beginning any installation or operation procedures. Proper installation and regular maintenance are crucial for the longevity and safe functioning of the gate opener.
2. Sikkerhedsoplysninger
ADVARSEL: Improper installation or use of this product can lead to serious injury or death. Always follow all safety precautions and instructions.
- Installationen skal udføres af kvalificeret personale i overensstemmelse med alle lokale el- og sikkerhedsforskrifter.
- Afbryd strømmen, før du udfører nogen form for service eller vedligeholdelse.
- Do not allow children to play near the gate or operate the gate opener.
- Ensure the gate area is clear of obstructions before operating.
- Regularly inspect the gate and operator for signs of wear, damage, or misalignment.
- This operator is equipped with an anti-crushing reverse sensor. Ensure it is properly configured during setup.
3. Pakkens indhold
The Beninca BULL15MA KIT includes the following components:
- 1 x Beninca BULL15MA Slide Gate Operator
- 2 x Beninca Long-Range 2-Button ARC 128 Remote Controls
- 5 x RI.M4P Nylon Steel Core Racks Module M4 (1 meter / 39 3/8 inches each)

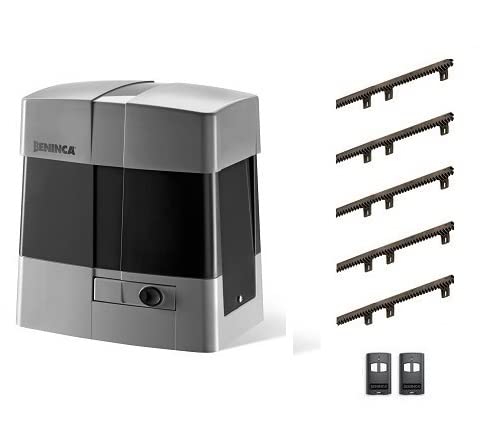

Billede 3.1: Overview of the Beninca BULL15MA KIT components, including the main operator unit, five sections of gate rack, and two remote controls.
4. Tekniske specifikationer
The Beninca BULL15MA operator is engineered for high performance and durability. Key specifications are detailed below:
| Feature | Specification (BULL15MA) |
|---|---|
| Strømforsyning | 115 VAC enfaset |
| Max. Gate Weight Capacity | 3,000 LBS (1360 kg) |
| Max. Gate Length Capacity | 40 FT (12.2 m) |
| Driftstemperatur | 0°F til 150°F (-17°C til 65°C) |
| Kontrolpanel | Built-in with Integrated LCD Display |
| Radio-Receiver | Indbygget |
| Operationstype | For Frequent Use |
| Nøglefunktioner | Silent Operation, Energy Efficient, Smooth Operation, Electronic Settings (Torque, Stroke, Anti-Crushing Reverse Sensor, Soft-Start, Soft-Stop, Working Time, Number of Cycles) |

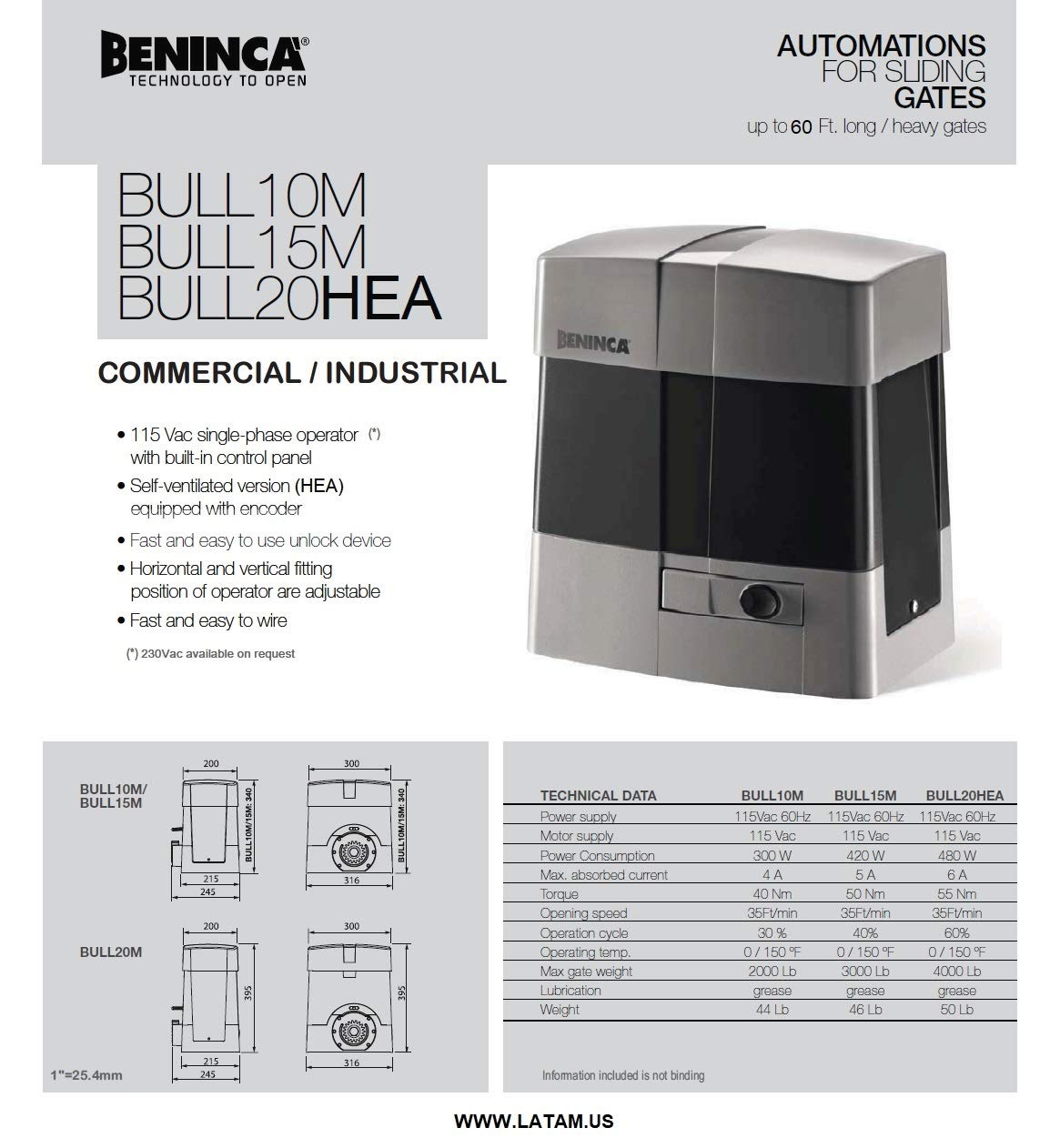

Image 4.1: Technical data sheet providing detailed specifications for the Beninca BULL series, including the BULL15MA model.
5. Opsætning og installation
Installation of the Beninca BULL15MA KIT requires electrical and mechanical expertise. It is highly recommended that installation be performed by a certified professional to ensure safety and proper functionality.
5.1 Montering af operatøren
Securely mount the BULL15MA operator on a stable, level concrete pad or equivalent foundation adjacent to the gate. Ensure proper alignment with the gate's movement path.
5.2 Installing the Racks
Attach the RI.M4P nylon steel core racks along the length of the sliding gate, ensuring they are level and properly meshed with the operator's pinion gear. Maintain a small clearance between the rack and the pinion to allow for gate movement and thermal expansion.
5.3 Elektriske forbindelser
Connect the 115 VAC single-phase power supply to the operator's built-in control panel. All wiring must comply with local electrical codes. The control panel is designed for fast and easy wiring.

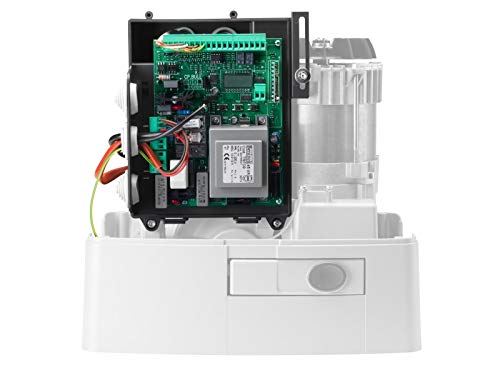

Billede 5.1: Intern view of the BULL15MA operator, highlighting the built-in control panel for electrical connections and programming.
5.4 Indledende programmering
The integrated LCD display on the control panel facilitates easy programming. This includes setting parameters such as:
- Moment: Adjust motor power.
- slagtilfælde: Define gate travel limits.
- Anti-Crushing Reverse Sensor: Calibrate safety reversal sensitivity.
- Soft-Start/Soft-Stop: Configure smooth acceleration and deceleration.
- Arbejdstid: Set maximum operation duration.
- Antal cyklusser: Monitor usage.
Refer to the detailed programming guide provided with the operator for step-by-step instructions on configuring these settings.
6. Betjeningsvejledning
The Beninca BULL15MA operator is designed for user-friendly operation, primarily via the included remote controls.
6.1 Betjening af fjernbetjening
The two Beninca Long-Range 2-Button ARC 128 Remote Controls are pre-programmed or easily paired with the built-in radio-receiver. Each button can be assigned to control the gate's open/close function or other programmed actions.
- Pressing the assigned button once will initiate the gate's movement (open or close).
- Hvis du trykker på knappen igen under drift, stopper porten.
- A third press will reverse the gate's direction.
Image 6.1: Beninca 2-button remote control for convenient gate operation.
6.2 Manuel udløsning
In case of power failure or emergency, the operator features a manual release mechanism. Consult the detailed product manual for instructions on how to safely disengage the motor and manually open or close the gate.
7. Vedligeholdelse
Regular maintenance ensures the optimal performance and extends the lifespan of your Beninca BULL15MA gate operator. Perform the following checks periodically:
- Månedlig: Inspect the gate's movement for any resistance, unusual noises, or jerky motion. Check the rack for debris or damage.
- Kvartalsvis: Verify the proper functioning of safety features, including the anti-crushing reverse sensor. Clean any debris from the operator housing and around the pinion gear.
- Årligt: Have a qualified technician inspect all electrical connections, motor components, and mechanical parts for wear and tear. Lubricate moving parts as recommended by Beninca.
Afbryd altid strømmen til enheden, før du udfører vedligeholdelse eller rengøring.
8. Fejlfinding
This section provides guidance for common issues. For complex problems, contact a qualified technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Gaten reagerer ikke på fjernbetjeningen. | No power to operator; remote battery dead; remote not paired; obstruction. | Check power supply; replace remote battery; re-pair remote (refer to programming guide); clear gate path. |
| Gate stops unexpectedly or reverses. | Obstruction detected by safety sensor; sensor misalignment; motor overload. | Remove obstruction; check and realign safety sensors; consult LCD display for error codes. |
| Porten bevæger sig langsomt eller med besvær. | Low power; mechanical friction; worn components. | Verify power supply; check gate wheels and hinges for friction; inspect rack and pinion for wear. |
The integrated LCD display on the control panel can provide diagnostic information and error codes. Consult the full product manual for a comprehensive list of error codes and their resolutions.
9. Garanti og support
For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact Beninca directly. Beninca products are known for their quality and are "Made in Italy."
For technical support, spare parts, or service inquiries, please contact your authorized Beninca dealer or the seller, Latam Automation. Provide your product model number (BULL15MA KIT) and purchase date when seeking assistance.
Fabrikant: Beninca
Model: BULL15MA KIT
