LAUNCH Original Main Cable Instruction Manual

1. Introduktion

This manual provides essential information for the proper use and maintenance of the LAUNCH Original Main Cable. This cable is designed as a direct replacement for the main diagnostic cable used with specific LAUNCH OBD2 diagnostic scanners, ensuring reliable connection and data transfer for vehicle diagnostics.

It is compatible with LAUNCH CRP123, CRP129, Creader VII+, and Creader VIII models. For optimal performance and longevity, please follow the instructions outlined in this guide.

2. Opsætning

The LAUNCH Original Main Cable is designed for straightforward connection to your compatible diagnostic scanner and vehicle's OBD-II port.

2.1 Udpakning og inspektion

• Carefully remove the main cable from its packaging.
• Inspect the cable for any visible damage, such as cuts, kinks, or bent pins on the connectors. If any damage is found, do not use the cable and contact customer support.

2.2 Tilslutning af kablet

1. Connect to Diagnostic Scanner: Locate the D-sub 15-pin port on your LAUNCH CRP123, CRP129, Creader VII+, or Creader VIII diagnostic scanner. Align the 15-pin connector of the main cable with this port and gently push it in until it is securely seated. Ensure the retaining screws (if present on your scanner) are tightened to prevent accidental disconnection.
2. Connect to Vehicle OBD-II Port: Locate the 16-pin OBD-II diagnostic port in your vehicle. This port is typically found under the dashboard on the driver's side. Align the OBD-II connector of the main cable with the vehicle's port and push it firmly until it clicks into place.

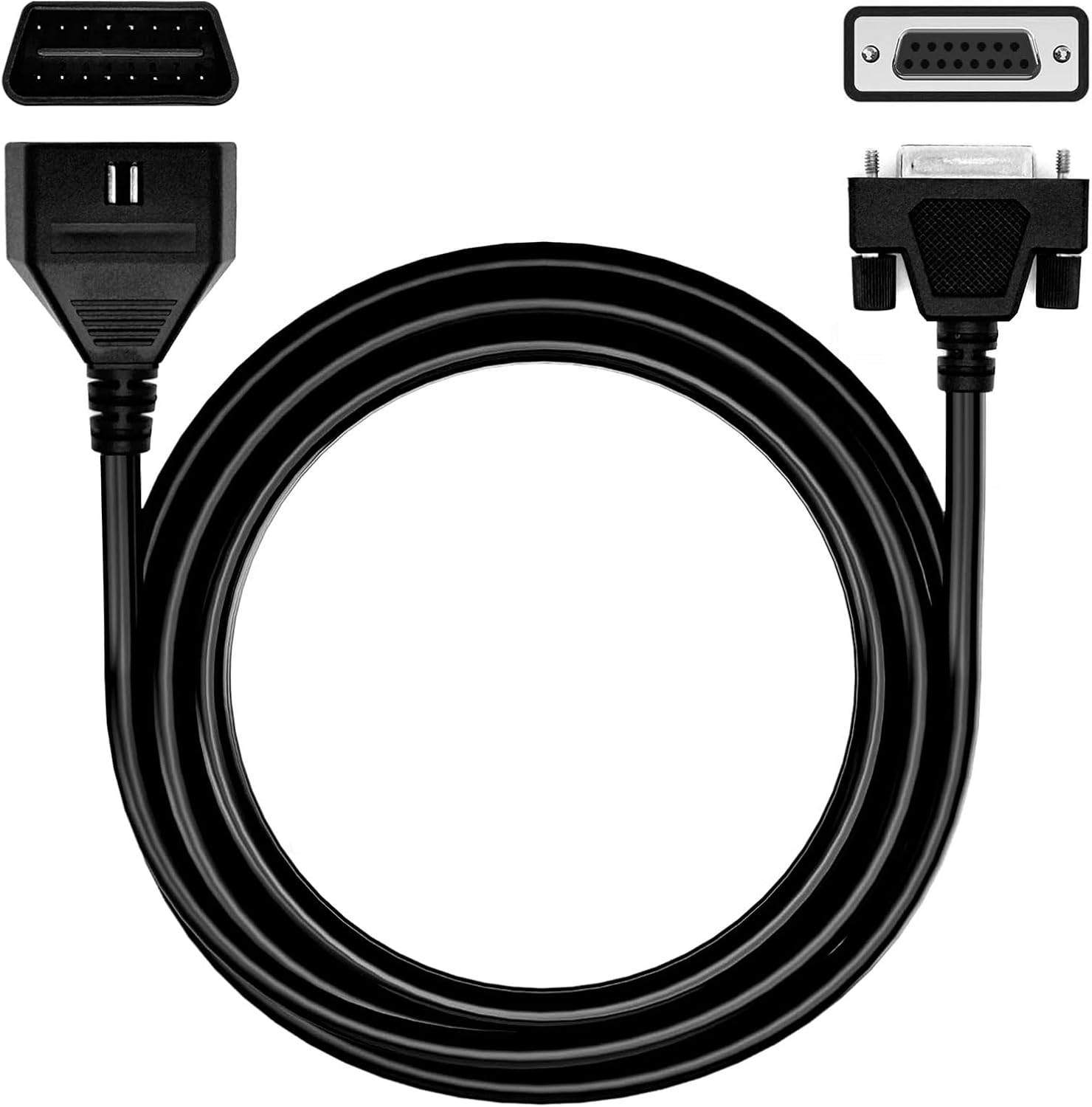

Figure 2.1: The LAUNCH Original Main Cable showing its OBD-II connector (top left) and 15-pin D-sub connector (top right), with the coiled cable in the center. This cable serves as a direct replacement for connecting your LAUNCH diagnostic tool to a vehicle.

Figure 2.2: The LAUNCH Original Main Cable laid out, featuring the "LAUNCH ORIGINAL CABLE" branding prominently. This image confirms the authenticity of the replacement cable.

3. Betjening

Once the LAUNCH Original Main Cable is securely connected to both your diagnostic scanner and the vehicle's OBD-II port, you can proceed with diagnostic operations as per your scanner's specific user manual.

3.1 Kompatibilitet

This cable is specifically designed for and fully compatible with the following LAUNCH diagnostic scanner models:

• LANSERING CRP123
• LANSERING CRP129
• LANCERING Creader VII+
• LAUNCH Creader VIII

Figure 3.1: An illustration showing the LAUNCH Original Main Cable's compatibility with various LAUNCH diagnostic tools, including CRP123, CRP129, Creader VII+, and Creader VIII. Each scanner model is depicted with the cable connected.

3.2 Diagnostic Procedures

The cable facilitates communication between your scanner and the vehicle's onboard computer. Refer to your specific LAUNCH scanner's user manual for detailed instructions on:

• Aflæsning og sletning af diagnostiske fejlkoder (DTC'er).
• Viewing live data streams.
• Performing I/M readiness tests.
• Accessing vehicle information (VIN, CID, CVN).

Ensure the vehicle's ignition is in the "ON" position (engine off or running, as required by the diagnostic procedure) for proper communication.

4. Vedligeholdelse

Proper care and maintenance will extend the lifespan of your LAUNCH Original Main Cable.

4.1 Rengøring

• Wipe the cable and connectors with a soft, dry cloth after each use to remove dust, dirt, or grease.
• Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the PVC coating and connector materials.

4.2 Opbevaring

• Store the cable in a clean, dry environment, away from direct sunlight, extreme temperatures, and excessive humidity.
• Avoid tightly coiling or bending the cable at sharp angles, as this can stress the internal wires and PVC coating. The flexible PVC coating is designed for durability, but proper handling is still recommended.
• Do not place heavy objects on the cable during storage.

4.3 Forholdsregler ved håndtering

• Always grasp the connector housing when plugging or unplugging the cable, never pull directly on the cable itself.
• Ensure connectors are free of debris before connection to prevent damage to pins. The zinc-plated copper connectors are designed to resist corrosion and oxidation, providing a reliable connection.

5. Fejlfinding

If you encounter issues while using the LAUNCH Original Main Cable, consider the following common troubleshooting steps:

If these steps do not resolve the issue, please refer to the "Support" section for further assistance.

6. Specifikationer

Key specifications for the LAUNCH Original Main Cable:

7. Garantioplysninger

The LAUNCH Original Main Cable comes with a Et års begrænset garanti.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized modification, accident, or natural disaster. Please retain your proof of purchase for warranty claims.

8. Kundesupport

For technical assistance, warranty claims, or any questions regarding your LAUNCH Original Main Cable, please contact LAUNCH customer support.

• Online support: Besøg den officielle LANCERING website or their Amazon Brand Store for FAQs, product registration, and contact information.
• Amazon Brand Store: LAUNCH Official Store on Amazon

When contacting support, please have your product model number (LAUNCH Original Main Cable) and proof of purchase readily available.
