1. Introduktion
This manual provides essential information for the proper installation, operation, and maintenance of your Brio 3-Stage Ultra-Filtration Water Filter Replacement. This filter is designed to work with Brio undersink filtration systems UF100FBLK and UF100FWHT, ensuring clean and safe drinking water.
Please read this manual thoroughly before proceeding with installation or replacement to ensure optimal performance and longevity of your filter.
2. Produktet er slutview
Figure 2.1: Brio 3-Stage Ultra-Filtration Water Filter
The Brio Ultrafiltration Multi-Stage Replacement Filter is a premium 3-in-1 composite filter designed for Brio undersink filtration models UF100FBLK and UF100FWHT. It integrates three critical stages of filtration into a single, easy-to-replace cartridge:
- Sedimentfilter: Removes larger particles such as dirt, rust, and dust.
- Carbon Fiber Filter: Effectively reduces chlorine, unpleasant tastes, and odors.
- Ultrafiltreringsmembran: Rated at 0.1 microns, this membrane intercepts microscopic contaminants including E. coli and cysts.
This filter delivers up to 100 gallons per day of filtered water and is engineered for a service life of 6 to 12 months, depending on water quality and usage.
Figur 2.2: Filtrering Stages and Contaminant Reduction
The advanced composite filter technology ensures comprehensive reduction of various contaminants, providing cleaner and better-tasting water. The 0.1 micron pore structure of the ultrafiltration membrane is highly effective against microscopic impurities.
Nøglefunktioner omfatter:
- Premium Filtration: Combines sediment, carbon fiber, and ultrafiltration in one cartridge.
- Reduktion af forurenende stoffer: Targets particulate matter, chlorine, E. coli, and other unpleasant tastes and odors.
- Høj kapacitet: Produces up to 100 gallons per day of filtered water.
- Lang levetid: Designed to last 6 to 12 months, depending on usage and local water conditions.
3. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | RPFUF100F |
| Kompatibilitet | Brio Undersink Filtration Systems UF100FBLK, UF100FWHT |
| Filtrering Stages | 3 (Sediment, Carbon Fiber, Ultrafiltration) |
| Ultrafiltration Rating | 0.1 mikron |
| Daglig kapacitet | Up to 100 Gallons Per Day |
| Anbefalet udskiftning | Every 6 to 12 Months |
| Produktdimensioner | 3.5 cm D x 3.5 cm B x 10 cm H (ca. 2.5 x 2.5 x 10 cm) |
| Materiale | Plast |
| Fabrikant | Brio |

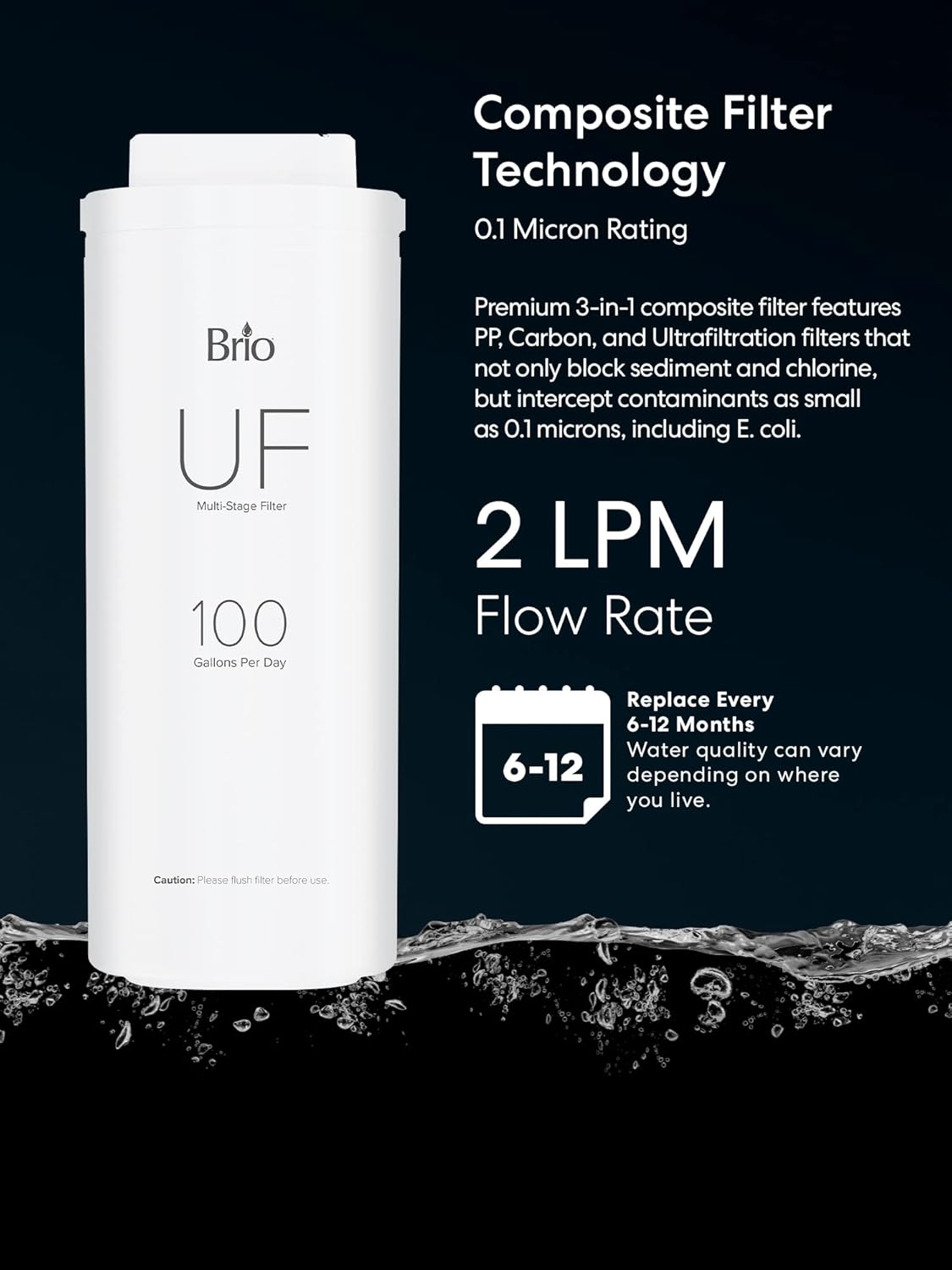

Figure 3.1: Filter Technology and Performance Metrics
The filter's design emphasizes both performance and user convenience. Its compact size allows for easy integration into undersink systems, while the multi-stage filtration ensures high-quality water output.
The recommended replacement interval of 6-12 months is a general guideline; actual filter life may vary based on the quality of your incoming water and daily water consumption.
4. Hvad er der i æsken
Din pakke skal indeholde følgende vare:
- One (1) Brio 3-Stage Ultra-Filtration Water Filter (Model: RPFUF100F)
Figure 4.1: Filter Packaging
5. Opsætning og installation (filterudskiftning)
The Brio 3-Stage Ultra-Filtration Water Filter features an easy drop-and-lock design, making replacement quick and simple. This filter is specifically designed for Brio undersink filtration systems UF100FBLK and UF100FWHT.
Før du begynder:
- Ensure your Brio undersink filtration system is turned off and the water supply to the system is shut off.
- Have a towel or small basin ready to catch any residual water during the filter change.
Trin til udskiftning af filter:
- Find filteret: Open the housing of your Brio undersink filtration system to access the old filter cartridge.
- Fjern gammelt filter: Gently twist the old filter cartridge counter-clockwise (if applicable) or pull it down to release it from its locked position. Dispose of the old filter responsibly.
- Forbered nyt filter: Remove the new Brio RPFUF100F filter from its packaging. Ensure all protective caps are removed.
- Indsæt nyt filter: Align the new filter cartridge with the filter head in the system. Push the filter upwards and then twist clockwise (if applicable) or push firmly until it clicks into the "locked" position. The drop-and-lock design ensures a secure fit.
- Genopret vandforsyningen: Slowly turn on the water supply to the filtration system. Check for any leaks around the new filter.
- Skyl filteret: It is crucial to flush the new filter before first use. Run water through the system for approximately 5-10 minutes to remove any carbon fines or air from the filter. This ensures optimal performance and taste.
Figure 5.1: Easy Drop-and-Lock Installation
Figure 5.2: Compatible Brio Amphora System (UF100FWHT & UF100FBLK)
6. Betjening af filteret
Once installed, the Brio 3-Stage Ultra-Filtration Water Filter operates automatically as water flows through your undersink filtration system. The filter continuously purifies water through its three stages:
- Water first passes through the sediment filter, which captures larger suspended particles.
- Next, the water flows through the carbon fiber filter, where chlorine, tastes, and odors are absorbed.
- Finally, the water is forced through the fine pores of the ultrafiltreringsmembran, effectively removing microscopic contaminants before it reaches your faucet.
The filter is designed to maintain a consistent flow rate of approximately 2 Liters Per Minute (LPM) under normal household water pressure, providing readily available filtered water.
7. Vedligeholdelse
Regular replacement of your Brio 3-Stage Ultra-Filtration Water Filter is essential to maintain optimal water quality and system performance.
Tidsplan for udskiftning af filter:
It is recommended to replace the Brio RPFUF100F filter every 6 til 12 måneder. The exact lifespan of the filter can vary based on several factors:
- Incoming Water Quality: Water with higher levels of sediment or contaminants may shorten filter life.
- Daily Water Usage: Higher water consumption will necessitate more frequent filter changes.
Signs that your filter may need replacement include a noticeable decrease in water flow, a return of unpleasant tastes or odors, or a change in water clarity.
Figure 7.1: Recommended Replacement Interval
8. Fejlfinding
While the Brio 3-Stage Ultra-Filtration Water Filter is designed for reliable performance, certain issues may indicate the need for attention or replacement.
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Reduceret vandgennemstrømning | Filteret er tilstoppet eller nærmer sig slutningen af sin levetid. | Replace the filter cartridge. Ensure water supply is fully open. |
| Unpleasant Taste or Odor Returns | Carbon filter is exhausted. | Udskift filterpatronen. |
| Water Appears Cloudy After Replacement | Air bubbles or carbon fines from new filter. | Flush the filter by running water for 5-10 minutes until clear. This is normal for new filters. |
| Leaks Around Filter Housing | Filter not seated correctly or O-rings damaged. | Ensure filter is fully inserted and locked. Check O-rings for proper placement and condition. Turn off water, re-seat filter, and re-check. |
If you experience persistent issues not covered here, please refer to the manual for your specific Brio undersink filtration system (UF100FBLK or UF100FWHT) or contact Brio customer support.
9. Garanti og support
For detailed warranty information regarding your Brio 3-Stage Ultra-Filtration Water Filter Replacement, please refer to the documentation provided with your original Brio undersink filtration system or visit the official Brio webGarantibetingelserne dækker typisk fabrikationsfejl.
For technical support, product inquiries, or to purchase additional replacement filters, please contact Brio customer service or visit their official online store:
- Brio Official Store: Visit Brio Store on Amazon
Brio is committed to providing innovative clean water solutions and strives to service all your hydration needs.
