Indledning
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Totem Electric Bike Victor 2.0. Please read it thoroughly before your first ride to ensure optimal performance and safety.
Figure 1: The Totem Victor 2.0 Electric Bike, featuring a white frame with blue accents.
Opsætning og montering
Your Totem Electric Bike comes mostly pre-assembled. Follow these steps for final assembly and initial setup:
- Udpakning: Tag forsigtigt cyklen og alle komponenter ud af emballagen. Gem emballagen til senere transport eller opbevaring.
- Montering af styr: Attach the handlebar to the stem. Ensure all bolts are tightened securely.
- Montering af forhjul: Monter forhjulet, og sørg for, at skivebremsrotoren er korrekt placeret i bremsekaliberen.
- Pedal installation: Attach the pedals. Note that pedals are side-specific (L for left, R for right).
- Justering af sadelpind: Insert the seat post and adjust the seat height for comfortable riding posture.
- Batteri installation: Insert the removable battery into its housing on the frame. Ensure it clicks securely into place.
- Indledende opkrævning: Fully charge the battery before first use. The 374.4 Wh battery typically takes 4-5 hours to fully charge.

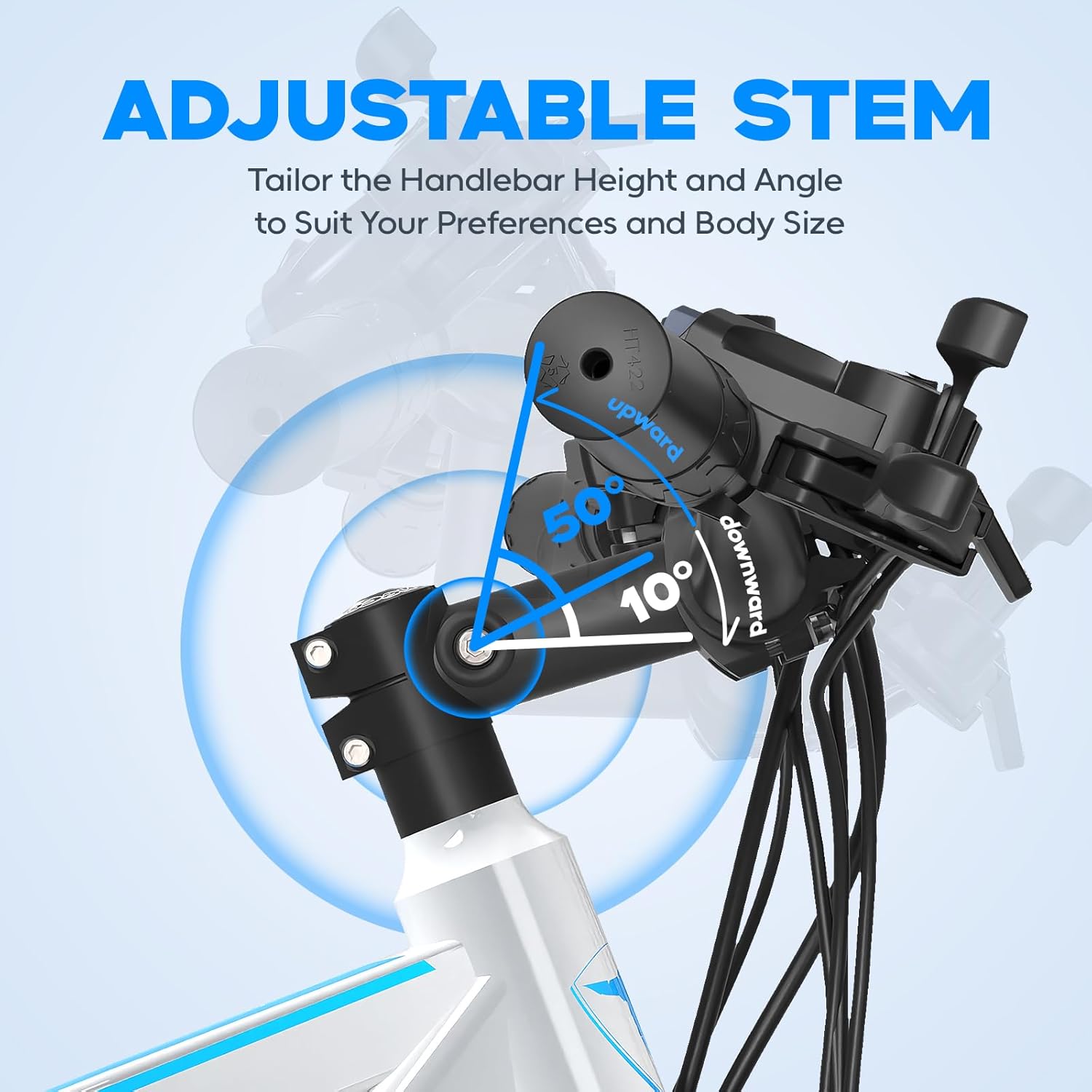

Figure 2: Close-up of the adjustable handlebar stem, allowing customization of height and angle for optimal comfort.
Video 1: Demonstration of the Victor 2.0 adjustable stem function, showing how to customize handlebar height and angle for personalized riding comfort.
Betjeningsvejledning
Your Totem Electric Bike offers multiple riding modes for a versatile experience:
- Gangtilstand: For relaxed, low-speed travel, ideal for walking alongside the bike.
- Gashåndtag: Provides power up to 20 mph without pedaling, similar to a motorcycle.
- Pedal-Assist Mode (PAS): Offers motor assistance while you pedal, with adjustable levels (1-5) to customize your workout and range.
- Almindelig cykeltilstand: Functions as a traditional bicycle with no electric assistance.
Figure 3: The 7-Speed LCD Smart Display, allowing riders to choose electric assist power levels and monitor speed.
Figure 4: Illustration of the 350W brushless motor, providing 65NM torque and 750W peak power, capable of handling 30-degree slopes.
Figure 5: Detail of the strong and reliable front fork, designed for enhanced safety and a strong, reliable lock mechanism.
Figure 6: The lockable suspension fork, offering both suspension and a lock feature for increased safety and control on various terrains.
Video 2: En overview of the Totem Victor Electric Bike 26" for Adults, showcasing its features and capabilities in various riding scenarios.
Opretholdelse
Regelmæssig vedligeholdelse sikrer din elcykels levetid og sikkerhed:
- Batteripleje:
- Oplad batteriet regelmæssigt, selvom det ikke er i brug, for at bevare dets sundhedstilstand.
- Undgå at aflade batteriet helt.
- Opbevar batteriet på et køligt, tørt sted.
- Dæktryk: Kontroller dæktrykket før hver tur. Overhold den anbefalede PSI for optimal ydeevne og sikkerhed.
- Bremser: Regularly inspect brake pads and rotors for wear. Ensure brakes are responsive and properly adjusted. The dual disc brakes provide superior control.
- Kædesmøring: Hold kæden ren og smurt for at sikre jævne gearskift og forhindre slid.
- Generel inspektion: Periodically check all bolts, nuts, and quick releases for tightness. Ensure all cables are neatly integrated and free from damage.
Figure 7: The powerful rechargeable battery, showing its removable design for convenient charging at home or office. It features BMS power saving and fully charges in 3-4 hours.
Figur 8: Detaljeret view of the 36V 10.4Ah rechargeable battery, highlighting its maximum range of 40 miles (Pedal-Assist) and 374.4 Wh capacity.
Fejlfinding
Hvis du støder på problemer, kan du se disse almindelige fejlfindingstips:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motoren hjælper ikke | Battery low/dead, power switch off, loose connection, PAS level too low. | Charge battery, turn on power, check connections, increase PAS level. |
| Brakes squealing/ineffective | Worn pads, dirty rotors, improper adjustment. | Inspect/replace pads, clean rotors, adjust brake calipers. |
| Gearskiftet går ikke jævnt | Dirty/dry chain, misaligned derailleur, damaged shifter cable. | Clean and lubricate chain, adjust derailleur, replace cable if damaged. |
| Usædvanlige lyde under kørslen | Loose components, worn bearings, foreign object. | Inspect all parts for tightness, check for obstructions, consult support if persistent. |
Specifikationer
| Feature | Detalje |
|---|---|
| Type cykel | El-cykel |
| Modelnavn | Victor 2.0 |
| Aldersinterval (beskrivelse) | Voksen |
| Mærke | Totem |
| Antal hastigheder | 21 |
| Farve | Blå |
| Hjulstørrelse | 26 tommer |
| Rammemateriale | Aluminium |
| Ophængstype | Front |
| Speciel funktion | disk |
| Varens vægt | 46 pund |
| Strømkilde | Genopladeligt batteri |
| Wattage | 350 watt |
| Lithium batteri energiindhold | 375 wattimer |
| Maksimal vægtanbefaling | 300 pund |
| Montering påkrævet | Ja |
| Elektrisk hjælpetype | Pedelec and Throttle |
Garanti og support
Totem provides a limited warranty for its products. For specific warranty details, please refer to the documentation included with your purchase.
For any inquiries or support needs, Totem's professional service team operates directly from McKinney in TX. You can reach them at 469-409-2771. They are committed to providing prompt and efficient assistance to ensure your satisfaction.
Ofte stillede spørgsmål:
- Hvorfor elsker vi det, vi laver? Our corporate vision is to create electric bicycles that provide convenience and fun for your travel through our efforts.
- Hvad gør vores produkter unikke? Totem electric bicycles are made of high-quality materials, fully intelligent welding and electrostatic painting. A professional quality inspection team is set up, and every electric bicycle leaving the factory is tested.
- How Can I Contact the Seller? We have a professional after-sales team, if you have any questions about the electric bicycle, please feel free to consult us.
