Produkt overview
The GARLAND® Roll & Comb 502E is an electric artificial grass sweeper designed to maintain the pristine appearance of artificial turf. It efficiently cleans and collects debris such as moss, leaves, and pine needles, while simultaneously combing and elevating the grass fibers to restore their original volume and look. This lightweight unit features an adjustable handlebar for comfortable operation and a high-quality nylon bristle brushing system that directs waste into a collection bag. The working height can be regulated to adjust the intensity of the sweep, making it suitable for various artificial grass types and conditions.
Ideal for surfaces up to 450 m², the Roll & Comb 502E is powered by a 1,600 W plug-in electric motor. Its patented roller system ensures easy maintenance, helping to keep your artificial grass looking new. The compact and lightweight design, constructed from durable polypropylene, along with a foldable handle, allows for easy transport and minimal storage space.
Opsætningsinstruktioner
1. Udpakning og montering
Carefully remove all components from the packaging. Ensure all parts are present before beginning assembly. The unit is designed for straightforward, tool-free assembly.
- Styrsamling: Attach the upper handlebar section to the lower section, ensuring the quick-release clamps or knobs are securely tightened. Adjust the handlebar height to a comfortable working position.
- Collection Bag Attachment: Securely attach the 40-liter collection bag to the designated hooks or slots at the rear of the sweeper. Ensure it is properly seated to prevent debris from escaping.
2. Strømtilslutning
The GARLAND® Roll & Comb 502E operates on a 110V power supply. Connect the power cord to a suitable outdoor-rated extension cord, ensuring the connection is secure and protected from moisture. Then, plug the extension cord into a grounded 110V power outlet.

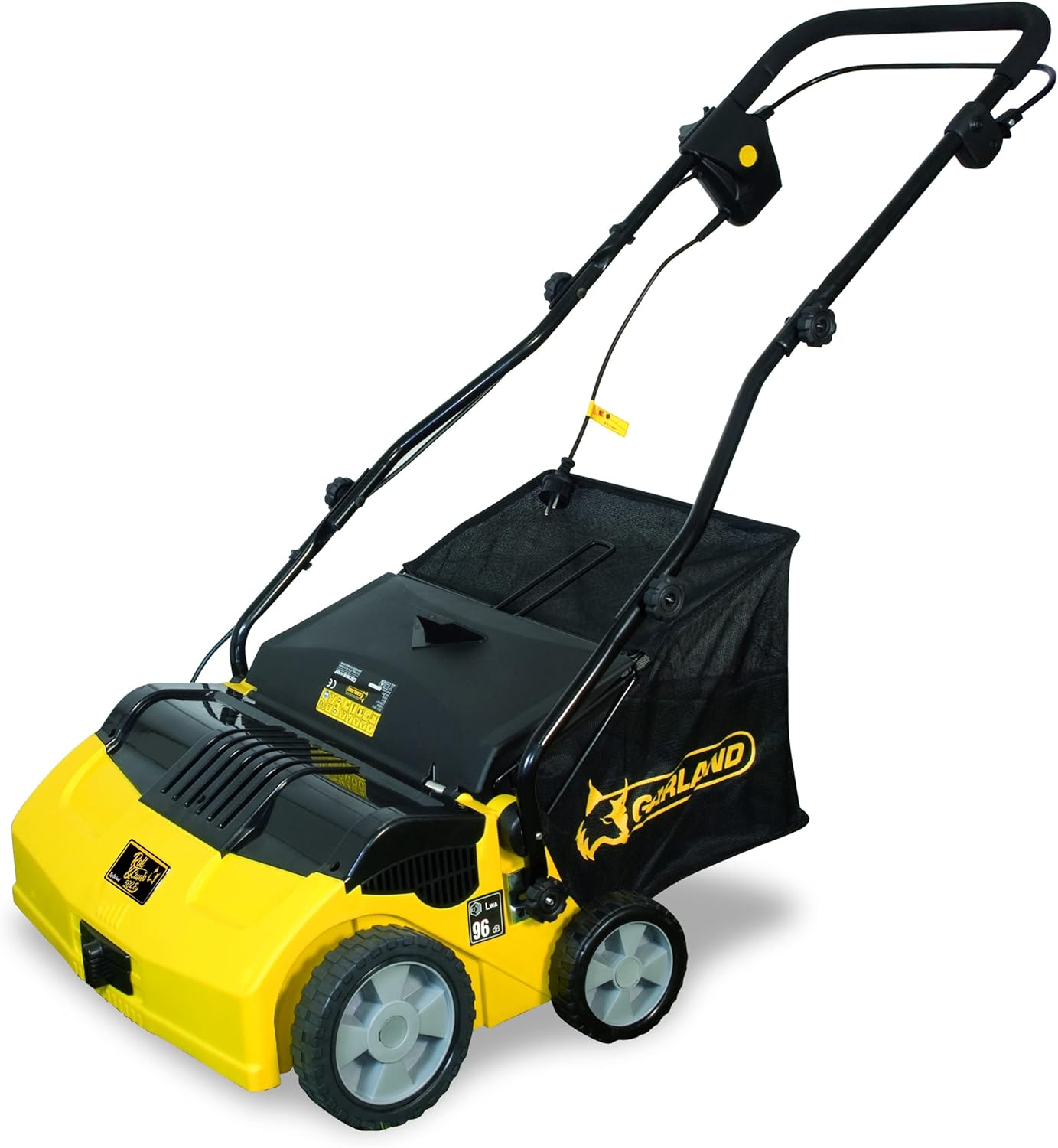

Figure 1: The GARLAND® Roll & Comb 502E Artificial Grass Sweeper, fully assembled and ready for use.
Figure 2: A user operating the sweeper on artificial grass, demonstrating its ease of use.
Figure 3: Visual representation of the multi-functional capabilities: combing, sweeping, collecting, and cleaning artificial grass.
Betjeningsvejledning
1. Kontroller før drift
- Ensure the collection bag is empty and properly attached.
- Check that the power cord is securely connected and routed to avoid entanglement with the sweeper's moving parts.
- Inspect the nylon bristles for any damage or excessive wear.
2. Adjusting Working Height
The sweeper features working height regulation to control the intensity of the sweep and combing action. Locate the height adjustment lever or knob, typically near the wheels or front of the unit. Adjust the height according to the density of debris and the desired combing effect on your artificial grass. A lower setting will provide a more aggressive sweep and deeper combing.
3. Starting and Sweeping
- To start the sweeper, press and hold the safety button, then squeeze the operating lever on the handlebar. Release the safety button once the motor starts.
- Push the sweeper forward in straight, overlapping lines across the artificial grass. The machine is designed for forward motion only. Avoid pulling the unit backward, as this can strain the motor and reduce efficiency.
- Allow the brushing system to collect debris and comb the fibers. The 40 cm working width ensures efficient coverage.
- Periodically check the collection bag and empty it when full to maintain optimal performance.
Video 1: Demonstration of the GARLAND® Roll & Comb 502E in action, showing its effectiveness in cleaning and combing artificial grass.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your GARLAND® Roll & Comb 502E.
- Tømning af opsamlingsposen: After each use, or when full, remove and empty the 40-liter collection bag. Clean any residual debris from the bag and its attachment area.
- Cleaning the Brushing System: Disconnect the power supply before cleaning. Regularly inspect and clean the nylon bristles, removing any tangled grass, leaves, or other debris. This prevents blockages and maintains effective combing.
- Generel rengøring: Tør enhedens ydre af med adamp klæde. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler.
- Opbevaring: Store the sweeper in a dry, protected area. The foldable handle allows for compact storage. Ensure the power cord is neatly wrapped and secured.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Fejemaskinen starter ikke. | Power cord not connected; safety button/lever not engaged; power outlet issue. | Ensure power cord is fully plugged in. Engage safety button and operating lever simultaneously. Check power outlet with another device. |
| Poor debris collection or combing. | Collection bag full; brushing system clogged; incorrect working height. | Empty collection bag. Clean debris from brushes. Adjust working height to a lower setting. |
| Usædvanlig støj eller vibrationer. | Debris caught in brushes or motor; loose components. | Disconnect power. Inspect and remove any foreign objects from brushes. Check for loose screws or parts and tighten if necessary. If problem persists, contact customer support. |
Specifikationer
- Mærke: GARLANDE
- Model: 502E
- Driftstilstand: Semi-automatisk
- Motoreffekt: 1,600 W (Electric)
- Arbejdsbredde: 40 cm
- Opsamlingspose Kapacitet: 40 liters (cloth bag)
- Materiale: Metal, Plastic (Polypropylene)
- Varens vægt: 21.5 pund (9752 gram)
- Anbefalet overfladeareal: Op til 450 m²
- Kompatibilitet med stikkontakter: 110V (for use in the United States)
Garanti og support
This product includes an instruction manual. For specific warranty details, please refer to the documentation included with your purchase. For technical support, replacement parts, or further assistance, please contact GARLAND customer service through the contact information provided in your product packaging or on the official GARLAND webwebsted.
