1. Introduktion
Thank you for choosing the ErGear 63" x 55" Dual Motor L-Shaped Standing Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric height-adjustable desk. Please read these instructions carefully before use and retain them for future reference.
Image 1.1: The ErGear 63" x 55" L-Shaped Standing Desk, showcasing its spacious design and electric height adjustment feature.
2. Sikkerhedsoplysninger
For at sikre sikker drift og forhindre skader, bedes du overholde følgende sikkerhedsretningslinjer:
- Sørg for, at alle komponenter er forsvarligt fastgjort før brug.
- Keep children and pets away from the desk during height adjustment.
- Overbelast ikke skrivebordet. Se specifikationerne for maksimal vægtkapacitet.
- Undgå at placere væsker direkte på kontrolpanelet eller i nærheden af elektriske komponenter.
- Afbryd strømmen før rengøring eller vedligeholdelse.
- Dette skrivebord er kun designet til indendørs brug.
Image 2.1: The desk is certified safe, meeting US federal and state air standards for low VOC emissions, and complies with FCC and UL safety standards.
3. Pakkens indhold
The ErGear 63" L-Shaped Electric Standing Desk package includes all necessary components for assembly. Please verify that all parts are present and undamaged before beginning assembly.
- Desktop sections (multiple pieces for L-shape)
- Leg columns with dual motors
- Foot pads/bases
- Kontrolpanel
- Strømadapter og kabler
- Monteringsudstyr (skruer, bolte, værktøj)
- Brugsanvisning
4. Opsætning og montering
Assembly of the ErGear L-Shaped Standing Desk requires two people. A screwdriver is recommended for assembly. For detailed step-by-step instructions, please refer to the comprehensive PDF installation manual available online or included with your product.
4.1 samlingsmuligheder
The L-shaped desktop can be assembled with the longer section on either the left or right side, allowing you to customize the desk to fit your space and preference.

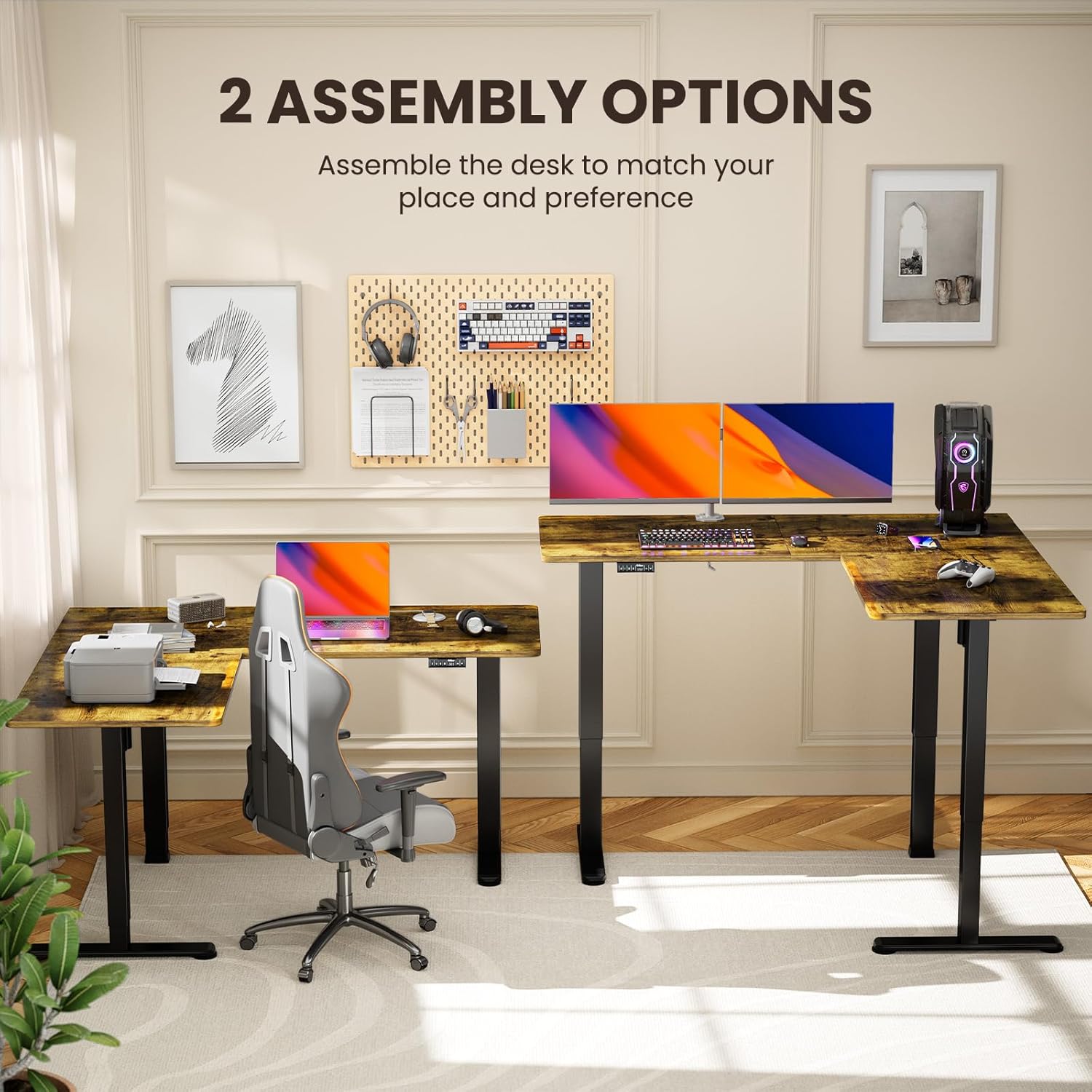

Image 4.1: Illustration of the two possible configurations for the L-shaped desktop, allowing for left or right-hand setup.
Billede 4.2: En overhead view demonstrating the flexibility of assembling the desk with the longer section on either side.
4.2 General Assembly Steps (Refer to PDF for details)
- Pak alle komponenter ud, og verificer dem i forhold til styklisten.
- Attach the lifting columns to the desktop sections.
- Secure the foot pads to the lifting columns.
- Connect the motor cables and control panel to the main control box.
- Plug in the power adapter and perform initial calibration as per the detailed manual.
5. Betjeningsvejledning
Your ErGear standing desk features a dual-motor system for smooth and quiet height adjustments, along with a control panel for easy operation and memory presets.
5.1 Højdejustering
Use the up and down arrow buttons on the control panel to adjust the desk height. The desk can be adjusted from 28.35 inches to 46.46 inches.
Image 5.1: The desk in a standing position, demonstrating the electric height adjustment feature for ergonomic use.
5.2 Hukommelsesforudindstillinger
The control panel allows you to save custom sit and stand height settings for quick transitions. Consult your detailed manual for specific instructions on setting and recalling memory positions.
5.3 Dobbelt motorsystem
The desk is equipped with dual motors for faster, smoother, and quieter operation. This system ensures stable and reliable long-term performance.
Billede 5.2: En intern view highlighting the dual motor mechanism responsible for the desk's smooth and efficient height adjustment.
Image 5.3: The quiet operation of the desk allows for an undisturbed work environment, as demonstrated by a sleeping cat.
6. Vedligeholdelse
Regular maintenance helps prolong the life and performance of your desk.
- Rensning: Tør skrivebordet og rammen af med en blød kludamp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler.
- Kabelstyring: Periodically check and organize cables to prevent entanglement or damage during height adjustments.
- Fastgørelsesmidler: Occasionally check all screws and bolts to ensure they remain tight.
7. Fejlfinding
Hvis du støder på problemer med dit skrivebord, kan du bruge følgende almindelige løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skrivebordet bevæger sig ikke | Power cable disconnected, overload, motor error | Check power connections. Reduce weight on desk. Refer to manual for error code interpretation and reset procedures. |
| Ujævn højdejustering | Obstruction, calibration issue | Ensure no obstructions. Perform a reset/calibration as per the detailed manual. |
| Unusual noise during adjustment | Loose fasteners, obstruction | Check all fasteners for tightness. Remove any objects that may be interfering with the lifting columns. |
If the problem persists, please contact ErGear customer support.
8. Specifikationer
Key technical details for your ErGear L-Shaped Standing Desk:
- Modelnummer: EGESD8V
- Produktdimensioner: 55" D x 63" B x 28.35" H
- Minimum højde: 28.35 tommer
- Maksimal højde: 46.46 tommer
- Maksimal vægtanbefaling: 220 pund
- Grundmateriale: Kulstofstål
- Top materialetype: Træ (lamineret)
- Motorer: Dobbelt motorsystem
- Forsamling: Påkrævet (anbefales 2 personer)
- Garanti: 5 års garanti
Image 8.1: Detailed dimensions of the ErGear L-Shaped Standing Desk, including the adjustable height range.
Image 8.2: The desk's robust lifting system is tested to support up to 220 lbs, ensuring dependable performance.
9. Garanti og support
ErGear provides a 5-year warranty for this product, covering parts and labor. For warranty claims, technical assistance, or further inquiries, please visit the official ErGear store or contact customer support.
ErGear Store: Visit the ErGear Store on Amazon
Installationsmanual (PDF): For a detailed installation guide, please refer to the official PDF document: Download PDF Manual
