Indledning
This manual provides essential information for the safe and efficient operation of your AKAI PM-80P PartyMate Pro Speaker. Please read these instructions thoroughly before using the product and retain them for future reference.

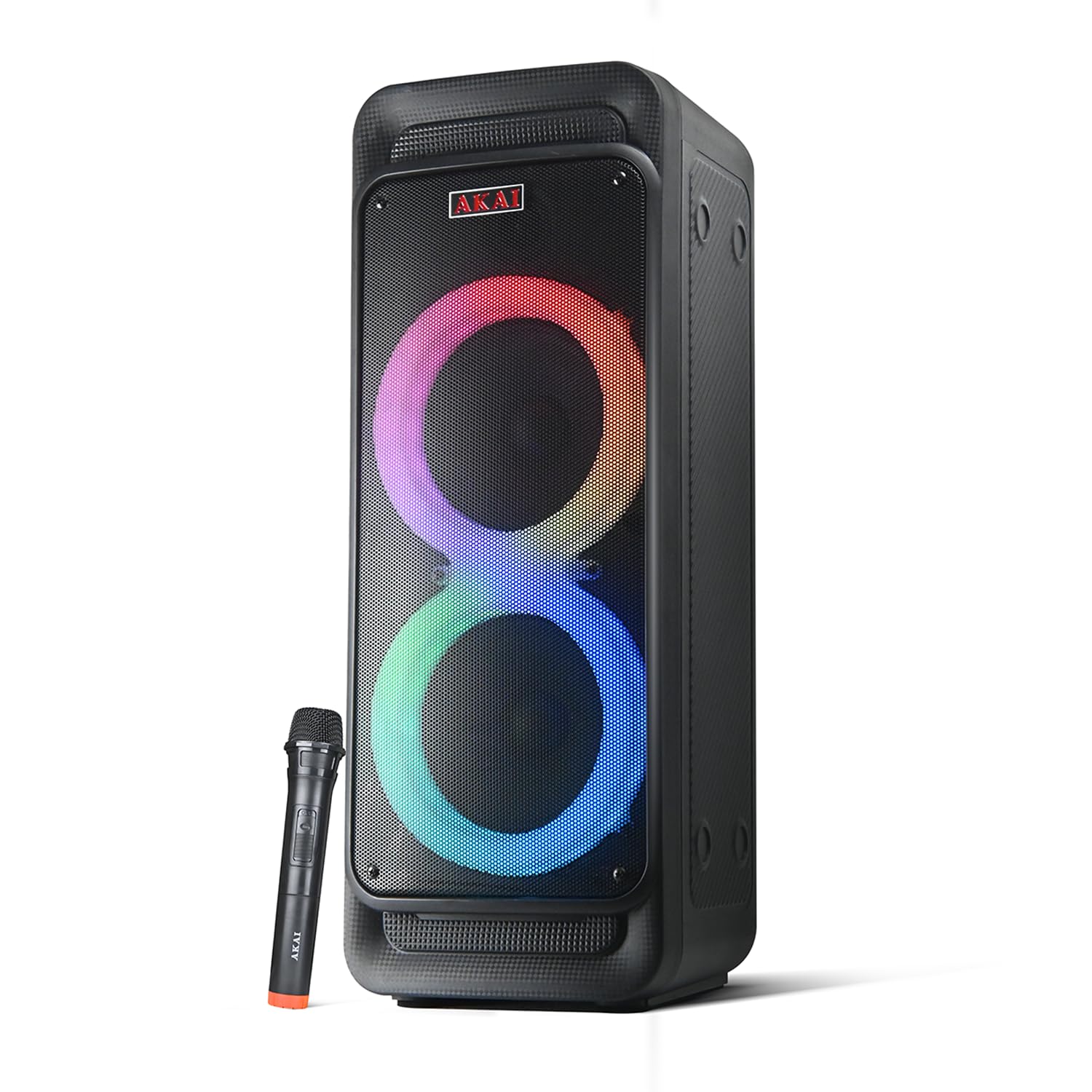

Image: The AKAI PM-80P PartyMate Pro Speaker, a black tower speaker with colorful LED lights on its two main drivers, accompanied by a wireless microphone.
Hvad er der i æsken
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- 1N Main Speaker
- 1N Wireless Mic
- 1N Adopter (Power Adapter)
- 1N fjernbetjening
- 1N User Manual/Warranty Card
Opsætning
1. Tænd/sluk
- To power on the speaker, press and hold the power button located on the control panel.
- For at slukke skal du trykke på og holde tænd/sluk-knappen nede igen.
2. Opladning af højttaleren
- Connect the provided power adapter to the DC 9V input port on the speaker's control panel.
- Sæt adapteren i en almindelig stikkontakt.
- Opladningsindikatorlampen lyser under opladning.
- En fuld opladning giver op til 8 timers spilletid ved 70% lydstyrke.
3. Connecting the Wireless Microphone
- Ensure the wireless microphone has fresh batteries.
- Turn on the microphone. It should automatically pair with the speaker.
- Adjust microphone volume using the dedicated switch on the control panel (Switch 5: Mic Volume).
Betjeningsvejledning
The speaker features an intuitive control panel for easy operation. Refer to the diagram below for button identification.
Image: Detailed diagram of the AKAI PM-80P speaker's top control panel, showing various buttons and ports including AUX, USB, TF Card, microphone inputs, mode, mute, light, volume, bass, treble, mic echo, mic volume, TWS, previous, next, and record/mic priority.
1. Valg af tilstand
Tryk på MODE button to cycle through available input sources: Bluetooth, AUX, USB, TF Card, and FM Radio.
2. Bluetooth-parring
- Ensure the speaker is in Bluetooth mode (indicated on the display).
- On your device (smartphone, laptop), enable Bluetooth and search for "AKAI PM-80P".
- Select the speaker to pair. A confirmation sound will indicate successful pairing.
3. AUX -indgang
- Connect an external audio device using a 3.5mm AUX cable to the AUX havn.
- Switch the speaker to AUX mode using the MODE knap.
4. USB/TF-kortafspilning
- Insert a USB drive or TF (microSD) card containing MP3 files into the respective ports.
- The speaker will automatically switch to USB/TF mode and begin playback.
- Brug TIDLIGERE og NÆSTE knapper til at navigere i spor.
5. TWS-funktion (ægte trådløs stereo)
To connect two AKAI PM-80P speakers for a stereo experience:
- Ensure both speakers are powered on and in Bluetooth mode, but not paired with any device.
- On one speaker, long press the TWS button. It will search for the other speaker.
- Once connected, a confirmation sound will be heard. You can now pair your device to the primary speaker.
Image: A diagram illustrating the TWS (True Wireless Stereo) function, showing two speakers wirelessly connected to a smartphone, indicating stereo sound playback.
6. LED lysstyring
Tryk på LYS button to change the LED light patterns or turn them off. The speaker features multi-color LED lights that sync to the beat.
Image: The AKAI PM-80P speaker showcasing its dynamic multi-color LED lights, which enhance the audio experience.
7. Karaoke Function and Recording
- Connect a wired microphone to one of the 6.35mm MIC input jacks, or use the included wireless microphone.
- Adjust microphone volume (Switch 5) and echo (Switch 4) as desired.
- To activate Microphone Priority (music volume lowers when speaking into the mic), press the REC/MIC PRI knap.
- To record, long press the REC/MIC PRI button. Ensure a USB drive or TF card is inserted for storage.
Image: A person enjoying karaoke with the AKAI PM-80P speaker and its wireless microphone, highlighting the karaoke support feature.
8. Volume and Tone Control
- Use the main rotary knob for MASTER LYDSTYRKE.
- Tilpasse BASS (Switch 2) and DISKANT (Switch 3) levels to customize your sound.
Opretholdelse
1. Rensning
Wipe the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure all ports are free from dust and debris.
2. Opbevaring
Opbevar højttaleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når den ikke er i brug i længere perioder.
3. IPX4 Splashproof Protection
The AKAI PM-80P speaker is IPX4 splashproof, meaning it is protected against splashing water from any direction. This makes it suitable for outdoor use where light water splashes may occur. However, it cannot be submerged in water. Ensure all port covers are securely closed before exposure to moisture.
Image: The AKAI PM-80P speaker standing on a wet surface, with water droplets indicating its IPX4 splashproof rating, suitable for use in light rain or near water.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Battery is depleted; Power adapter not connected. | Charge the speaker fully; Ensure power adapter is securely connected and outlet is functional. |
| Ingen lyd | Lydstyrken er for lav; Forkert inputtilstand; Enheden er ikke tilsluttet korrekt. | Increase master volume; Select correct input mode (Bluetooth, AUX, USB/TF); Re-pair Bluetooth or re-connect cable. |
| Bluetooth forbinder ikke | Højttaler ikke i parringstilstand; Enhed for langt væk; Interferens. | Ensure speaker is in Bluetooth mode; Move device closer to speaker; Turn off other Bluetooth devices. |
| Mikrofon virker ikke | Microphone off; Low batteries in wireless mic; Mic volume too low. | Turn on microphone; Replace batteries; Increase Mic Volume (Switch 5). |
| TWS-parring mislykkedes | Speakers already paired to a device; Too far apart. | Ensure both speakers are unpaired from any device; Place speakers closer together and try TWS pairing again. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | PM-80P |
| Højttaler type | Satellite (Tower Speaker) |
| Forbindelsesteknologi | Bluetooth 5.0, AUX, USB, TF Card |
| Højttaler Maksimal udgangseffekt | 80 watt RMS |
| Subwoofer diameter | 2 x 6.5 tommer |
| Diskant-diameter | 1 x 1 tommer |
| Batterikapacitet | 5200 mAh |
| Spilletid | Op til 8 timer (ved 70 % volumen) |
| Kontrolmetode | Berøringspanel |
| Særlige funktioner | Wireless Mic, Multi-color LED Lights, Karaoke Support, IPX4 Splashproof, TWS Function |
| Produktdimensioner | 21D x 21B x 55H Centimeter |
| Varens vægt | 5 kg 940 g |
Image: The AKAI PM-80P speaker emphasizing its 80W High Bass Performance, detailing the 6.5-inch woofers and 1-inch tweeter for powerful audio output.
Image: A visual representation of the AKAI PM-80P speaker's easy connectivity options, including Bluetooth 5.0, AUX, USB, and TF Card support.
Garanti og support
Your AKAI PM-80P PartyMate Pro Speaker comes with a 12-month warranty from the date of purchase. Please refer to the included Warranty Card for detailed terms and conditions.
For technical support or service inquiries, please contact Akai India at esales@akaiindia.in.
