Produkt overview
The Feit Electric 13 Inch Smart WiFi LED Coach Lantern is designed to enhance your home's exterior with both traditional aesthetics and modern smart technology. This lantern allows for control via the Feit Electric app, enabling users to manage on/off functions, set timers, and create schedules. It offers a wide spectrum of millions of RGBW colors, as well as various shades of white light, to suit any occasion or mood. Constructed with an all-bronze housing and frosted glass, it provides 500 lumens of light, ensuring adequate illumination for doorways and porches.

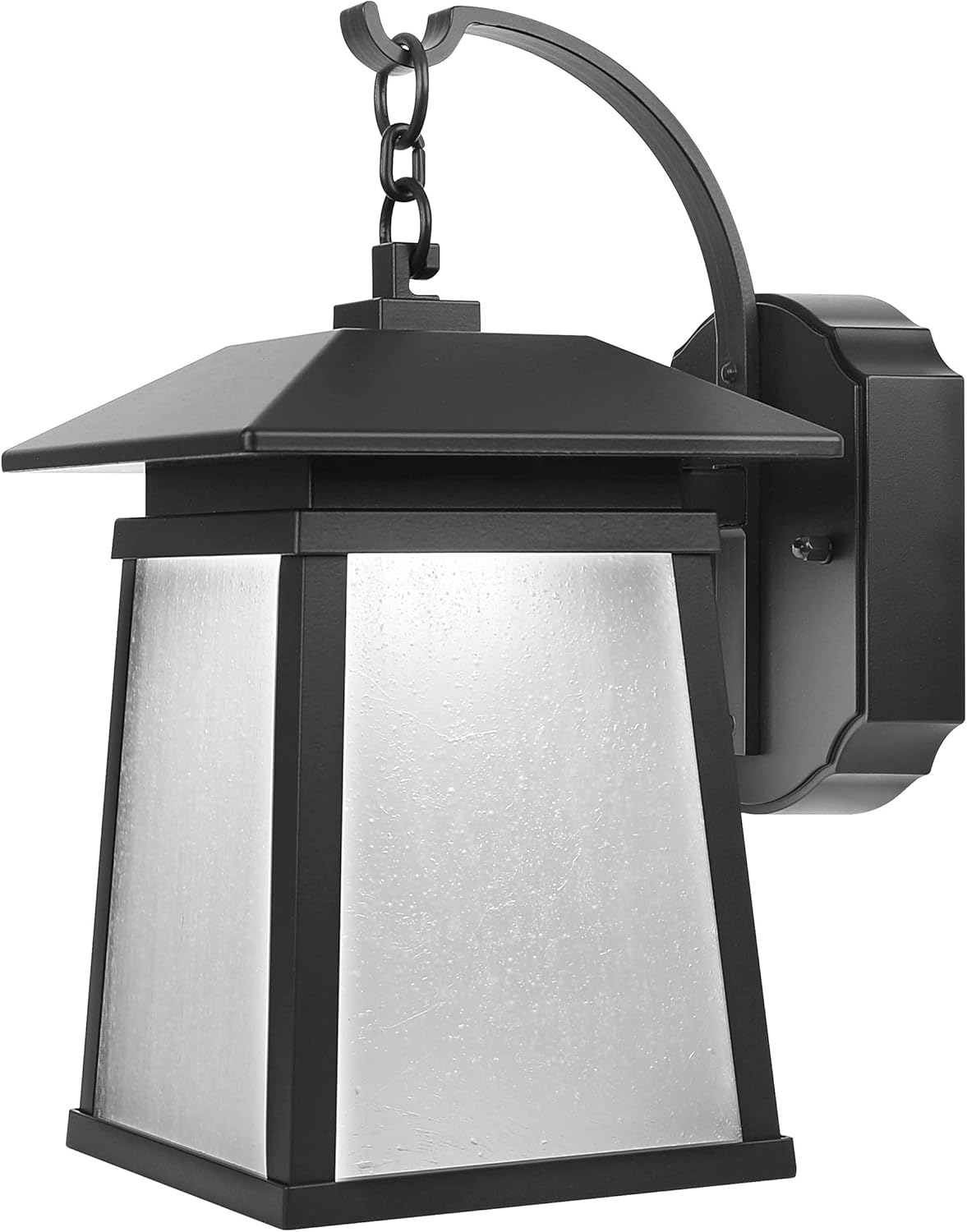

Figur 1: Forside view of the Feit Electric Smart WiFi LED Coach Lantern, showcasing its bronze finish and frosted glass panels.
Hvad er der i æsken
Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og ubeskadigede.
- Feit Electric 13 Inch Smart WiFi LED Coach Lantern (integrated LED)
- LED Lens (pre-installed)
- Installationshardware (skruer, trådmøtrikker, monteringsbeslag) - Standard hardware for electrical fixture installation.
- Brugervejledning (dette dokument)
Figure 2: Product packaging highlighting key features such as Smart WiFi, RGBW colors, and compatibility with Alexa and Hey Google.
Opsætning og installation
Sikkerhedsoplysninger
- ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringen eller strømafbryderen før installation eller servicering.
- ADVARSEL: Risk of fire. Use only in circuits rated for 120V AC.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Sørg for, at alle elektriske forbindelser er sikre og overholder lokale el-forskrifter.
Tjekliste før installation
- Ensure the power is turned OFF at the circuit breaker.
- Gather necessary tools: screwdriver, wire strippers, electrical tape, ladder (if needed).
- Confirm the mounting surface is suitable for the fixture's weight and size.
Installationstrin
- Sluk for strømmen: Find afbryderen, der styrer udendørsbelysningskredsløbet, og sluk den. Kontroller, at strømmen er slukket med en lydstyrkemåler.tage tester.
- Fjern gammelt armatur (hvis relevant): Carefully disconnect the wiring from the existing fixture and remove it from the mounting surface.
- Monter monteringsbeslag: Attach the provided mounting bracket to the electrical junction box using the screws. Ensure it is securely fastened.
- Ledningsforbindelser:
- Tilslut sort ledningen fra armaturet til sort (varm) ledning fra samledåsen ved hjælp af en trådmøtrik.
- Tilslut hvid ledningen fra armaturet til hvid (neutral) ledningen fra samledåsen ved hjælp af en trådmøtrik.
- Tilslut grøn or bart kobber ground wire from the fixture to the ground wire from the junction box (or to the junction box itself if no ground wire is present).
- Secure all connections with electrical tape if desired.
- Monteringsbeslag: Carefully tuck the wires into the junction box. Align the fixture with the mounting bracket and secure it using the provided screws.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.
Betjeningsvejledning
Connecting to the Feit Electric App
To unlock the full smart features of your lantern, you must connect it to the Feit Electric app.
- Download app: Download the Feit Electric app from the Apple App Store or Google Play Store.
- Opret konto: Åbn appen, og opret en ny konto, eller log ind på en eksisterende.
- Tilføj enhed: Tap the "+" icon in the app to add a new device. Select "Lighting" or "Outdoor Lighting" and follow the on-screen prompts.
- Parringstilstand: Ensure your lantern is powered on. The lantern should blink rapidly to indicate it's in pairing mode. If not, turn it off and on quickly several times until it blinks.
- Opret forbindelse til WiFi: Enter your 2.4GHz WiFi network name and password when prompted in the app. Note: This device only supports 2.4GHz WiFi networks.
- Færdiggørelse: Once connected, the app will confirm successful pairing, and you can rename your lantern.
App Features and Control
- On/Off kontrol: Turn the lantern on or off from anywhere using the app.
- Justering af lysstyrke: Juster lysintensiteten fra 1% til 100%.
- Farvevalg: Choose from millions of RGB colors or select various shades of white (warm to cool).
- Scener og effekter: Apply pre-set scenes or create custom lighting effects for different occasions (e.g., holidays, parties).
- Planlægning: Set daily or weekly schedules for the lantern to turn on/off automatically.
- Timere: Set countdown timers for the lantern to turn off after a specified duration.
- Gruppekontrol: Control multiple Feit Electric smart devices simultaneously by grouping them in the app.
Figure 3: Smart Coach Lanterns illuminating a home's exterior with vibrant red and purple lighting, demonstrating color-changing capabilities.

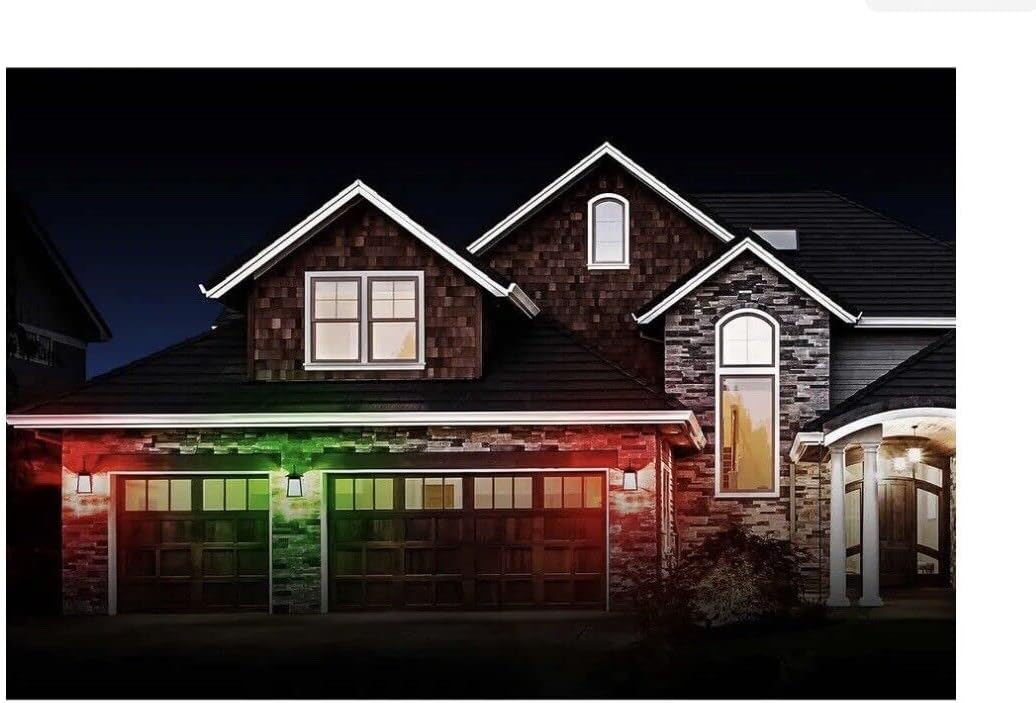

Figure 4: Smart Coach Lanterns providing festive green and red illumination to a home's facade, suitable for holiday themes.
Figure 5: Smart Coach Lanterns casting a uniform purple glow on a residential exterior, showcasing a single color option.
Stemmestyringsintegration
The Feit Electric Smart Coach Lantern is compatible with Amazon Alexa and Hey Google. To enable voice control:
- Tilknyt konti: In your Alexa or Google Home app, search for the "Feit Electric" skill/action and enable it.
- Log ind: Log in with your Feit Electric app credentials when prompted.
- Opdag enheder: Når den er forbundet, skal du bede din stemmeassistent om at "Opdag enheder" eller manuelt starte enhedsopdagelse i appen.
- Stemmekommandoer: Du kan nu bruge kommandoer som:
- "Alexa, turn on the [Lantern Name]."
- "Hey Google, set [Lantern Name] to blue."
- "Alexa, dim [Lantern Name] to 50%."
Opretholdelse
- Rensning: To clean the lantern, ensure power is off. Use a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen eller glasset.
- Integreret LED: The LED light source is integrated and not user-replaceable. It is designed for long-term operation (up to 50,000 hours).
- Firmwareopdateringer: Periodically check the Feit Electric app for firmware updates to ensure optimal performance and access to new features.
- Vejrbestandighed: While designed for outdoor use, the lantern is not water resistant. Avoid direct exposure to high-pressure water jets.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lanterne tænder ikke. | Ingen strøm; løse ledninger; defekt armatur. | Check circuit breaker. Ensure all wire connections are secure. Test power at the junction box. If issues persist, contact support. |
| Cannot connect to Feit Electric app. | Incorrect WiFi network (not 2.4GHz); incorrect password; lantern not in pairing mode; WiFi signal too weak. | Ensure you are on a 2.4GHz WiFi network. Double-check password. Cycle power to the lantern (off/on quickly 3-5 times) to enter pairing mode. Move router closer or use a WiFi extender. |
| Stemmestyring virker ikke. | Accounts not linked; device not discovered; incorrect voice command. | Verify Feit Electric skill/action is enabled and accounts are linked in Alexa/Google Home app. Ask voice assistant to "Discover devices." Use correct device name and commands. |
| Lantern disconnects frequently. | Svagt WiFi-signal; netværksforstyrrelser. | Improve WiFi signal strength near the lantern. Reduce interference from other 2.4GHz devices. |
Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnummer | 1613106 |
| Varenummer | LAN13/RGBW/RP |
| Mærke | Feit Electric |
| Dimensioner (L x B x H) | 15 x 12 x 8 tommer |
| Varens vægt | 4 pund |
| Lyskildetype | Integreret LED |
| Lysstyrke | 500 lumen |
| Farveindstillinger | RGBW (Millions of colors + Tunable White) |
| Kontrolmetode | Feit Electric App, Amazon Alexa, Hey Google |
| Strømkilde | Elektrisk med ledning |
| Voltage | 120 volt |
| Materiale | Aluminium, glas |
| Finish Type | Bronze finish |
| Indendørs/Udendørs brug | Udendørs |
| Vandmodstandsniveau | Ikke vandafvisende |
| UPC | 017801700299 |
Garanti og support
For warranty information and details regarding your Feit Electric Smart WiFi LED Coach Lantern, please refer to the warranty card included with your product or visit the official Feit Electric webGarantibetingelserne dækker typisk defekter i materialer og udførelse under normal brug.
For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Feit Electric Customer Service:
- Webwebsted: www.abey.com
- Telefon: Se Feit Electric webhjemmeside for aktuelle kontaktnumre.
- E-mail: Se Feit Electric webwebsted for nuværende kontakt-e-mail.
Hav venligst modelnummeret (1613106) og købsdatoen klar, når du kontakter support.
