Indledning
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Brio Moderna Self-Cleaning Touchless Bottleless Water Cooler Dispenser. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Brio Moderna dispenser offers advanced 3-stage filtration, personalized temperature adjustment for both cold and hot water, and a hygienic touchless dispensing system. It is designed to provide clean, refreshing water directly from your plumbed water line.
Vigtige sikkerhedsoplysninger
For at mindske risikoen for personskade eller materielle skader skal du overholde følgende sikkerhedsforanstaltninger:
- Always connect the dispenser to a grounded electrical outlet.
- Brug ikke dispenseren, hvis netledningen er beskadiget.
- Ensure the dispenser is placed on a level, stable surface.
- Hold dispenseren væk fra direkte sollys og varmekilder.
- Bloker ikke ventilationsåbninger.
- Tag stikket ud af dispenseren, før du rengør eller udfører vedligeholdelse.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
- Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
Produktkomponenter
Your Brio Moderna water cooler dispenser comes with the following main components:
- Water Cooler Dispenser Unit (Black)
- 3-Stage Water Filter Kit (Sediment, Pre-Carbon, Post-Carbon Filters)
- Installation Kit (including necessary tubing and connectors for plumbed setup)
- Drypbakke
- Strømledning

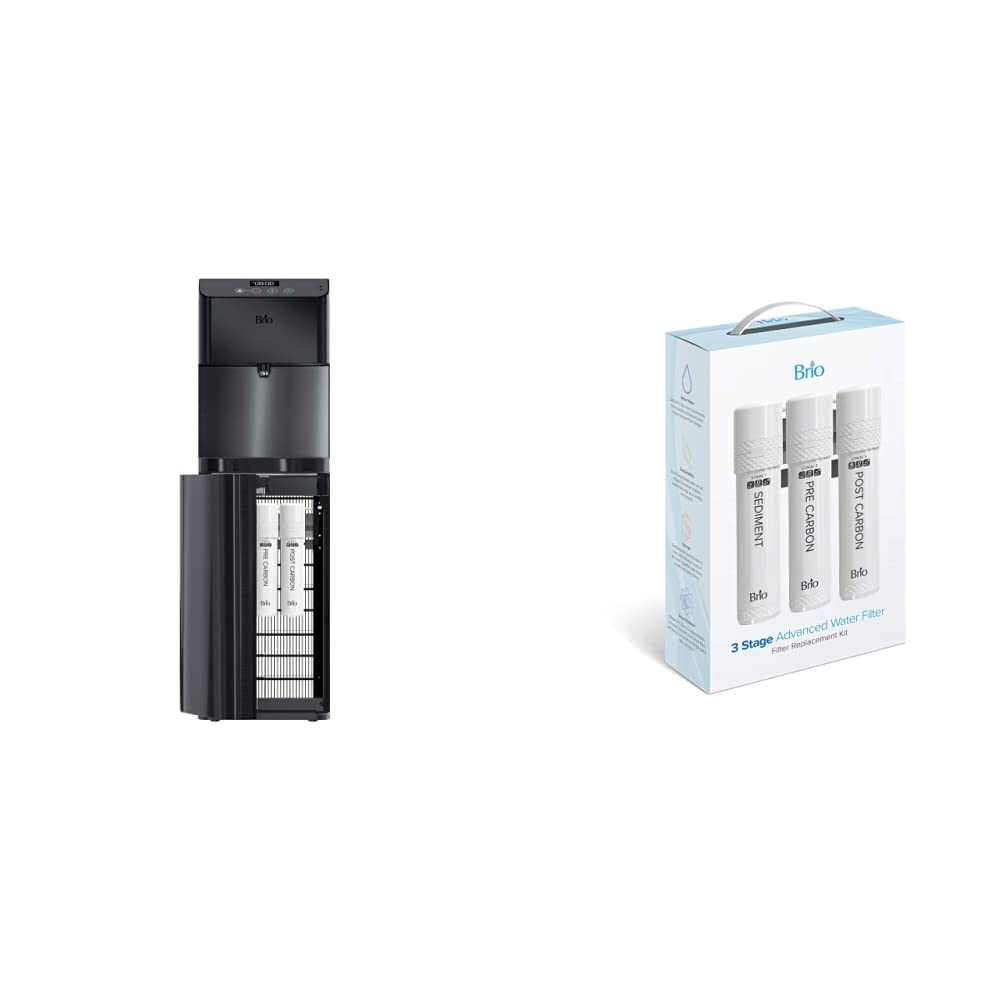

Image showing the Brio Moderna water cooler dispenser with its side panel open, revealing the filter compartments, alongside the boxed 3-stage filter replacement kit.
Opsætning og installation
1. Udpakning og placering
- Fjern forsigtigt alle emballagematerialer.
- Place the dispenser on a flat, stable, and level surface. Ensure there is at least 4 inches of clearance from walls for proper ventilation.
- The dispenser is designed for indoor use only.
2. Filterinstallation
- Open the filter compartment door, typically located on the lower front or side of the unit.
- Insert the Sediment, Pre-Carbon, and Post-Carbon filters into their respective slots. Ensure they are securely twisted or pushed into place according to the markings.
- Close the filter compartment door.
3. Water Line Connection (Plumbed Installation)
- Locate a cold water supply line near the dispenser's intended location.
- Sluk for hovedvandforsyningen.
- Using the provided installation kit, connect the dispenser to the cold water supply line. Follow the specific instructions provided with the installation kit for proper connection to avoid leaks.
- Sørg for, at alle forbindelser er tætte og sikre.
- Tænd langsomt for hovedvandforsyningen, og kontroller for eventuelle lækager.
4. Første skylning
- Before first use, dispense several cups of water from both the cold and hot spouts to flush the system and filters. Discard this water.
- Continue flushing until the water runs clear and free of air bubbles.
5. Strømtilslutning
- Sæt dispenseren i en jordet stikkontakt.
- Allow approximately 15-30 minutes for the water to reach optimal cold and hot temperatures.
Betjeningsvejledning
Dispensing Water (Touchless Operation)
- Place your cup or container under the desired dispensing spout (cold or hot).
- Wave your hand approximately 1-2 inches in front of the motion sensor located above the dispensing area.
- Water will begin to dispense. Wave your hand again to stop the flow.
- Note: The motion sensor feature is primarily designed for cold water dispensing. For hot water, a safety button or lever may need to be pressed in conjunction with the sensor or a manual button. Refer to the specific controls on your unit.
Temperaturjustering
Your Brio Moderna dispenser allows for personalized temperature settings for both cold and hot water. Controls are typically located on the back or inside a panel of the unit.
- Koldt vand temperatur: Use the cold water thermostat dial to adjust the temperature. Turning the dial towards 'colder' will decrease the temperature.
- Varmtvandstemperatur: Use the hot water thermostat dial or button to adjust the temperature. Exercise caution when adjusting hot water settings.
Opretholdelse
Udskiftning af filter
3-ernetage filters should be replaced periodically to ensure optimal water quality. Filter life depends on water usage and local water quality, but generally, filters should be replaced every 6-12 months.
- Tag stikket til dispenseren ud af stikkontakten.
- Sluk for vandtilførslen til dispenseren.
- Åbn filterrummet.
- Twist or pull out the old filters. Be prepared for a small amount of water to drip.
- Insert new Brio replacement filters, ensuring they are securely seated.
- Luk filterrummet.
- Turn on the water supply and plug in the dispenser.
- Flush the new filters by dispensing several cups of water from both spouts.
Rengøring af dispenseren
- Udvendig rengøring: Tør de udvendige overflader af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Drypbakke: Regularly remove and empty the drip tray. Wash it with mild soap and water, then rinse and dry thoroughly before replacing.
- Selvrensende funktion: Your dispenser features a self-cleaning function. Refer to the specific instructions on your unit for activating this cycle. This typically involves pressing a dedicated button or sequence of buttons, which uses UV light or ozone to sanitize the water tanks.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen vanddispensering | Water supply off; clogged filter; airlock in system; dispenser unplugged. | Check water supply valve; replace filters; flush system; ensure dispenser is plugged in. |
| Vandet er ikke koldt/varmt nok | Temperature setting too high/low; insufficient time to cool/heat; ventilation blocked. | Adjust temperature settings; allow more time; ensure proper ventilation around unit. |
| Utætte | Loose water line connection; damaged O-ring; cracked component. | Check all connections for tightness; inspect O-rings and components for damage. Contact support if leak persists. |
| Usædvanlig støj | Compressor cycling; air in system; loose component. | Normal operation may include compressor noise; flush system to remove air; check for loose parts. |
Specifikationer
- Model: CLPOU720UVF3XB
- Mærke: Brio
- Farve: Sort
- Installationstype: Plumbed (Bottleless)
- Adgangssted: Bottom (for filter access)
- Filtrering: 3-Stage (Sediment, Pre-Carbon, Post-Carbon)
- Udlevering: Touchless (Motion Sensor)
- Temperaturkontrol: Adjustable Cold & Hot
- Selvrensende: Ja
Garanti og support
For warranty information, product registration, or technical support, please refer to the warranty card included with your product or visit the official Brio website. You can also contact Brio customer service directly for assistance with troubleshooting or parts replacement.
Online support: Visit the Brio Store on Amazon
