1. Introduktion
The Pecron E2000LFP is a high-capacity portable power station designed to provide reliable power for various applications, including home backup, outdoor activities, RV use, and emergency situations. Featuring a 1920Wh LiFePO4 battery, it delivers a rated power of 2000W (Surge 4000W) and can be expanded up to 8064Wh with additional battery packs. This manual provides essential information for safe and efficient operation of your E2000LFP power station.
Image 1: The Pecron E2000LFP Portable Power Station, showcasing dens robuste design og flere udgangsporte.
2. Opsætning
2.1. Udpakning og medfølgende komponenter
Sørg for, at alle komponenter er til stede ved udpakning:
- Pecron E2000LFP portable power station
- Tilbehørspakke
- Lysnetadapter
- 5-pin Aviation Plug To MC4 Solar Charging Cable (x2)
- Bil oplader kabel
- Brugermanual
2.2. Første opladning
Before first use, fully charge the E2000LFP using the provided AC power adapter. Connect the AC adapter to the DC Input port on the power station and then to a standard wall outlet. The LCD display will indicate charging status.
Video 1: A user demonstrating the unboxing and initial setup of the Pecron E2000LFP, highlighting the included accessories and various ports.
3. Betjeningsvejledning
3.1. LCD-skærm
The intelligent HD LCD display provides real-time information on battery status, input/output wattage, remaining runtime, and other operational parameters. Press the DC or AC buttons to activate the respective outputs and view their status.
Video 2: A detailed look at the Pecron E2000LFP's LCD display, showing battery percentage, hvadtage, and remaining runtime, along with the AC and DC output buttons.
3.2. Udgangsporte
The E2000LFP features 16 output ports to power a wide range of devices:
- AC stikkontakter: 4x 2000W AC outlets (110V Pure-sine wave) for standard appliances.
- 30 AMP Outlet: 1 x 30 AMP outlet for higher power demands.
- USB-porte: 6x USB ports, including PD 100W USB-C for fast charging laptops and other compatible devices, and standard USB-A ports.
- Cigar Port: 1x 12V cigar port.
- DC-porte: 2x DC ports.
- Trådløs oplader: 1x 15W wireless charging pad on top for compatible smartphones.
Image 2: An illustration detailing the 15 versatile output ports available on the Pecron E2000LFP, including AC, DC, USB, and wireless charging options.
3.3. Battery Expansion
The E2000LFP's capacity can be expanded up to 8064Wh by connecting additional Pecron EB3000 battery packs via the dedicated DC 24V Battery Expansion port. This modular design allows for increased power storage as needed.
Image 3: The Pecron E2000LFP power station shown connected to an EB3000 expansion battery, illustrating its expandable capacity up to 8064Wh.
Image 4: A visual representation of the modular power supply system, showing how the E2000LFP can be combined with EB3000 units to achieve higher capacities.
4. Opladningsmetoder
The E2000LFP offers four flexible charging options:
- AC (Home) Charging: Use the AC power adapter to charge from a standard wall outlet.
- DC (Vehicle) Charging: Utilize the Car Charger cable to charge from your vehicle's 12V outlet.
- PV (Solar) Charging: Connect compatible solar panels (up to 1200W max input) using the provided 5-pin Aviation Plug To MC4 Solar Charging Cables.
- Generatoropladning: The unit can also be charged via a compatible generator.

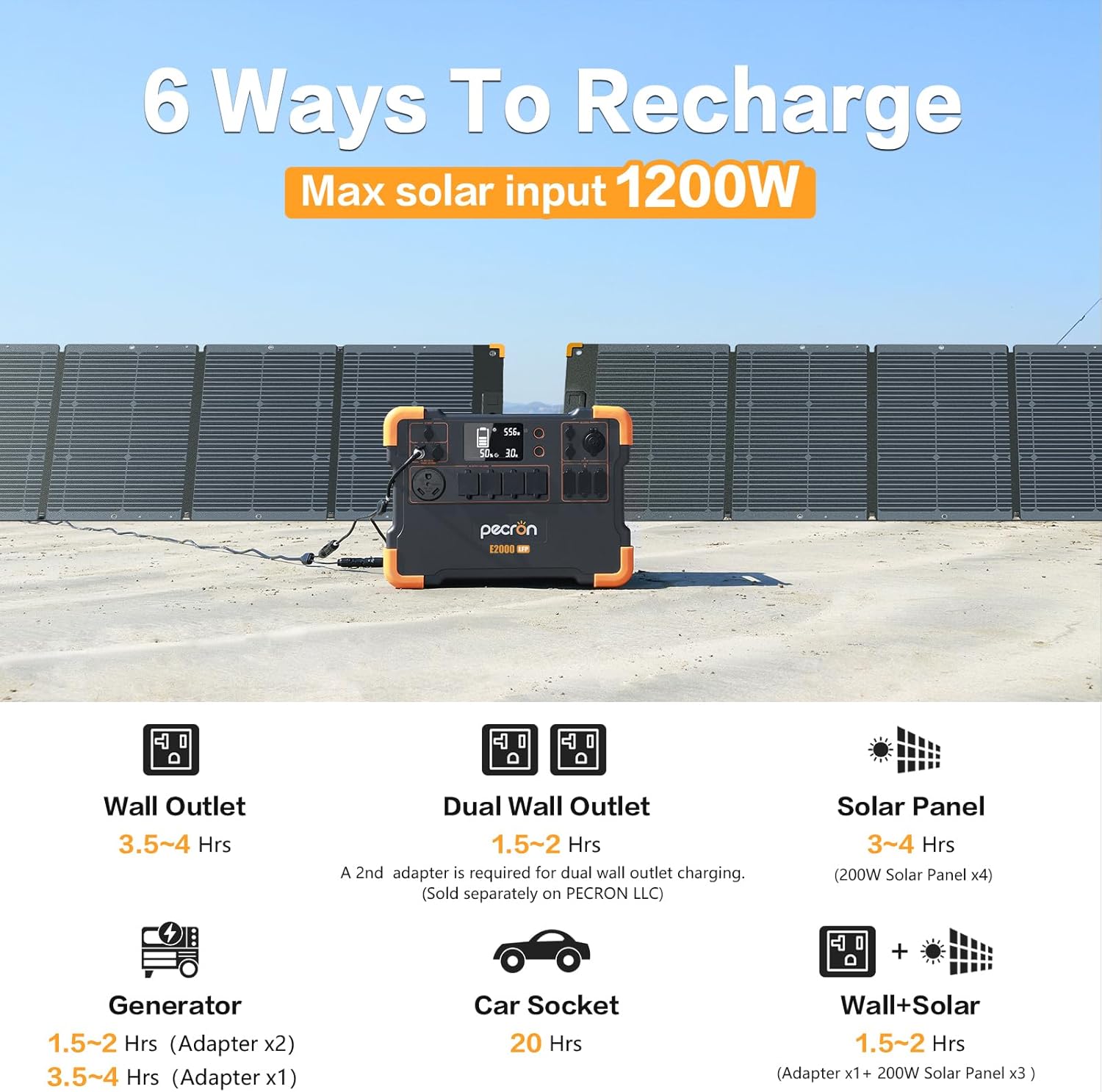

Image 5: An infographic illustrating the six different ways to recharge the Pecron E2000LFP, including wall outlets, solar panels, and car sockets.
Image 6: The Pecron E2000LFP being charged by solar panels in an outdoor setting, emphasizing its clean energy capabilities.
5. Vedligeholdelse
5.1. Battery Preservation
To preserve battery life, charge the unit to 80% for long-term storage and charge it at least once every 6 months.
5.2. Sikkerhedsfunktioner
The E2000LFP is equipped with an ultra-safe LiFePO4 battery and a Built-in Battery Management System (BMS) that provides self-protection against short circuits, overload, and overheating. The 110V Pure-sine wave inverter ensures no damage to sensitive electronic devices.
Billede 7: En eksploderet view of the Pecron E2000LFP, highlighting its LiFePO4 cells and Built-in BMS for enhanced safety and durability.
6. Fejlfinding
If you encounter any issues with your Pecron E2000LFP, please refer to the detailed user manual included with your product for specific troubleshooting steps. Common issues can often be resolved by checking connections, ensuring proper charging, or resetting the unit. For persistent problems, contact customer support.
7. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | pecron |
| Wattage | 2000 watt |
| Brændstoftype | Elektrisk |
| Strømkilde | AC/DC |
| Anbefalede anvendelser | Camping, Commercial, Residential |
| Varens vægt | 9.4 kilo |
| Voltage | 230 volt (AC) |
| Output Wattage | 4000 Watts (Surge) |
| Speciel funktion | Expandable, Solar power |
| Inkluderede komponenter | E2000LFP portable power station, Accessory Pack, AC Power adapter, Solar Charging Cable*2, 2 sets of parallel solar panel cables, Car Charger cable, User manual |
Image 8: The Pecron E2000LFP with its approximate dimensions (16 inches long, 10 inches wide, 11 inches high).
8. Garanti og support
Pecron provides a 12-month warranty for the E2000LFP power station. This warranty can be extended for an additional year if the original purchaser registers their product within 30 days of purchase. The Accessory Pack, AC Power Cord, Solar charging cable, and Car Charger cable are warranted for one year. For customer service, refer to the contact information in your user manual or visit the official Pecron webwebsted.
