1. Introduktion
This manual provides essential information for the safe and efficient use of your Innostyle Magnetic Wireless Power Bank. Please read this manual thoroughly before using the product and retain it for future reference.
Image 1.1: The Innostyle Magnetic Wireless Power Bank (Purple) magnetically attached to the back of an iPhone.
2. Hvad er der i æsken
Kontroller, at alle genstande er til stede ved udpakning:
- 1x Magnetic Wireless Power Bank (Model: IM20PD)
- 1x USB-A til USB-C-kabel
- 1x Brugermanual (dette dokument)
3. Produktet er slutview
Familiarize yourself with the components and features of your power bank.

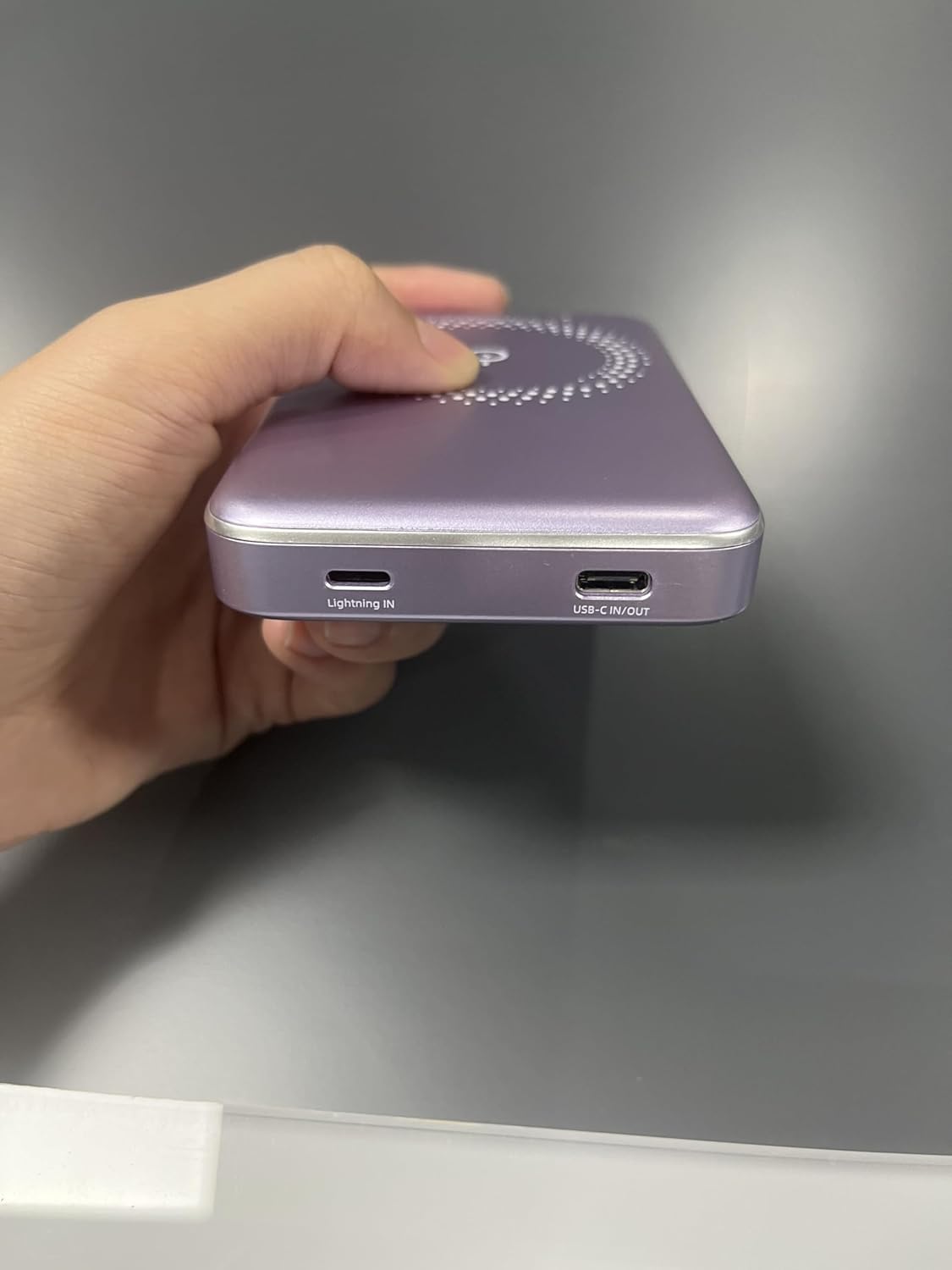

Image 3.1: Key components of the Innostyle Magnetic Wireless Power Bank, including the power button, USB-C IN/OUT port, Lightning IN port, and LED indicators.
- Power knap: Used to turn the device on/off and activate low-power mode.
- USB-C IN/OUT Port (20W): For charging the power bank and for wired fast charging of external devices.
- Lightning IN Port (18W): Til opladning af powerbanken med et Lightning-kabel.
- LED-indikatorer: Viser det resterende batteriniveau og opladningsstatus.
- Magnetisk opladningsoverflade: For wireless charging of compatible devices.
4. Opsætning
4.1 Første opladning af powerbanken
Before first use, fully charge the power bank. Connect the provided USB-A to USB-C cable to the power bank's USB-C IN/OUT port and a compatible USB wall adapter (not included). Alternatively, use a Lightning cable with the Lightning IN port. The LED indicators will show charging progress.
4.2 Tænd/sluk
- At tænde: Short press the power button once. The LED indicators will light up.
- At slukke: Short press the power button twice. The LED indicators will turn off.
5. Betjeningsvejledning
5.1 Magnetic Wireless Charging (7.5W Max)
Align your compatible iPhone (iPhone 15/14/13/12 series) or AirPods with the magnetic charging surface on the power bank. The magnets will snap into place, and wireless charging will begin automatically. Ensure your iPhone is without a case or uses a magnetic-compatible case for optimal attachment and charging efficiency.
Image 5.1: Demonstrates the seamless magnetic attachment of the power bank to an iPhone for wireless charging.
5.2 Wired Fast Charging (20W PD Max)
Connect your device to the power bank's USB-C IN/OUT port using a USB-C to USB-C cable (for compatible devices) or a USB-C to Lightning cable (for iPhones). The power bank supports Power Delivery (PD) 20W fast charging, capable of charging an iPhone 13 from 0% to 50% in approximately 30 minutes.
Image 5.2: Illustration of 2-in-1 fast charging, showing both wireless (7.5W Max) and wired (20W Max) charging options.
5.3 Pass-through-opladning
The power bank supports pass-through charging, allowing you to recharge the power bank itself while simultaneously charging your iPhone wirelessly or via cable. Connect the power bank to a wall adapter, then attach your iPhone for charging.
Image 5.3: Depiction of the power bank being recharged from a wall outlet while simultaneously charging an iPhone.
5.4 Charging Two Devices Simultaneously
You can charge two devices at the same time: one wirelessly via the magnetic surface and another via the USB-C port.
Image 5.4: The power bank simultaneously charging an iPhone wirelessly and another device via a wired connection.
5.5 Low-Power Mode
To enter low-power mode (for charging low-current devices like earbuds or smartwatches), press and hold the power button for 3 seconds. To exit low-power mode, press and hold the button for 3 seconds again.
5.6 Using Phone/Camera While Charging
The design of the power bank ensures that it does not obstruct your phone's camera lens, allowing for uninterrupted use while charging.

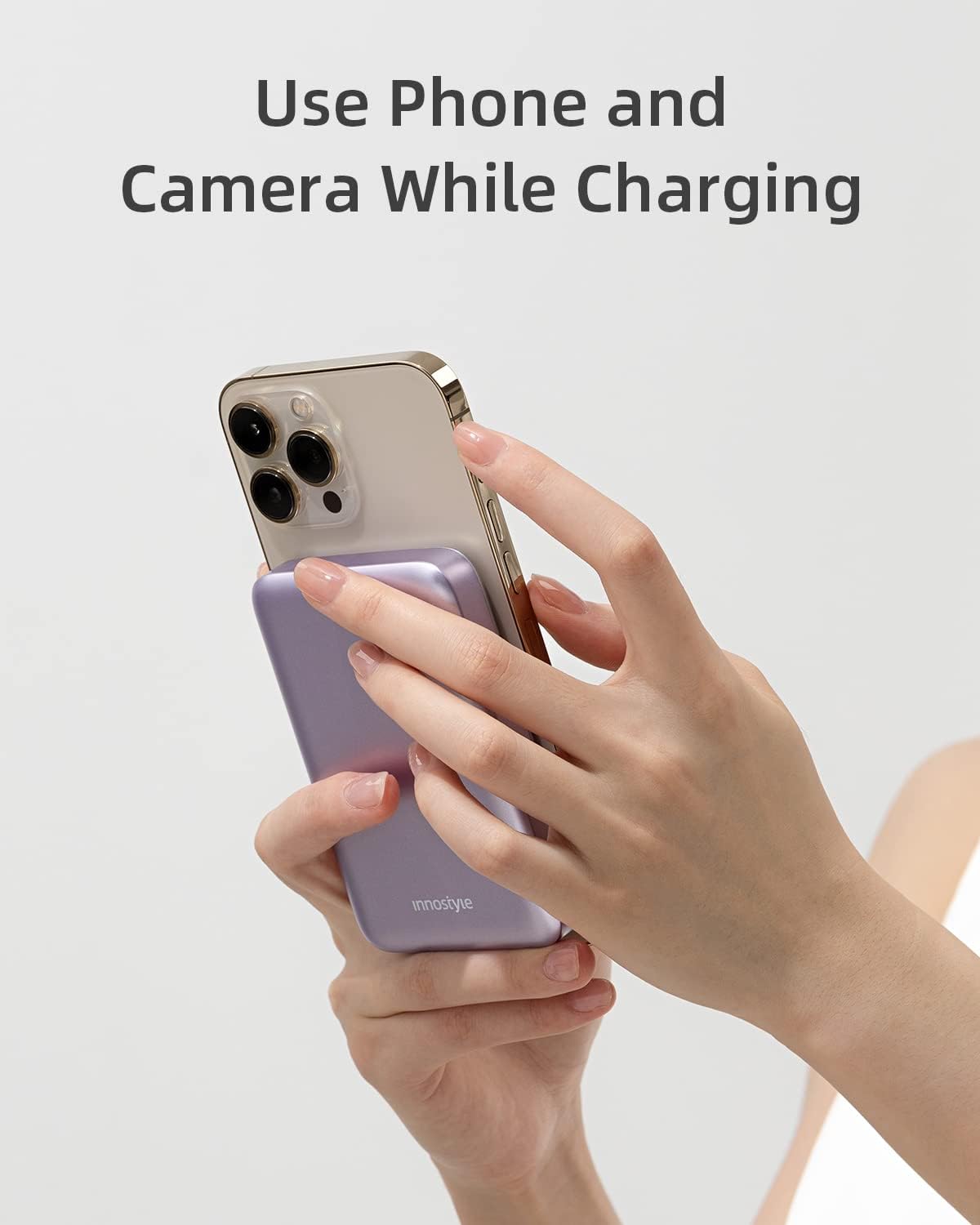

Image 5.5: The power bank attached to an iPhone, showing that the camera remains unobstructed during use.
6. Vedligeholdelse
- Rensning: Brug en blød, tør klud til at rengøre overfladen på powerbanken. Undgå at bruge skrappe kemikalier eller slibende materialer.
- Opbevaring: Opbevar powerbanken et køligt, tørt sted væk fra direkte sollys, ekstreme temperaturer og fugtighed.
- Batteripleje: For at forlænge batteriets levetid, bør du oplade powerbanken helt mindst én gang hver tredje måned, hvis den ikke er i brug regelmæssigt.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Powerbank oplader ikke | Kablet er ikke tilsluttet korrekt; defekt kabel/adapter; powerbanken er helt afladet. | Sørg for, at kablerne er korrekt tilsluttet. Prøv et andet kabel eller en anden vægadapter. Vent et par minutter, så powerbanken reagerer, hvis den er dybt afladet. |
| Enheden oplades ikke trådløst | Device not aligned; non-magnetic case; device not compatible; foreign object between power bank and device. | Realign the device. Remove any non-magnetic cases. Ensure your device supports wireless charging. Remove any foreign objects. |
| Langsom opladning | Using a standard charger instead of fast charger; cable not supporting fast charging; device not supporting fast charging. | Use a PD-compatible wall adapter and cable for fast charging. Ensure your device supports fast charging. |
| Power bank turns off unexpectedly | Low battery; overheating; short circuit protection activated. | Recharge the power bank. Allow the power bank to cool down. If the issue persists, contact customer support. |
8. Specifikationer

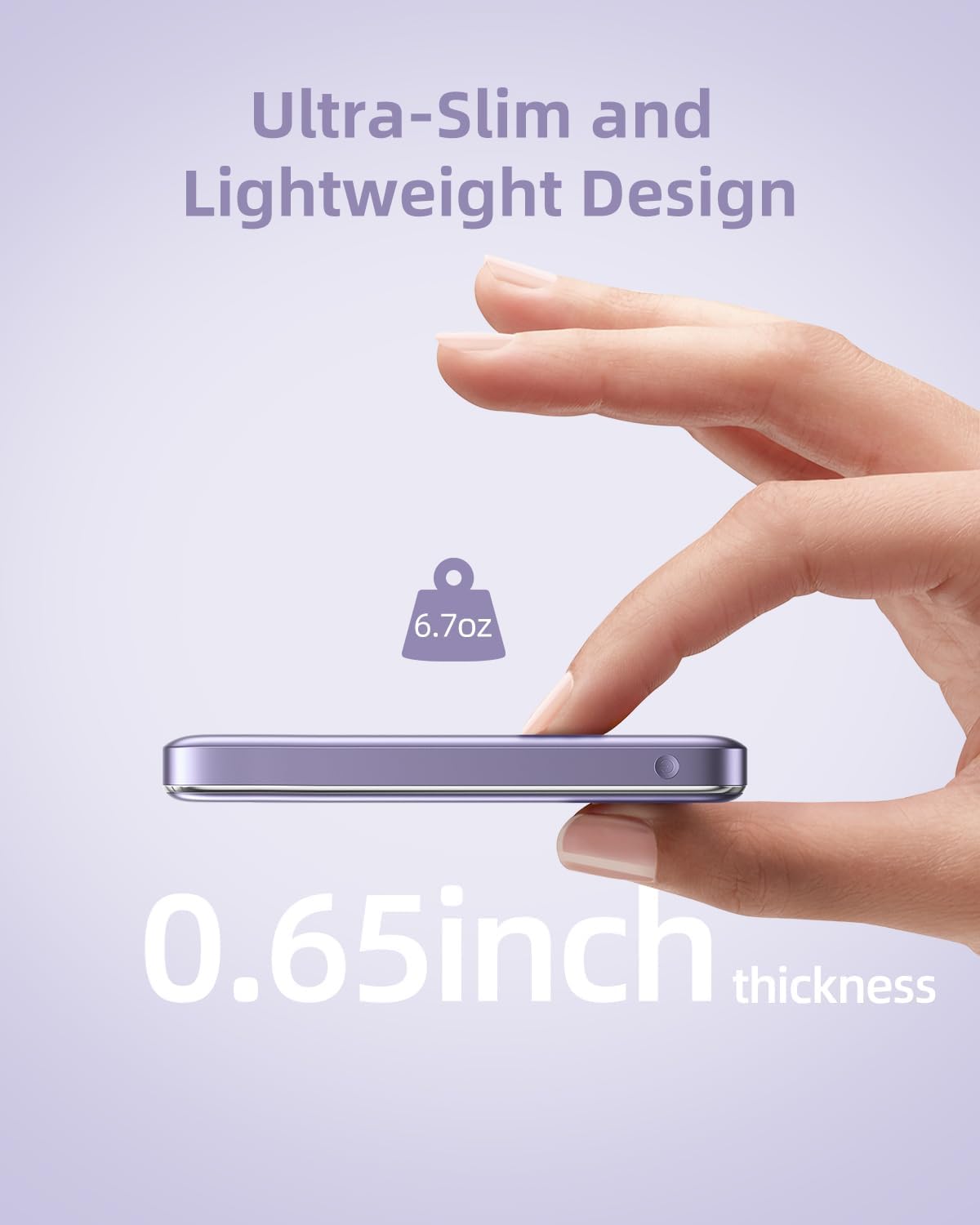

Image 8.1: The compact dimensions and light weight of the Innostyle Magnetic Wireless Power Bank.
| Feature | Detalje |
|---|---|
| Modelnummer | IM20PD |
| Batterikapacitet | 10000 mioamp Timer (mAh) |
| Produktdimensioner | 4.17 x 2.72 x 0.65 tommer |
| Varens vægt | 6.7 ounce |
| Trådløs opladningsoutput | 7.5W Maks |
| USB-C IN/OUT | 20W strømforsyning (PD) |
| Lightning IN | 18W |
| Særlige funktioner | Auto Shut-Off, Fast Charging, Pocket Size, Short Circuit Protection, Wireless Charging |
| Farve | Lilla |
9. Sikkerhedsoplysninger
- Udsæt ikke powerbanken for ekstreme temperaturer (over 45 °C eller under 0 °C).
- Undgå at tabe, skille ad eller forsøge at reparere enheden selv.
- Holdes væk fra vand, fugt og brandfarlige materialer.
- Do not place metal objects or magnetic cards between the power bank and your device during wireless charging.
- Bortskaf powerbanken i henhold til lokale regler for elektronisk affald.
10. Garanti og support
For warranty information and customer support, please refer to the product packaging or visit the official Innostyle website. You may also contact the seller directly through your purchase platform for assistance.
Manufacturer: INNOSTYLE (Innostyle Innovations Co., Limited)
